Ascend Carrier Board

  • Atlas 200I A2 Carrier Board GC-A101
  • Atlas 200I A2 Carrier Board GC-A101
Atlas 200I A2 Carrier Board GC-A101Atlas 200I A2 Carrier Board GC-A101

Atlas 200I A2 Carrier Board GC-A101

● Based on Ascend Atlas 200I A2
● 20 TOPS/8 TOPS
● 4x USB, 1x RJ45, 1x Micro SD,1x HDMI, 1x MIPI DSI
● 1x miniPCIe, 1x M.2 KEY E(2230), 1x M.2 KEY M(2242), 1x M.2 KEY B(3050), 1x nano SIM, 1x SATA(power supply)
● operating temperature: -40℃~ +85℃

Introduction

GC-A101 is an industrial-grade development board specifically designed for edge AI scenarios. Its core is equipped with the Ascend Atlas 200I A2 acceleration module, offering 8 TOPS or 20 TOPS computing power options, meeting the performance requirements for real-time AI inference in fields such as intelligent monitoring, smart education, autonomous robots, and drones.


To ensure stable operation in complex industrial environments, this carrier board fully adopts wide-temperature industrial-grade components and has implemented electrostatic safety protection designs for the main interfaces. Its highly reliable power supply solution and abundant external interfaces (including TF card slots and various boot media) provide high flexibility and compatibility for multi-scenario connection adaptation.


Specifications

Processor
 Ascend Atlas 200I A2
AI Compute
 20 TOPS INT8, 10 TFLOPS FP16 8 TOPS INT8, 4 TFLOPS FP16
Memory
 LPDDR4X, 12/8/4 GB, total bandwidth 51.2 / 34.1 /34.1 GB/s, ECC supported LPDDR4X, 12/8/4 GB, total bandwidth 51.2 / 34.1 /34.1 GB/s, ECC supported
CPU 4core * 1.6GHz 4core * 1.0GHz

Video Encoder/Decoder

JPEG

Encoder/Decoder

40x 1080P 30FPS, 4x 4K (3840x2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840x2160) 50FPS H.264 / H.265

JPEG decoder:1080P 512FPS,

JPEG encoder:1080P 256FPS, max. resolution:16384 x 16384

40x 1080P 30FPS, 4x 4K (3840 x 2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840 x 2160) 50FPS H.264 / H.265

JPEG decoder:1080P 512FPS,

JPEG encoder:1080P 256FPS,

max. resolution:16384 x 16384
Display
1x HDMI, 1x MIPI DSI
USB
2x USB 3.0 Type-A, 1x USB 3.0 Type-C, 1x USB3.0 HEADER
Network
2x Gigabit network (1x RJ45+ 1x 16pin Header)
SD 1x Micro SD
Button
1x Power, 1x Recovery, 1x Reset, 1x sleep
Expansion
1x miniPCIe, 1x M.2 KEY E(2230), 1x M.2 KEY M(2242), 1x M.2 KEY B(3050), 1x nano SIM, 1x SATA(power supply)
Function Signal 1x AUDIO IN,2x AUDIO OUT,2x IIC,2x IIS,1x SPI,5x GPIO
Serial Port 3x UART
Temperature -40~+85℃
Dimensions
129mm*134mm*15.3mm
(Including l/0 ports and mounting holes)
Input Voltage DC 19V
Weight 113g
OS openEuler/Ubuntu

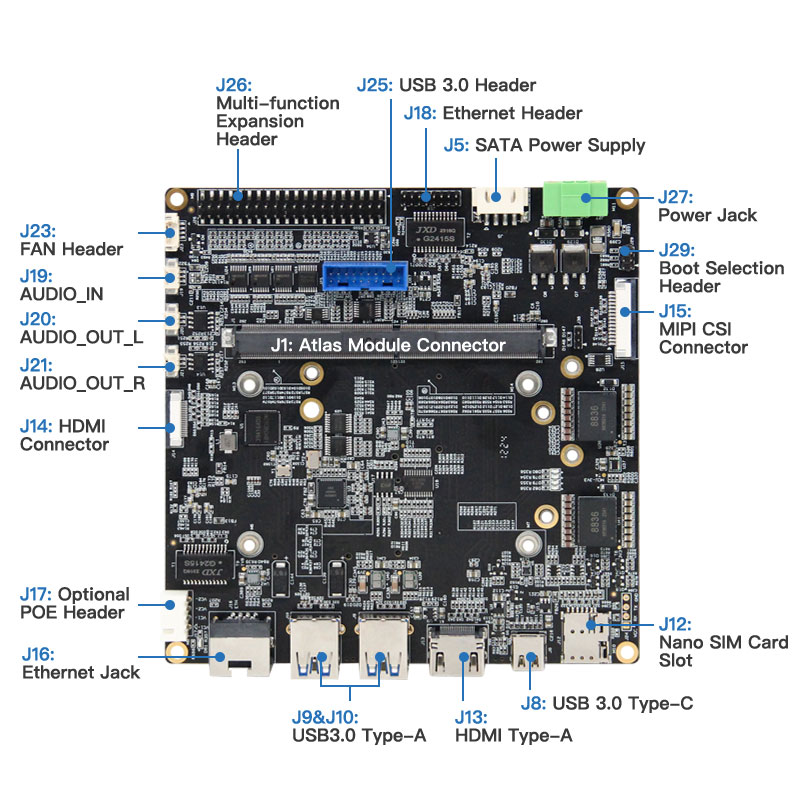

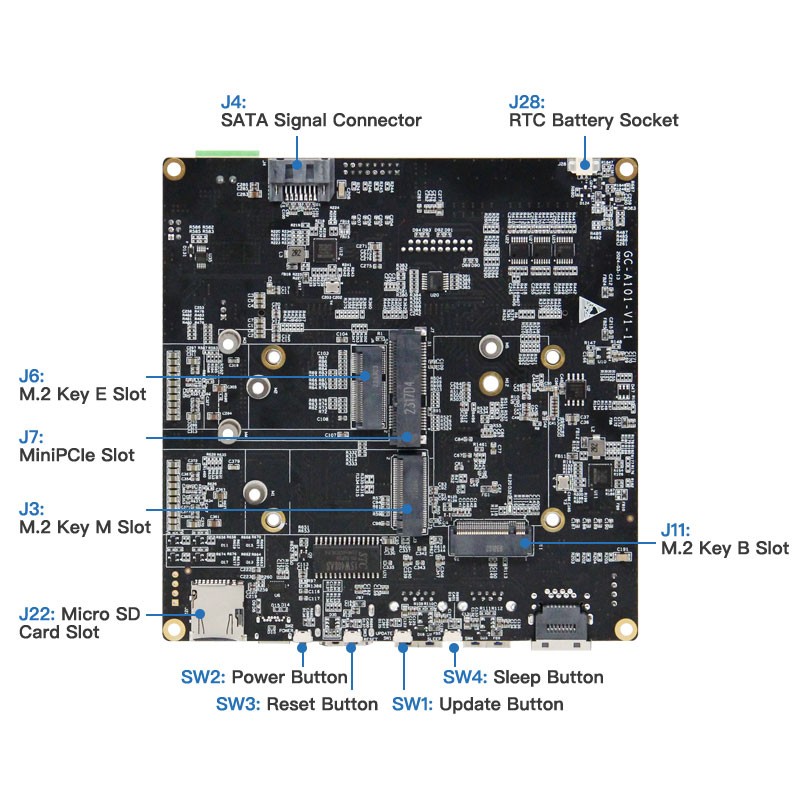

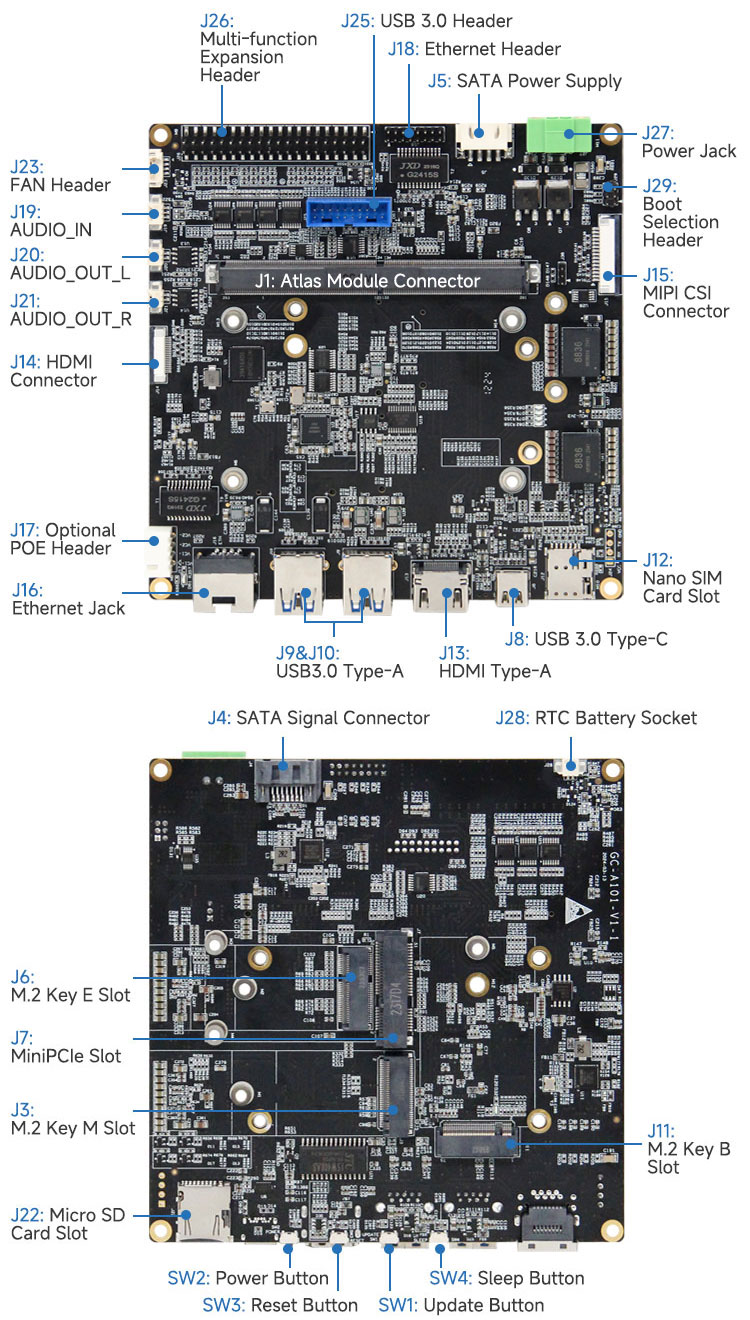

Interfaces

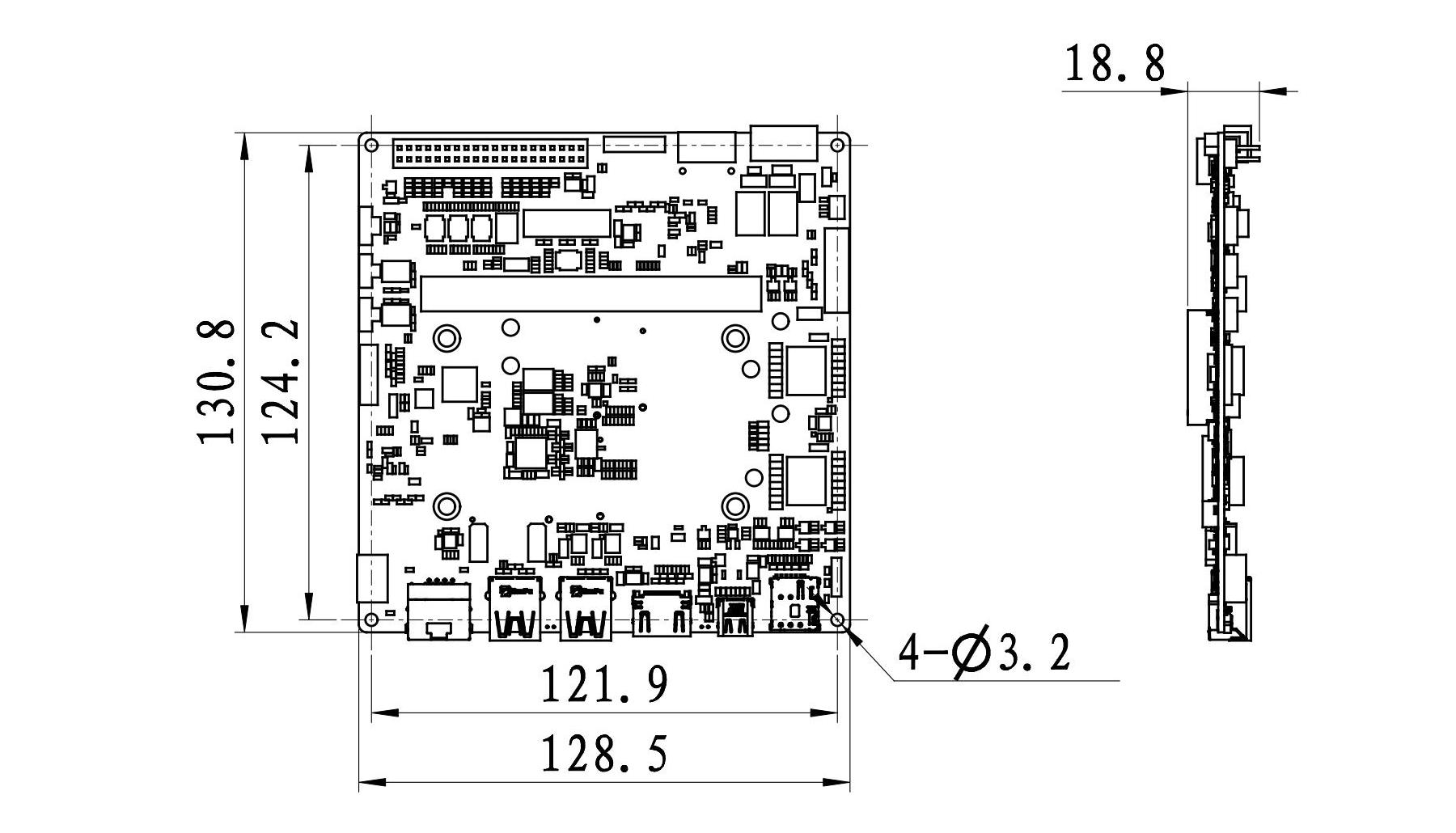

Dimensions
