Introduction
301-DEV is an industrial-grade edge AI development kit. Its core is equipped with the Ascend 310P, delivering 176 TOPS INT8 AI compute. It supports mainstream deep learning frameworks such as PyTorch and TensorFlow, providing developers with a full-process support from model training, optimization, deployment to real-time inference, accelerating the transition of edge AI applications from prototype verification to large-scale implementation.
Specifications
| Processor | AI310SM module（Ascend 310P） |
| AI Compute | 176 TOPS INT8 |
| CPU | ARMv8.2 16core TaishanV200M@max. 1.9 GHz |
| Memory | 48 GB 256位 LPDDR4X |
| Storage | 128G EMMC |
| Encode/Decode |
Video Encoder: 24x 1080P@30fps/3x 4K@60fps (H.264/H.265)
Video Decoder: 96x 1080P@30fps/12x 4K@60fps (H.264/H.265)
JPEG Encoder: 4K@192fps (FHD@1024fps)
JPEG Decoder: 4K@384fps (FHD@2048fps)
supports up/down scaling, crop, chroma up/down sampling, color space conversion（FHD 4320FPS）
|
| Display | 1x HDMI(option) |
| USB | 4x USB 3.0 Type-A |
| Network | 6x Gigabit network (2x RJ45+ 3x 16pin Header+ 1x FC ) |
| Button | Select 4 startup methods via the J60 jumper wire |
| 1.EMMC 2.PXE FTP 3.SATA 4.NVME | |
| Expansion | 2x miniPCIe,1x M.2 KEY M(2280),1x M.2 KEY M(2242),1x M.2 KEY B(3050),1x nano SIM,2x SATA(power supply) |
| Function Signal | 4xCAN，2xSPI，2xIIC，4xGPIO |
| Serial Port | 4xUART |
| Operating Temperature | -40℃~+65℃ |
| Dimensions | 170mm*170mm*73mm |
| Input Voltage | DC 9V~36V |
| Weight | 1000g |
| OS | openEuler |

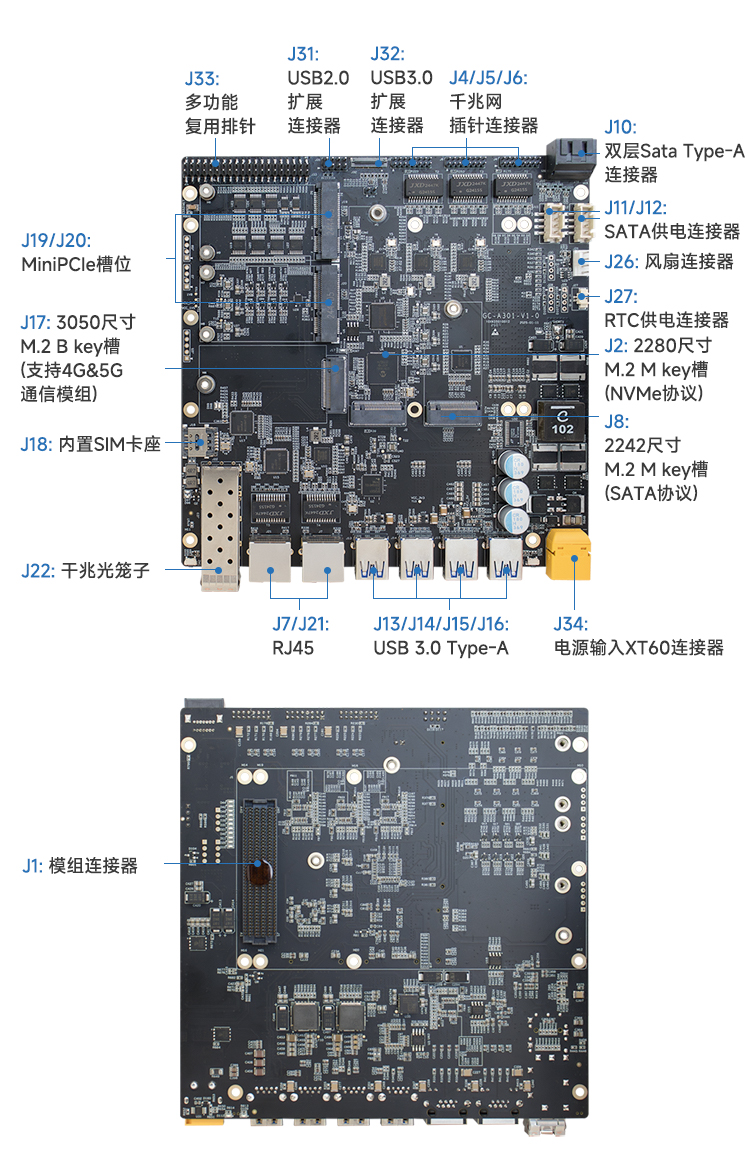

Interfaces

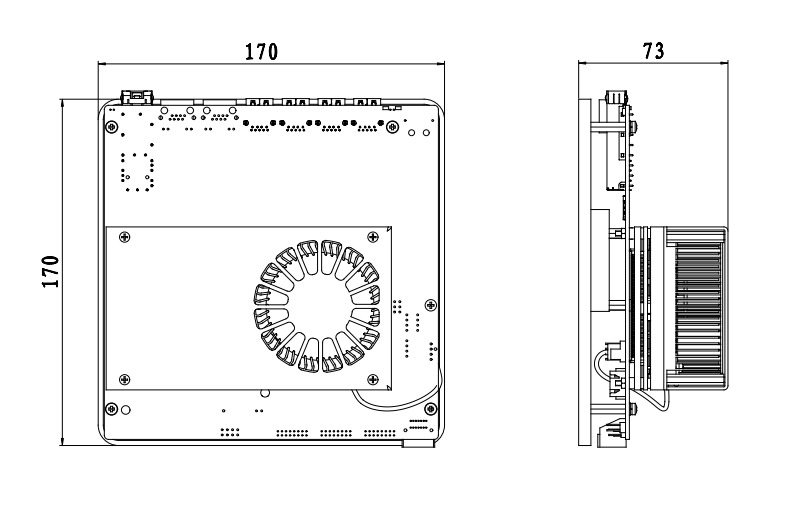

Dimensions
