AIV3X（3U）

● Based on Ascend 310P processor
● 176 TOPS INT8, 48G 256位 LPDDR4X, 128G EMMC
● Supports 96 channels of 1080P/12 channels of 4K H.264/H.265 video decoding
● Supports 4K@384fps (FHD@2048fps) JPEG decoding
● 3U VPX standard structure
● Supports conduction cooling and air cooli

Introduction

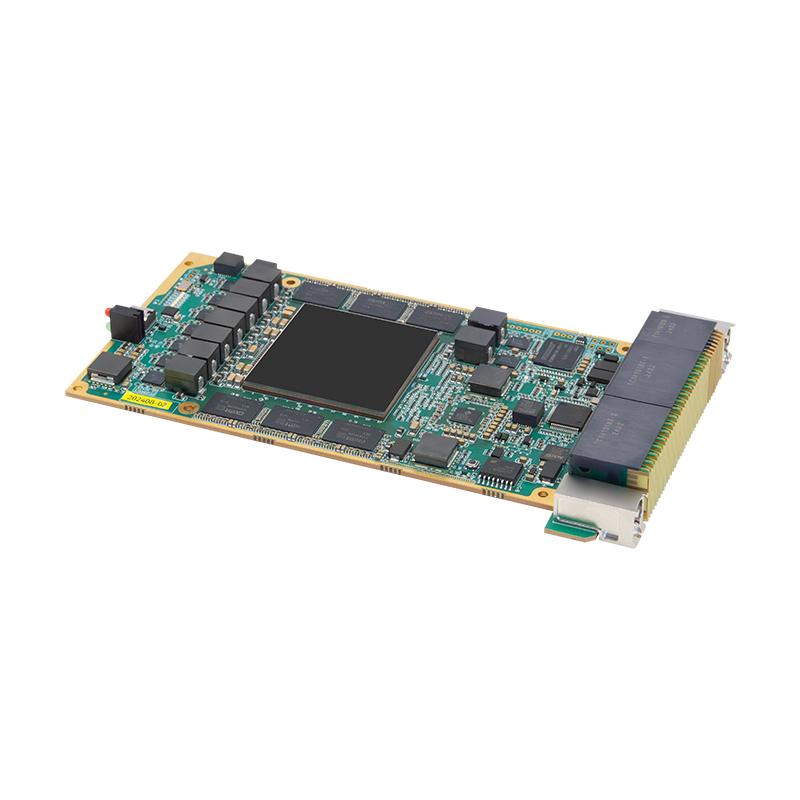

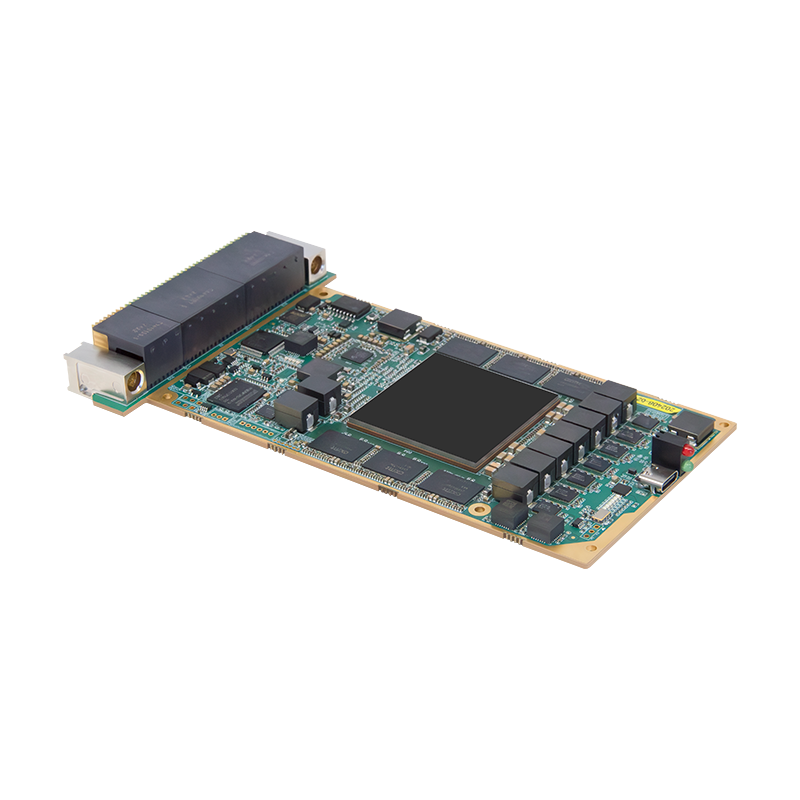

AIV3X is a high-performance industrial-grade edge AI intelligent computing card based on the Ascend 310P processor, capable of delivering up to 176 TOPS INT8 computing performance, meeting the requirements of edge AI inference application scenarios. It adopts a 3U structural design, complies with the VPX board card requirements, and supports both conduction cooling and air cooling for heat dissipation.


Specifications

Processor Ascend 310P
AI Compute 176 TOPS INT8
CPU ARMv8.2 16core TaishanV200M@max. 1.9 GHz
Memory 48 GB 256bit LPDDR4X
Storage 128G EMMC

Video Encoder/Decoder

JPEG Encoder/Decoder

Video Encoder: 24x 1080P@30fps/3x 4K@60fps H.264/H.265
Video Decoder: 96x 1080P@ 30fps/12路4K@60fps H.264/H.265
JPEG Encoder: 4K@192fps (FHD@1024fps)
JPEG Decoder: 4K@384fps (FHD@2048fps)
supports up/down scaling, crop, Chroma up/down sampling, color space conversion（FHD 4320FPS）
High-Speed Interface PCIE x16，compatible with PCIE x8
Other I/O Type-C
Power ≤120W
Dimensions 100 mm x 160 mm
Weight
 ≤1KG
Input Voltage
 DC 12V
Operating Temperature
 -40℃~ +65℃
OS 银河麒麟（EP）/OpenEuler（RC）
