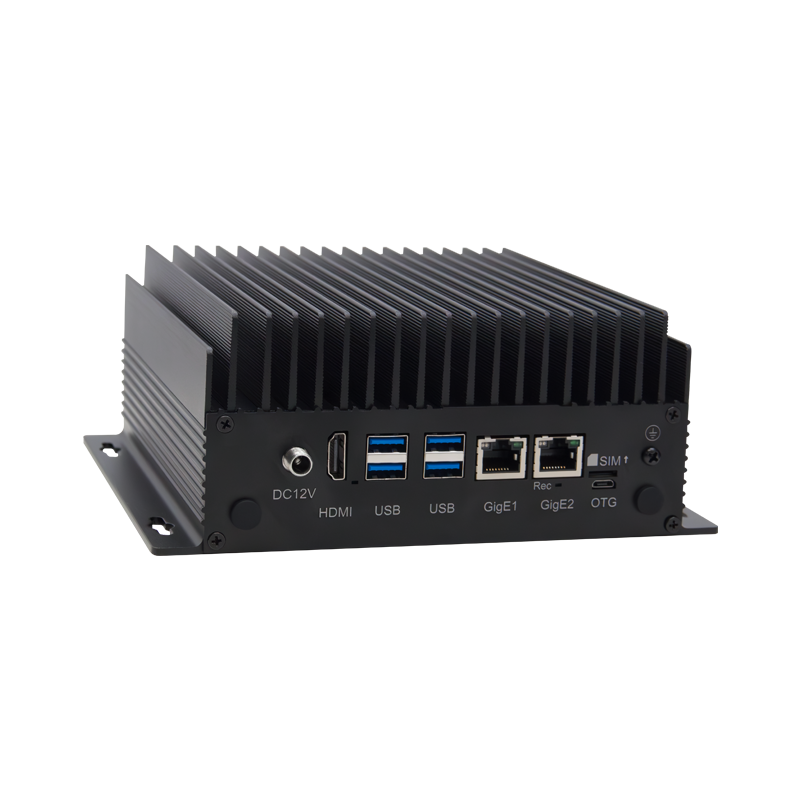

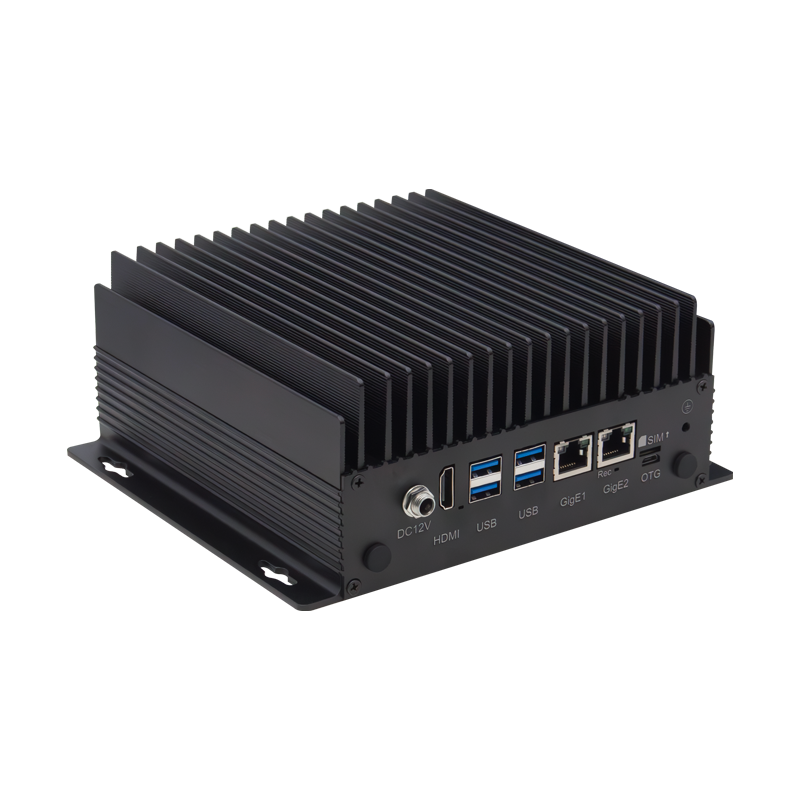

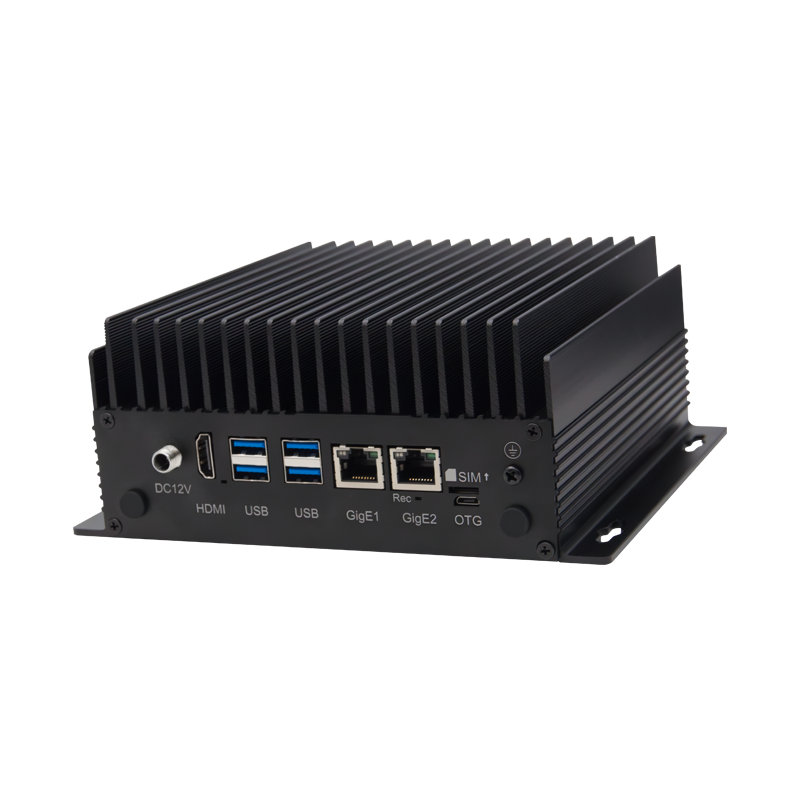

11D2E2 AI Computing Platform (referred to as 11D2E2) is compatible with NVIDIA Jetson Orin NX/Orin Nano core modules. It can provide up to 100 TOPS of computing power and has a rich set of external interfaces. The internal interface devices are all wide- temperature models.
11D2E2 can be expanded through the built-in miniPCIe interface, M.2 interface, such as SSD storage card, 4G/5G communication module, various video capture/output cards, AD collection card, multi-serial port card, audio collection/output card, multi-function IO card, etc.
11D2E2 can support up to 4 GMSL/GMSL2 camera module interfaces (GMSL is an optional function, not standard. Please contact our company for GMSL camera models compatible with this product). It reserves the optical isolation IO interface to support 24V DC power input and output. It can be expanded to support POE gigabit network, compatible with industrial automation, vehicle-road coordination and other scene requirements.
|
Feature |
|
|
Y-C11 |
Develop carrier board |
|
Module |
NVIDIA Jetson Orin NX / Orin Nano Module |
|
Temperature |
-20 ~ +65°C |
|
Dimensions (W×D×H) |
190.30mm * 180.50mm * 75.30mm (Including I/O ports and mounting holes) |
|
Weight |
1603g |
|
Power Supply |
Spec |
|
Input Type |
DC |
|
Input Voltage |
+12V ~ +24V |
|
Interface |
Quantity |
Interface |
Quantity |
|
USB3.0 Type-A |
4 |
Micro USB |
1 |
|
RJ45 |
2 |
HDMI |
1 |
|
RS232(DB9) |
2 |
RS485(DB9) |
2 |
|
CAN |
1 |
SIM Card Slot |
1 |
|
Opto-Isolated GPI (24V)
|
4 |
Opto-Isolated GPO (24V)
|
4 |
|
GMSL |
2/4(GMSL is an optional function, not standard.)
|
||
|
*RJ45 The POE power supply function is optional. Only external POE power is available. By default, the POE function is not enabled.
|
|||
NVIDIA Jetson Series Modules Technical Specifications
|
Module |
Jetson ORIN NX 16GB |
Jetson ORIN NX 8GB |
Jetson Orin Nano 8GB |
Jetson Orin Nano 4GB |
|
AI Performance |
100 TOPS |
70 TOPS |
40 TOPS |
20 TOPS |
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
|
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64- bit CPU |
|
|
Memory |
16GB 128-bit LPDDR5102.4GB/s |
8GB 128-bit LPDDR5102.4GB/s |
8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
Support external NVME |
Support external NVME |
||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
Power |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
