Introduction

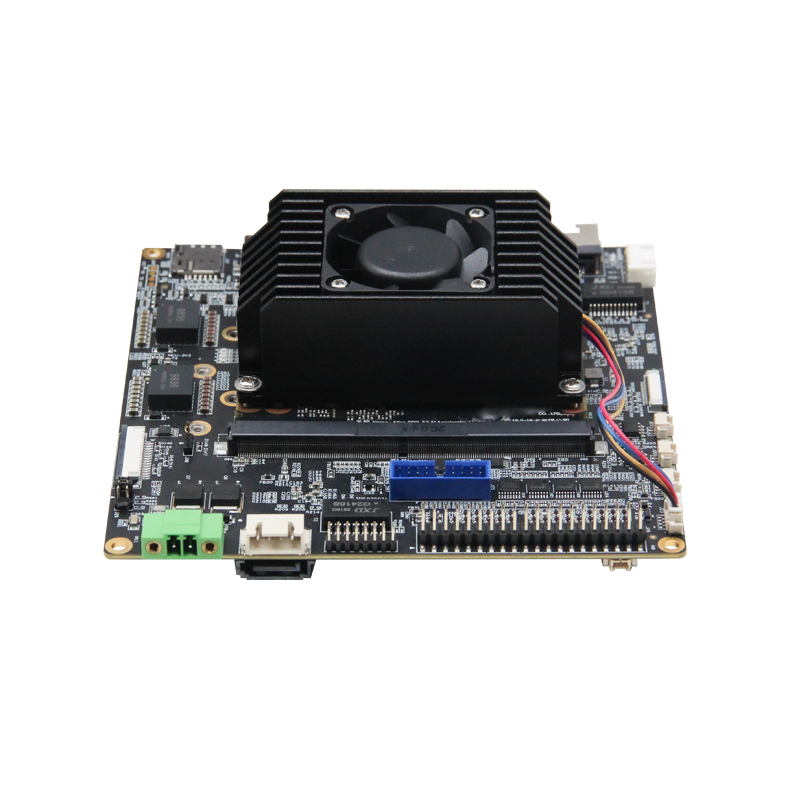

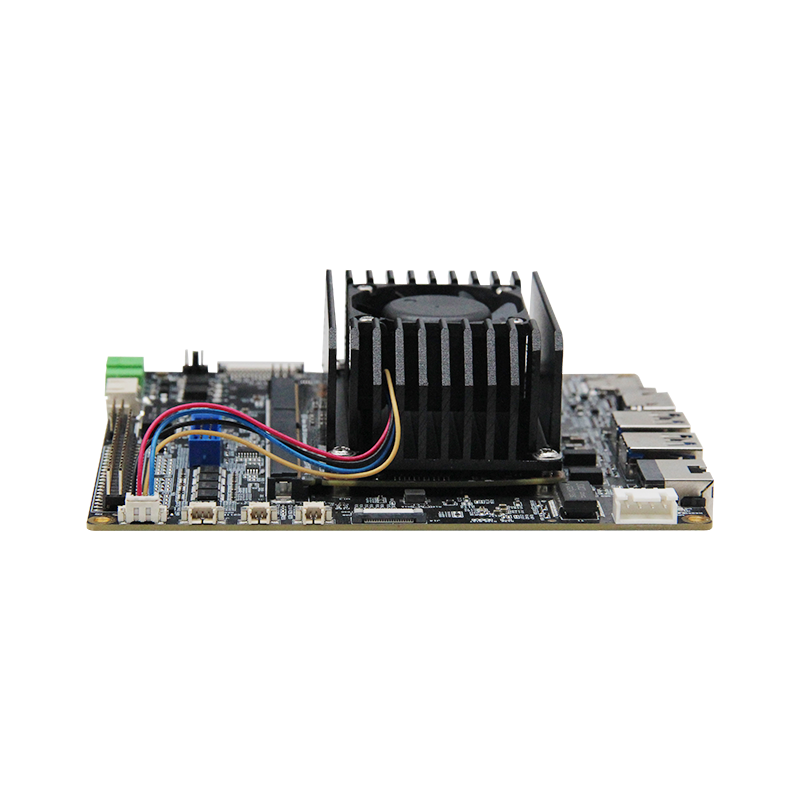

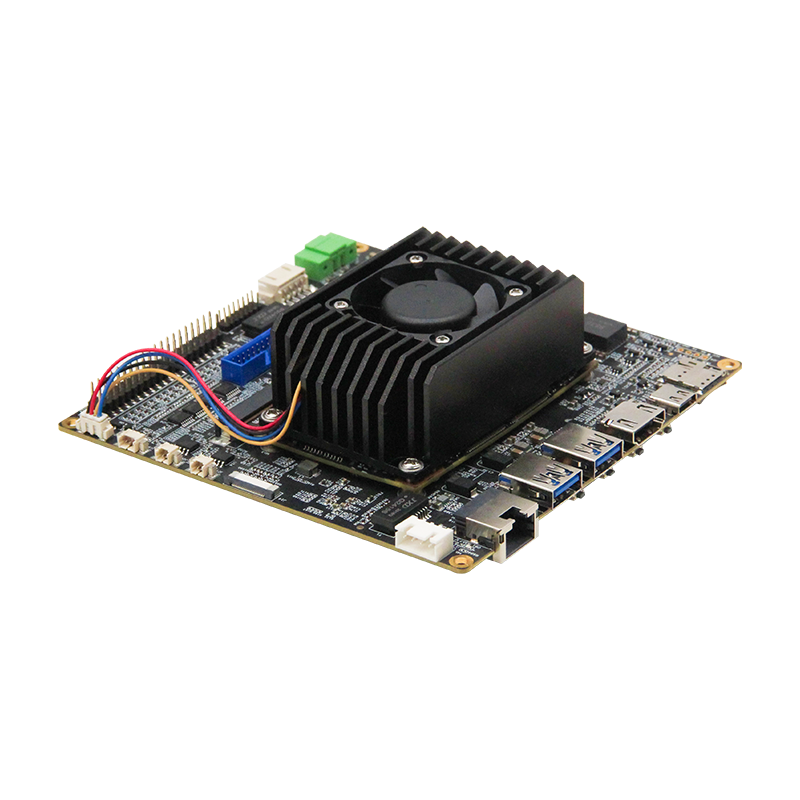

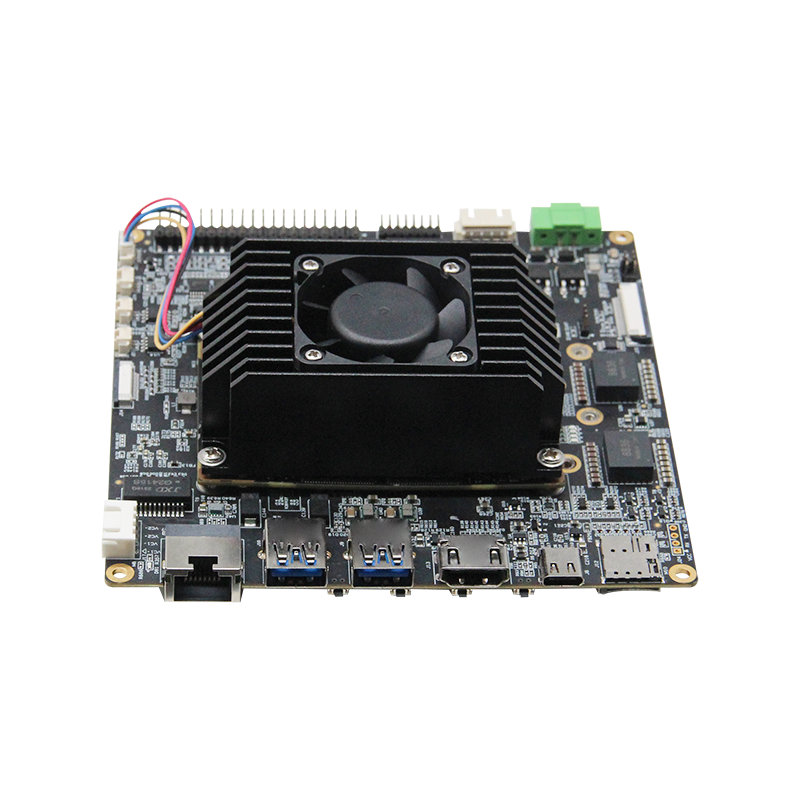

101-DEV is an industrial-grade edge AI development kit. Its core is equipped with the Ascend Atlas 200I A2 acceleration module, delivering the option of 8 TOPS or 20 TOPS AI compute. It supports mainstream deep learning frameworks such as PyTorch and TensorFlow, providing developers with a full-process support from model training, optimization, deployment to real-time inference, accelerating the transition of edge AI applications from prototype verification to large-scale implementation.
Specifications
Processor
Ascend Atlas 200I A2
AI Compute
20 TOPS INT8, 10 TFLOPS FP16
8 TOPS INT8, 4 TFLOPS FP16
Memory
LPDDR4X, 12/8/4 GB, total bandwidth 51.2 / 34.1 /34.1 GB/s, ECC supported
LPDDR4X, 12/8/4 GB, total bandwidth 51.2 / 34.1 /34.1 GB/s, ECC supported
CPU
4core * 1.6GHz
4core * 1.0GHz
Video Encoder/Decoder
40x 1080P 30FPS, 4x 4K (3840x2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840x2160) 50FPS H.264 / H.265
40x 1080P 30FPS, 4x 4K (3840 x 2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840 x 2160) 50FPS H.264 / H.265
JPEG Encoder/Decoder
JPEG decoder:1080P 512FPS,JPEG encoder:1080P 256FPS, max. resolution:16384x16384
JPEG decoder:1080P 512FPS,JPEG encoder:1080P 256FPS, max. resolution:16384x16384
Display
1x HDMI, 1x MIPI DSI
USB
2x USB 3.0 Type-A, 1x USB 3.0 Type-C, 1x USB3.0 HEADER
Network
2x Gigabit network (1x RJ45+ 1x 16pin Header)
SD
1x Micro SD
Button
1x Power, 1x Recovery, 1x Reset, 1x sleep
Expansion
1x miniPCIe, 1x M.2 KEY E(2230), 1x M.2 KEY M(2242), 1x M.2 KEY B(3050), 1x nano SIM, 1x SATA(power supply)
Function Signal
1x AUDIO IN,2x AUDIO OUT,2x IIC,2x IIS,1x SPI,5x GPIO
Serial Port
3x UART
Temperature
-25℃~+65℃
Dimensions
130.8mm*128.5mm*46mm
Input Voltage
DC 19V~36V
Weight
270g
OS
openEuler,Ubuntu
Interfaces
Dimensions
