The 301F1E5 artificial intelligence computing platform is equipped with AI310SM, based on the Ascend 310P chip. It can deliver a maximum computing power of 176 TOPS and is widely applicable in AI scenarios such as smart campuses, machine vision, security patrols, and vehicle-road coordination. The device features high computing density, high efficiency ratio, low cost, and high reliability. It also offers a rich set of external interfaces, with key interfaces designed for electrostatic discharge protection.
|
AI performance
|
176TOPS INT8 |
| CPU |
集成4个TaishanV200M MP4 cluster(16 core 64-bit)@max. 1.9Ghz， 符合ARMv8.2架构 |
| AI core |
集成10个DaVinciV200 AI core @max 1.08GHz |
|
Memory |
LPDDR4 48GB |
|
EMMC |
64G |
|
Video Encode |
3 x 4K@60fps/24 x FHD@30fps H.264/H.265 |
|
Video Decode |
12 x 4K@60fps/96 x FHD@30fps H.264/H.265 |
|
JPEG Encode/Decode
|
Encode:4K@192fps (FHD@1024fps) Decode:4K@384fps (FHD@2048fps)
|
|
Size |

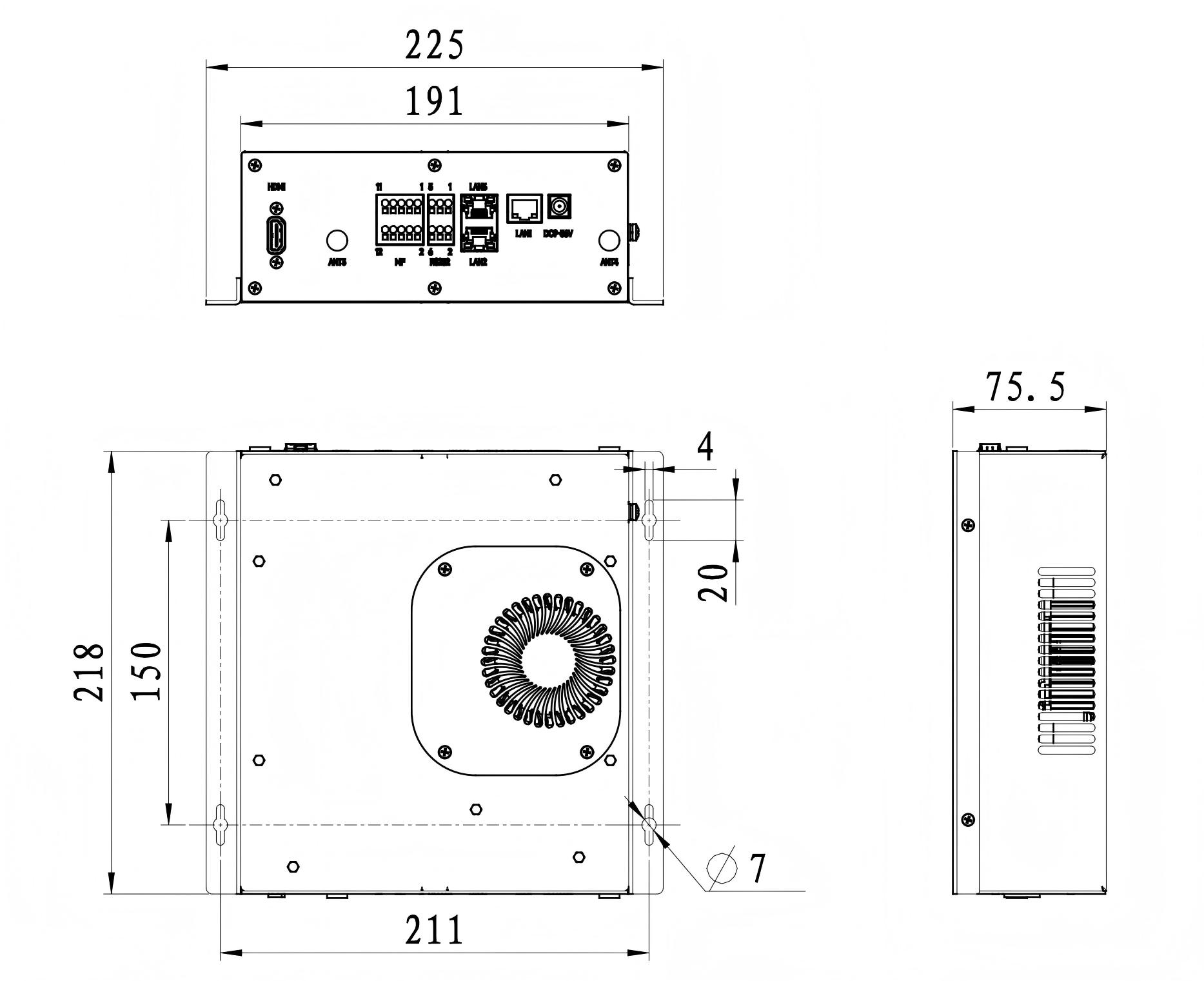

235mm x 225mm x 75.5mm (包括 I/O 端口和安装孔) |
|
Power Supply |
DC 9~36V |
|
Weight |
2200g |
| OS | openEuler(22.03) |
|
Temperature |
-40°C~60°C |
|
Power |
<140W |

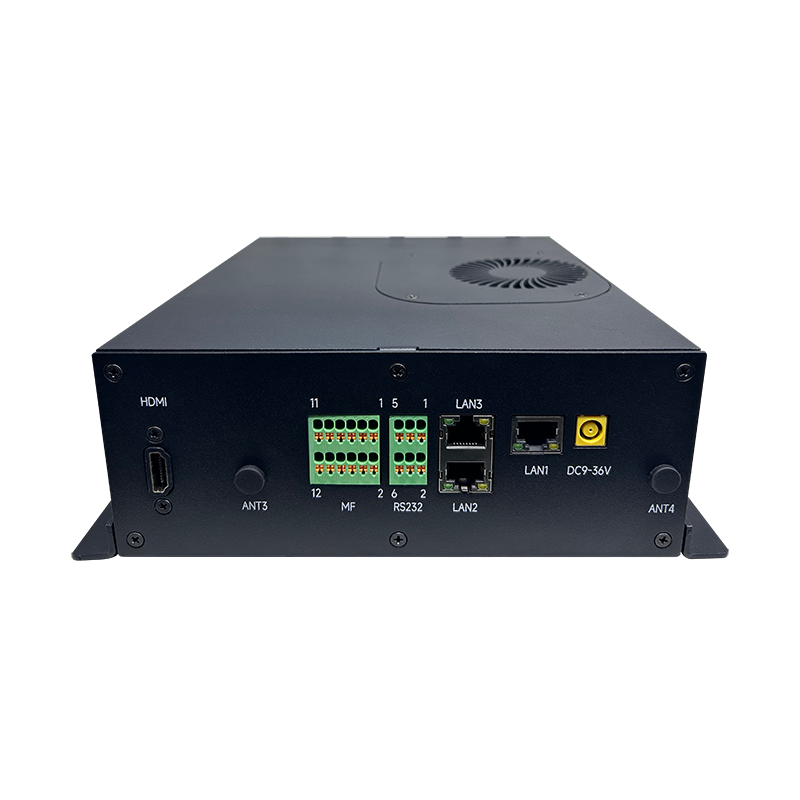

I/O interface
|
I/O |
Quantity |
I/O |
Quantity |
|
USB 3.0 Type-A |
4 |
RJ45 |
5 |
|
Gigabit light cage |
1 |
VGA(opention)
|
1 |
|
RS232 |
1 |
Multifunction(MF)
|
1 |
Expandable module
|
SATA |
5G module |
WI-FI module |
NVMe |
VGA |
|
Yes |
Yes |
Yes |
Yes |
Yes |
