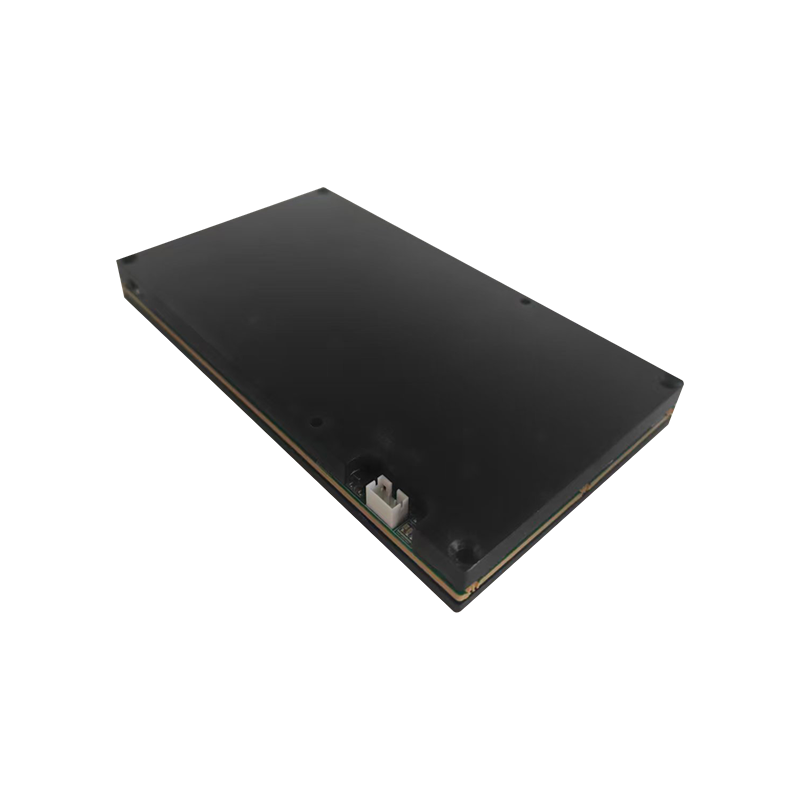

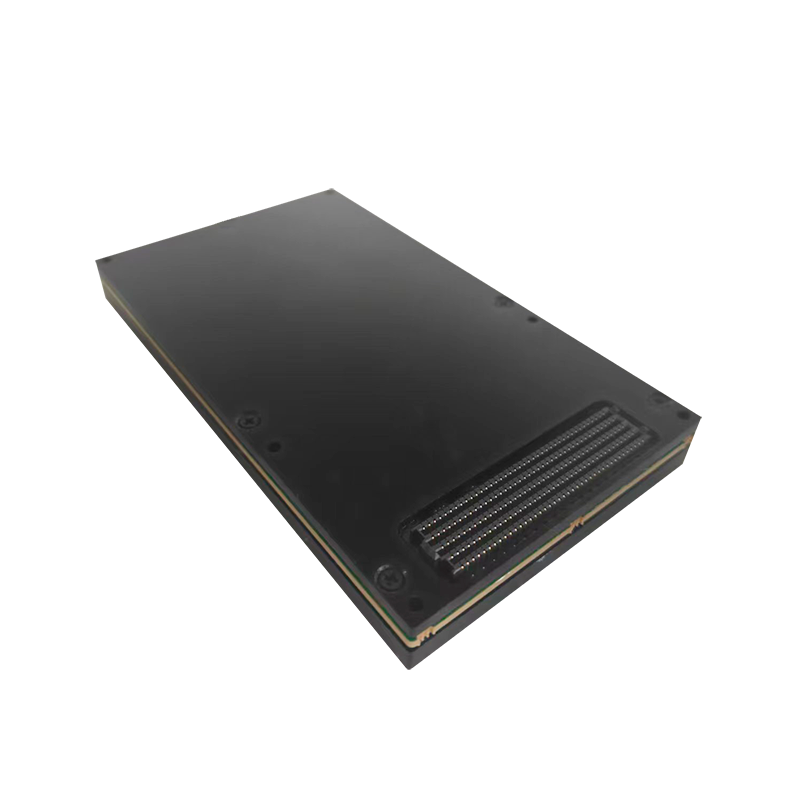

Ascend Module

AI310SM

● Based on Ascend 310P processor
● 176 TOPS INT8, 48G 256位 LPDDR4X, 128G EMMC
● Supports 96 channels of 1080P/12 channels of 4K H.264/H.265 video decoding
● Supports 4K JPEG decoding
● Support high-speed interconnection at the chip level between dual-mode modules via the HCCS

Introduction

The AI310SM is a high-performance industrial-grade edge AI inference module based on the Ascend 310P processor, capable of providing up to 176 TOPS INT8 computing performance.

It not only uses high-reliability industrial-grade materials and strictly follows the JESD-046 standard, but also ensures long-term stable supply through the PCN notification mechanism, providing reliable protection for demanding industrial environments. At the same time, it supports HCCS dual-module high-speed interconnection technology with a total bandwidth of 192 Gbps, laying a solid foundation for building high-performance edge computing clusters.

Specifications

Processor	Ascend 310P
AI Compute	176 TOPS INT8
CPU	ARMv8.2架构 16core TaishanV200M@max. 1.9 GHz
Memory	48 GB 256 位 LPDDR4X
Storage	128G EMMC
Video Encoder/Decoder	支持24路1080P@30fps/3路4K@60fps H.264/H.265 视频编码支持96路1080P@ 30fps/12路4K@60fps H.264/H.265 视频解码支持4K@192fps (FHD@1024fps) JPEG编码支持4K@384fps (FHD@2048fps) JPEG解码支持 up/down scaling, crop, Chroma up/down sampling, color space conversion（等效FHD 4320FPS）
High-Speed Interface	Serdes: 可复用为XGE，PCIe，SATA，HCCS接口 XGE: 最大支持8个XGE Serdes 接口，速率支持 10.3125/5/2.5Gbps PCIe: 最大支持1个PCIe Gen4 16X接口，兼容1X，2X，4X，8X
Other I/O	SATA: 支持4个SATA3.0 接口 CAN-FD: 支持4路隔离CAN-FD接口 UART接口：支持4路三线制 I2C接口：支持4路I2C接口 SPI接口：4路SPI接口 MDIO接口：支持2组MDIO接口 PWM接口：支持4路PMW接口 GPIO接口：支持8路可编程GPIO
Power	≤120W
Dimensions	140mm80mm17mm
Weight	≤0.5kg
Input Voltage	12V DC
Operating Temperature	-40℃~ +65℃
OS	银河麒麟（EP）/OpenEuler（RC）

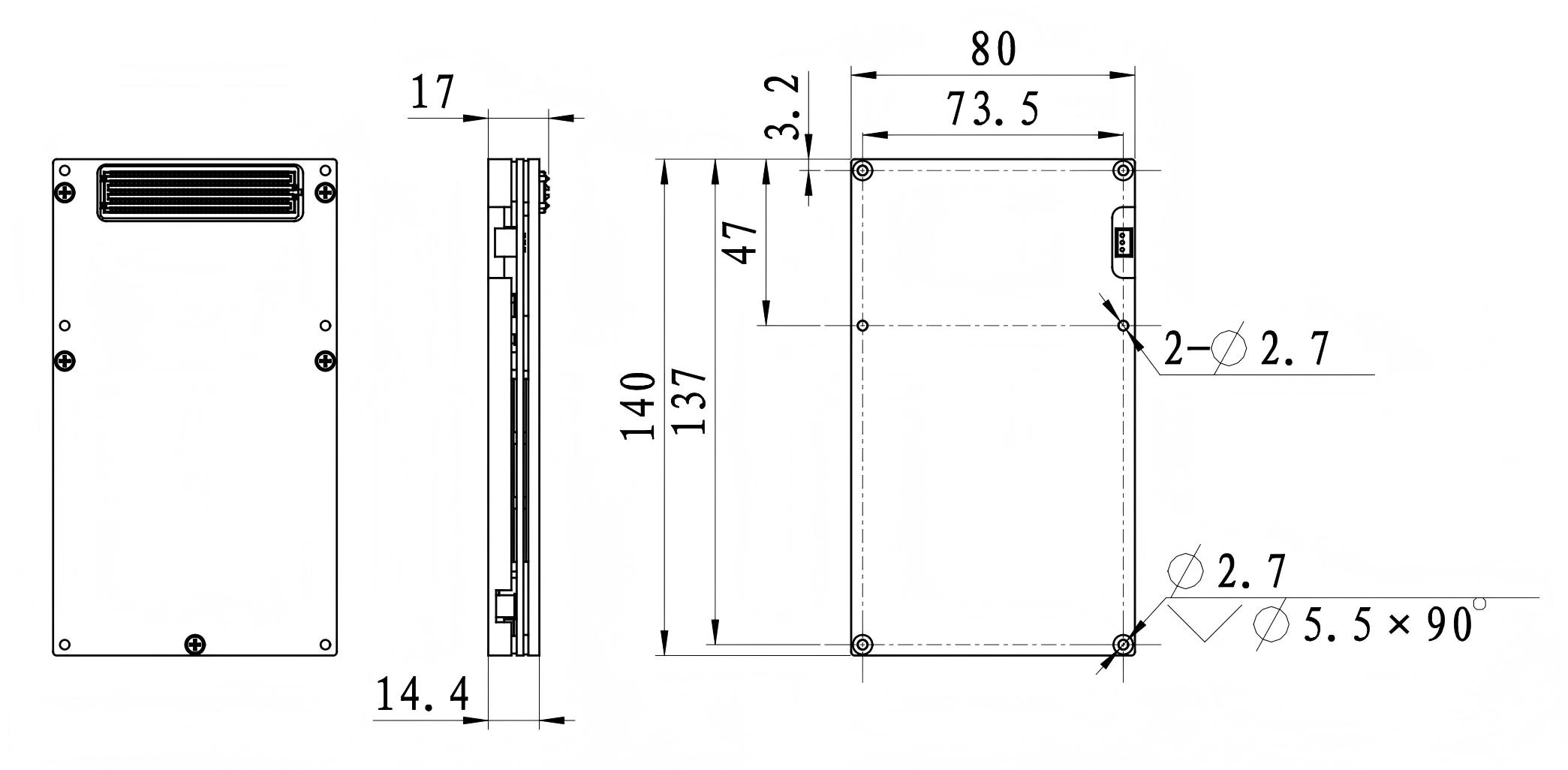

Dimensions
