●Jetson™ AGX Orin:275/248/200 TOPS, 64/32GB LPDDR5, 64GB eMMC
●I/O:HDMI, RJ45, USB Type-C, USB Type-A, GPIO, 隔离串口, CAN, RS485等
●内置1x miniPCIe, 1x M.2 B 3050, 1x Nano SIM
●支持宽温:-25℃~+65℃ / -40℃~+65℃
●支持宽压:DC 9V~36V
●预装Ubuntu系统

Introduction

The 28F2E4 is a high-performance edge AI computing device equipped with the NVIDIA® Jetson™ AGX Orin core module. It delivers up to 275 TOPS of computing power, enabling stable real-time analysis of 16-channel 1080P high-definition videos and local inference for complex deep learning models. Optimized for industrial automation, machine vision inspection, warehousing, logistics and other scenarios, it supports Wi-Fi and 5G communication expansion to greatly improve deployment flexibility.
The 28F2E4 integrates a full range of external interfaces. 4 × USB Type-A, 2 × USB Type-C and 4 × Gigabit Ethernet ports meet high-speed data transmission and networking demands; 2 × RS232 and 2 × RS485 interfaces allow seamless connection with mainstream industrial devices including PLCs, servo drives and sensors. Furthermore, it is built with 4 electrically isolated GPI, 4 electrically isolated GPO (3.3V/5V adjustable) and 3 isolated UART ports, effectively enhancing anti-interference capability and ensuring signal integrity in complex electromagnetic environments. The Nano SIM slot enables 4G remote operation and maintenance, and the audio interface provides hardware support for voice recognition and human-machine interaction applications.


Specifications

Module Jetson AGX Orin 64GB Jetson AGX Orin 32GB Jetson AGX Orin 工业版
AI Performance 275 TOPS 200 TOPS 248 TOPs
GPU 2048-core NVIDIA Ampere GPU with 64 Tensor Cores 1792-core NVIDIA Ampere GPU with 56 Tensor Cores 2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU
12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory
64GB 256-bit LPDDR5
204.8GB/s
32GB 256-bit LPDDR5
204.8GB/s
64GB 256-bit LPDDR5 (+ECC) 204.8GB/s
Storage 64GB eMMC 5.1
Video Encode
2x 4K60 (H.265)
4x 4K30 (H.265)
8x 1080p60 (H.265)
16x 1080p30 (H.265)
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1x 4K60 (H.265)
3x 4K30 (H.265)
7x 1080p60 (H.265)
15x 1080p30 (H.265)
Video Decode
1x 8K30 (H.265)
3x 4K60 (H.265)
7x 4K30 (H.265)
11x 1080p60 (H.265)
22x 1080p30 (H.265)
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 8K30 (H.265)
3x 4K60 (H.265)
7x 4K30 (H.265)
11x 1080p60 (H.265)
23x 1080p30 (H.265)
Display 1 x HDMI
USB
2x USB Type-C
4x USB Type-A
Networking 4x RJ45
Button
1 x Recovery
1 x Reset
1xPWR
Expansion
1x miniPCIe
1x M.2 B key（3050）
1x Nano SIM
Other I/O
2 x AUDIO
2 x MIC
isolated GPIO
2 x CAN
Serial Ports
2x RS232
2x RS485
3x isolated UART 3.3V
Temperature -25°C ～ +65℃ -40℃~+65℃
Dimensions 202mmx195mmx65.5mm
Power DC + 9V~+36V
Weight 2361g

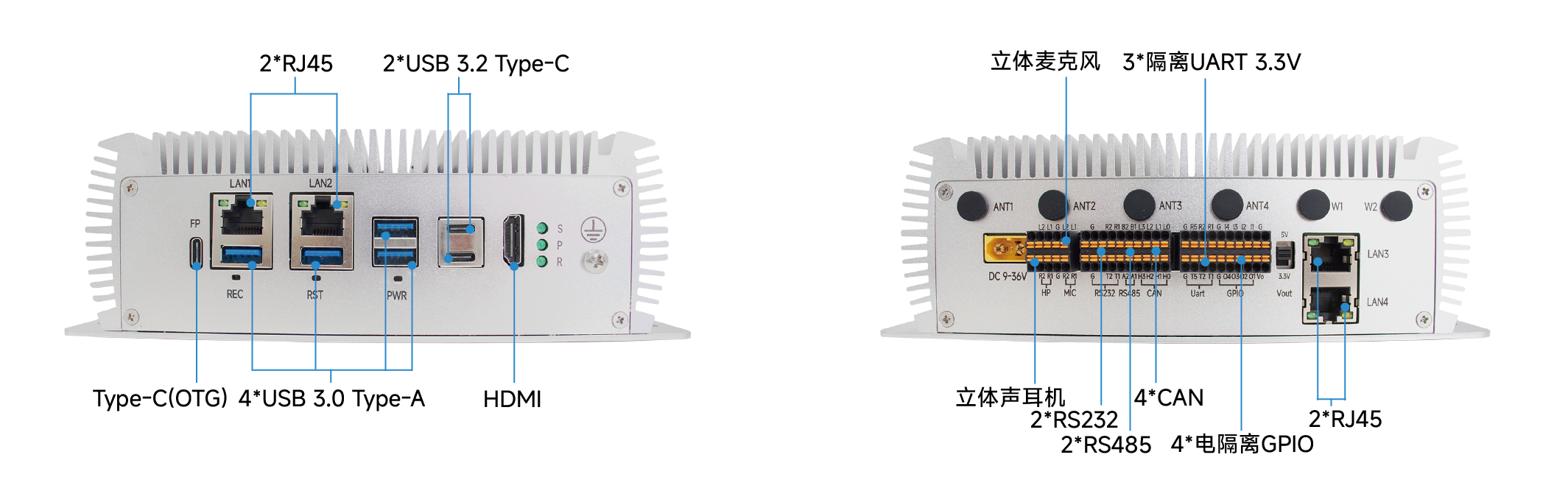

Interfaces

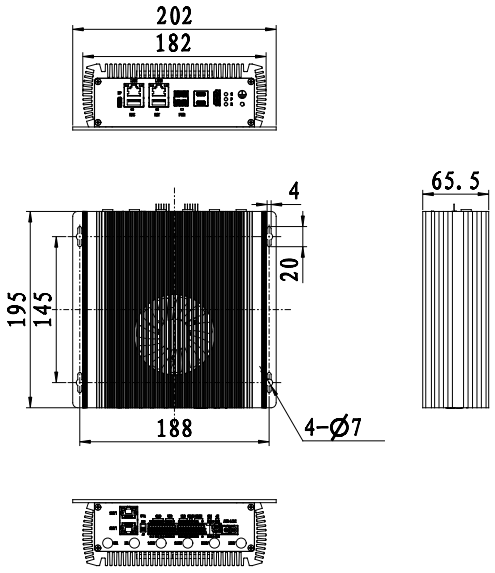

Dimensions
