Introduction
The 8F9E2 is an industrial-grade edge AI computing device equipped with NVIDIA® Jetson™ AGX Orin/AGX Xavier core modules. It provides multi-level AI computing power of 32/200/275 TOPS, which can cover the needs from lightweight AI inference to complex multi-modal intelligent computing. It offers high-stability and low-latency local edge computing power support for scenarios such as industrial automation, energy and power, vehicle-road coordination, mobile robots, unmanned mining trucks and unmanned delivery vehicles.
The 8F9E2 integrates triple protection of interface static electricity, power overvoltage and reverse polarity, supports wide temperature and wide voltage, and can operate stably under complex working conditions. The device is equipped with 1 Gigabit POE Ethernet port as standard, a Debug interface and a SIM card slot, and integrates rich I/O interfaces such as HDMI, USB, RJ45, CAN, RS232/RS485, and optocoupler-isolated GPIO. It has built-in M.2, miniPCIe, and PCIe expansion slots, supporting flexible expansion of 4G communication modules, large-capacity storage and industrial peripherals. It is a high-performance hardware solution for industrial-grade edge AI scenarios.
Specifications
| Module | Jetson AGX Orin 64GB | Jetson AGX Orin 32GB | Jetson AGX Xavier 64GB | Jetson AGX Xavier 32GB |
| AI Performance | 275 TOPS | 200 TOPS | 32 TOPS | |
| GPU | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 512-core NVIDIA Ampere GPU with 64 Tensor Cores | |
| CPU | 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
8-core NVIDIA Carmel ARM®v8.2 64-bit CPU
8MB L2 + 4MB L3
|
|
| Memory |
64GB 256-bit LPDDR5
204.8GB/s
|
32GB 256-bit LPDDR5
204.8GB/s
|
64GB 256-bit LPDDR4x
136.5GB/s
|
32GB 256-bit LPDDR4x
136.5GB/s
|
| Storage | 64GB eMMC 5.1 | 32GB eMMC 5.1 | ||
| Video Encode |
2x 4K60 (H.265)
4x 4K30 (H.265)
8x 1080p60 (H.265)
16x 1080p30 (H.265)
|
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
|
4x 4K60 (H.265)
8x 4K30 (H.265)
16x 1080p60 (H.265)
32x 1080p30 (H.265)
|
|
| Video Decode |
1x 8K30 (H.265)
3x 4K60 (H.265)
7x 4K30 (H.265)
11x 1080p60 (H.265)
22x 1080p30 (H.265)
|
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
|
2x 8K30 (H.265)
6x 4K60 (H.265)
12x 4K30 (H.265)
26x 1080p60 (H.265)
52x 1080p30 (H.265)
|
|
| Display | 1 x HDMI 2.0 | |||
| USB |
2x USB3.0 Type-A
1x Micro USB
|
1x USB3.0 Type-A
1x USB2.0 Type-A
1x Micro USB
|
||
| Networking | 2x RJ45（support 1*POE） | |||
| SD Card | 1 x micro SD | |||
| Button |
1 x Recovery
1 x Reset
|
|||
| Expansion |
2 x full-length miniPCIe
2 x M.2 M key(2280)
1x PCIex16
|
1 x full-length miniPCIe
1 x M.2 M key(2280)
1x PCIex16
|
||
| Other I/O |
4 x GPIO
4 x Optocoupler-isolated GPI
4 x Optocoupler-isolated GPO
2 x CAN
2 x I2C
1 x SPI
1x SIM
|
|||
| Serial Ports |
2 x RS232
4 x RS485
1 x Debug
|
|||
| Temperature | -25℃~+65℃ | |||
| Dimensions | 238mm×222mm×67mm | |||
| Power | DC +12V~+36V | |||

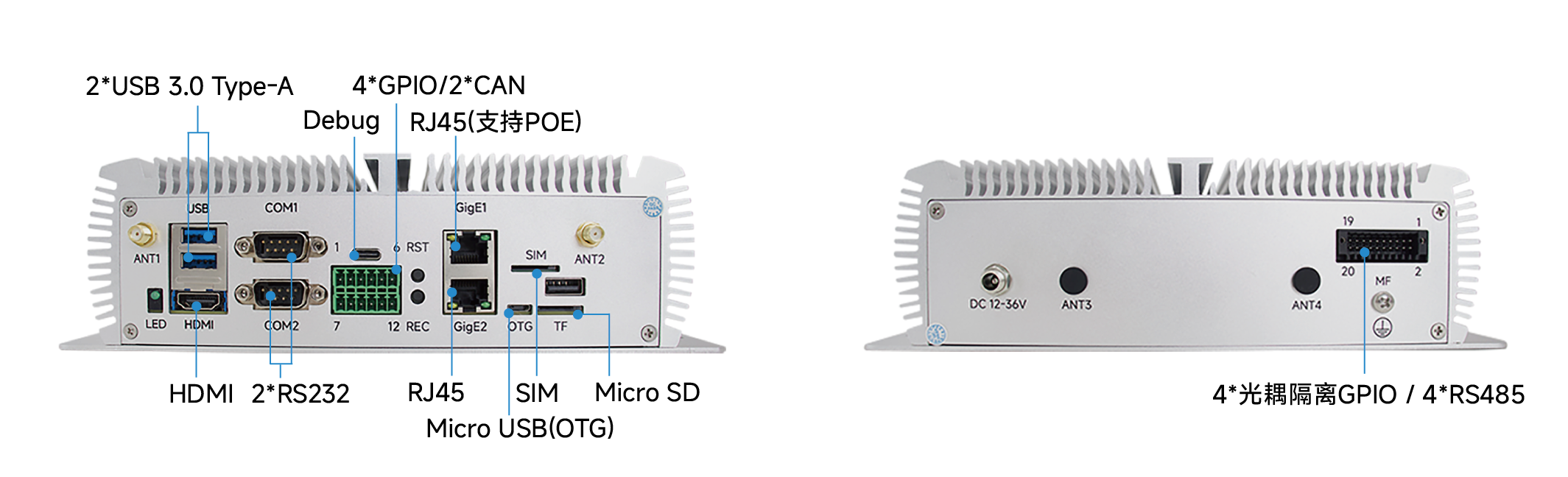

Interfaces

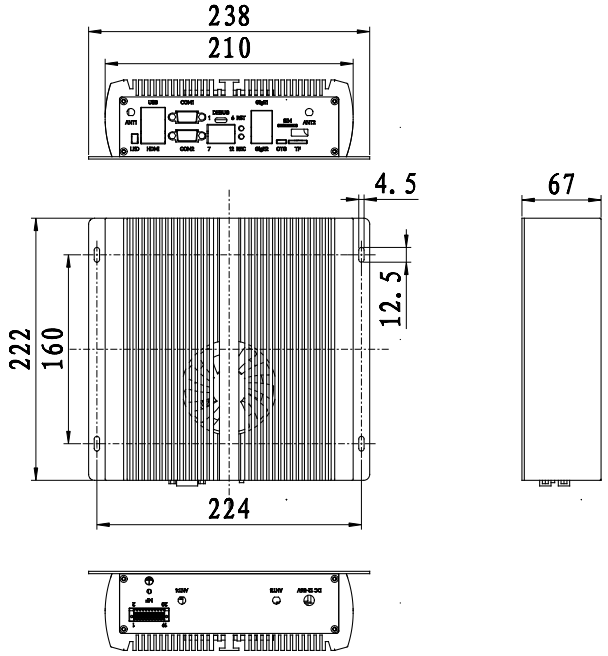

Dimensions
