Jetson Orin NX | Orin Nano 11F5Jetson Orin NX | Orin Nano 11F5Jetson Orin NX | Orin Nano 11F5Jetson Orin NX | Orin Nano 11F5

Jetson Orin NX | Orin Nano 11F5

●Jetson™ Orin NX:157/117 TOPS, 16/8GB LPDDR5
●Jetson™ Orin Nano:67/34 TOPS, 8/4GB LPDDR5
●15.6-inch EDP high-definition screen, resolution 1920*1080
●10000mAh Battery Capacity
●1*USB、1*RJ45、1*OTG、1*REC
●Pre-installed Ubuntu system

Introduction

The 11F5 rugged laptop is a high-performance portable industrial edge AI computing device specially designed for industrial and field on-site mobile operation scenarios. Equipped with NVIDIA Jetson Orin NX/Orin Nano core modules, it can provide up to 157 TOPS of AI computing power, integrating the core advantages of three devices: flip-up portable computer, rugged laptop, and portable notebook.

The entire 11F5 rugged laptop adopts a high-strength aluminum-magnesium alloy integrated structure design, combined with multiple shock absorption and protection technologies and flexible expansion ports. It has a built-in 10000mAh large-capacity battery, which can achieve stable computing power output, long battery life operation and safe data processing under complex working conditions without external power supply, vibration and collision, and temperature and humidity fluctuations, fully adapting to multi-scenario AI application needs such as industrial sites, field operations, and edge computing.


Specifications

Module Jetson Orin NX 16GB Jetson Orin NX 8GB Jetson Orin Nano 8GB Jetson Orin Nano 4GB
AI Performance 157TOPS 117TOPS 67TOPS 34TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory
16GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102 GB/s
4GB 64-bit LPDDR5
51 GB/s
Video Encode
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30，supported by 1-2 CPU cores
Video Decode
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Display 15.6-inch EDP high-definition screen, resolution 1920*1080
Keyboard Backlit keyboard（industrial 100-key keyboard）
Mouse Touchpad
Speaker Built-in pair of stereo speakers
Expansion Supports 1 PCI expansion slot or 1 PCIE expansion slot (half-height and half-length)
Rear Ports 1*USB、1*RJ45、1*OTG、1*REC
Battery Capacity 10000mAh
Power DC19V
Operating Temp 0 ～ 40℃
Storage Temp -20℃ ～ 60℃（No condensation）
Operating Humidity 10% ～ 90% relative humidity, no condensation
Structure 1.5U high-portability integrated structure
Material High-strength Aluminum-magnesium alloy, surface anodized
Color Black/ Green
Dimensions 393mm*290mm*70mm

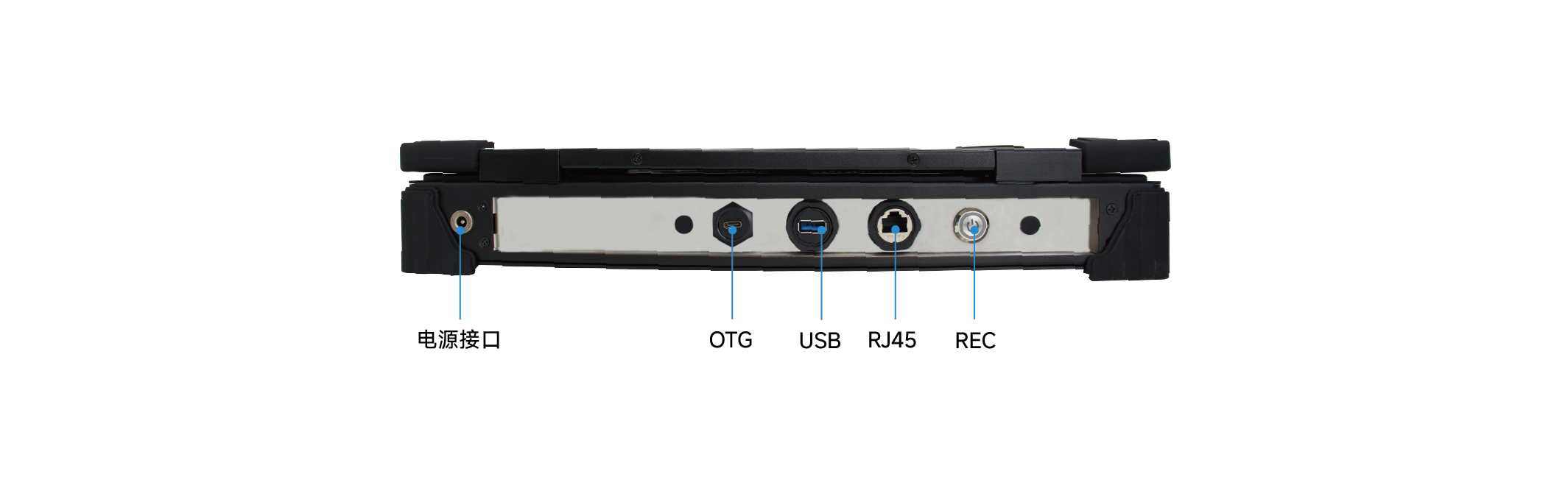

Interfaces

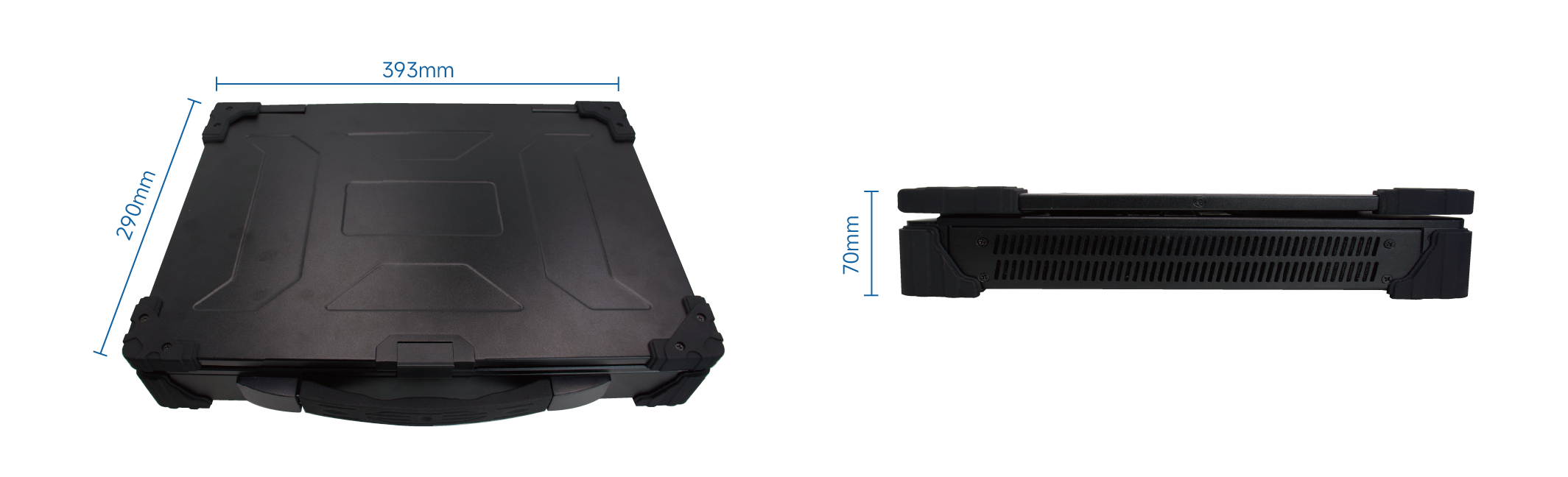

Dimensions
