NVIDIA Jetson Modules

  • Jetson Orin Nano Module
Jetson Orin Nano Module

Jetson Orin Nano Module

• Jetson Orin Nano 8GB (ON 8GB) - Ampere GPU + ARM Cortex-A78AE CPU + 8GB LPDDR5 Up to 40 (Sparse) INT8 TOPs and 20 (Dense) INT8 TOPs
• Jetson Orin Nano 4GB (ON 4GB) - Ampere GPU + ARM Cortex-A78AE CPU + 4GB LPDDR5 Up to 20 (Sparse) INT8 TOPs and 10 (Dense) INT8 TOPs

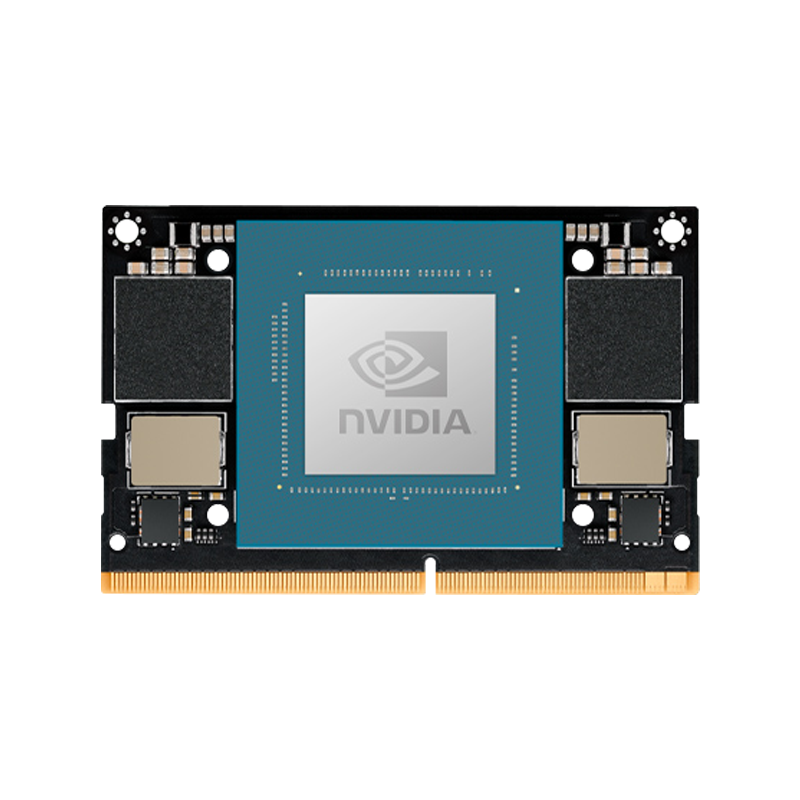

Jetson Orin Nano Module

Jetson Orin Nano 8GB

  • 1024-core NVIDIA Ampere architecture GPU with 32 tensor cores
  • 6-core Arm Cortex-A78AE v8.2
  • 8GB 128-bit LPDDR5
  • Support for external NVMe
  • Voltage Input: 5V-20V
  • Module Power：7W-15W
Jetson Orin Nano 4GB
  • 512-core NVIDIA Ampere architecture GPU with 16 tensor cores
  • 6-core Arm Cortex-A78AE v8.2
  • 4GB 64-bit LPDDR5
  • Support for external NVMe
  • Voltage Input: 5V-20V
  • Module Power：5W-10W



Jetson Orin Nano 4GB
 Jetson Orin Nano 8GB
AI Performance

20 TOPs

40 TOPs

GPU

512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

GPU Max Frequency

625MHz

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
CPU Max Frequency
 1.5GHz
Memory
 4GB 64-bit LPDDR5
34 GB/s
 8GB 128-bit LPDDR5
68 GB/s
Storage
 -
(Supports externalNVMe)
Video Encode
 1080p30 supported by 1-2 CPU cores

VideoDecode

1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Camera
 Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
PCIe*
 1 x4 + 3 x1
(PCIeGen3, Root Port, & Endpoint)

USB*

3x USB 3.2 Gen2 (10Gbps)
3x USB 2.0
Networking*
 1xGbE

Display

1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O
 3x UART, 2x SPI, 2xI2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power
 5W - 10W
 7W - 15W
Mechanical
 69.6mm x 45mm
260-pin SO-DIMMconnector


*USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations.
**See the Jetson Orin Nano Series Data Sheet for more details on additional compatibility to DP 1.4a and HDMI 2.1
***Virtual Channels for Jetson Orin NX and Jetson Orin Nano are subject to change
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
