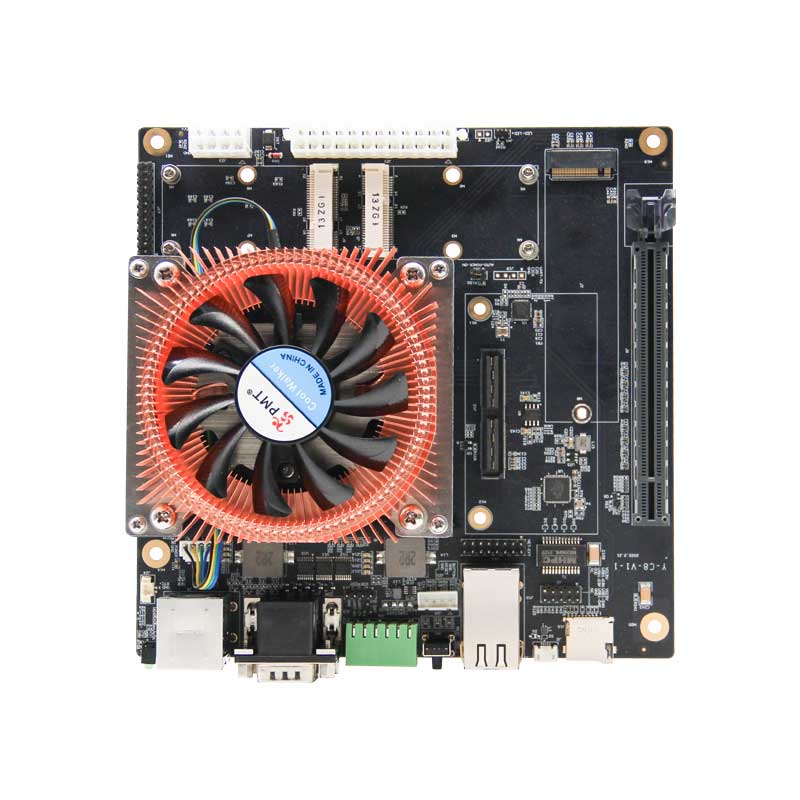

Y-C8-DEV Development System

Input Power : DC +12V
Temperature Range : -25℃ to 65℃
Size : 188mm × 170mm × 43mm
Weight : 713g


NVIDIA Jetson AGX Xavier/AGX Orin
Developer Kit Y-C8-DEV
Feature
* NVIDIA Jetson Carrier Board:
Support NVIDIA Jetson AGX Orin/AGX Xavier Module

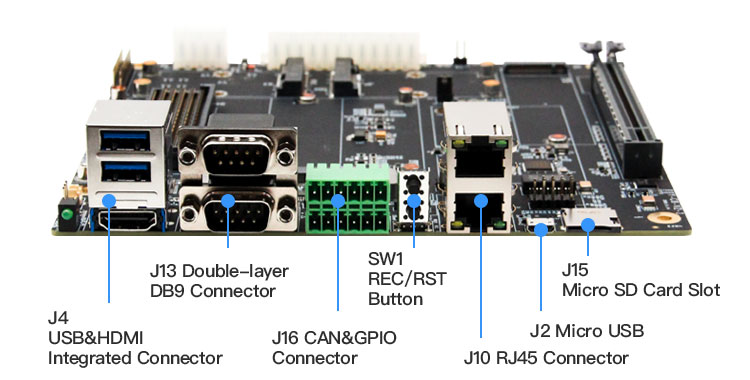

* Versatile Connectivity:
Offer 2x RJ45, 2x USB, 1x HDMI and 1x USB Micro B

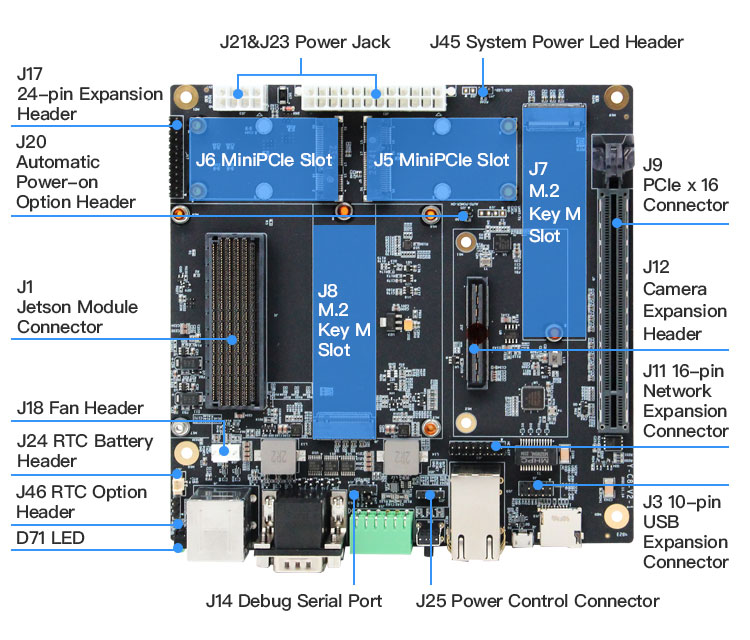

* Advanced Peripherals Supported:
Assemble 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x Micro SD slot, 2x DB9 connector and 1x 24 pin expansion header, 2x CAN, 2x RS232, 1x Debug, 4x GPIO, 1x SPI, 2x I2C

* Input Power: DC +12V

* Compact and Durable during Operation:
Design in small size of 188mm*170mm*43mm to save operation space, and maintain function in the temperature range from -20°C to 65℃



Product Name
Y-C8-DEV
Jetson Module Supported
NVIDIA Jetson AGX Xavier/AGX Orin
Networking
2x Gigabit Ethernet (10/100/1000)
USB
2x USB
1x Micro-B
Camera
1x 120 pins CSI Camera expansion header
Display
1x HDMI
FAN
1x FAN connector（12V PWM）
M.2 KEY M
2x M.2 KEY M interface
Other I/O
2x CAN，2x RS232，1x Debug，4x GPIO，1x SPI，2x I2C
Mechanical
188mm x 170mm x 43mm
Weight
713g
Operating Temperature
-20℃~+65℃

Module
AGX Xavier 32G
AGX ORIN 32G
AGX ORIN 64G
CPU
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
CPU Memory
32GB 256-bit LPDDR4 x 136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
GPU
512-core NVIDIA Volta GPU with 64 Tensor Cores
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
USB Micro-B
1 x Type B (OTG)
USB Type-A
1 x USB 3.1
2 x USB 3.1
2 x USB 3.1
Other I/O
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)
2 x CAN (with on-board transceiver)
Networking
1 x 10/100/1000 Ethernet/RJ45
Power Supply
DC +12V
Temperature
-20~+65°C
Dimensions
170mm×170mm×43 mm
Weight
713g
Y-C8
Y-C9
AGX Orin Developer Kit
USB Type-A
2x USB 3.0
3x USB 3.0
2x USB 3.2 2.0 2x USB 3.2 1.0
USB Type-C
1x USB Type-C
2X USB 3.2 2.0
supporting USB-PD
USB Micro-B
1x USB 2.0
USB 2.0（DEBUG）
PCIe
x16 PCIe slot supporting PCIe x8
x16 PCIe slot supporting x8 PCIe Gen4
MiniPCIe
2x MPCIe
2x MPCIe
RJ45
2x RJ45
one of the RJ45 connector needs
1x RJ45
1x RJ45 connector with up to 10 GbE
DisplayPort
HDMI
HDMI
1x DisplayPort 1.4a (+MST) connector
M.2 Key M
2x
1x
x4 PCIe Gen4
M.2 Key E
x1 PCIe Gen4
microSD slot
1x
UHS-1 card supporting SDR104
Other I/O
2x CAN
4xGPIO
1x SPI
1x I2C
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC batter backup connector
microSD slot
DC power jack
Power, Force Recovery, and Reset buttons
Y-C8 Jetson Carrier Board features networking capability that is equipped with two Gigabit Ethernet (10/100/1000) port for fast data transfer speed. It also comes with two USB 3.0 Type-A ports, two USB 2.0 and one Micro-B for versatile connectivity options.

Note

When used with the Jetson AGX Xavier module, only one USB 3.1 is available, the rest is USB 2.0, and one RJ45 network port is optional
