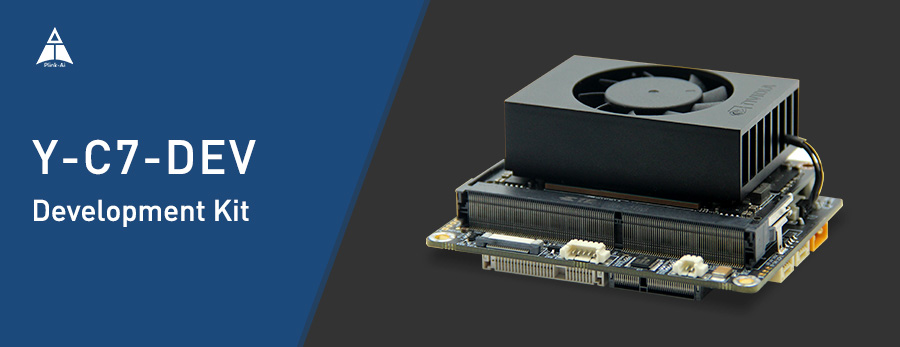

Y-C7 is a low-cost, compact, industrial-grade carrier that can be paired with NVIDIA® JetsonTM Xavier NX, TX2 NX, Nano, ORIN NX, ORIN NANO series core modules. For the intelligent computing application of the UAV industry, the main interface is designed for electrostatic safety protection, and the application scheme of the power supply with high reliability and load capacity of 70W is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a rich external interface. The whole board device adopts a wide temperature model. In order to meet the requirements of shock resistance of UAV, all interfaces are designed with flexible wires, so as to improve the shock resistance of the connection with peripherals through the unloading of flexible wires. For high-speed USB3.1 signals, a Type-C design with a fixed structure is used to lock Type-C peripherals or conversion cables by screws.
|
Specific |
|
|
Carrier Board |
Y-C7 |
|
Module |
NVIDIA Jetson Xavier NX / TX2 NX / Jetson NANO / ORIN NX / ORIN NANO Series Modules |
|
Temperature |
-40 ~ +85°C |
|
Dimensions (L×W×H) |
80mm * 60mm * 16.8mm |
|
Weight |
40g |
|

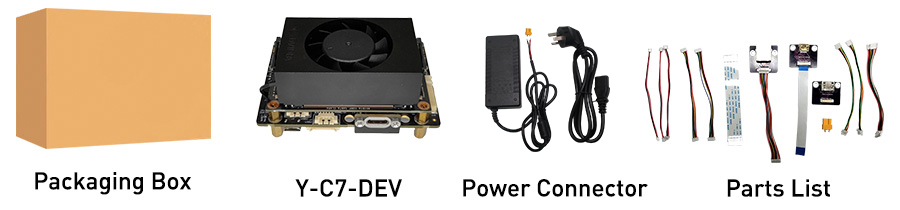

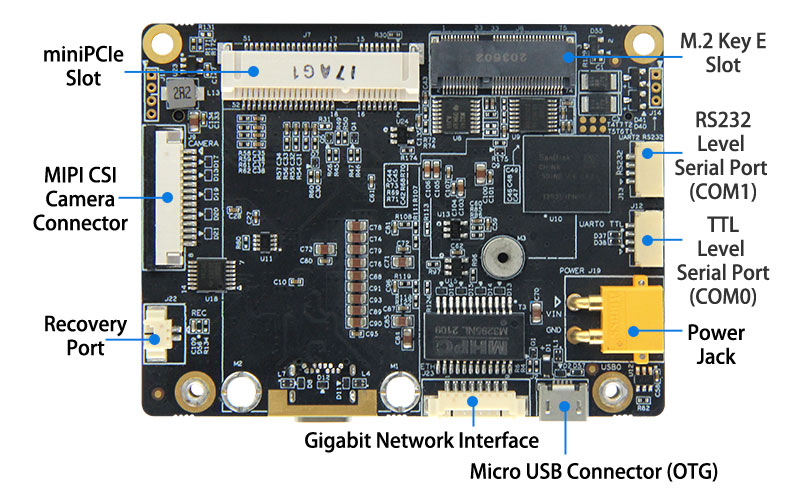

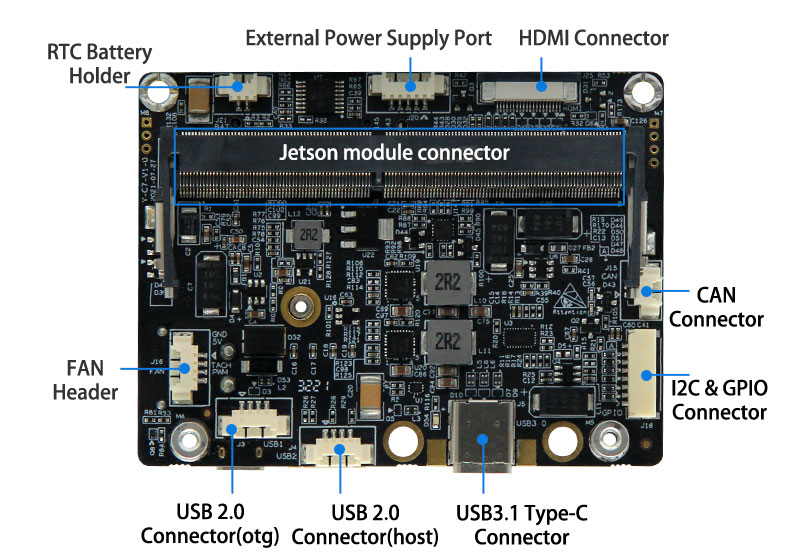

Interface |
Quantity |
Interface |
Quantitytity |
|
USB3.0 Type-C |
1 |
Micro USB |
1 |
|
miniPCIe Slot |
1 |
HDMI 2.0 |
1 |
|
MIPI CSI |
1 |
DC power Jack |
1 |
|
RTC Battery Connector |
1 |
USB 2.0 Connector |
1 |
|
RS232 serial port |
1 |
TTL serial port |
1 |
|
M.2 Key E Slot |
1 |
Recovery Connector |
1 |
|
10/100/1000 BASE-T Ethernet Connector |
1 |
||
|
Note:
|
|||
|
Module |
TX2 NX |
Jetson Nano |
Xavier NX 16/8GB |
|
AI Performance |
1.33 TFLOPS |
0.5 TFLOPS |
21TOPS |
|
GPU |
256-core NVIDIA PascalTM architecture GPU |
NVIDIA MaxwellTM architecture with 128 NVIDIA Cuda® cores |
384-core NVIDIA VoltaTM architecture GPU with 48 Tensor Cores |
|
CPU |
Dual-core NVIDIA DenverTM 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor |
Quad-core ARM® Coretx®-A57 MPCore processor |
6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
|
Memory |
4GB 128-bit LPDDR4 51.2GB/s |
4GB 64-bit LPDDR4 1600MHz-25.6GB/s |
16 / 8GB 128-bit LPDDR4x 59.7GB/s |
|
Storage |
16GB eMMC 5.1 |
16GB eMMC 5.1 Flash |
16GB eMMC 5.1 |
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265) |
250 MP/sec |
2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265) |
|
Video Decode |
2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265) |
500 MP/sec |
2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) |
|
Power |
7.5W - 15W |
5W – 10W |
10W – 20W |
|
Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
||
|
Module |
Jetson ORIN NX 16GB |
Jetson ORIN NX 8GB |
Jetson Orin Nano 8GB |
Jetson Orin Nano 4GB |
|
AI Performance |
100 TOPS |
70 TOPS |
40 TOPS |
20 TOPS |
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
|
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|
|
Memory |
16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
Support external NVME |
|||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
Power |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
