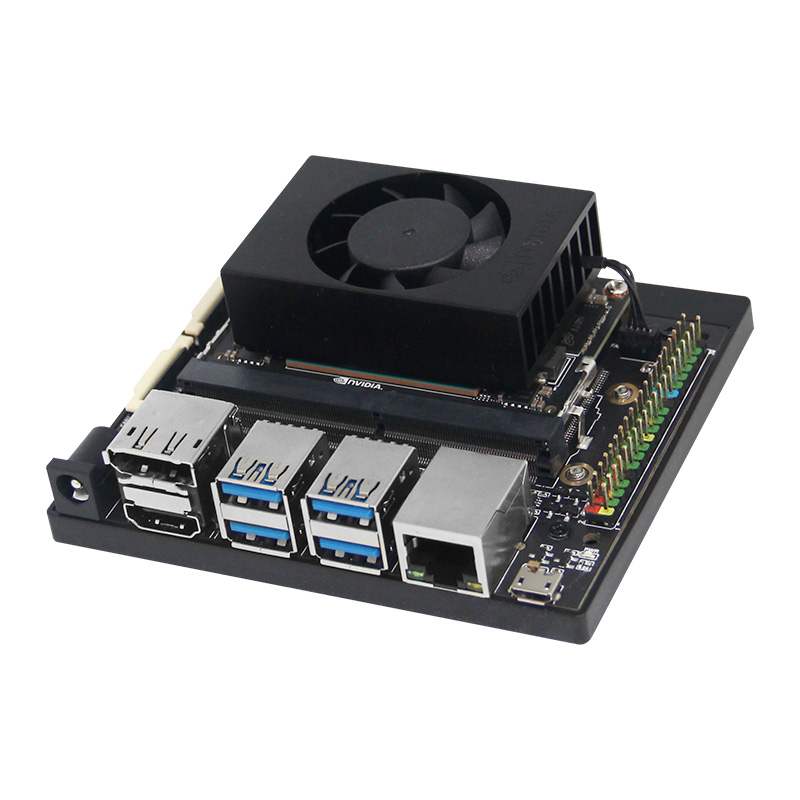

NX8g-DEV-03 Development System

NVIDIA Jetson Xavier NX module
384-core NVIDIA Volta GPU with 48 Tensor Cores
16 GB eMMC 5.1
16/8 GB 128-bit LPDDR4x 59.7GB/s


PARAMETER

GPU
384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU
6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory
16/8 GB 128-bit LPDDR4x 59.7GB/s
Storage
16 GB eMMC 5.1
Video Encoder
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265)
Video Decoder
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
Camera
2x MIPI CSI-2 DPHY lanes
Display
HDMI and DP
USB
4x USB 3.0, 1x USB 2.0 OTG
I/O
40PIN GPIO
Others
FAN Header (GPIO,I2C,I2S,SPI,UART)
Mechanical
91 mm x 104 mm x 35 mm

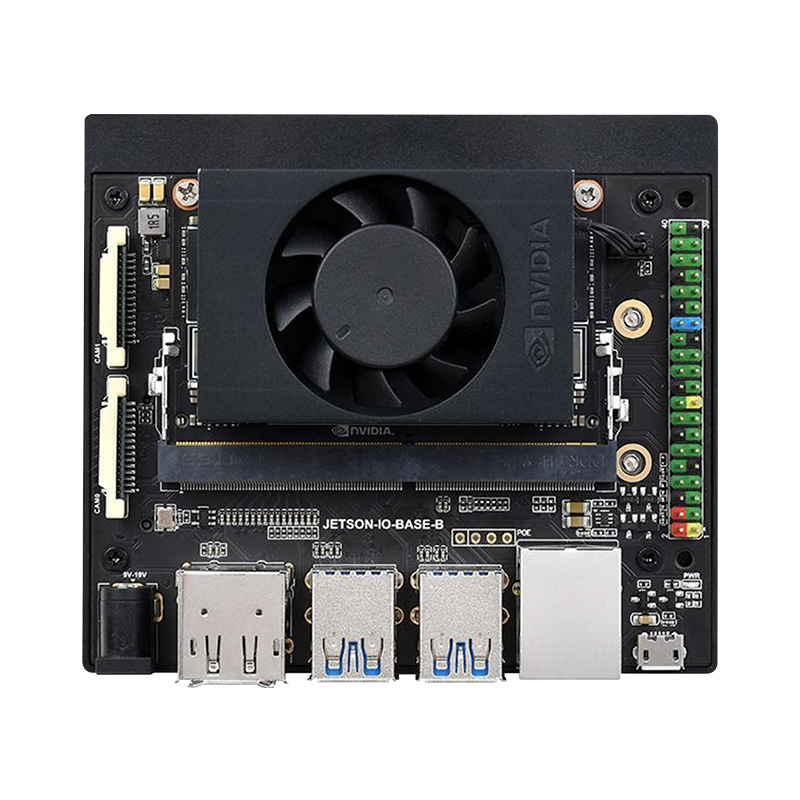

1. NVIDIA Jetson Xavier NX module
2. 40PIN GPIO
3. The Micro USB port can be used for 5V power input or USB data transfer
4. Ethernet(10/100/1000 BASE-T) connector
5. USB 3.0 ports
6. HDMI interface
7. DP interface
8. DC power port used for 12~21V power input

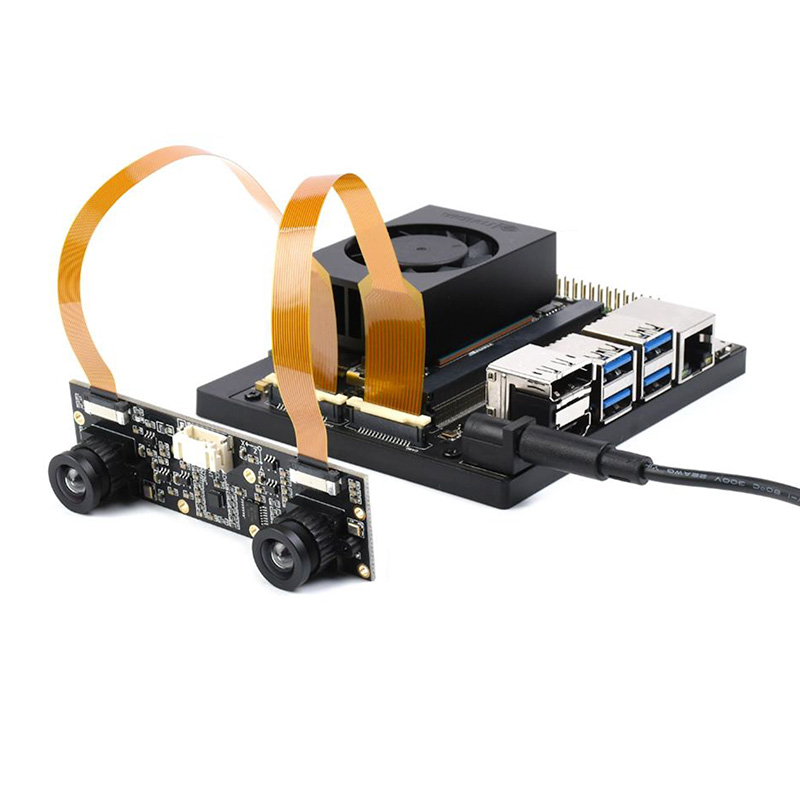

9. MIPI CSI cameras Interface Function
10. FAN interface

The Jetson Xavier NX is available in 8GB and 16GB versions. Please purchase on demand



Dimensions compatible with NVIDIA Jetson Xavier NX Developer Kit module

NX8g-DEV-03 DevKit with Packaging
