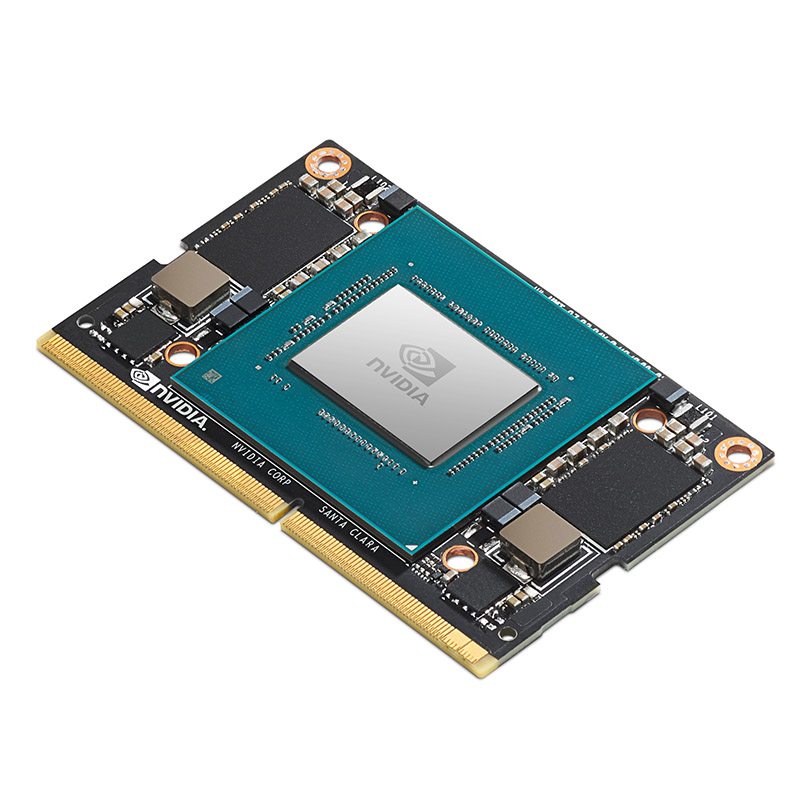

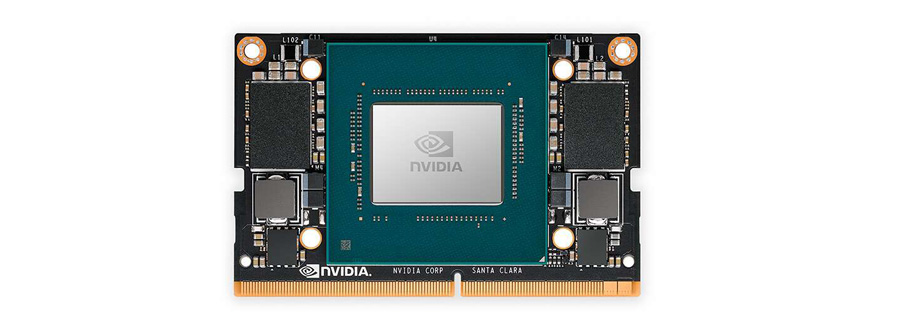

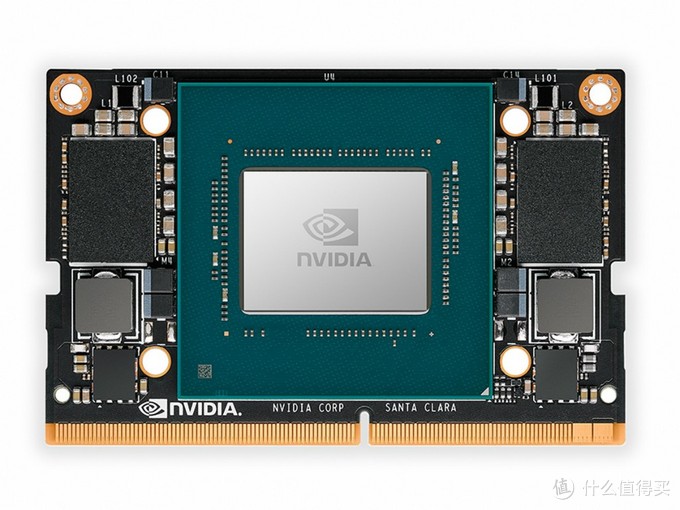

Jetson Xavier NX Module

Jetson Xavier NX 16GB

Jetson Xavier NX 8G

AI Performance

21 TOPS

GPU

384-core NVIDIA Volta^™ GPU with 48 Tensor Cores

CPU

6-core NVIDIA Carmel ARM^®v8.2 64-bit CPU
6MB L2 + 4MB L3

Memory

16 GB 128-bit LPDDR4x
59.7GB/s

8 GB 128-bit LPDDR4x
59.7GB/s

Storage

16 GB eMMC 5.1

Power

10 W | 15 W | 20 W

PCIe

1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*

CSI Camera

Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)

Video Encode

2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)

Video Decode

2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)

Display

2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

DL Accelerator

2x NVDLA Engines
