Jetson AGX Orin/AGX Xavier IPC 8F5E2

Input Power : DC +12V
Temperature Range : -20℃ to 65℃
Size : 222mm × 238mm ×67mm
Weight : 3065g

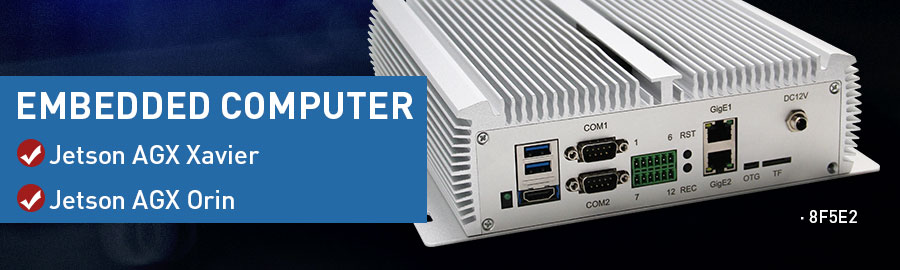

NVIDIA Jetson AGX Xavier/AGX Orin
Embedded Computer 8F5E2
8F5E1 for Jetson are compact edge computers built with NVIDIA advanced AI embedded systems
* NVIDIA Jetson Carrier Board: Support NVIDIA Jetson AGX Orin/AGX Xavier Module

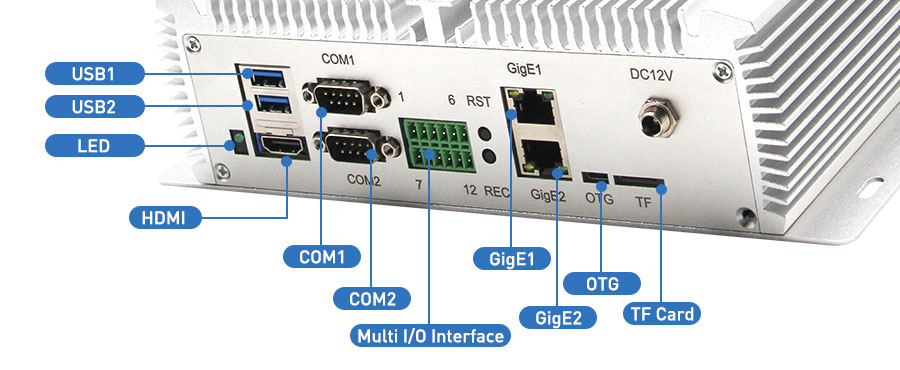

* Versatile Connectivity:
Offer 2x RJ45, 2x USB 3.0 and 1x HDMI

* Advanced Peripherals Supported:
Assemble 1x fan, 1x OTG, 2x COM, 2x RS232，4x GPIO, 1x TF slot, 1x RET, 1x REC, 1x SPI, 2x I2C,1x 24 pin connector

* Input Power: DC +12V

* Compact and Durable during Operation:
Design in small size of 238mm*222mm*67mm to save operation space, and maintain function in the temperature range from -20°C to 65℃

* Expansion:

4G/5G communication module, WiFI/Bluetooth module, Video capture/output module.

Product Name
8F5E2
Jetson Module Supported
NVIDIA Jetson AGX Xavier/AGX Orin
Networking
2x Gigabit Ethernet (10/100/1000)
USB
2x USB 3.0 Type-A
Display
1x HDMI
FAN
1x FAN connector（12V PWM）
M.2 KEY M
2x M.2 KEY M interface
Other I/O
2x CAN, 2x RS232, 4x GPIO, 1x SPI, 2x I2C,
Mechanical
238mm x 222mm x 67mm
Weight
3065g
Operating Temperature
-20℃~+65℃

Note

When used with the Jetson AGX Xavier module, only one USB 3.1 is available, the rest is USB 2.0, and one RJ45 network port is optional
AGX Xavier 32G
AGX Orin 32G
AGX Orin 64G
AI Performance
32 TOPS
200 TOPS
275 TOPS
GPU
512-core NVIDIA Volta GPU with 64 Tensor Cores
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
DL Accelerator
2x NVDLA
2x NVDLA v2
Vision Accelerator
2x PVA
1 x PVA v2
Memory
32GB 256-bit LPDDR4x 136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
Storage
32GB eMMC 5.1
64GB eMMC 5.1
Video Encode
4x4K60 (H.265) 16x1080p60 (H.265) 32x1080p30 (H.265)
1x4K60 (H.265) 3x4K30 (H.265) 6x1080p 60 (H.265) 12x1080p 30 (H.265)
2x4K60 (H.265) 4x4K30 (H.265) 8x1080p 60 (H.265) 16x1080p 30 (H.265)
Video Decode
2x8K30 (H.265) 6x4K60 (H.265) 26x1080p60 (H.265) 52x 1080p30 (H.265)
1x8K30 (H.265) 2 x4K60 (H.265) 4x4K30 (H.265) 9x1080p60 (H.265) 18x1080p30 (H.265)
1x8K30 (H.265) 3x4K60 (H.265) 7x4K30 (H.265) 11x1080p60 (H.265) 22x 1080p30 (H.265)
PCIe
1x8 + 1x4 + 1x2 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Up to 2x8 + 2x4 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Networking
10/100/1000 BASE-T Ethernet
1x GbE 4x 10GbE
Display
3 multi-mode DP 1.4 /eDP 1.4/HDMI 2.0 No DSI support
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power
10W - 30W
15W - 40W
15W - 60W
