301F1E5

AI Performance: 176 TOPS (INT8)

Memory & Storage: 48GB LPDDR4X, 128GB eMMC

Display Interface: 1 × HDMI (Optional)

Rich I/O Interfaces: 5 × RJ45 ports, 1 × FC port, 4 × USB3.0 Type-A, 4 × GPIO, 1 × CAN, 2 × RS232

Expansion Slots: Built-in miniPCIe, M.2 M Key (2280/2242), M.2 B Key (3050), Nano SIM slot and SATA power interface

Operating Temperature: -25℃ ~ +65℃/ -40℃ ~ +65℃ (Optional)

Input Voltage: DC 9V ~ 36V

Overview

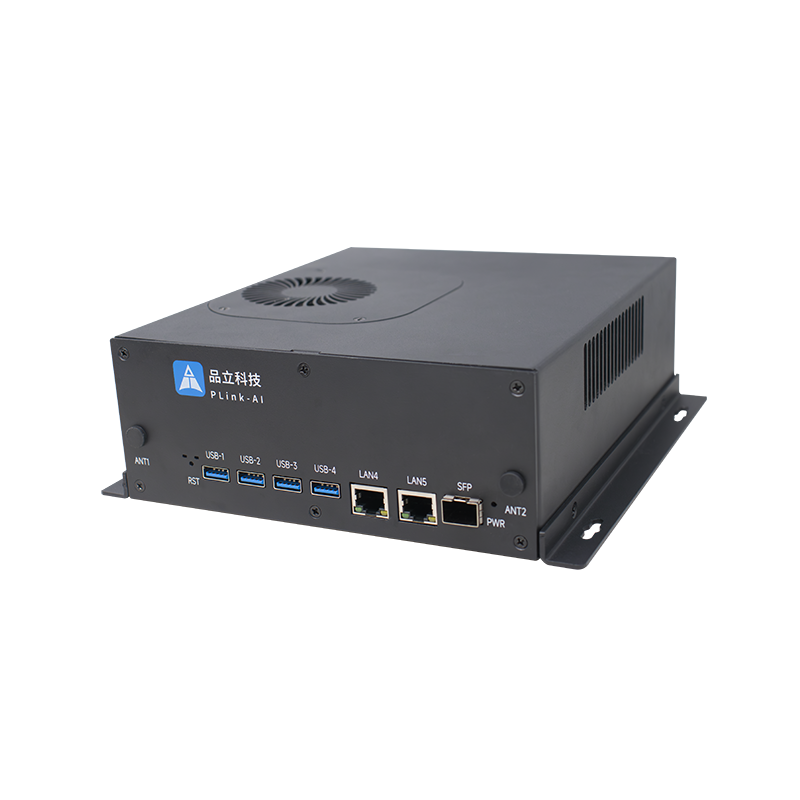

301F1E5 is an industrial-grade computing device equipped with the Ascend 310P chip, delivering up to 176 TOPS AI compute. The device features a robust and compact design, with abundant I/O interfaces and key interfaces equipped with electrostatic protection capabilities.

It combines high computing density, high performance ratio, high reliability and low cost advantages, and is specifically designed for edge AI inference scenarios such as smart parks, machine vision, security patrols, and vehicle-road collaboration.

Applications
301F1E5 301F1E5

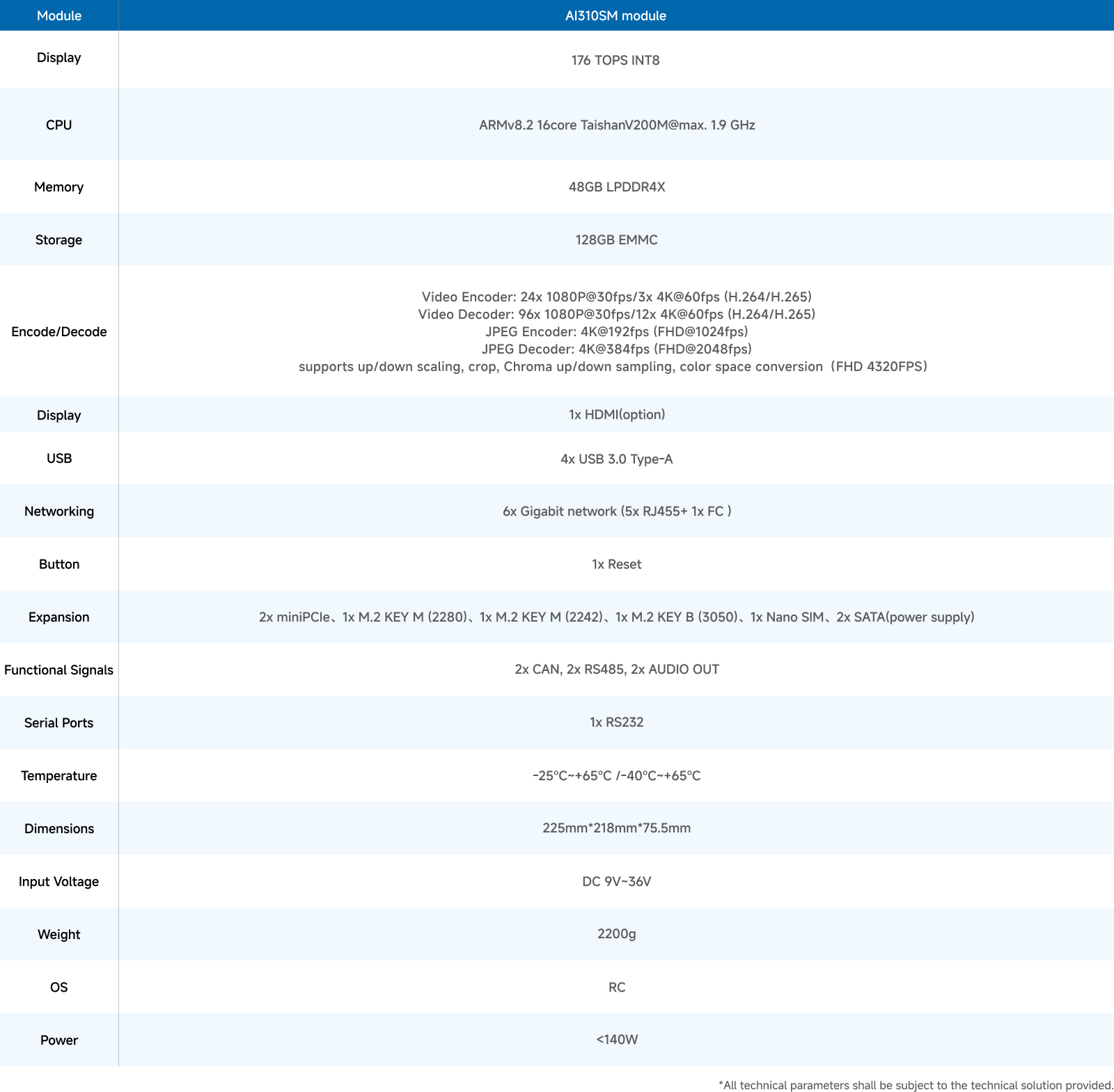

Specifications
301F1E5

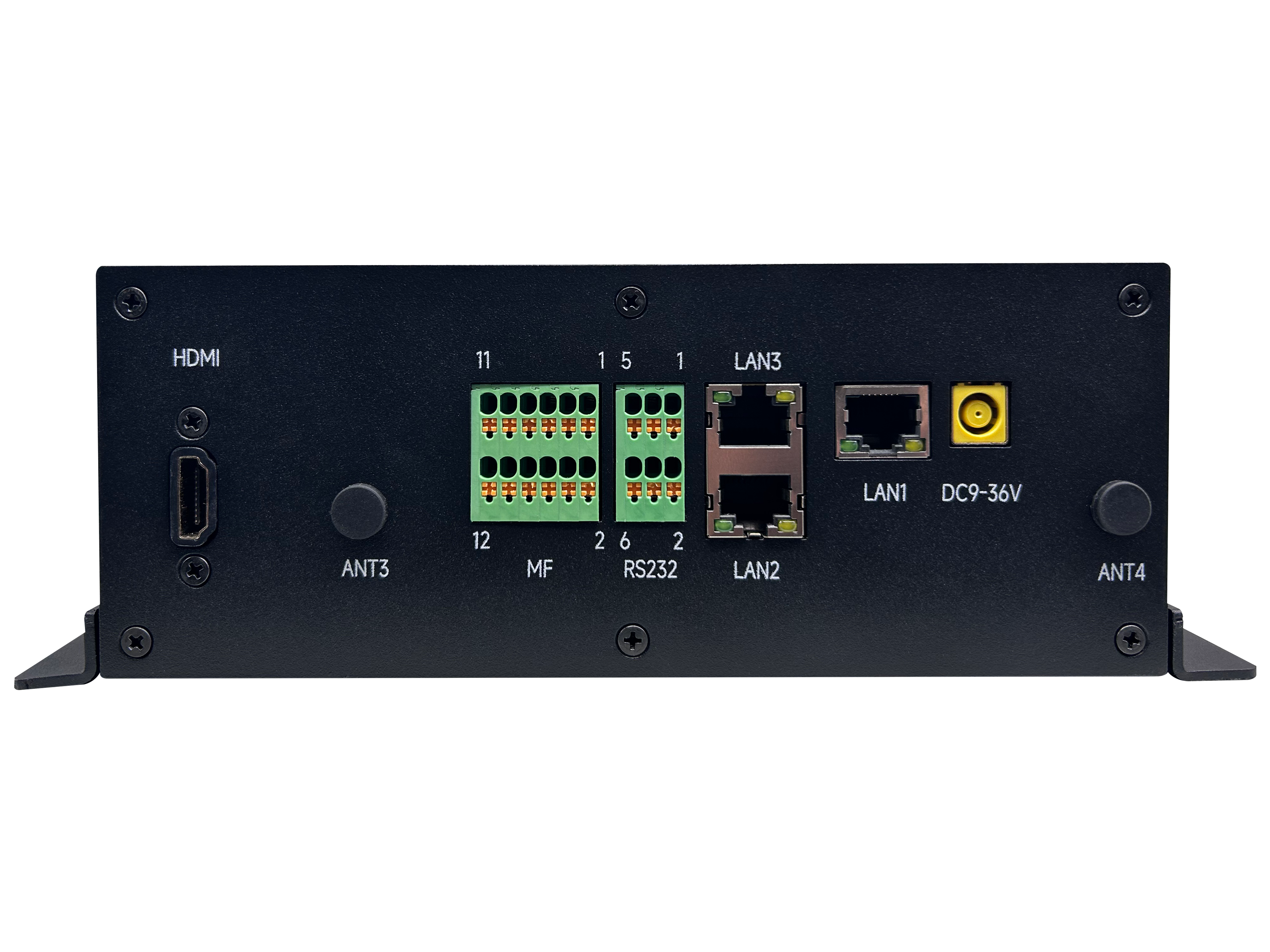

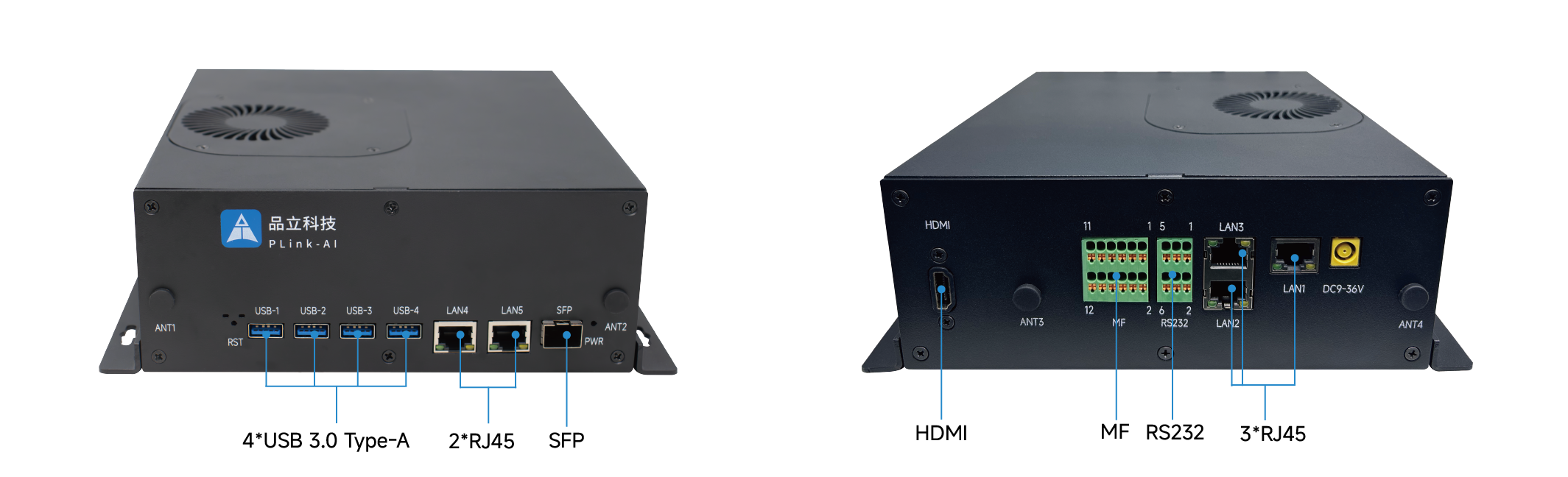

Interfaces
301F1E5

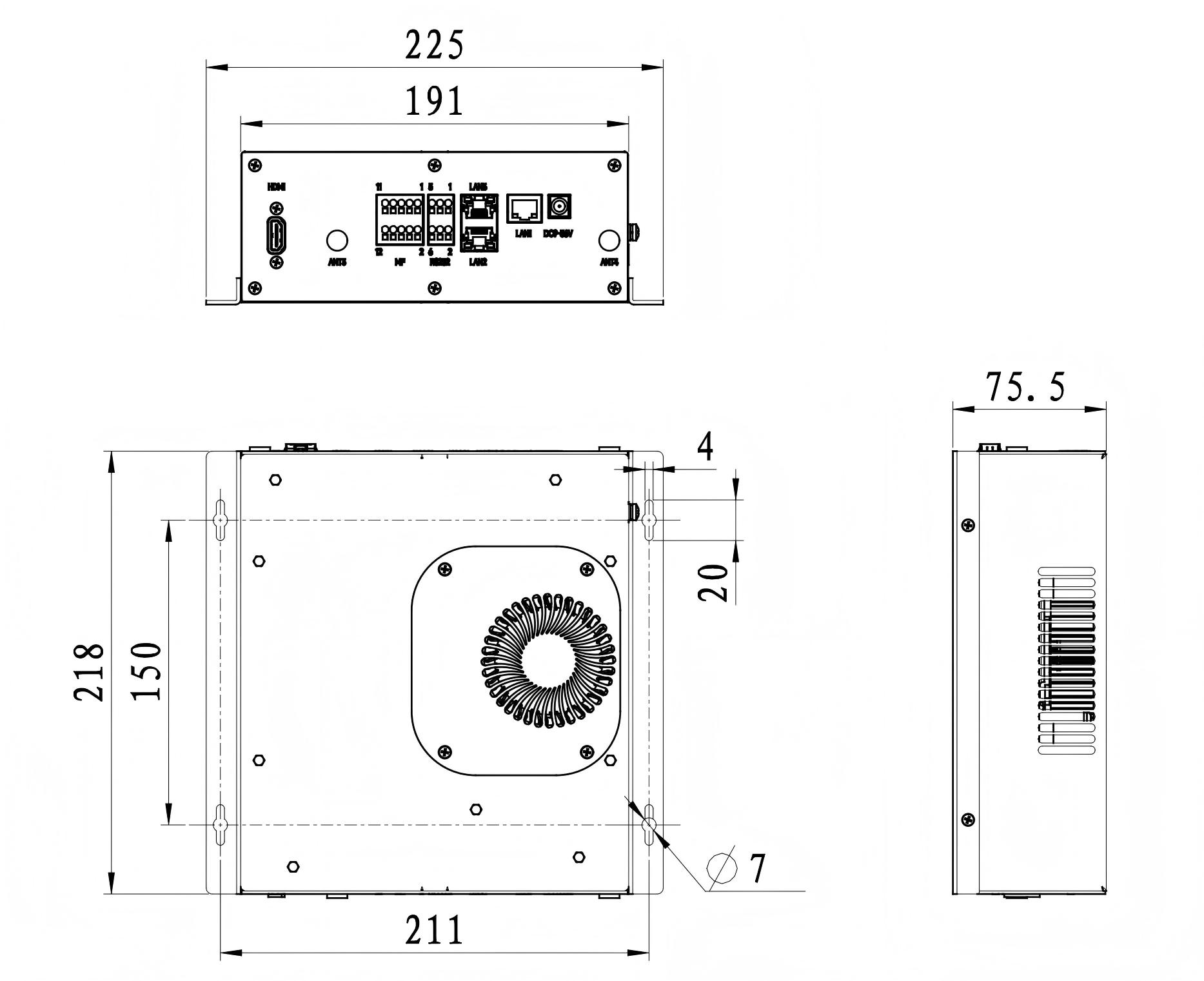

Dimensions
301F1E5
Downloads
zip
301F1E5 3D Model
Size:7.38 MB 2026-05-29
