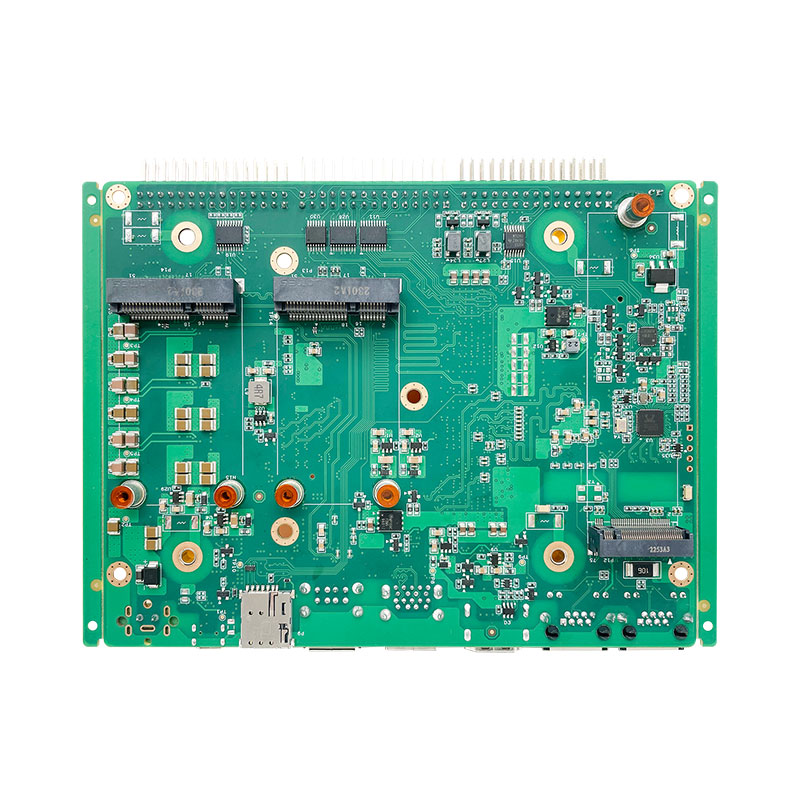

Y-C13-DEV is an edge AI computing development kit powered by NVIDIA® Jetson™ AGX Orin/AGX Xavier system-on-modules, providing scalable AI performance of 32/200/275 TOPS to meet diverse demands in medical imaging, industrial inspection, smart surveillance and intelligent in-vehicle systems. It delivers highly compatible hardware for rapid R&D and large-scale deployment of AI products.The carrier board features industrial-grade high-reliability design with triple protection: ESD, over-voltage and reverse polarity protection. Wide-temperature components ensure stable long-term operation in harsh environments. The kit integrates a Nano SIM slot for 4G communication and provides miniPCIe and M.2 M-Key slots for flexible expansion of multi-channel Gigabit Ethernet, USB 3.0, high-capacity storage, video capture and multi-serial modules.

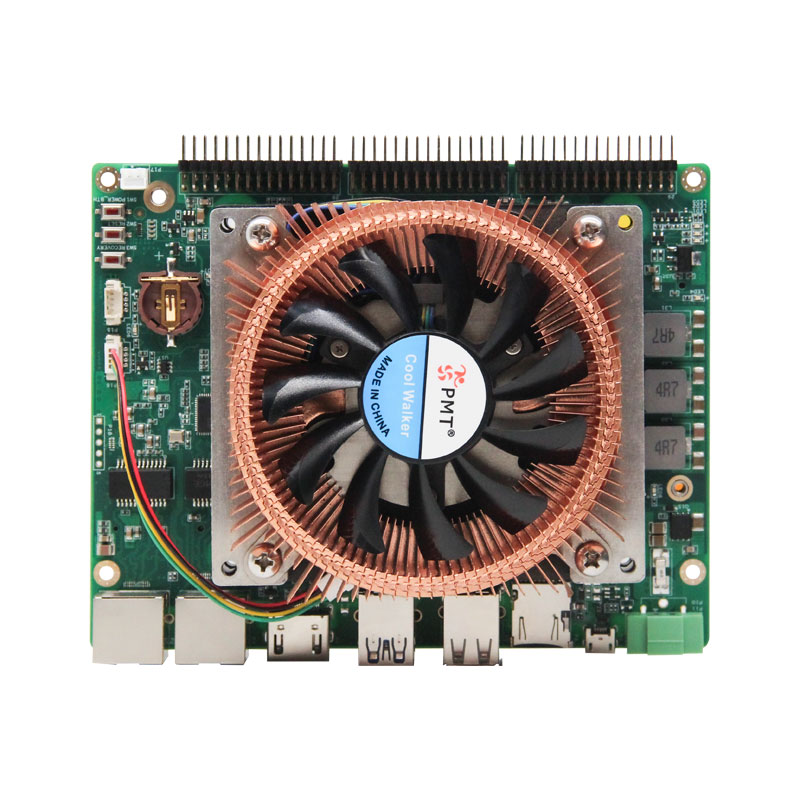

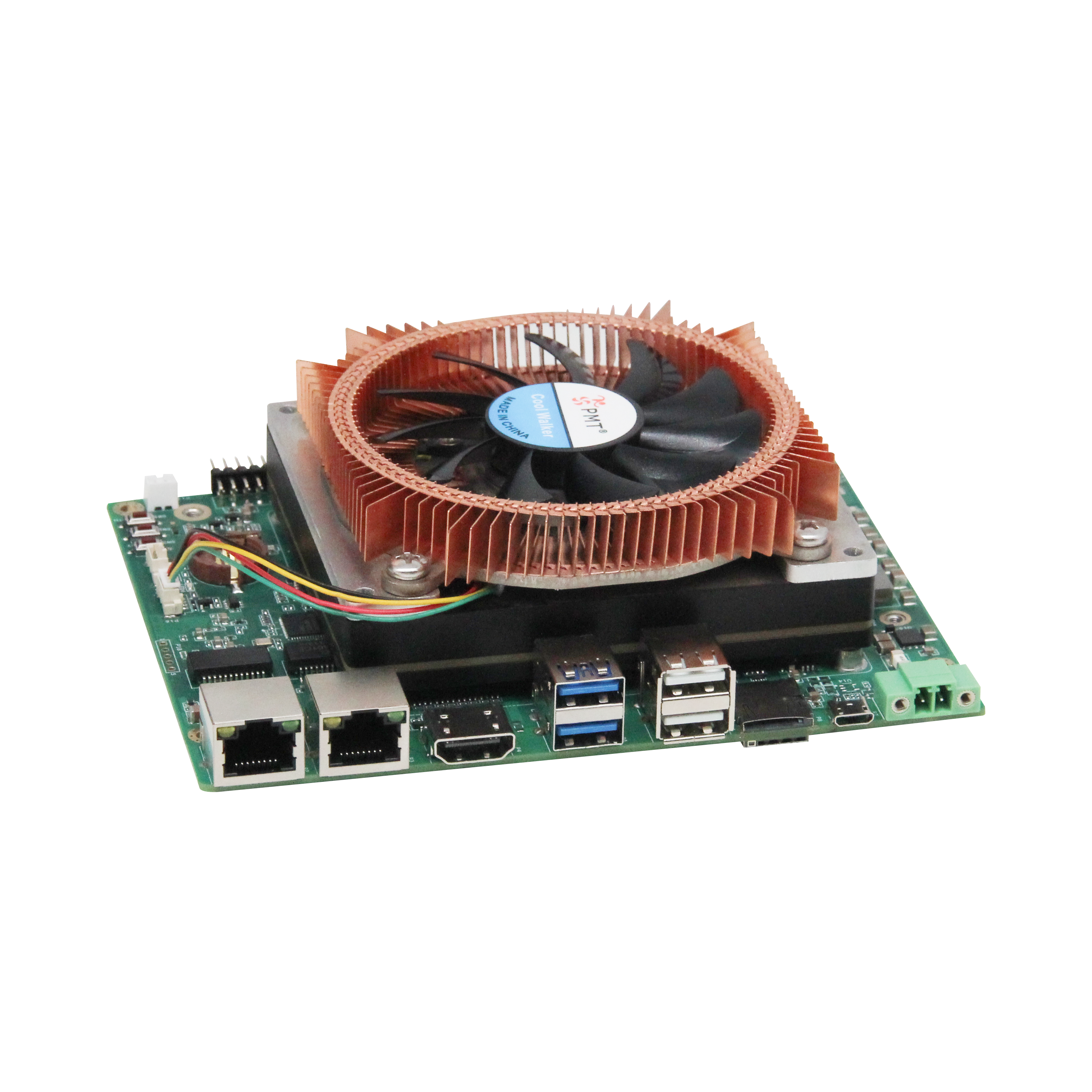

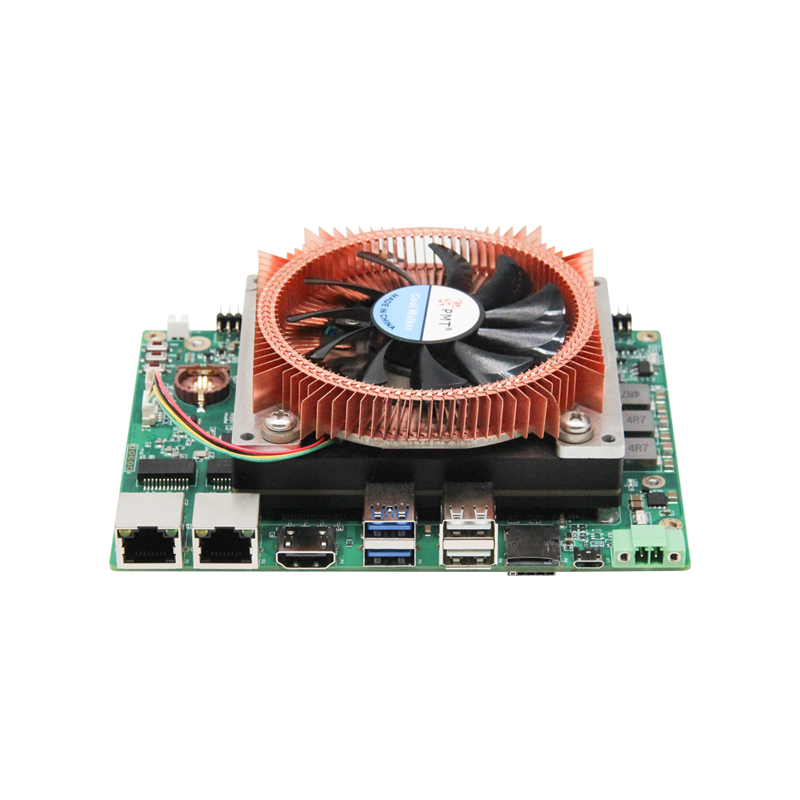

Y-C13-DEV

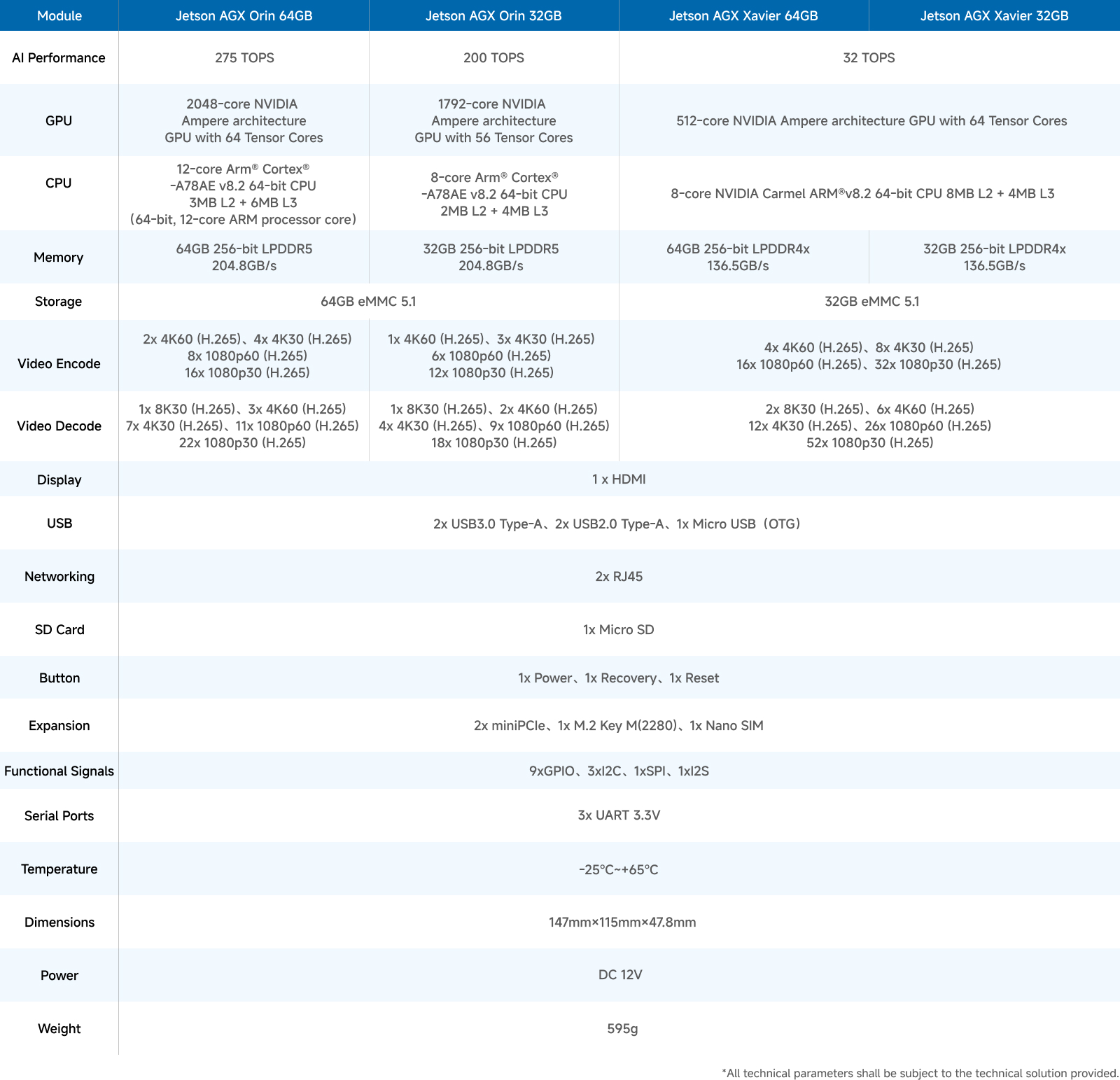

Jetson™ AGX Orin: 275/200 TOPS, 64/32GB LPDDR5, 64GB eMMC
Jetson™ AGX Xavier: 32 TOPS, 64/32GB LPDDR4x, 32GB eMMC
Display: HDMI

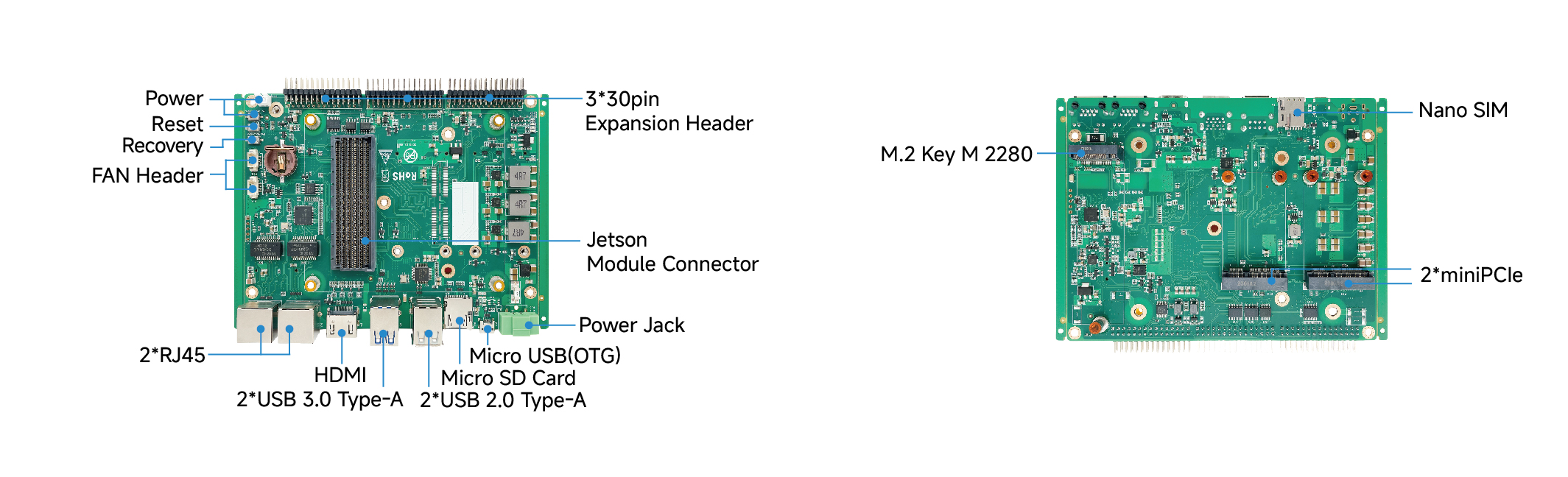

Rich I/O: RJ45, USB3.0 Type-A, USB2.0 Type-A, Micro USB, Micro SD, RTC, GPIO
Expansion Slots: miniPCIe, M.2 M 2280
Operating Temperature: -25℃ ~ +65℃
Input Voltage: DC 12V
Pre-installed Ubuntu
