The 8F3E1 is a high-performance edge AI computing device powered by NVIDIA® Jetson™ AGX Orin/AGX Xavier, delivering 32–275 TOPS AI performance for education, research, industrial automation, smart city and energy scenarios.Built with rugged compact industrial design and wide-temp components, it features rich I/O and flexible expansion for Ethernet, storage, communication and control modules to maximize integration flexibility.

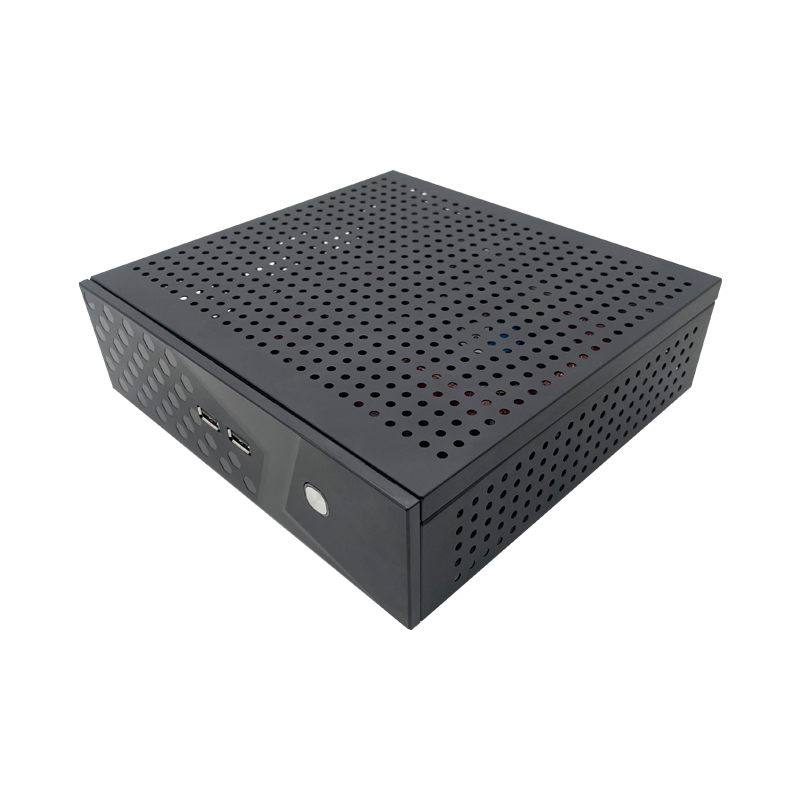

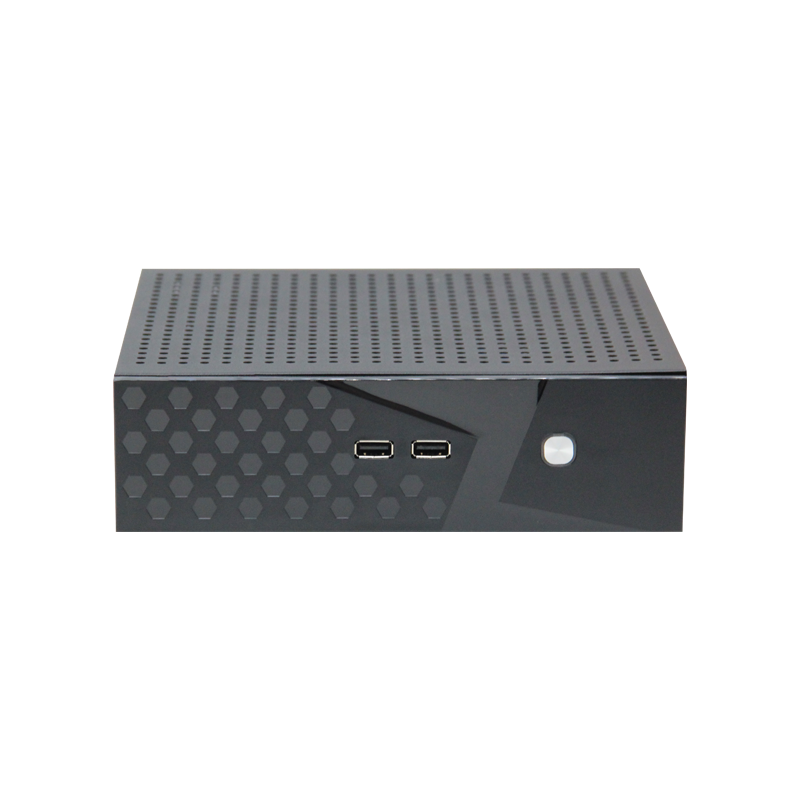

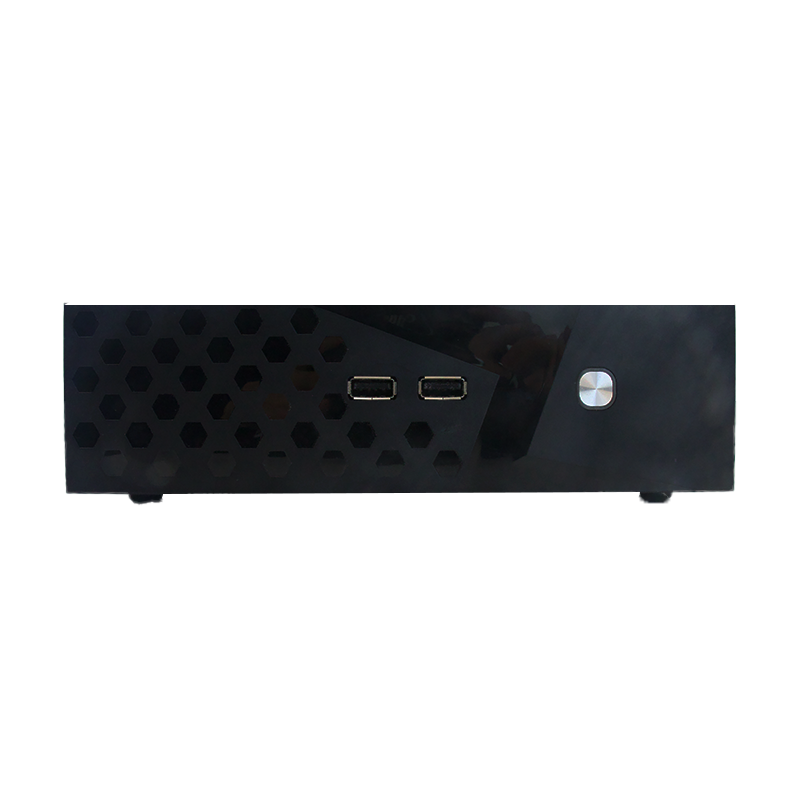

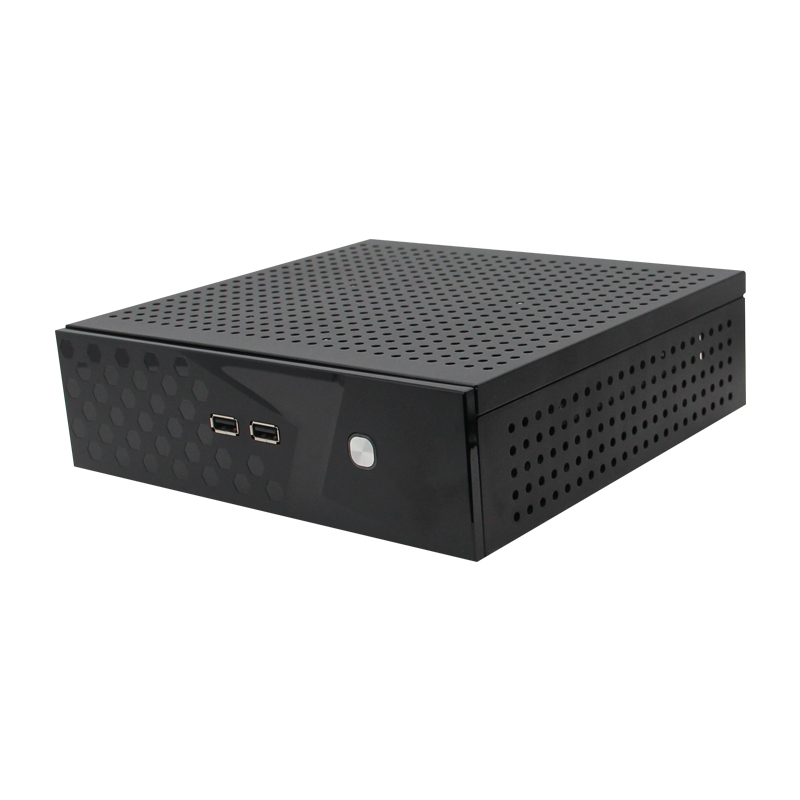

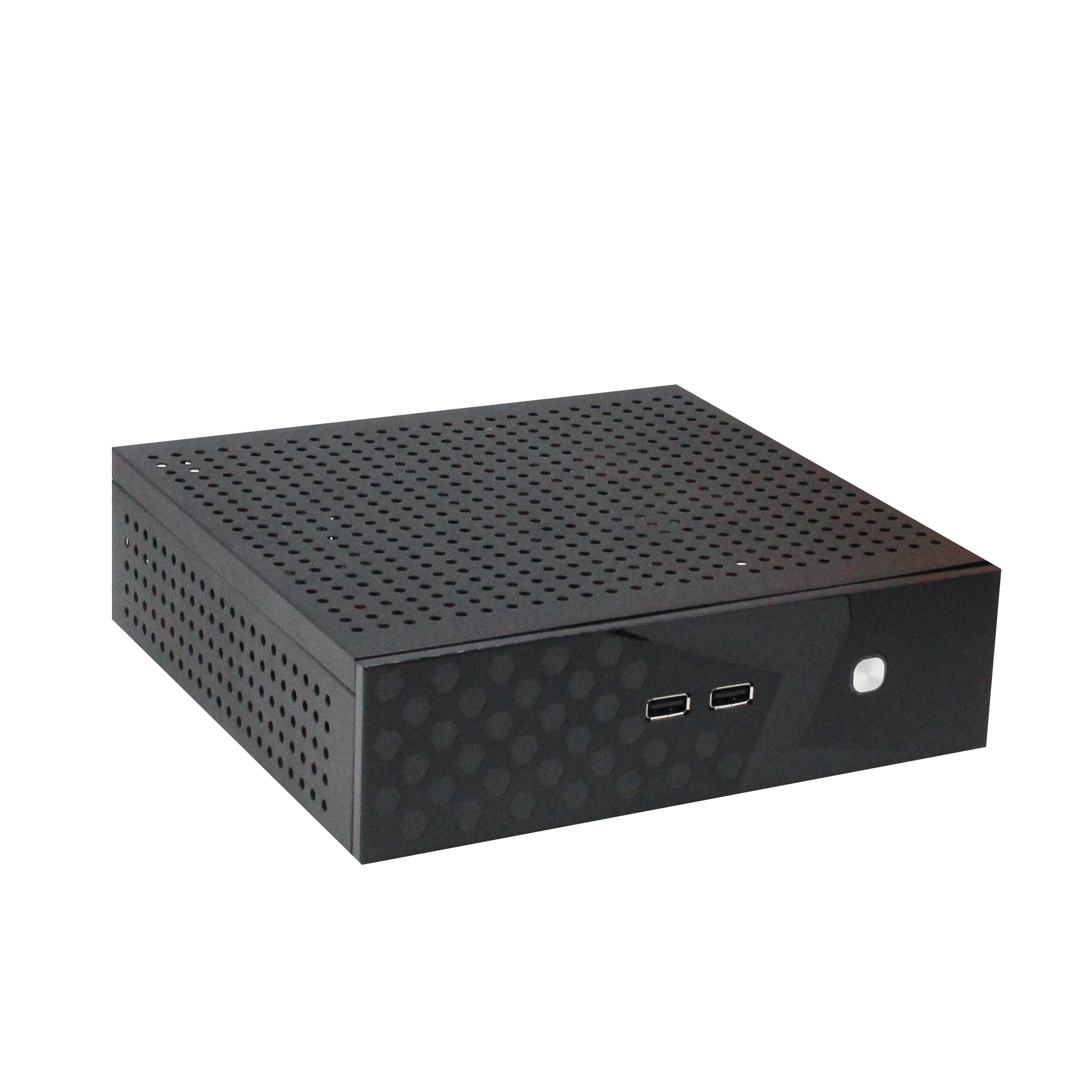

8F3E1

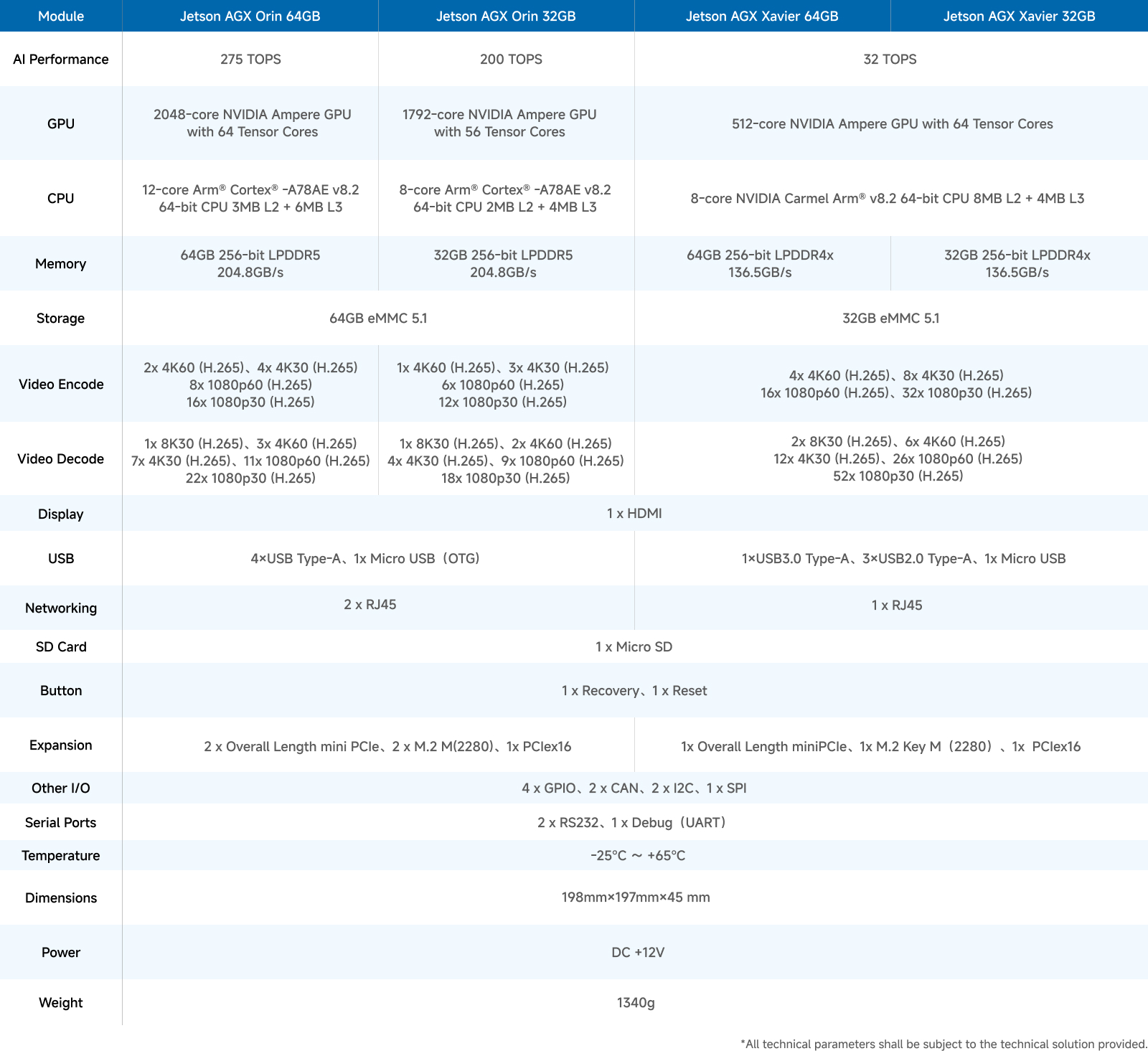

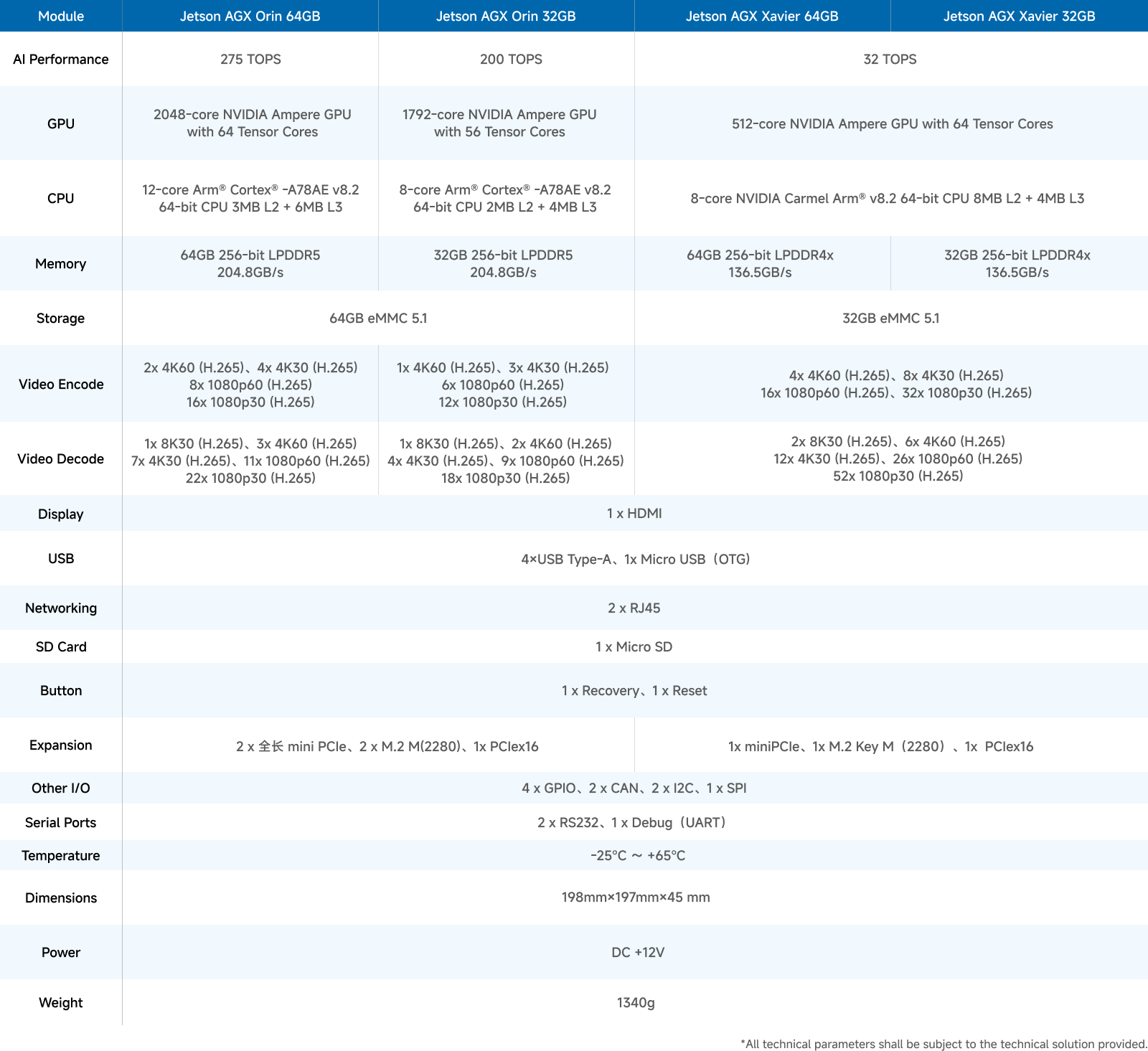

Jetson™ AGX Orin: 275/200 TOPS, 64/32GB LPDDR5, 64GB eMMC;
Jetson™ AGX Xavier: 32 TOPS, 64/32GB LPDDR4X, 32GB eMMC
Display: 1 × HDMI

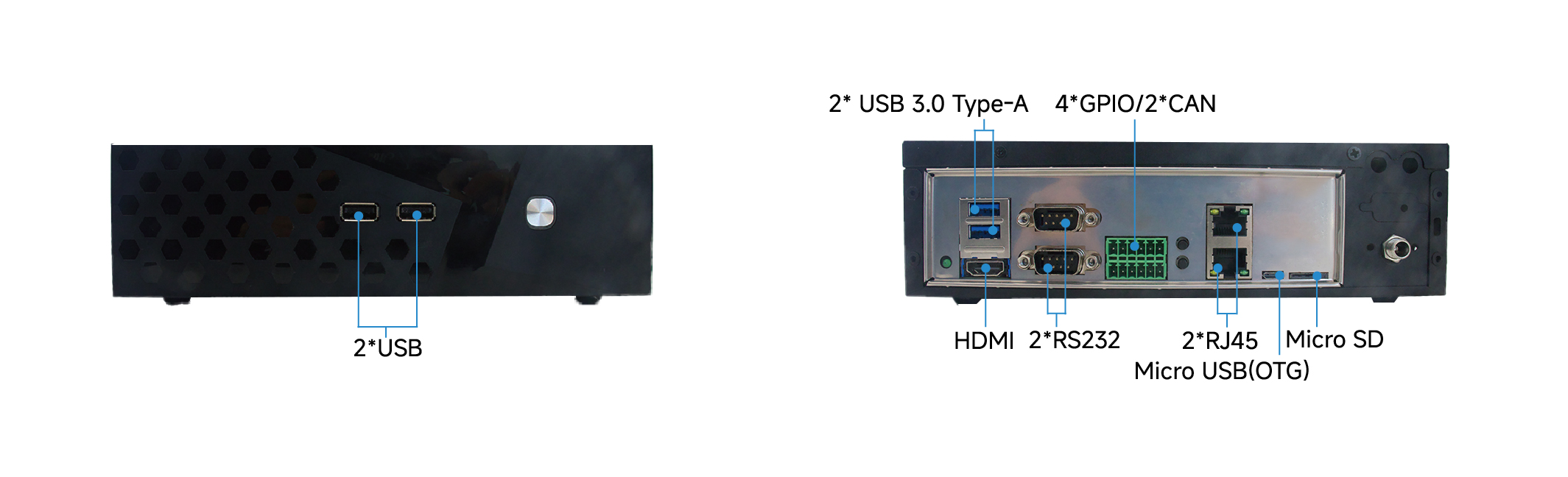

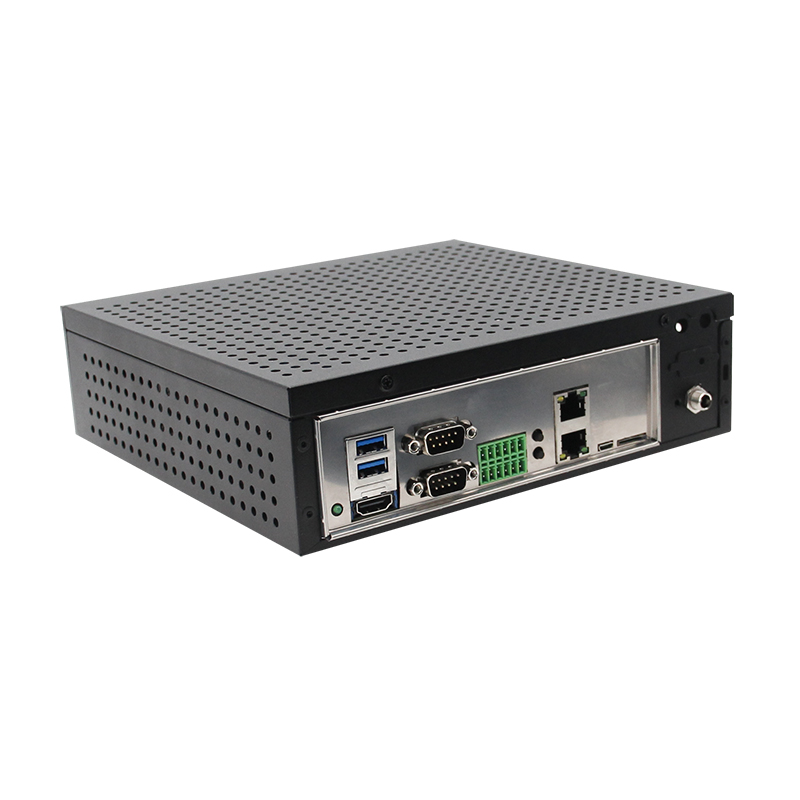

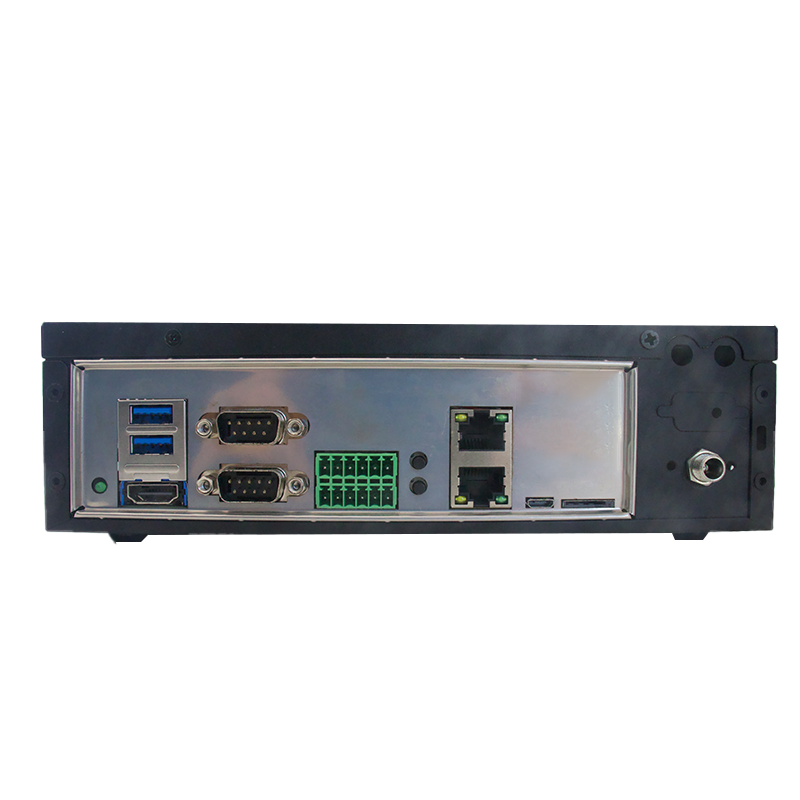

Rich I/O: 2 × RJ45, 4 × USB Type-A, 1 × Micro SD, 4 × GPIO, 2 × CAN, 2 × RS232
Expansion: Built-in 2 × full-size miniPCIe, 2 × M.2 M 2280, 1 × PCIe x16
Operating Temperature: -25℃ ~ +65℃
Input Voltage: DC 12V
Pre-installed Ubuntu
