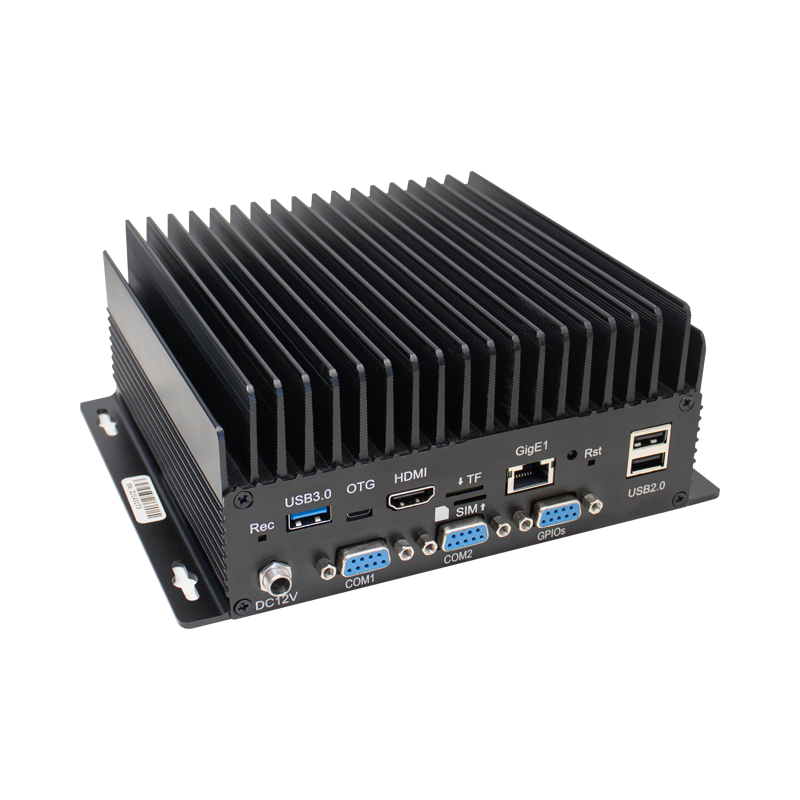

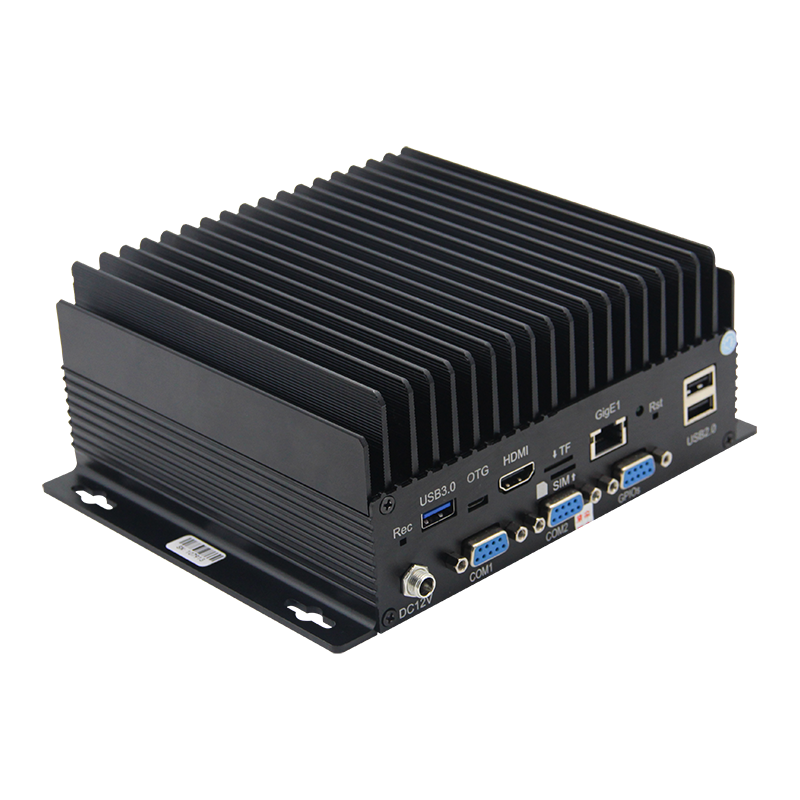

IPC ONX-SYS-2016 powered by Jetson Orin NX

Input Power : DC +12V
Temperature Range : -25℃ to 65℃
Size : 190mm × 160mm ×76.3mm



ONX-SYS-2016 is a compact AI industrial computer with NVIDIAJetson Orin NX series core modules. For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. warm model.

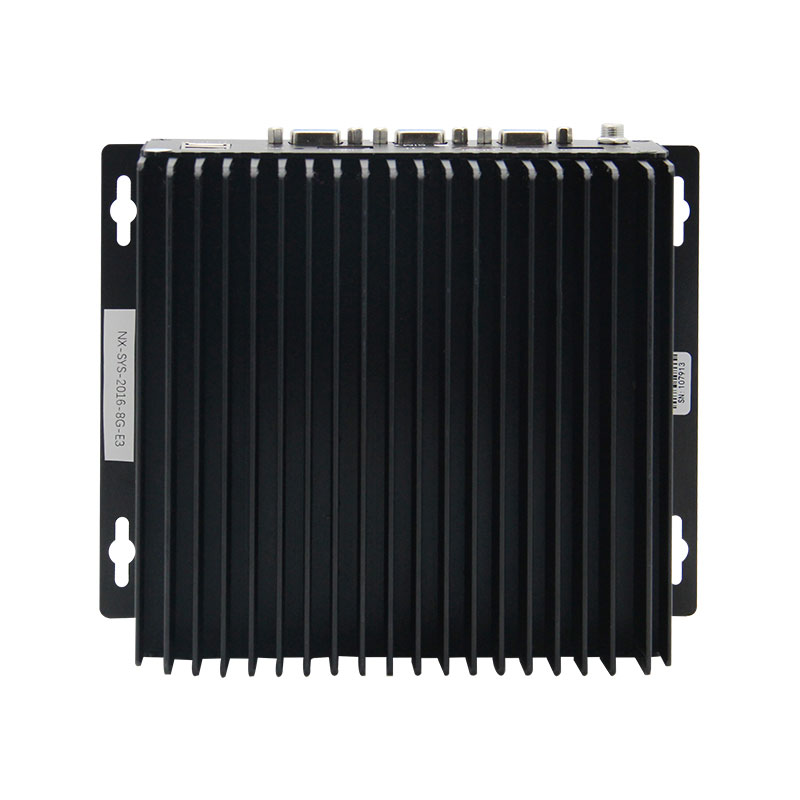

ONX-SYS-2016adopts large-size heat dissipation fins, and uses red copper bosses and high-performance heat pipes for heat dissipation design. It has good heat conduction and heat dissipation performance, so that the whole machine can adapt to  higher ambient temperature scenarios.

ONX-SYS-2016standard type can support 1/3 full-speed Gigabit Ethernet, if you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial port card, sound acquisition/output card, multi-function IO card, etc.


Product Feature

Factory pre-installed NVIDIA Jetson Orin NX core module

Optional 32GB ~ 1TB SSD expansion storage


Automatically start when power on

Onboard Reset and Recovery buttons

USB 3.1 Type-A
1 USB 2.0 Type-A
2
Micro USB
1
RJ45
1/3
HDMI 2.0
1
Micro TFconnector
1
SIM card connector
1
CAN
1
RS-232
2
GPIO
3
GPO
1


Size
190mm×160mm×76.3mm

Weight

1425
Power requirements
DC +9V~+24V
Working temperature
-25~+65℃


NVIDIA Jetson Orin NX series

technical specifications


Jetson Orin NX 8GB
Jetson Orin NX 16GB
AI Performance
70 TOPS
100 TOPS
GPU 1024-core NVIDIAAmperearchitecture GPU with 32 Tensor Cores
GPU Max Frequency
765 MHz
918 MHz
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
CPU Max Frequency
2GHz
DLA Max Frequency
614MHz

Memory

8GB 128-bit LPDDR5
102.4GB/s
16GB 128-bit LPDDR5
102.4GB/s

Storage

-
(Supportsexternal NVMe)
Video Encode
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)

Video Decode

1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
Camera
Up to 4 cameras (8 via virtualchannels***)
8 lanes MIPI CSI-2
D-PHY 2.1(up to 20Gbps)

PCIe*

1 x4+3 x1
(PCIe Gen4, Root Port, & Endpoint)
USB* 3xUSB3.2 Gen2 (10 Gbps)
3xUSB2.0

Networking

1x GbE

Display

1x 8K30multi-modeDP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs

Power

10W -20W
10W - 25W
Mechanical 69.6mmx45mm
260-pin SO-DIMM connector
