Jetson Orin Nano developer kit

40 TOPS
8GB 128-bit LPDDR5 68 GB/s
7W - 15W
100 mm x 79 mmx 21 mm

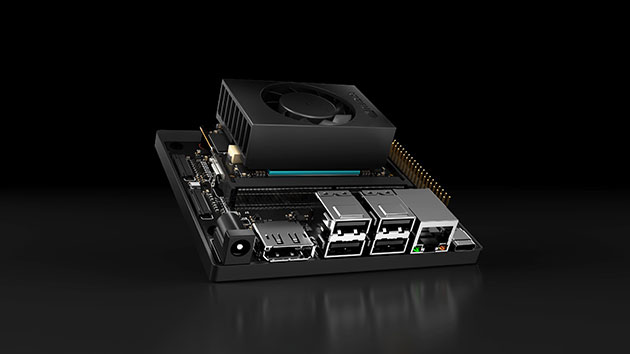

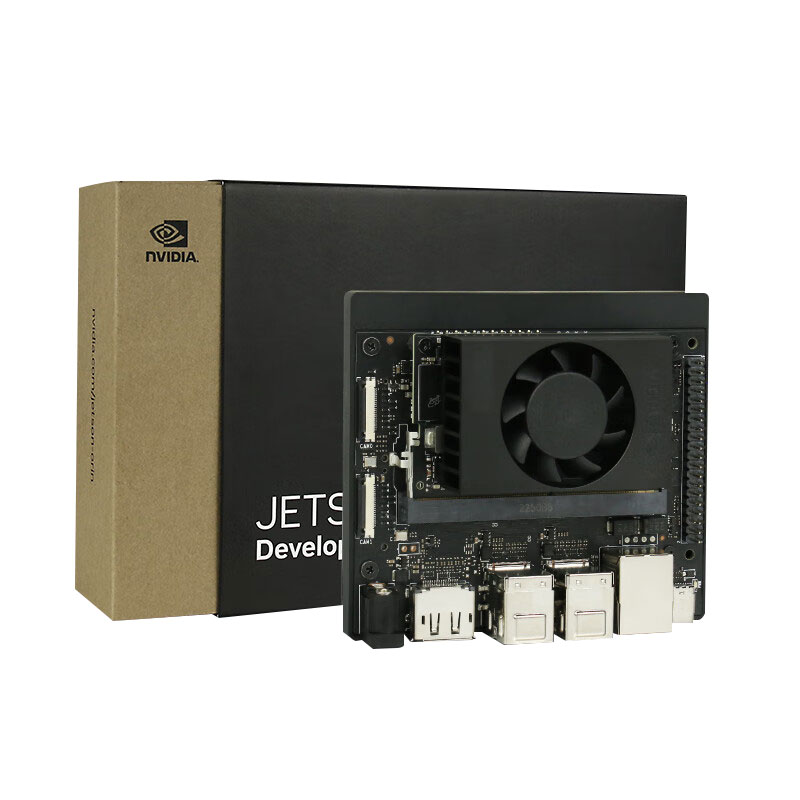

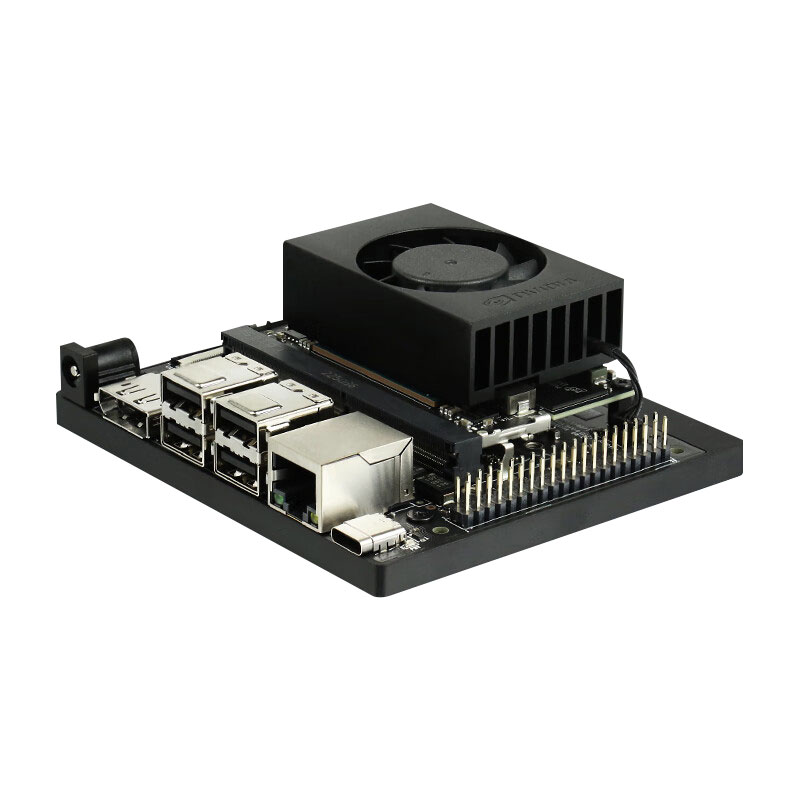

Jetson Orin Nano Developer Kit
945-13766-0000-000
The NVIDIA Jetson Orin Nano Developer Kit sets a new standard for creating entry- level AI-powered robots, smart drones, and intelligent cameras. It also simplifies the process of starting with Jetson Orin Nano series modules. Compact design, lots of connectors and up to 40 TOPs of AI performance make this the perfect developer kit to bring your AI concepts to life. With up to 80X the performance of Jetson Nano, it can run all modern AI models, including transformer and advanced robotics models.

Feature

* Excellent AI Performance for production:
on-device processing with up to 40 TOPS AI performance with low power and low latency

* Hand-size edge AI device:
compact size at 100mm x79mm x 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.

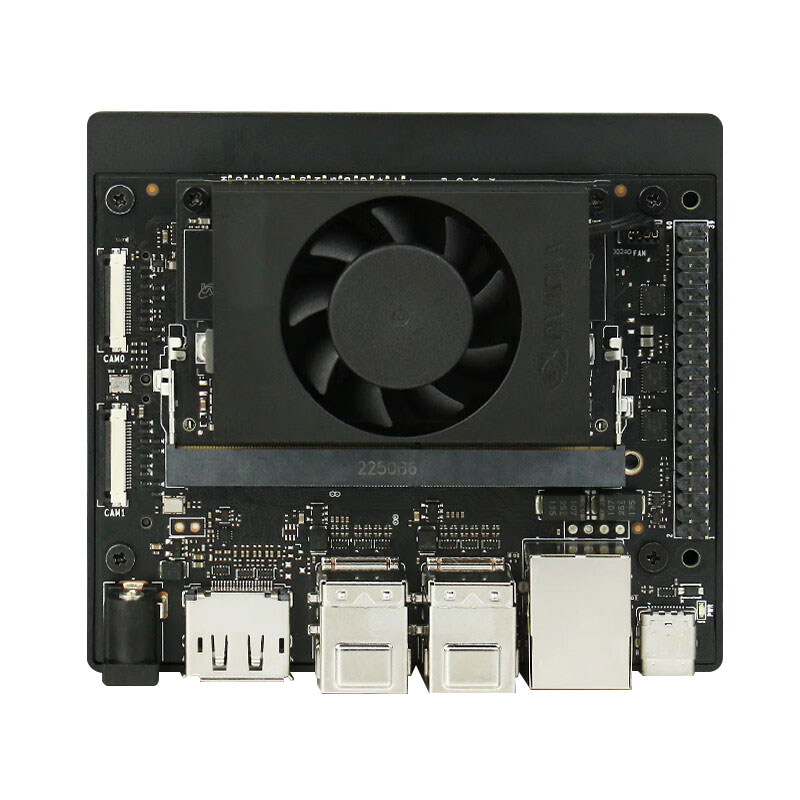

* Reference carrier board


> 2x MIPI CSI-2 22-pin camera connectors


> 2x M.2 Key M, M.2 Key E


> 4x USB 3.2 Gen2 Type-A


> USB Type-C for UFP


> Gigabit Ethernet


> DisplayPort


> microSD slot


> 40-pin expansion header


> DC power jack


Jetson Orin Nano Developer Kit Specifications
AI Performance
40 TOPS
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
Memory
8GB 128-bit LPDDR5
68 GB/s
Storage
-
(SD Card Slot & external NVMe via M.2 Key M)
Video Encode
1080p30 supported by 1-2 CPU cores
Video Decode
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Networking
1xGbE Connector
CSI Camera
2x MIPI CSI-2 22-pin Camera Connectors
Display
1x DisplayPort 1.2 (+MST) connector
USB
USB Type-A Connector: 4x USB 3.2 Gen2
USB Type-C Connector for UFP
Other I/O
40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO)
12-pin button header
4-pin fan header
microSD Slot
DC power jack
Power
7W - 15W
Mechanical
100 mm x 79 mmx 21 mm
(Height includes feet, carrier board, module, and thermal solution)
