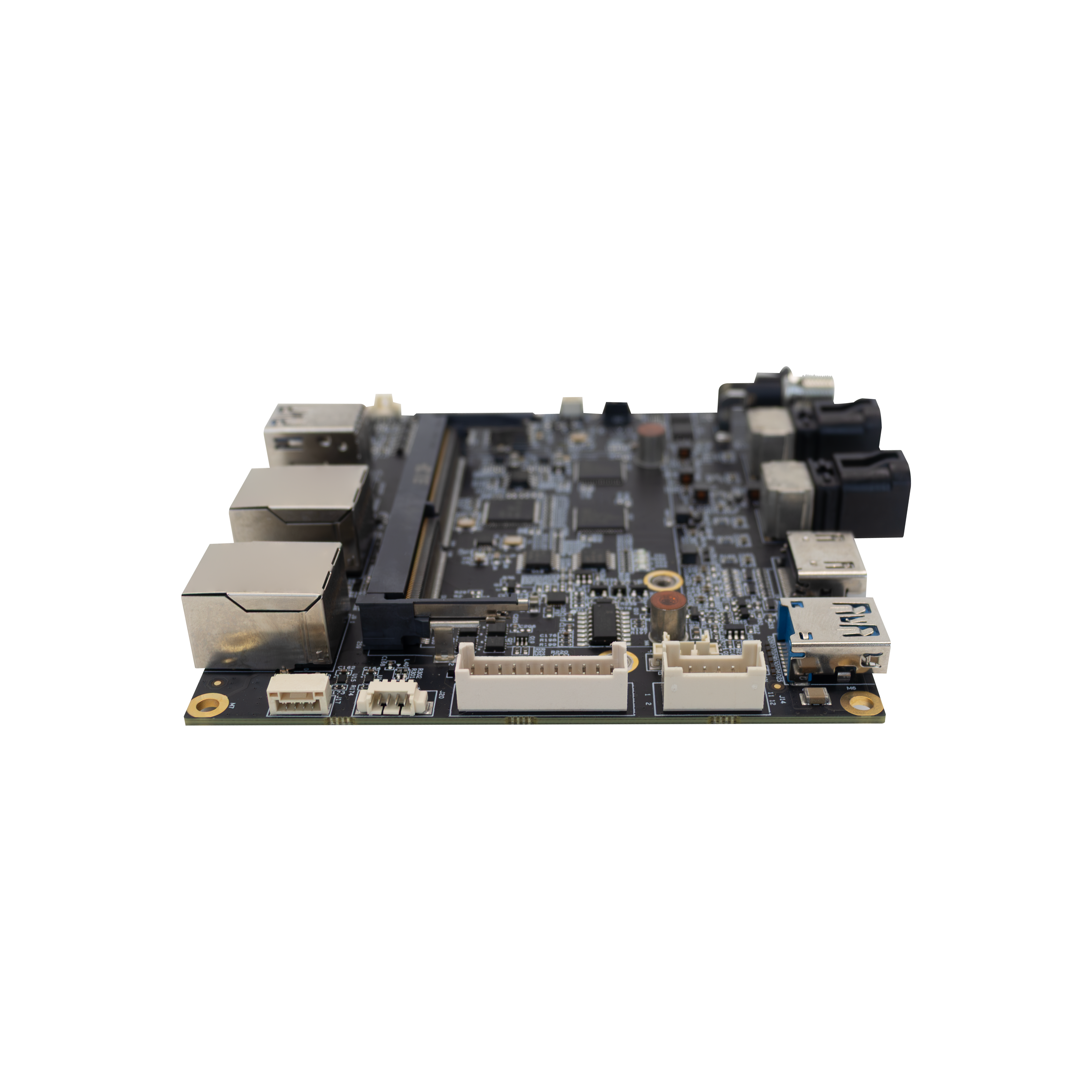

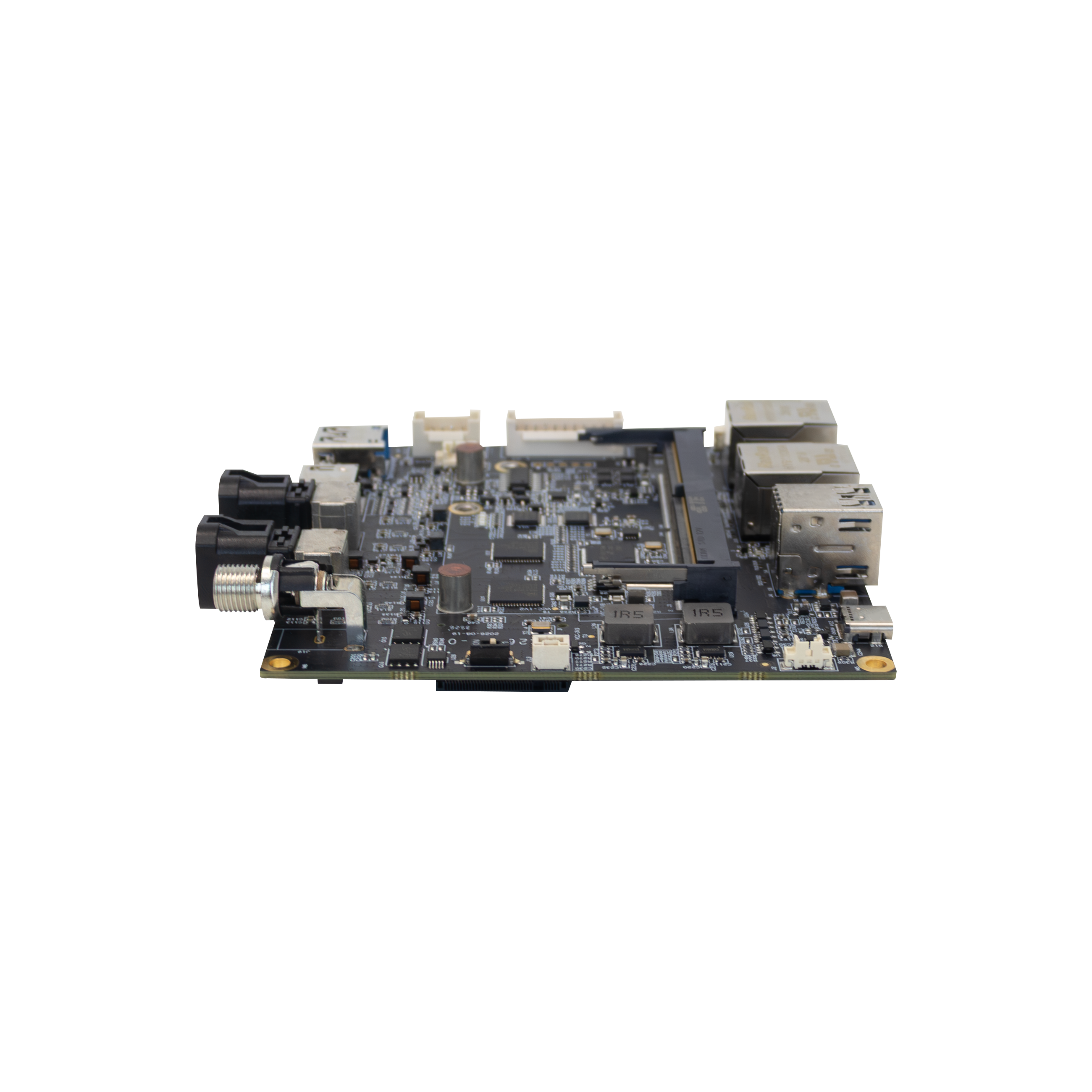

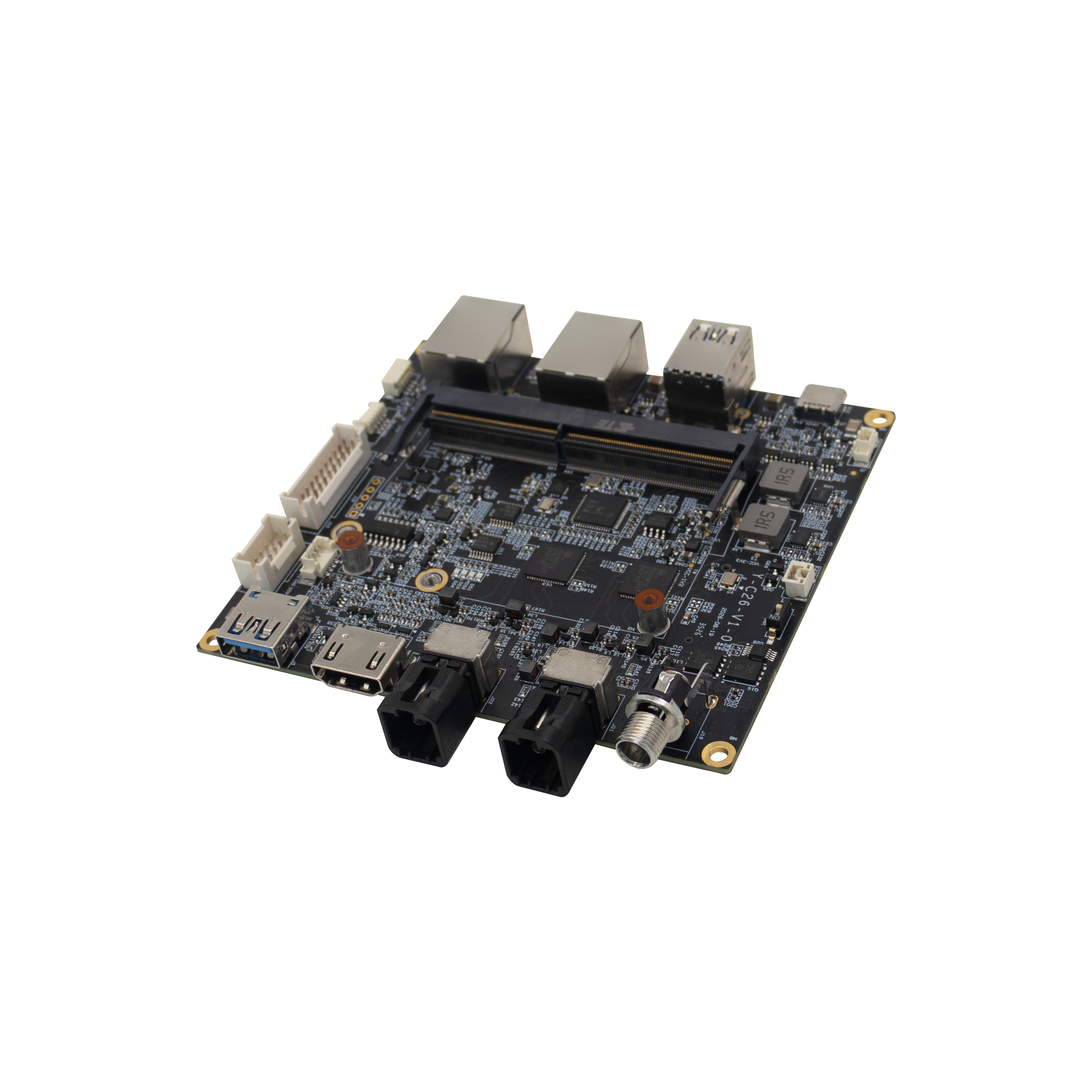

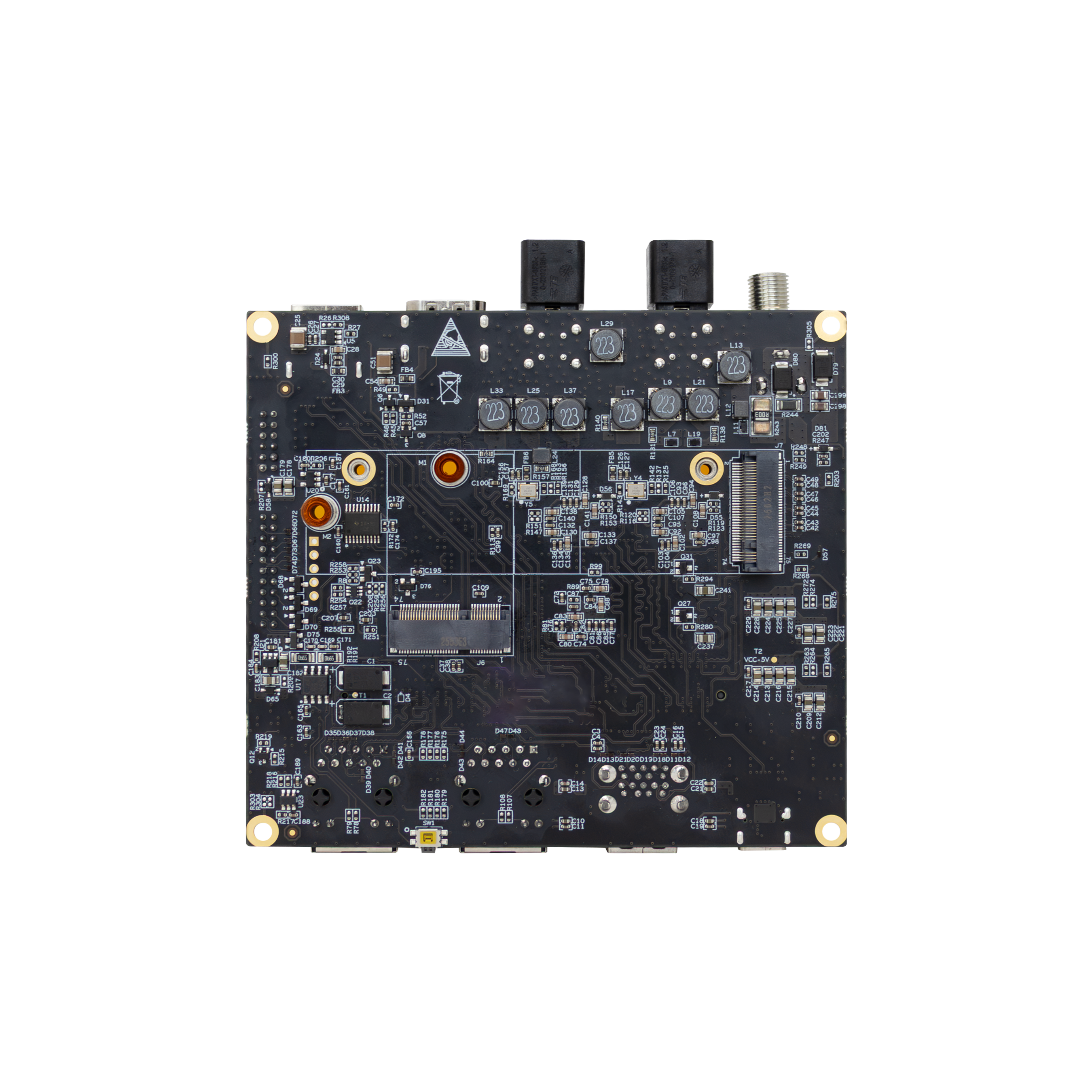

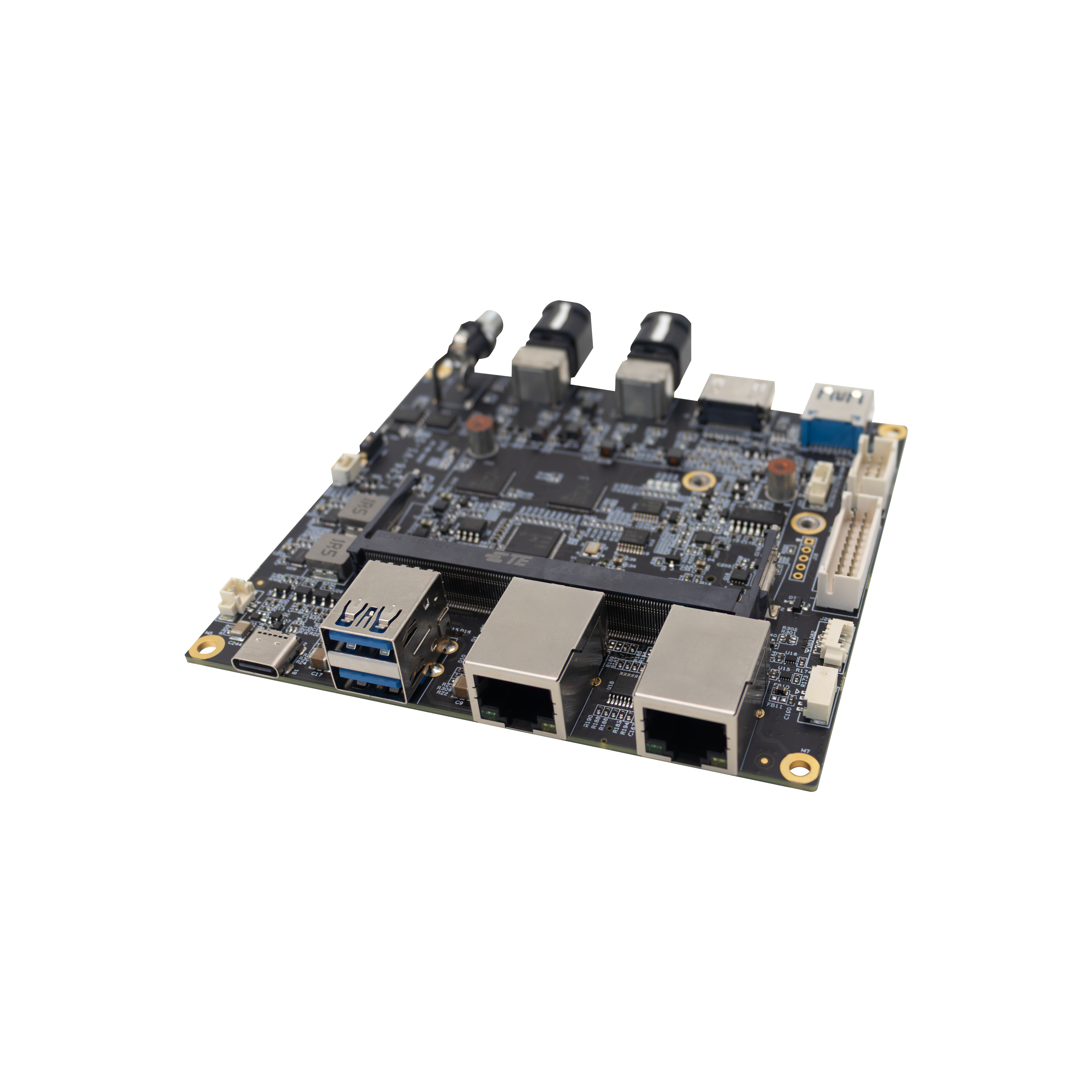

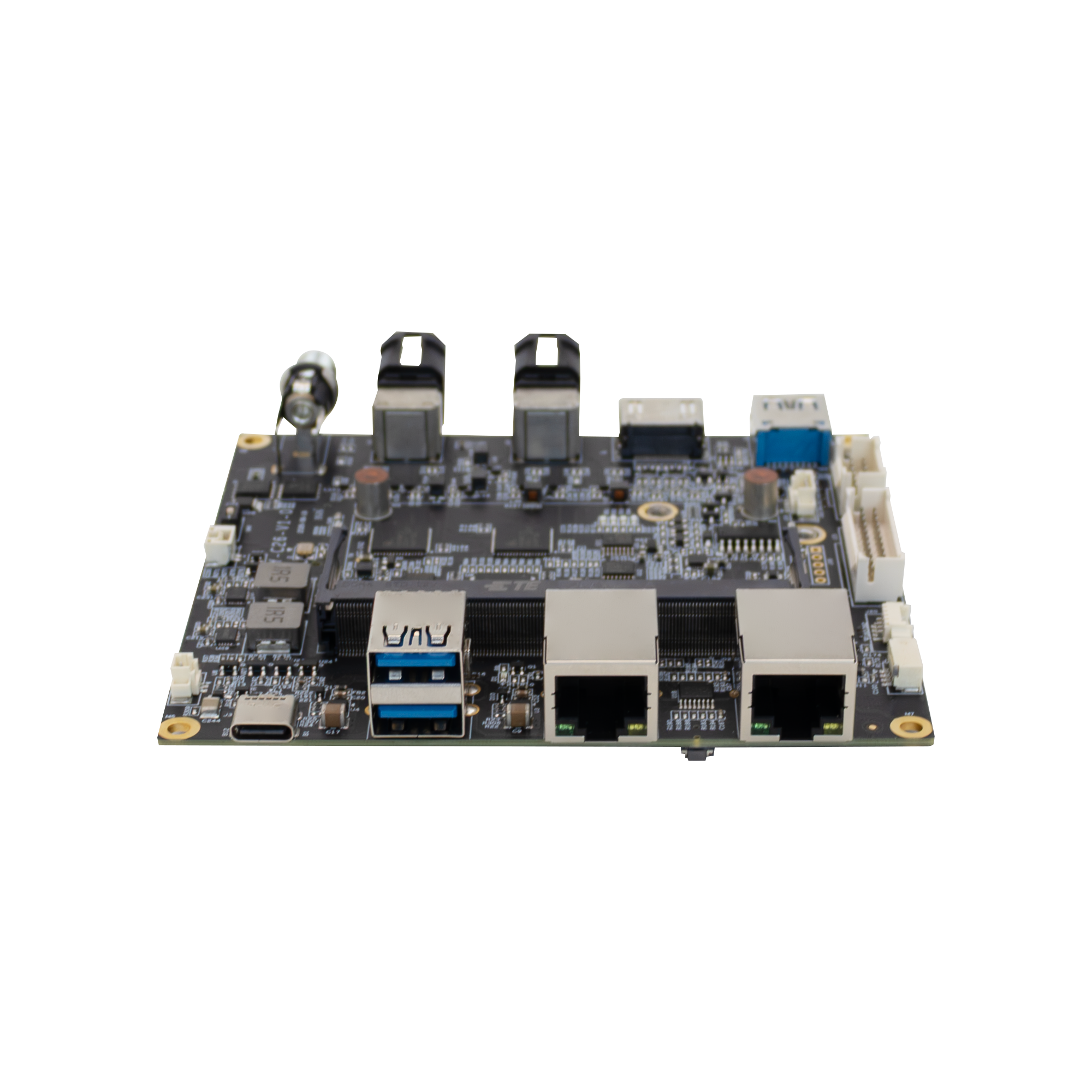

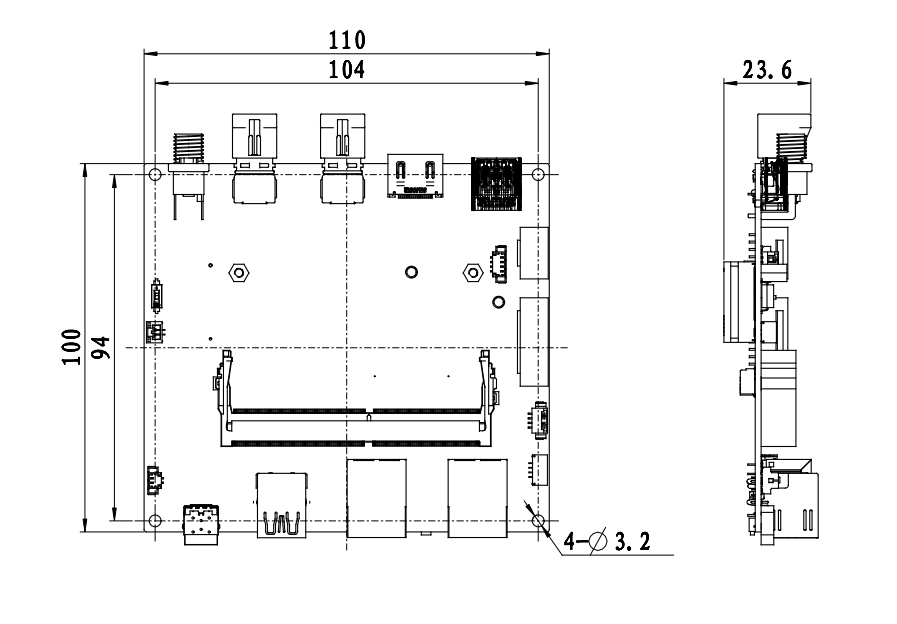

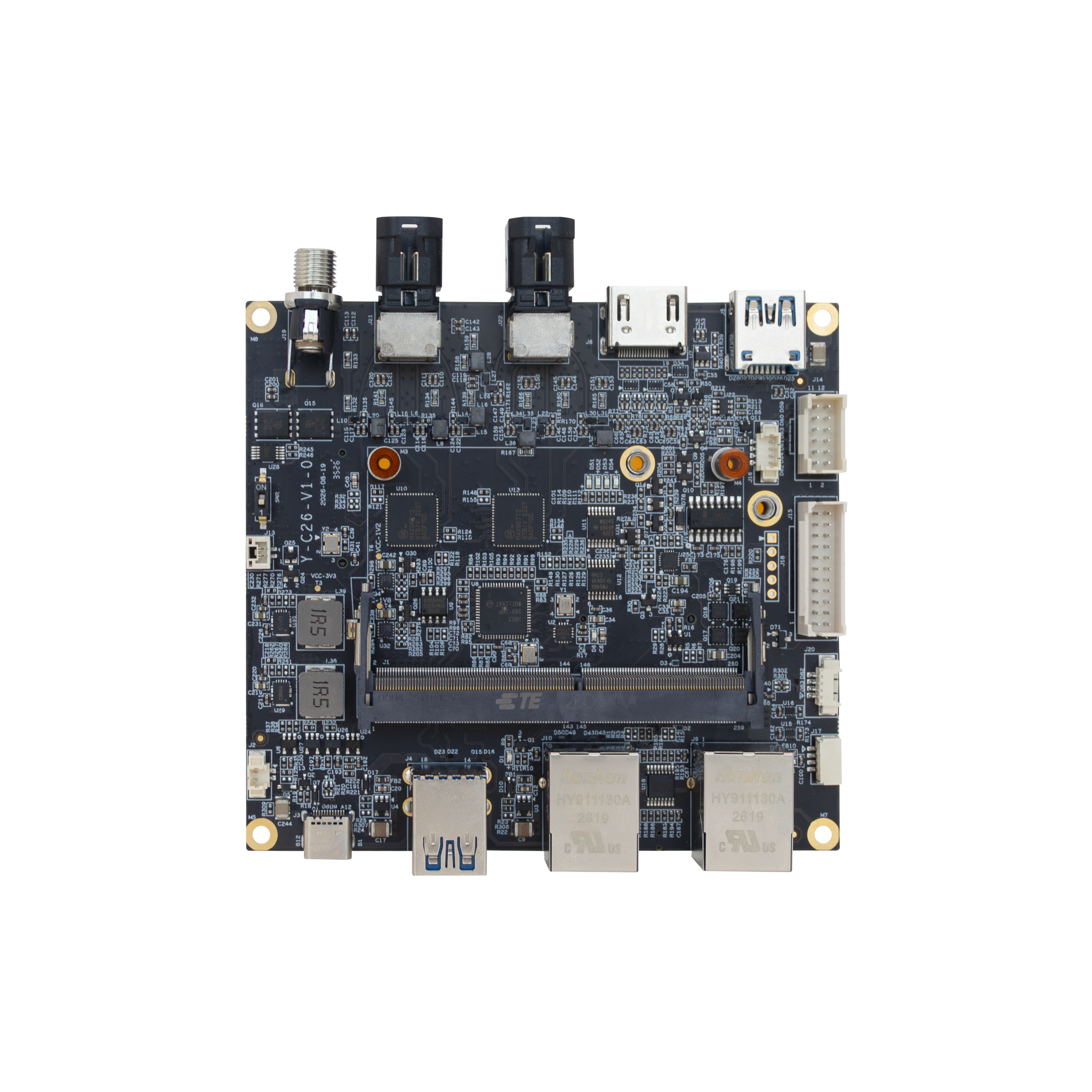

The Y-C26 is an edge AI carrier board designed for the NVIDIA Jetson Orin NX and Orin Nano system-on-modules. Measuring 110 × 100 × 23.6 mm, it provides a rich interface set and flexible expansion for edge computing applications such as autonomous mobile robots, in-vehicle perception systems, industrial vision inspection, and intelligent patrol.

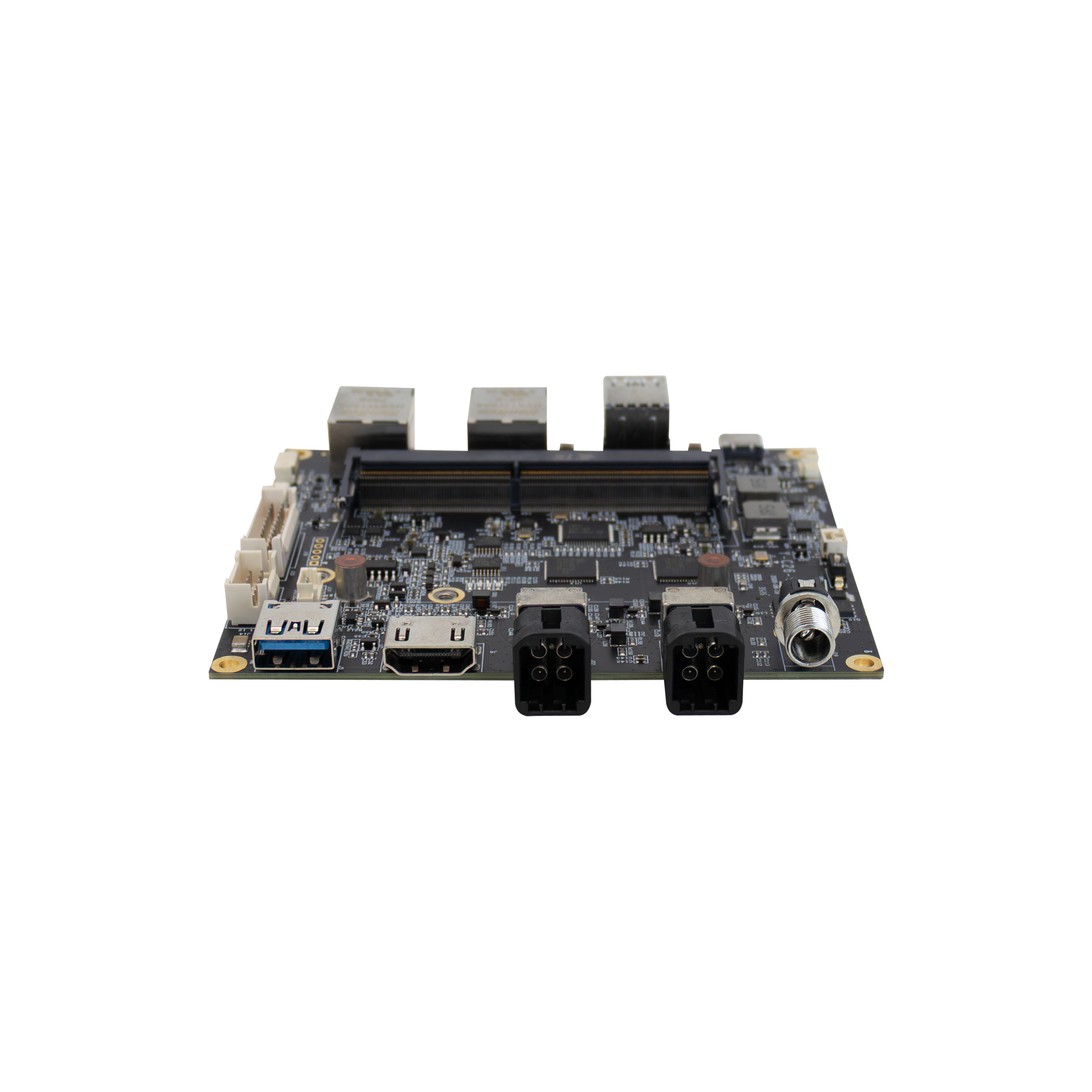

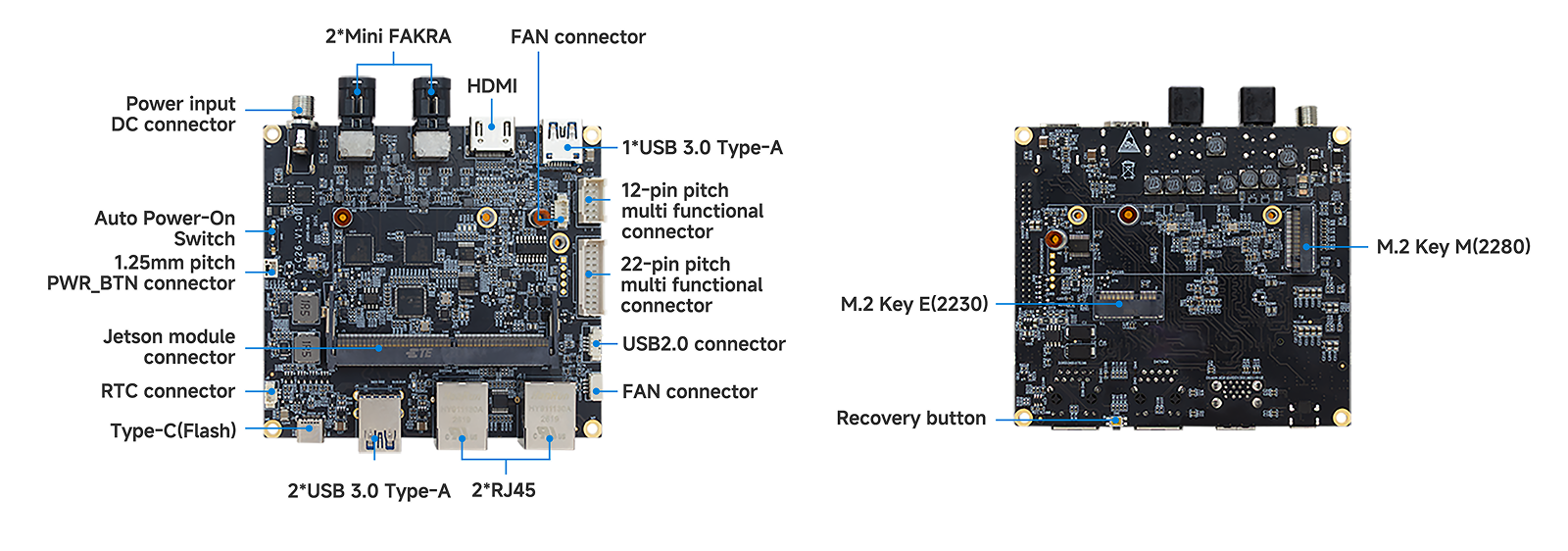

The board features two Mini-FAKRA camera interfaces for connecting GMSL camera modules, meeting the image acquisition requirements of in-vehicle and industrial vision scenarios. Expansion is handled by one M.2 Key M slot supporting 2280 NVMe storage and one M.2 Key E slot for WiFi modules. A dedicated RTC power connector maintains system time continuity across power cycles. All components are wide-temperature industrial-grade. Power input includes overvoltage and reverse polarity protection, and main interfaces are protected against electrostatic discharge.
