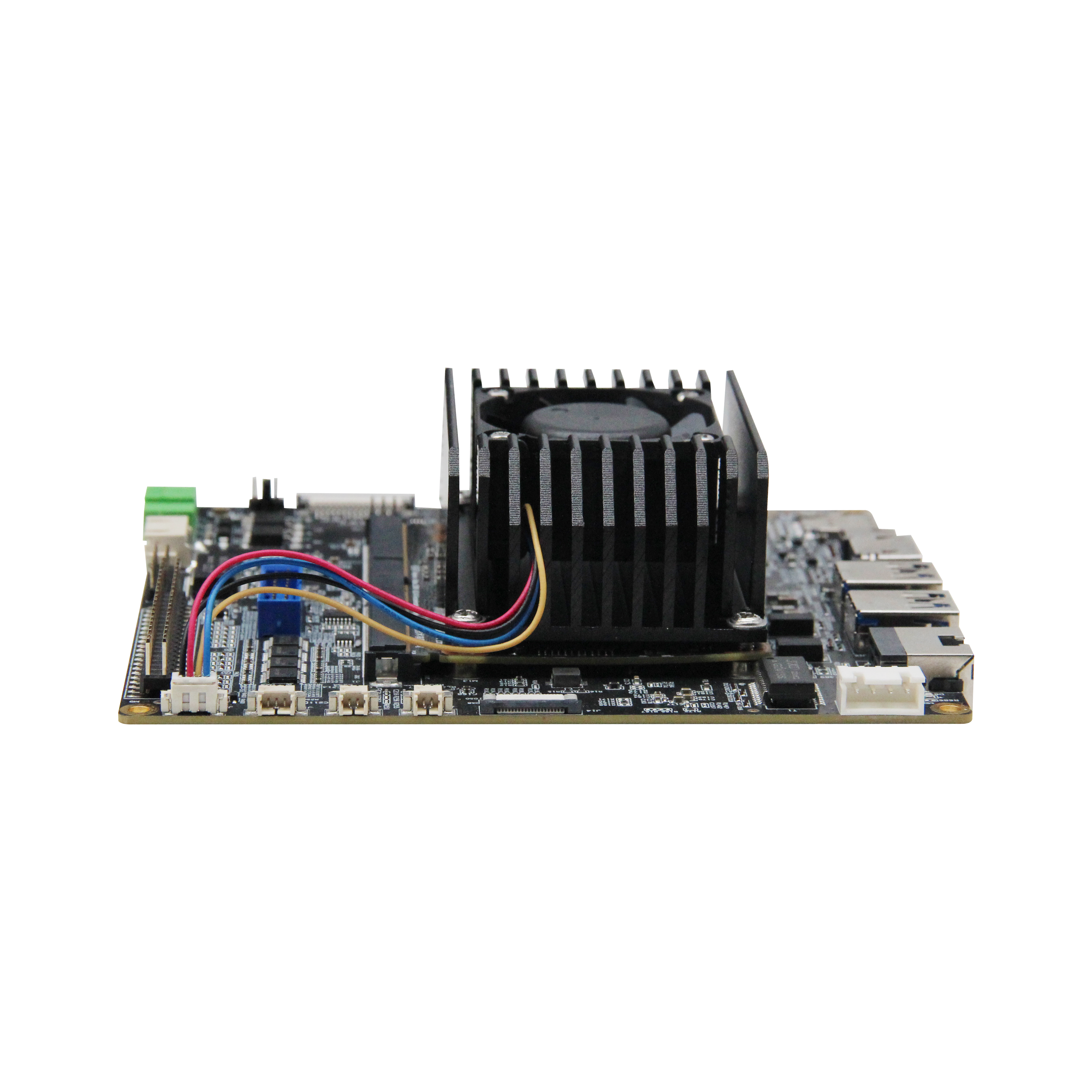

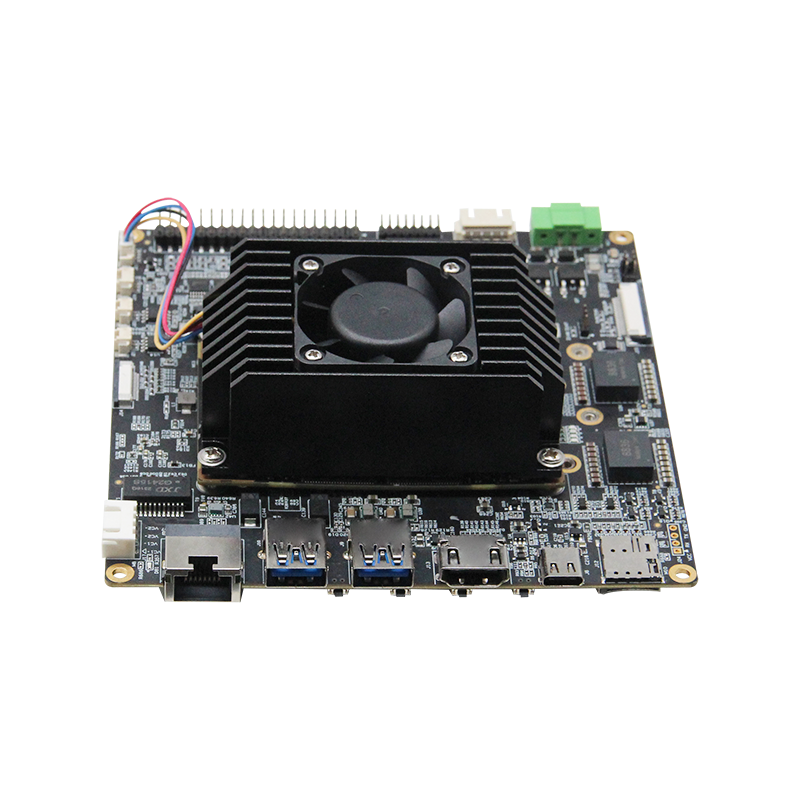

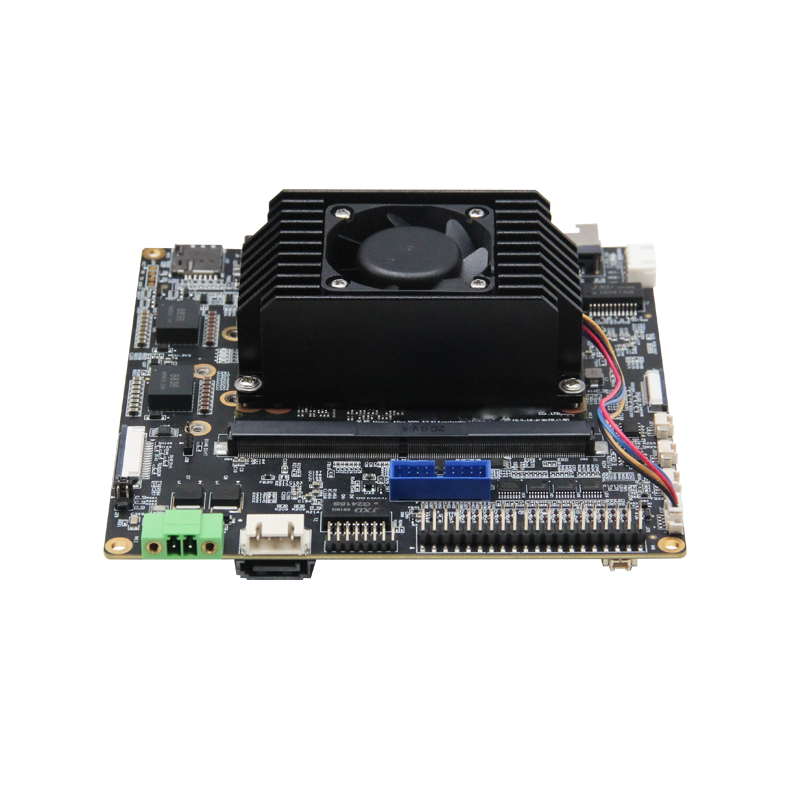

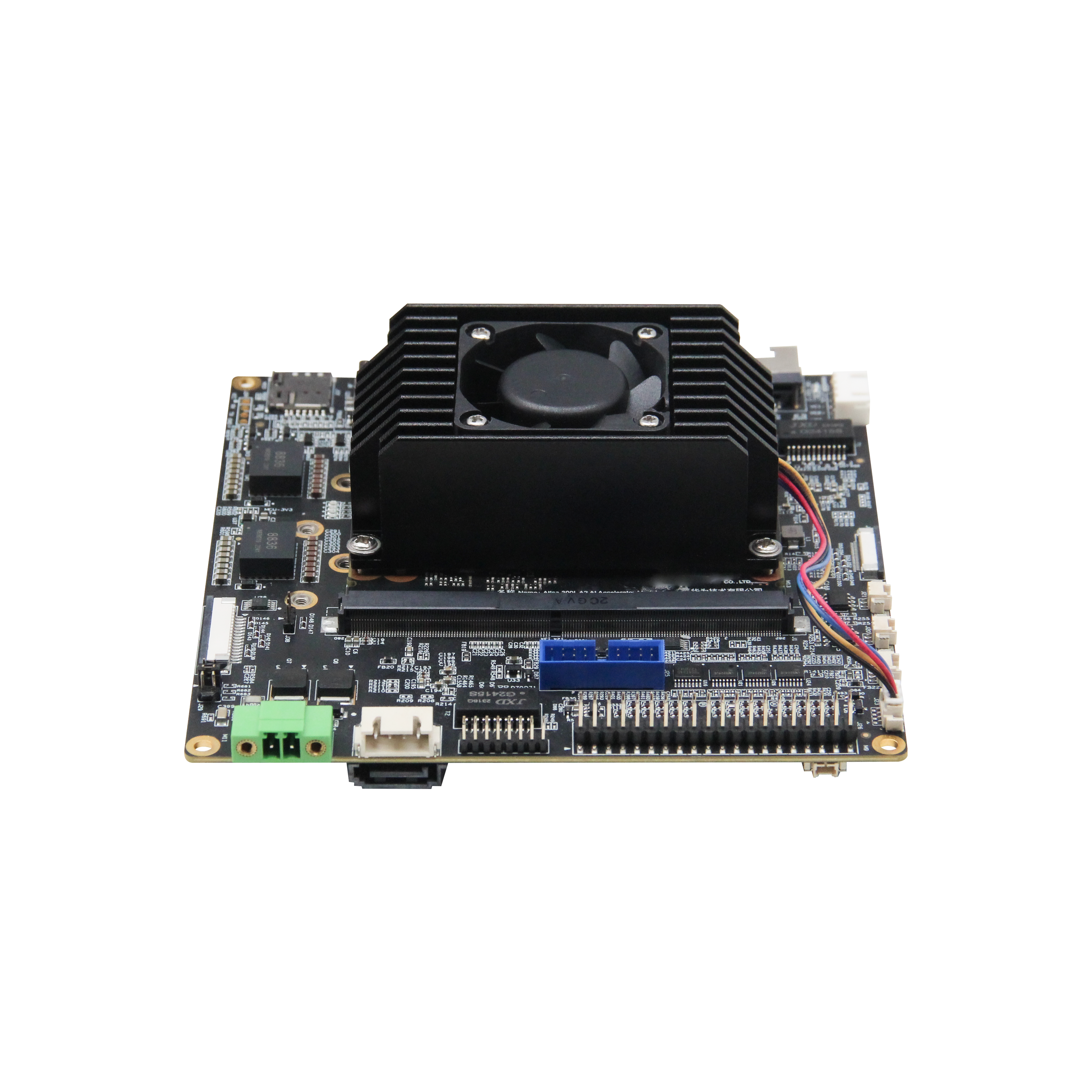

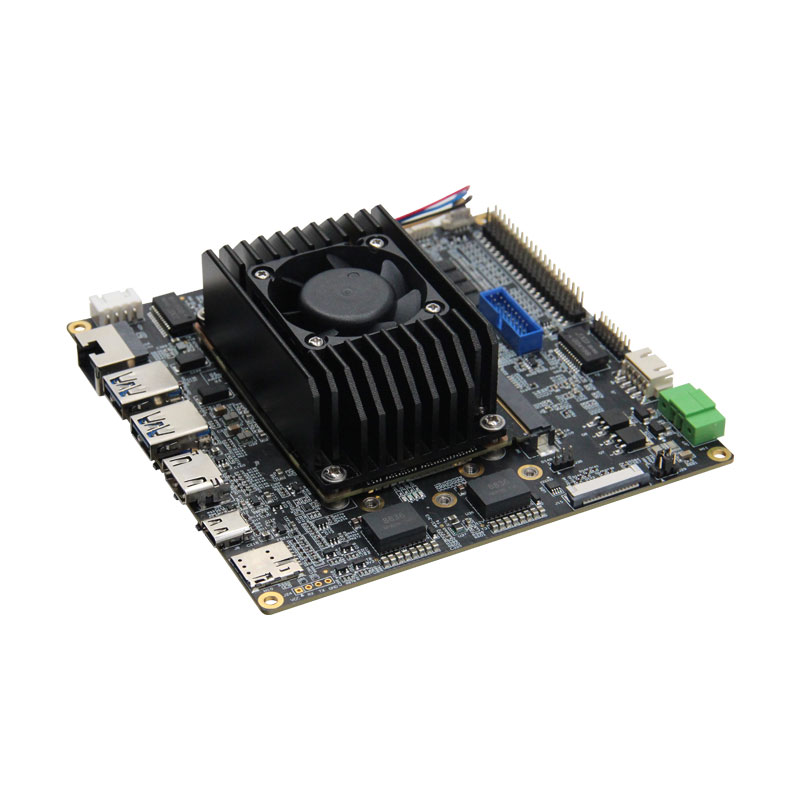

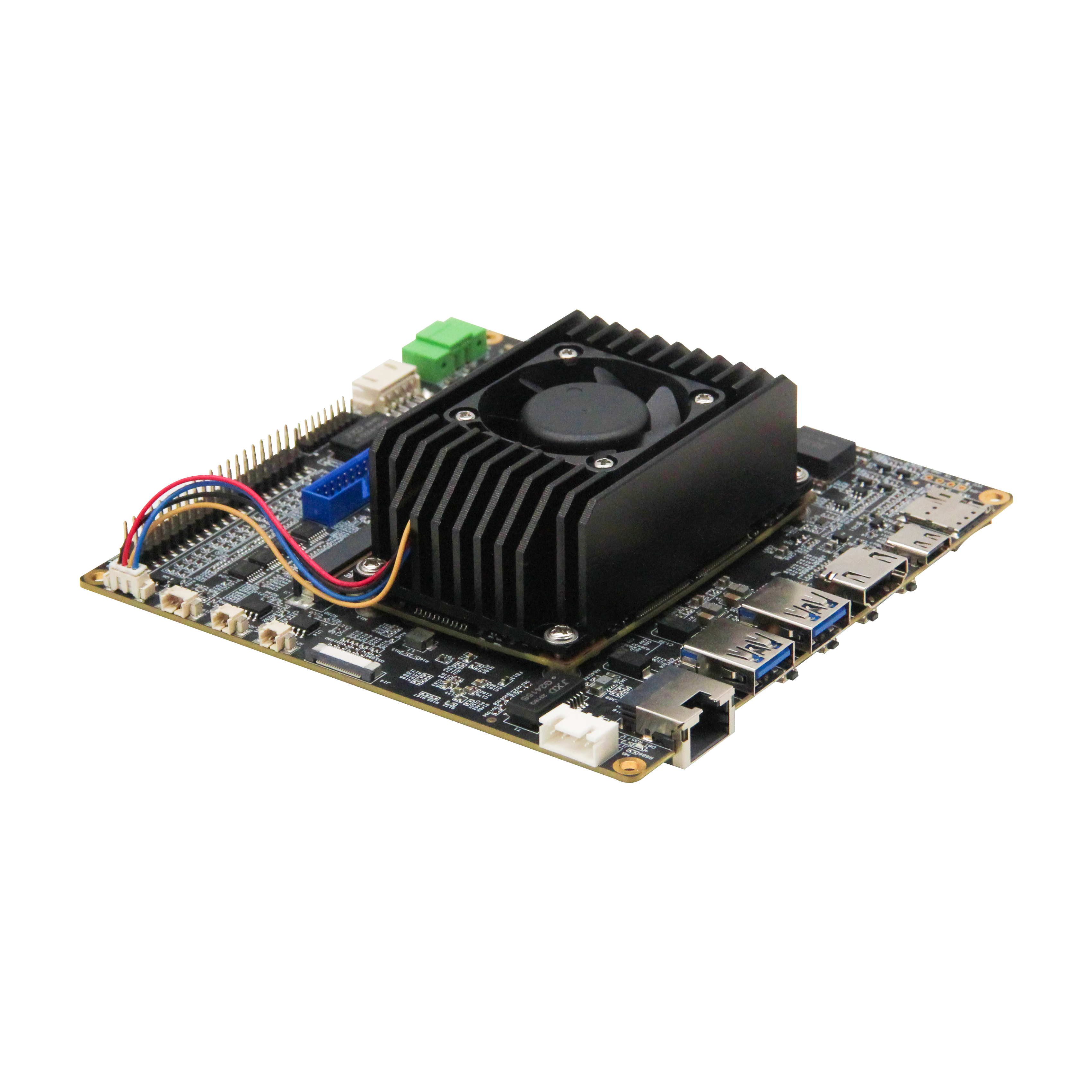

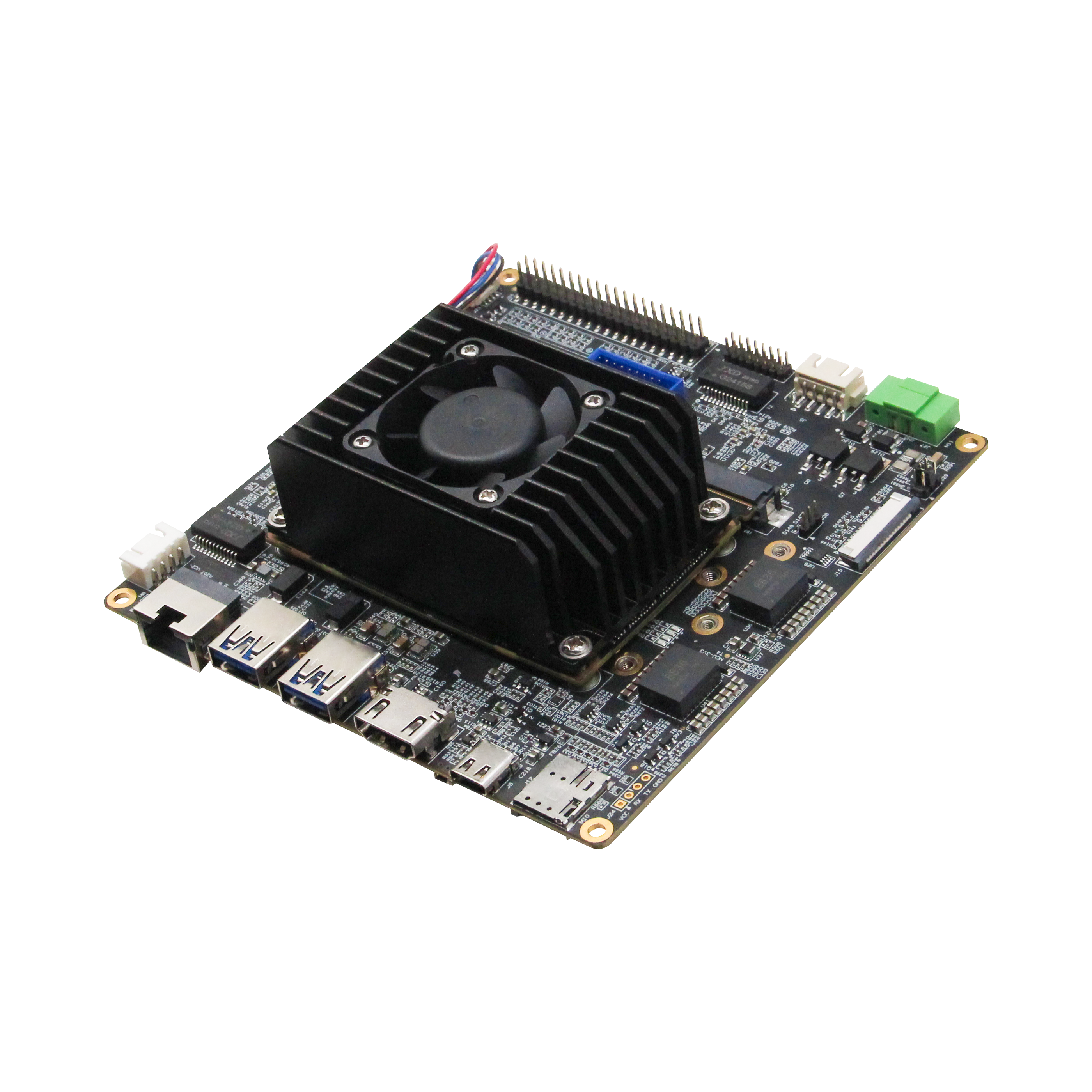

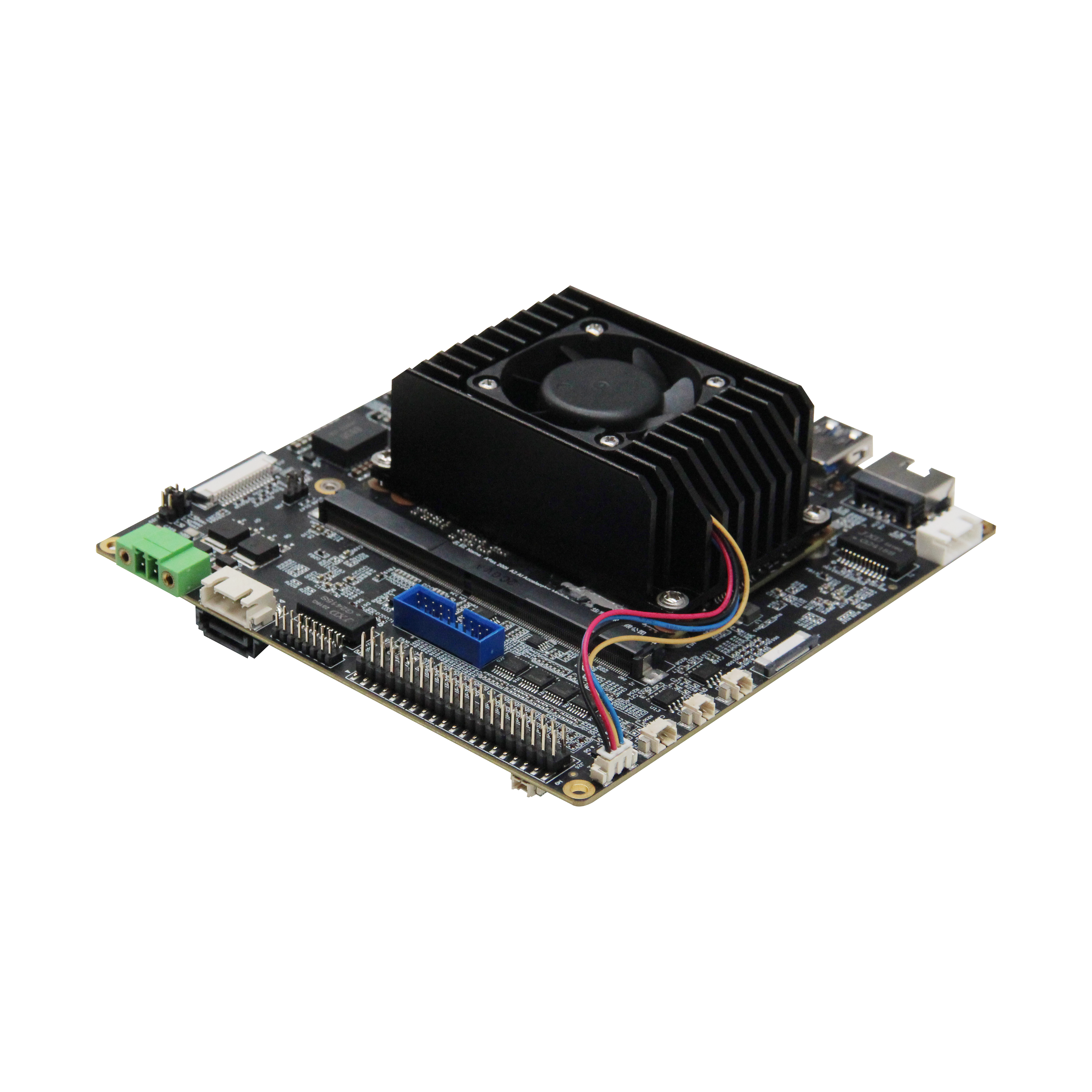

101-DEV is an industrial-grade edge AI development kit. Its core is equipped with the Ascend Atlas 200I A2 acceleration module, delivering the option of 8 TOPS or 20 TOPS AI compute. It supports mainstream deep learning frameworks such as PyTorch and TensorFlow, providing developers with a full-process support from model training, optimization, deployment to real-time inference, accelerating the transition of edge AI applications from prototype verification to large-scale implementation.
101-DEV

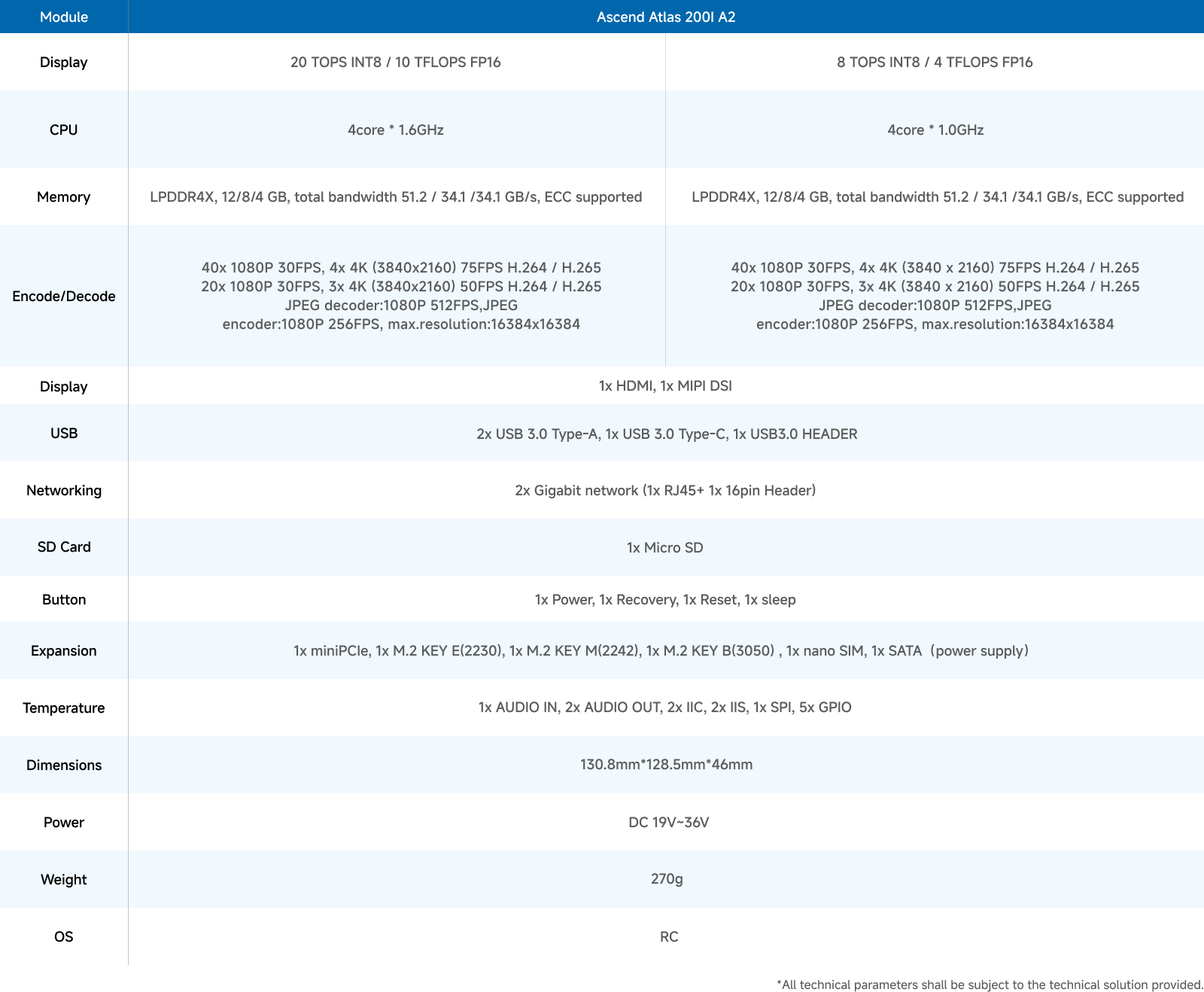

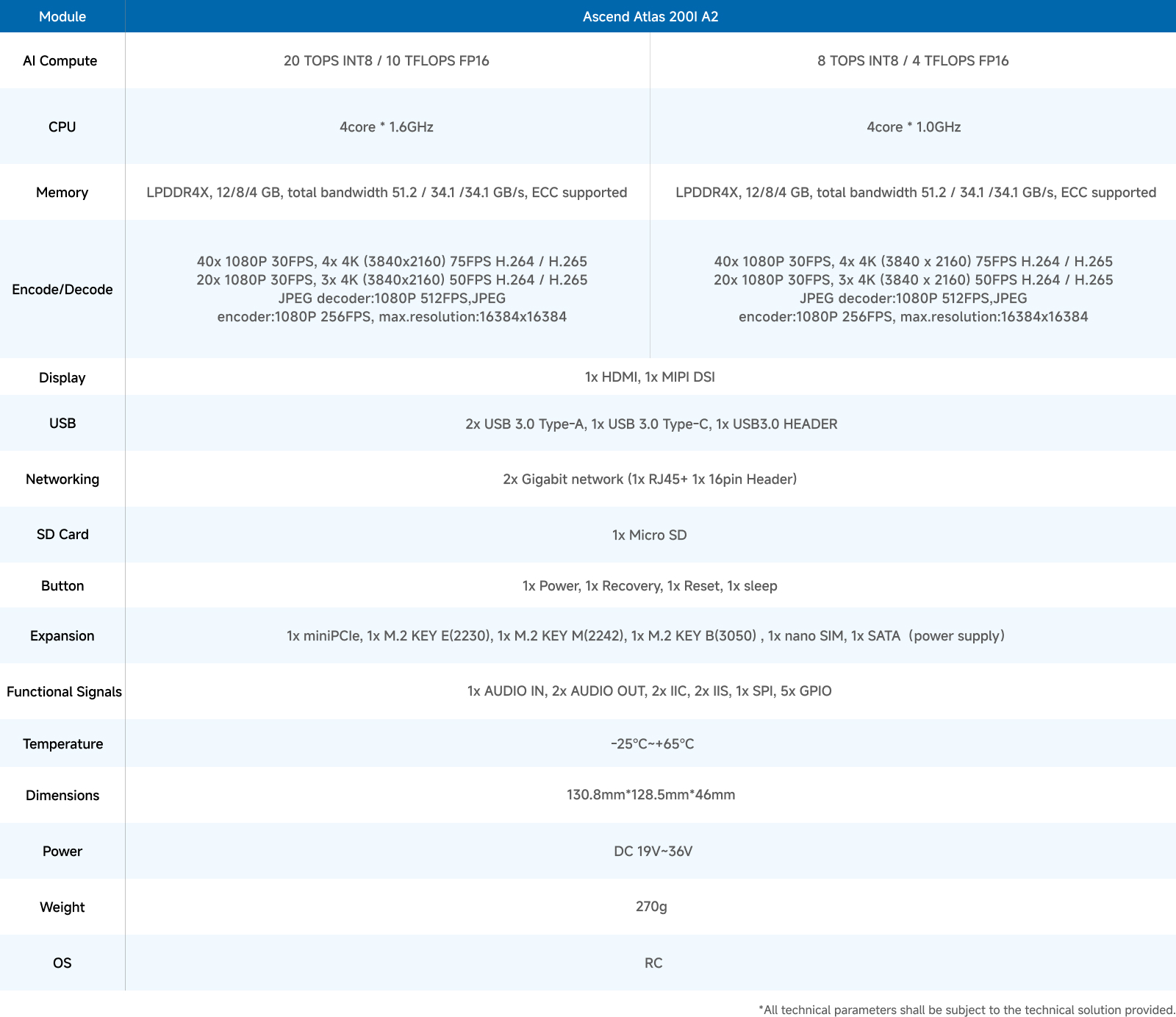

AI Performance: 20/8 TOPS INT8
Memory & Storage: 12/8/4GB LPDDR4X, ECC Supported

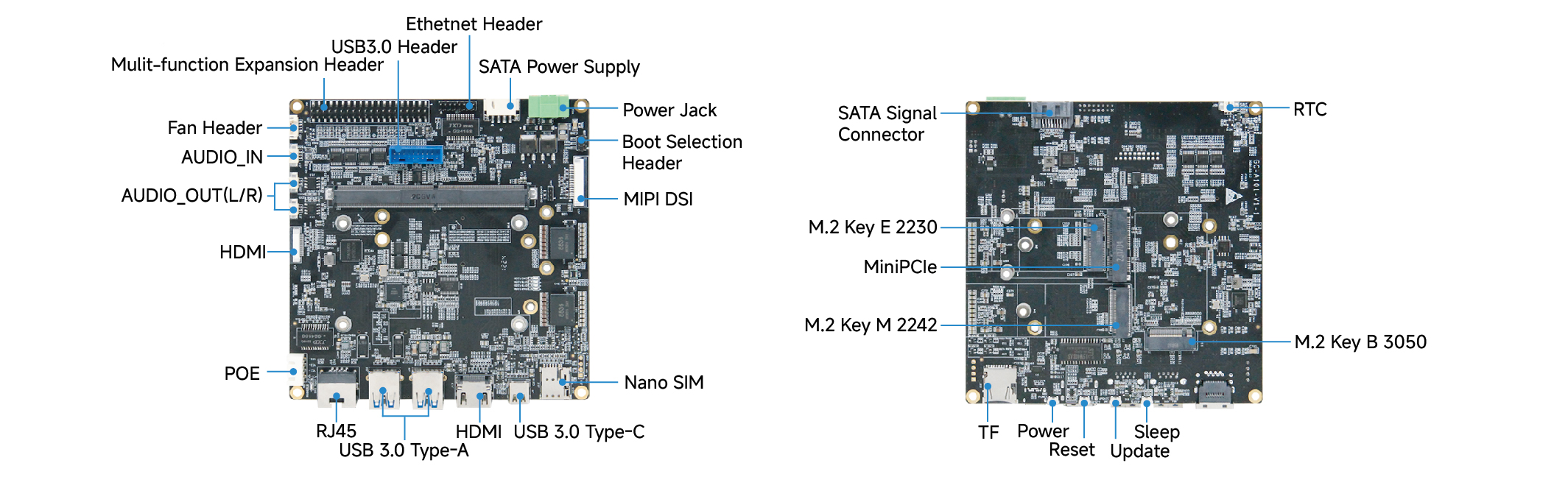

Display Interface: 1 × HDMI, 1 × MIPI DSI
Rich I/O Interfaces: 2 × USB3.0 Type-A, 1 × USB3.0 Type-C, 1 × RJ45, 1 × Micro SD, 1 × RTC, 1 × Audio In, 2 × Audio Out
Expansion Slots:miniPCIe, M.2 E-Key 2230, M.2 M-Key 2242, M.2 B-Key 3050, Nano SIM
Operating Temperature: -25℃ ~ +65℃
Input Voltage: DC 19V ~ 36V
