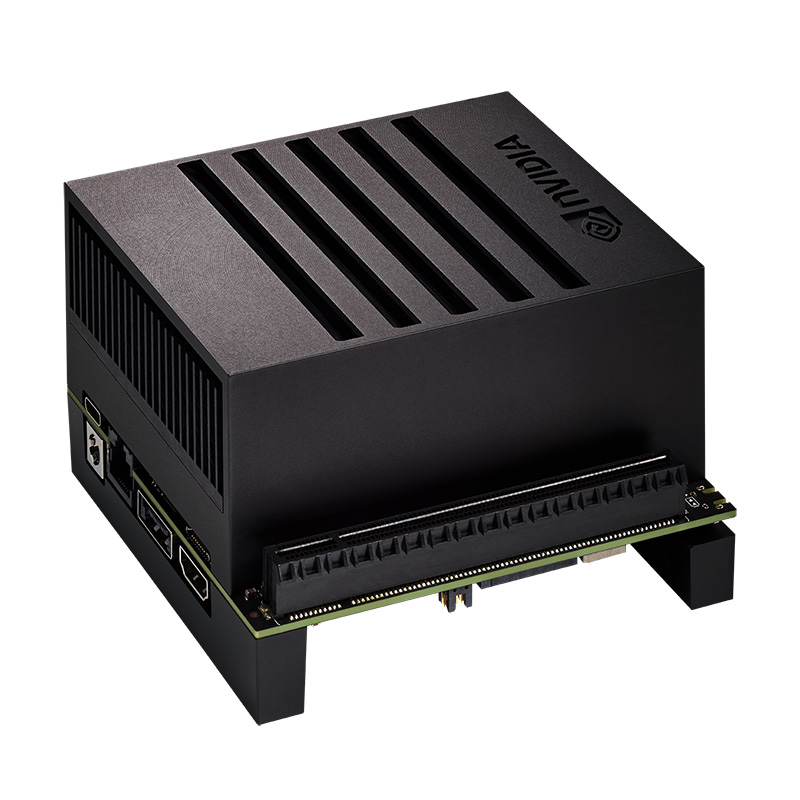

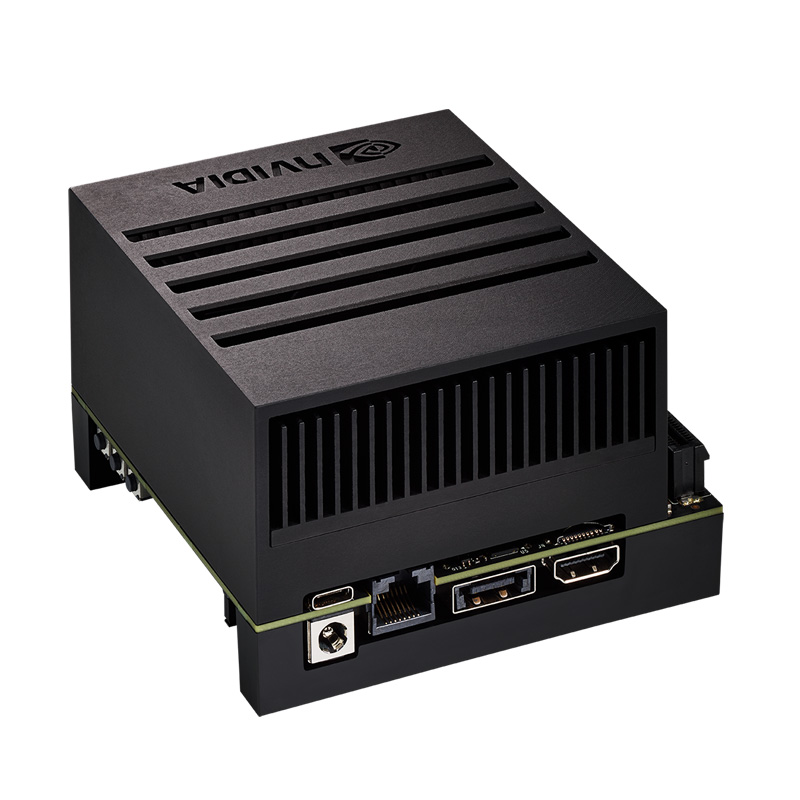

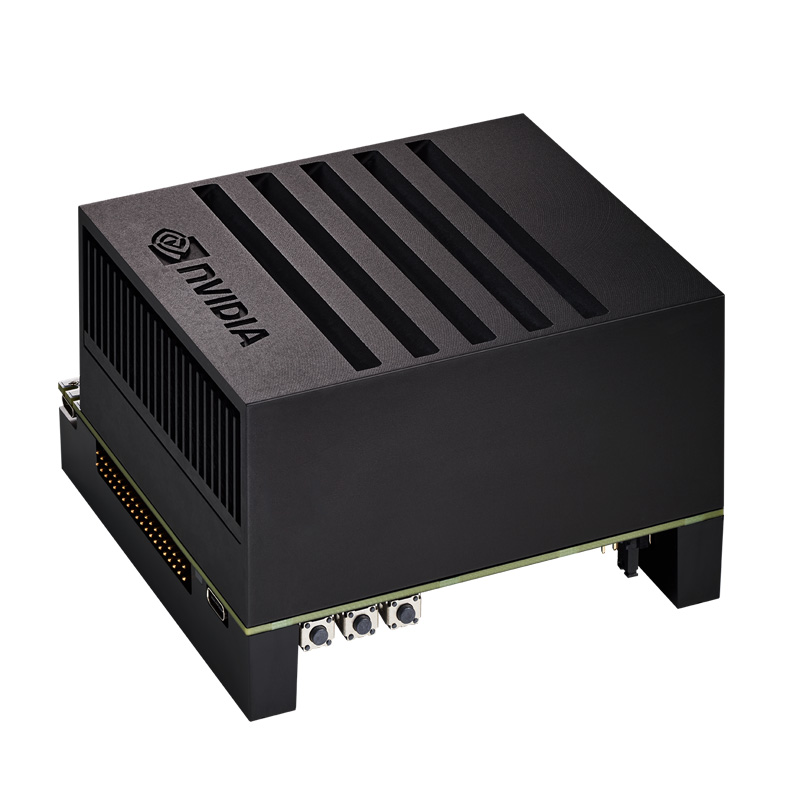

The NVIDIA Jetson AGX Xavier Developer Kit lets you easily create end-to-end AI robotics applications for manufacturing, delivery, retail, smart cities, and more. The developer kit is supported by NVIDIA JetPack™ and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT™ software libraries, giving you all the tools you need to get started right away. And because it’s powered by the NVIDIA Xavier processor, you now have more than 20X the performance and 10X the energy efficiency of its predecessor, NVIDIA Jetson TX2. Get started today with the Jetson AGX Xavier Developer Kit.
| GPU | 512-Core Volta GPU with Tensor Cores |
| CPU | 8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3 |
| Memory | 32 GB 256-Bit LPDDR4x | 137 GB/s |
| Storage | 32 GB eMMC 5.1 |
| DL Accelerator | (2x) NVDLA Engines* |
| Vision Accelerator | 7-Way VLIW Vision Processor* |
| Encoder/Decoder | (2x) 4Kp60 | HEVC/(2x) 4Kp60 | 12-Bit Support |
| Size | 105mm x 105mm |

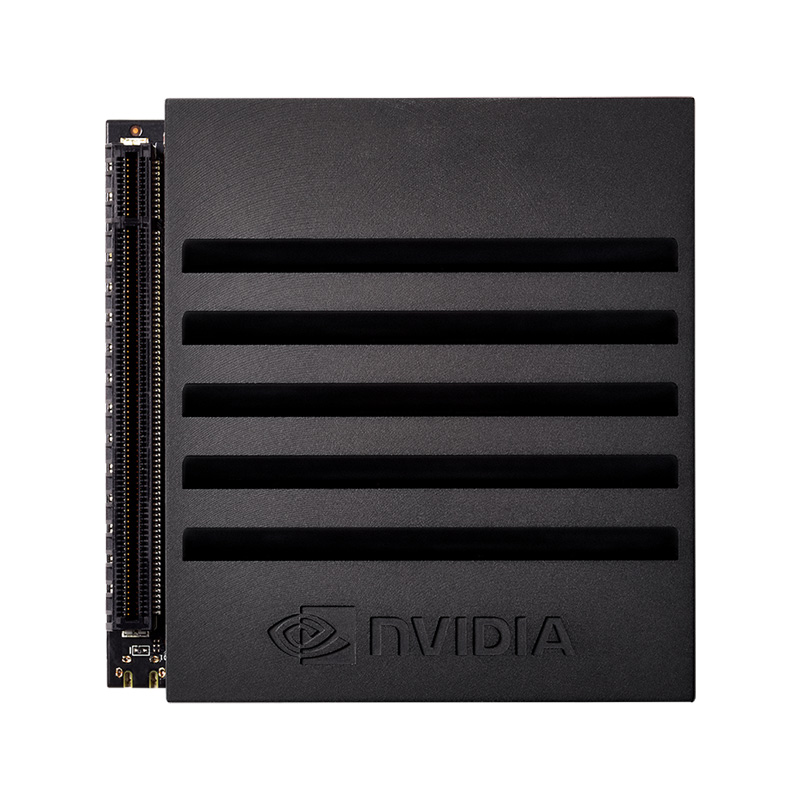

| Deployment | Module (Jetson Xavier) |
| Product Weight w/ Packaging | 1548g |
| Package Dimension | 223(L) x 209(W) x 134(H)mm |
| DEVELOPER KIT I/Os | JETSON XAVIER MODULE INTERFACE |
| PCIe x16 | x8 PCIe Gen4/x8 SLVS-EC |
| RJ45 | Gigabit Ethernet |
| USB-C | 2x USB 3.1, DP (Optional), PD (Optional) |
| USB-C | Close-System Debug and Flashing Support on 1 Port |
| Camera Connector | (16x) CSI-2 Lanes |
| M.2 Key M | NVMe |
| M.2 Key E | PCIe x1 + USB 2.0 + UART (for WiFi/LTE)/I2S/PCM |
| 40-Pin Header | UART + SPI + CAN + I2C + I2S + DMIC + GPIOs |
| HD Audio Header | High-Definition Audio |
| eSATAp + USB3.0 Type A | SATA Through PCIe x1 Bridge (PD + Data for 2.5 inch SATA) + USB 3.0 |
| HDMI Type A/eDP/DP | HDMI 2.0, eDP 1.2a, DP 1.4 |
| uSD/UFS Card Socket | SD/UFS |
