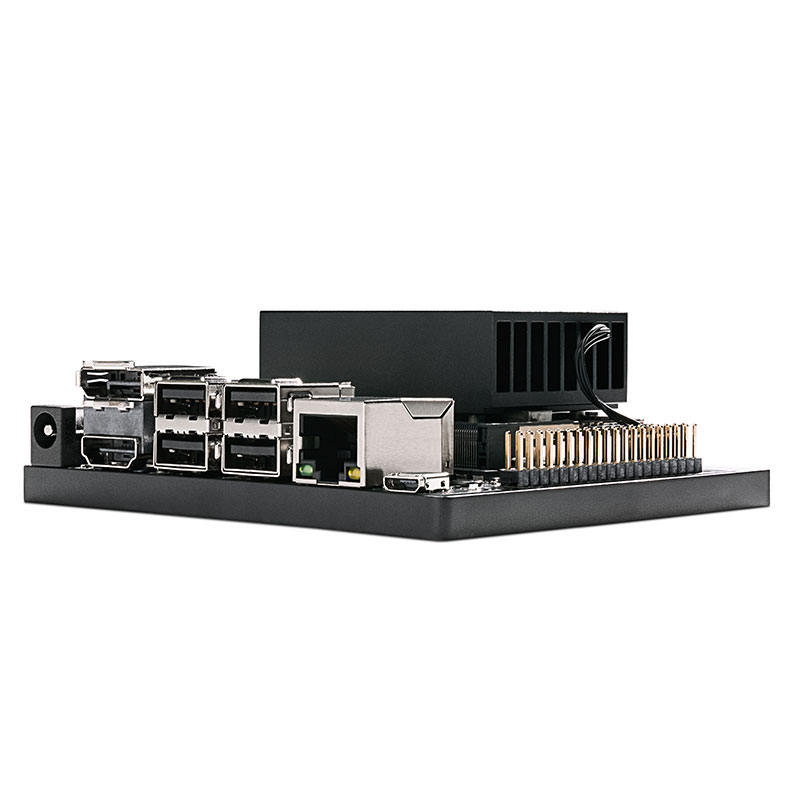

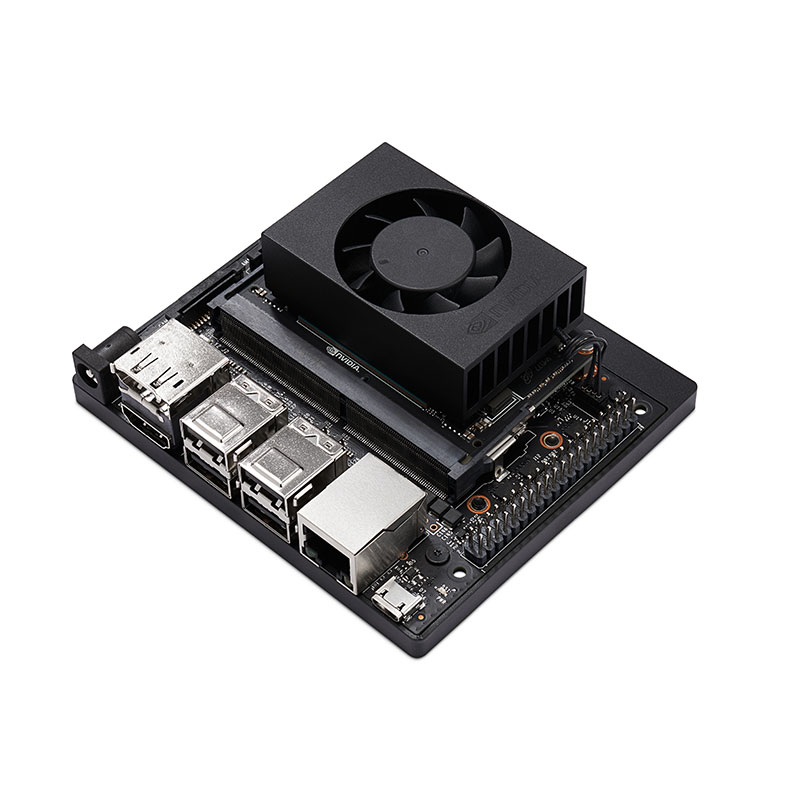

The NVIDIA® Jetson Xavier NX™ Developer Kit brings supercomputer performance to the edge. It includes a Jetson Xavier NX module for developing multi-modal AI applications with the NVIDIA software stack in as little as 10W. You can also now take advantage of cloud-native support to more easily develop and deploy AI software to edge devices.
The developer kit is supported by the entire NVIDIA software stack, including accelerated SDKs and the latest NVIDIA tools for application development and optimization. A Jetson Xavier NX module and reference carrier board are included, along with an AC power supply.
Jetson Xavier NX Developer Kit Technical Specifications
|
GPU |
NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores |
|
CPU |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3 |
|
DLA |
2x NVDLA |
|
Vision Accelerator |
2x PVA |
|
Memory |
8 GB 128-bit LPDDR4x 59.7GB/s |
|
Storage |
MicroSD (Card not included) |
|
Video Encode |
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) |
|
Video Decode |
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
|
Camera |
2x MIPI CSI-2 D-PHY lanes |
|
Connectivity |
Gigabit Ethernet, M.2 Key E (WiFi/BT included), M.2 Key M (NVMe) |
|
Display |
HDMI and DP |
|
USB |
4x USB 3.1、USB 2.0 Micro-B |
|
Other |
GPIO、I2C、I2S、SPI、UART |
|
Mechanical |
103mm x 90.5mm x 34mm |
