Y-C18-DEV Development System

●Jetson™ Orin NX:157/117 TOPS,16/8GB LPDDR5
●Jetson™ Orin Nano:67/34 TOPS,8/4GB LPDDR5
●1xHDMI,4xUSB Type-A,1xRJ45,6xGPIO,2xI2C,2xSPI,1xI2S,1xCAN
●2x4 Lane MIPI CSI
●1x M.2 E 2230, 2x M.2 M(2230/2280)
●-25℃~+60℃
●Pre-installed Ubuntu system

Introduction

Y-C18-DEV is a high-performance edge AI Computing Development System equipped with NVIDIA Jetson Orin NX/Orin Nano module. It offers multi-gradient AI computing power configurations of 34/67/117/157 TOPS, with dimensions of only 103mm × 90.5mm × 34.6mm. It can seamlessly run various mainstream generative AI models, enabling developers, students, and makers to easily build cutting-edge AI applications such as robots, intelligent vision, and multimodal interaction. The  adopts industrial-grade design standards, supporting direct migration from prototype development to mass production design.
Y-C18-DEV is equipped with rich I/O interfaces, providing M.2 E 2230 and M.2 M 2230/2280 expansion interfaces, and supports 2x4 Lane MIPI CSI cameras. It can flexibly connect functional modules and peripherals such as cameras, sensors, and storage, meeting core needs in edge scenarios such as multi-device collaboration, high-real-time data collection and processing, and massive local data storage. It provides efficient and reliable hardware guarantee for the rapid implementation of AI algorithms at the edge. The product is widely used in edge AI scenarios such as medical imaging, industrial quality inspection, intelligent inspection, and mobile robots.


Specifications

Module Jetson Orin NX 16GB Jetson Orin NX 8GB Jetson Orin Nano 8GB Jetson Orin Nano 4GB
AI Performance 157 TOPS 117 TOPS 67TOPS 34TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU

2MB L2 + 4MB L3


6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
Memory 16GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102 GB/s
4GB 64-bit LPDDR5
51 GB/s
Storage （Supports external NVMe）
Video Encoding
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30，由 1-2 个 CPU 核心提供支持
Video Decoding
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Display 1x HDMI
USB 4×USB 3.0 Type-A
Networking 1x RJ45
Camera 2x 4 Lane MIPI CSI
Expansion
1x M.2 E key（2230）
1x M.2 M key（2230）
1x M.2 M key（2280）
Functional Signals
6x GPIO
2x I2C
2x SPI
1x I2S
1x CAN
Serial Ports 1x TTL
Temperature -25℃~+60℃
Dimensions 103mm × 90.5mm × 34.6mm
Power
 DC 9V~19V
Weight
 176g

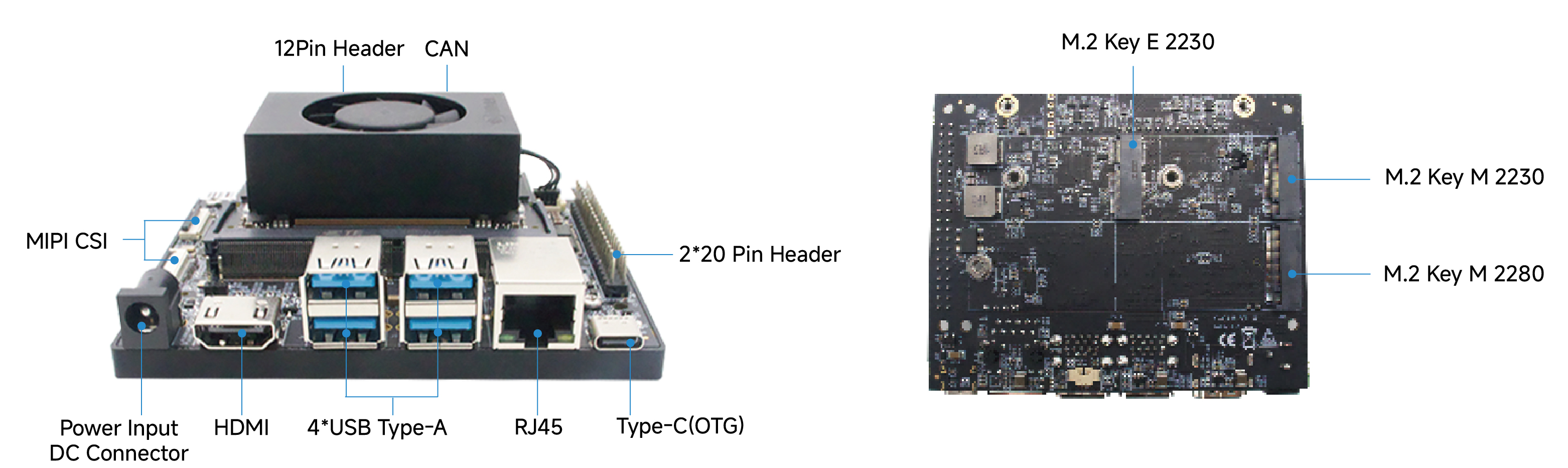

Interfaces

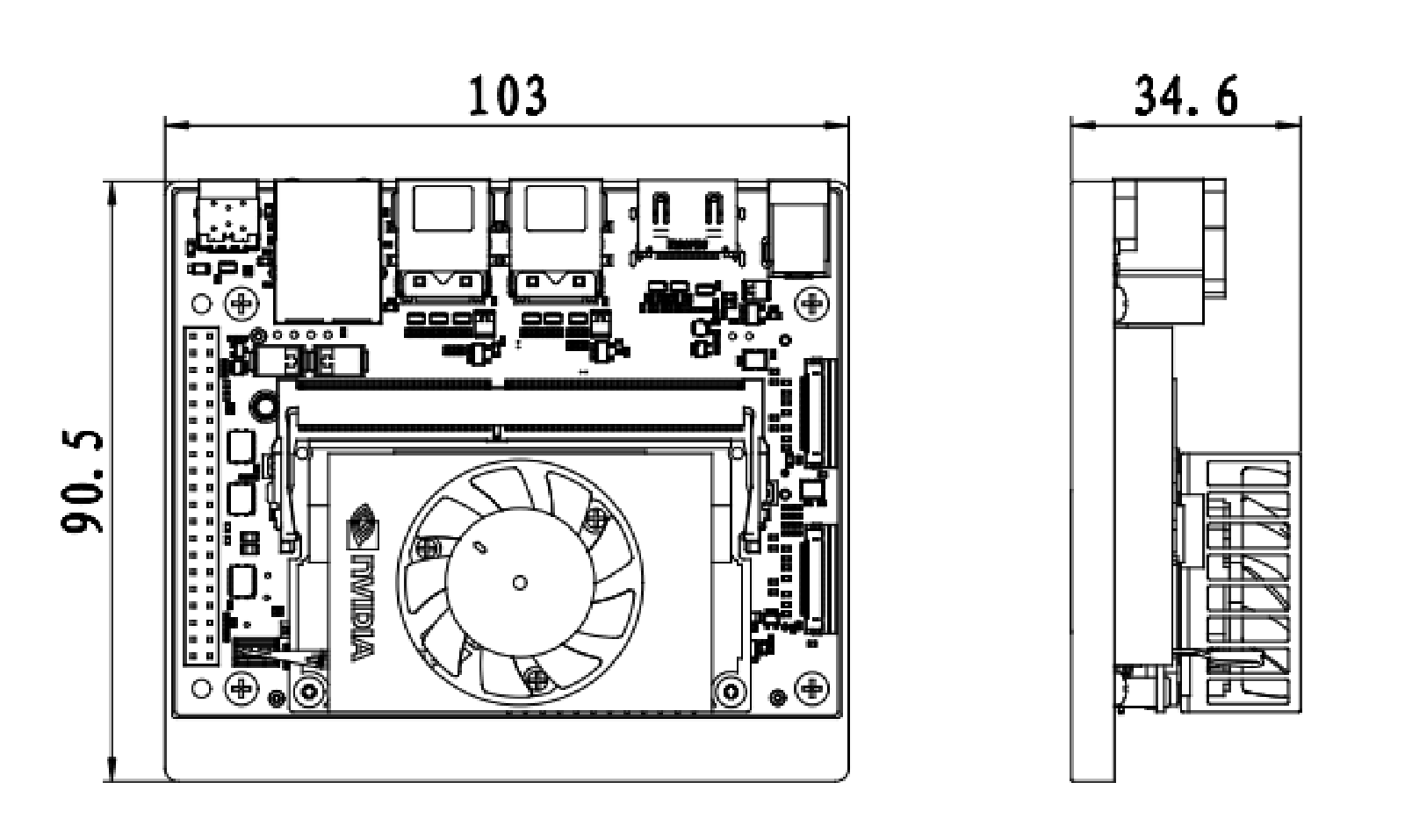

Dimensions
