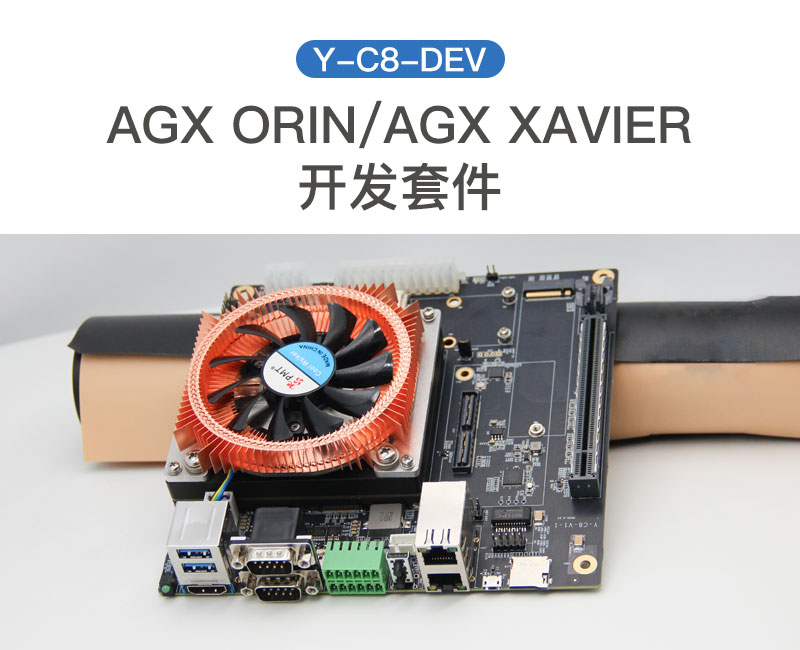

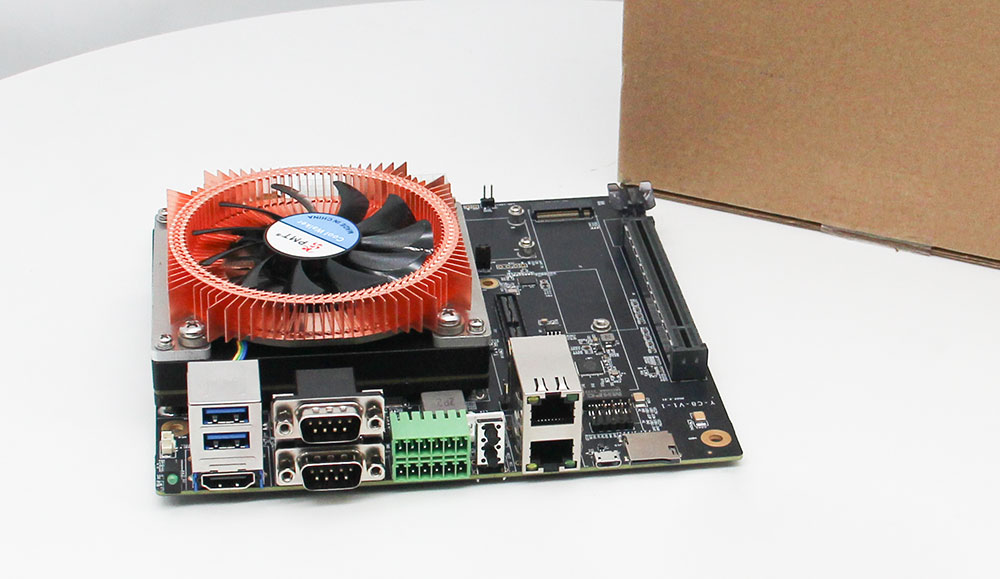

NVIDIA Jetson AGX Xavier/AGX Orin
* Other I/O: 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x Micro SD slot, 2x DB9 connector and 1x 24 pin expansion header, 2x CAN, 2x RS232, 1x Debug, 4x GPIO, 1x SPI, 2x I2C
* 尺寸: 188mm*170mm*43mm
* 工作温度: -20°C to 65℃
|
Product Name
|
Y-C8-DEV
|
|
Jetson Module Supported
|
NVIDIA Jetson AGX Xavier/AGX Orin
|
|
Networking
|
2x GigabitEthernet (10/100/1000)
|
|
USB
|
2x USB
1x Micro-B |
|
Camera
|
1x 120 pins CSI Camera expansion header
|
|
Display
|
1x HDMI
|
|
FAN
|
1x FAN connector（12V PWM）
|
|
M.2 KEY M
|
2x M.2 KEY M interface
|
|
Other I/O
|
2x CAN，2x RS232，1x Debug，4x GPIO，1x SPI，2x I2C
|
|
Mechanical
|
188mm x 170mm x 43mm
|
|
Weight
|
713g
|
|
Operating Temperature
|
-20℃~+65℃
|
|
Module
|
AGX Xavier 32G
|
AGX ORIN 32G
|
AGX ORIN 64G
|
|
CPU
|
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
|
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
|
|
CPU Memory
|
32GB 256-bit LPDDR4 x 136.5GB/s
|
32GB 256-bit LPDDR5 204.8 GB/s
|
64GB 256-bit LPDDR5 204.8 GB/s
|
|
GPU
|
512-core NVIDIA Volta GPU with 64 Tensor Cores
|
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
|
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
|
|
USB Micro-B
|
1 x Type B (OTG)
|
||
|
USB Type-A
|
1 x USB 3.1
|
2 x USB 3.1
|
2 x USB 3.1
|
|
Other I/O
|
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)
2 x CAN (with on-board transceiver) |
||
|
Networking
|
1 x 10/100/1000 Ethernet/RJ45
|
||
|
Power Supply
|
DC +12V
|
||
|
Temperature
|
-20~+65°C
|
||
|
Dimensions
|
170mm×170mm×34 mm
|
||
|
Weight
|
260g
|
||
|
|
Y-C8
|
Y-C9
|
AGX Orin Developer Kit
|
|
USB Type-A
|
2x USB 3.0
|
3x USB 3.0
|
2x USB 3.2 2.0 2x USB 3.2 1.0
|
|
USB Type-C
|
|
1x USB Type-C
|
2X USB 3.2 2.0
supporting USB-PD
|
|
USB Micro-B
|
1x USB 2.0
|
|
USB 2.0（DEBUG）
|
|
PCIe
|
x16 PCIe slot supporting PCIe x8
|
|
x16 PCIe slot supporting x8 PCIe Gen4
|
|
MiniPCIe
|
2x MPCIe
|
2x MPCIe
|
|
|
RJ45
|
2x RJ45
one of the RJ45 connector needs
|
1x RJ45
|
1x RJ45 connector with up to 10 GbE
|
|
DisplayPort
|
HDMI
|
HDMI
|
1x DisplayPort 1.4a (+MST) connector
|
|
M.2 Key M
|
2x
|
1x
|
x4 PCIe Gen4
|
|
M.2 Key E
|
|
|
x1 PCIe Gen4
|
|
microSD slot
|
1x
|
|
UHS-1 card supporting SDR104
|
|
Other I/O
|
2x CAN
4xGPIO
1x SPI
1x I2C
|
|
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC batter backup connector microSD slot DC power jack Power, Force Recovery, and Reset buttons |
