Jetson Orin Nano 模组

A78AE CPU + 8GB LPDDR5 Up to 40 (Sparse) INT8 TOPs and 20 (Dense) INT8 TOPs • Jetson Orin Nano 4GB (ON 4GB) - Ampere GPU + ARM Cortex-A78AE CPU + 4GB LPDDR5 Up to 20 (Sparse) INT8 TOPs and 10 (Dense) INT8 TOPs

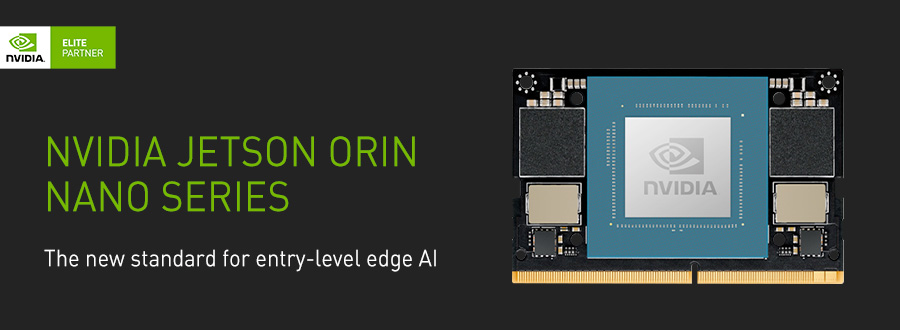

Jetson Orin Nano 系列

NVIDIA Jetson Orin 系列模组外形小巧,但可提供高达 40 TOPS 的 AI 性能,功率可在 5 瓦到 15 瓦之间进行选择。这为您提供了高达 NVIDIA Jetson Nano 80 倍的性能,并为入门级边缘 AI 设定了新的基准。

Jetson Orin Nano 8GB

  • 1024-core NVIDIA Ampere architecture GPU with 32 tensor cores
  • 6-core Arm Cortex-A78AE v8.2
  • 8GB 128-bit LPDDR5
  • Support for external NVMe
  • Voltage Input: 5V-20V
  • Module Power:7W-15W
Jetson Orin Nano 4GB
  • 512-core NVIDIA Ampere architecture GPU with 16 tensor cores
  • 6-core Arm Cortex-A78AE v8.2
  • 4GB 64-bit LPDDR5
  • Support for external NVMe
  • Voltage Input: 5V-20V
  • Module Power:5W-10W


技术参数



Jetson Orin Nano 4GB
Jetson Orin Nano 8GB
AI Performance

20 TOPs

40 TOPs

GPU

512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

GPU Max Frequency

625 MHz

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
CPU Max Frequency
1.5 GHz
Memory
4GB 64-bit LPDDR5
34 GB/s
8GB 128-bit LPDDR5
68 GB/s
Storage
-
(Supports external NVMe)
Video Encode
1080p30 supported by 1-2 CPU cores

Video Decode

1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Camera
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
PCIe*
1 x4 + 3 x1
(PCIe Gen3, Root Port, & Endpoint)

USB*

3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
Networking*
1x GbE

Display

1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power
5W - 10W
7W - 15W
Mechanical
69.6mm x 45mm
260-pin SO-DIMM connector

*USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations.
**See the Jetson Orin Nano Series Data Sheet for more details on additional compatibility to DP 1.4a and HDMI 2.1
***Virtual Channels for Jetson Orin NX and Jetson Orin Nano are subject to change
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
