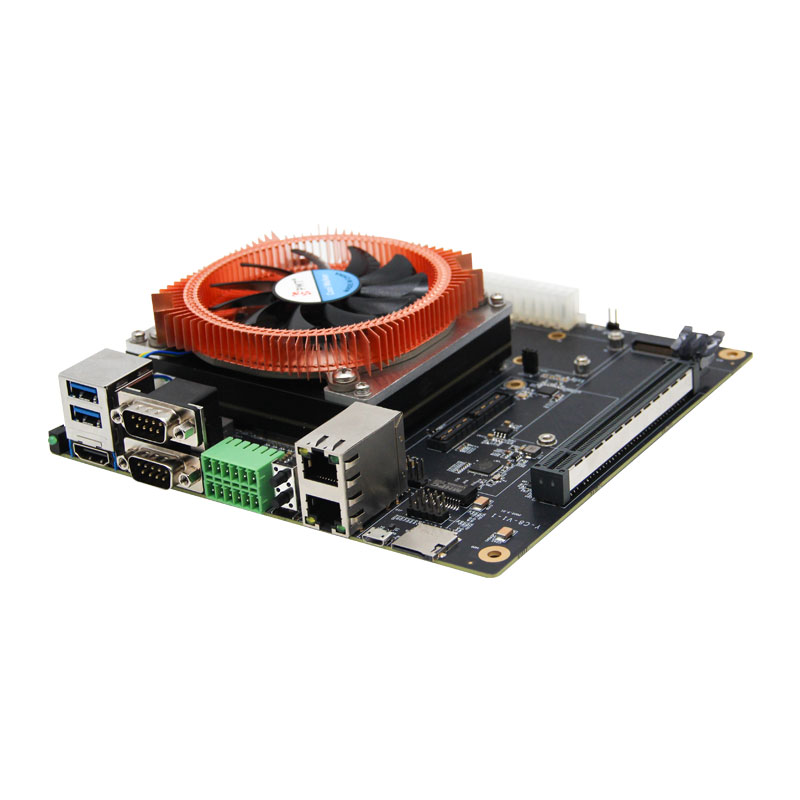

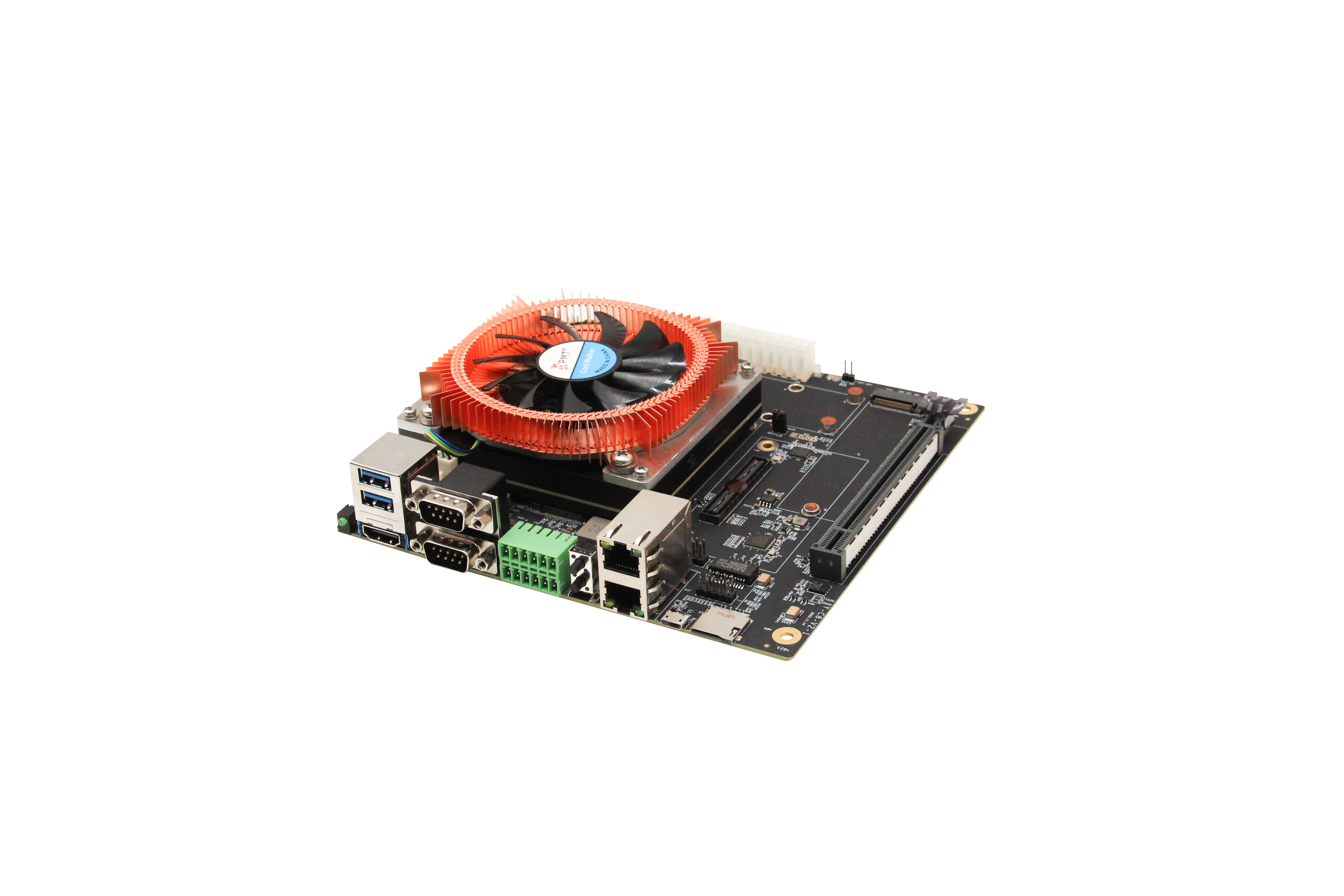

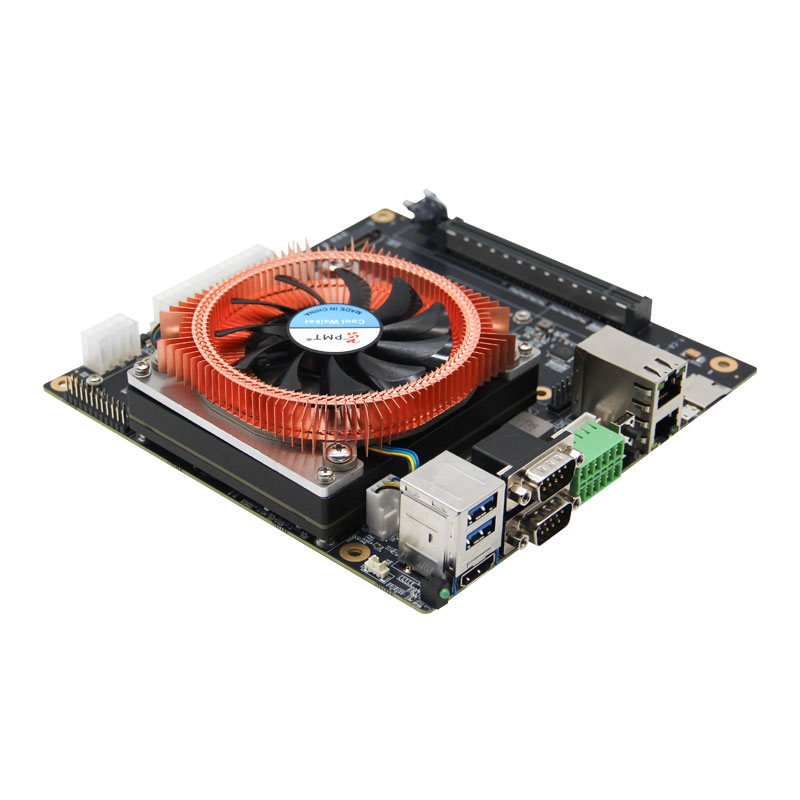

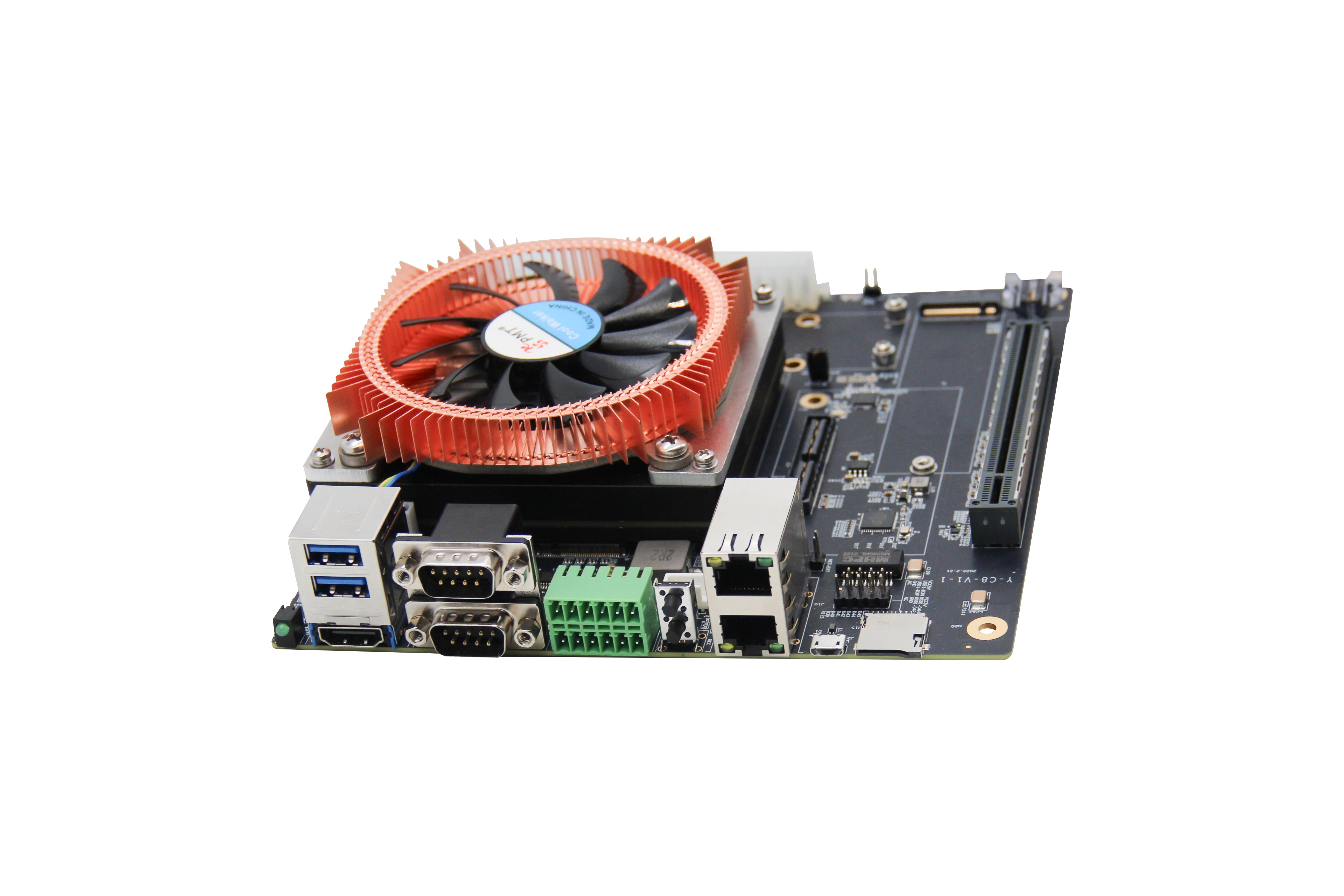

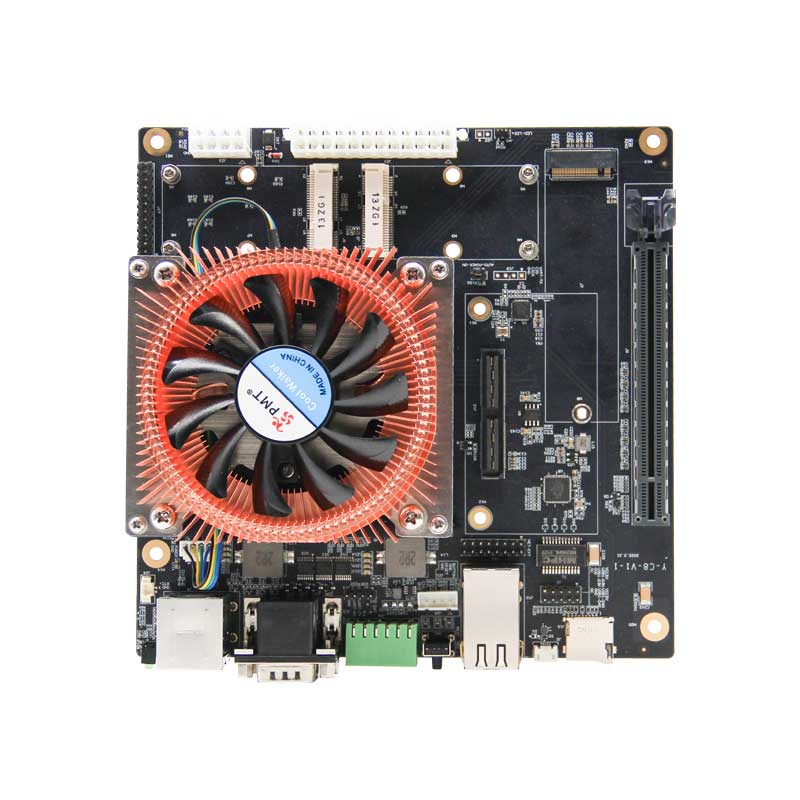

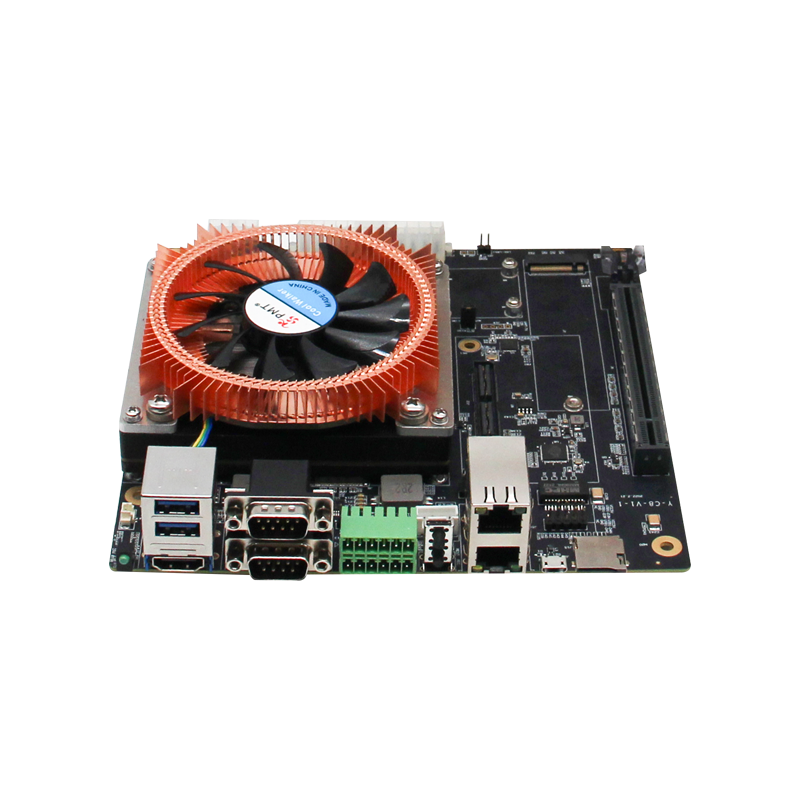

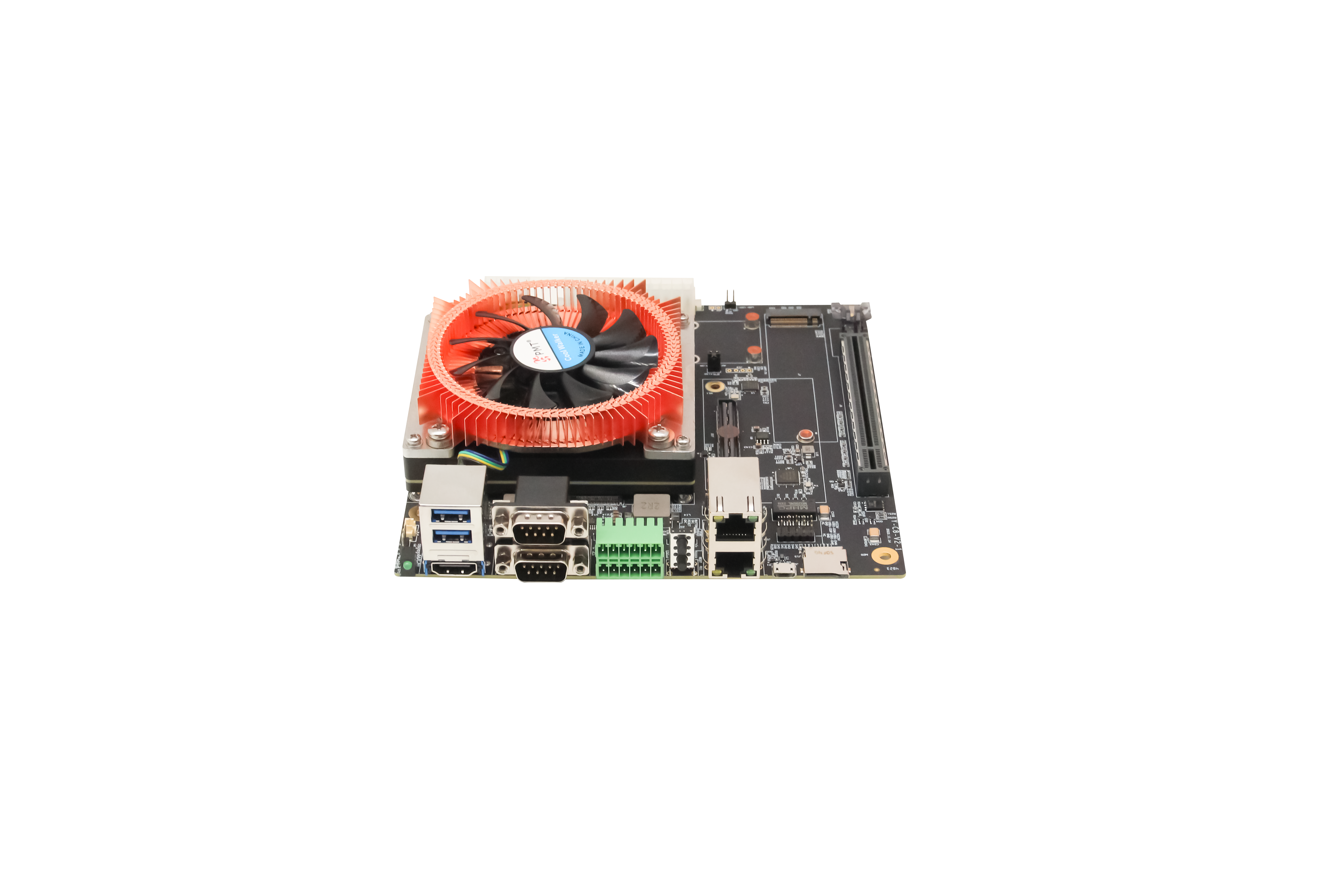

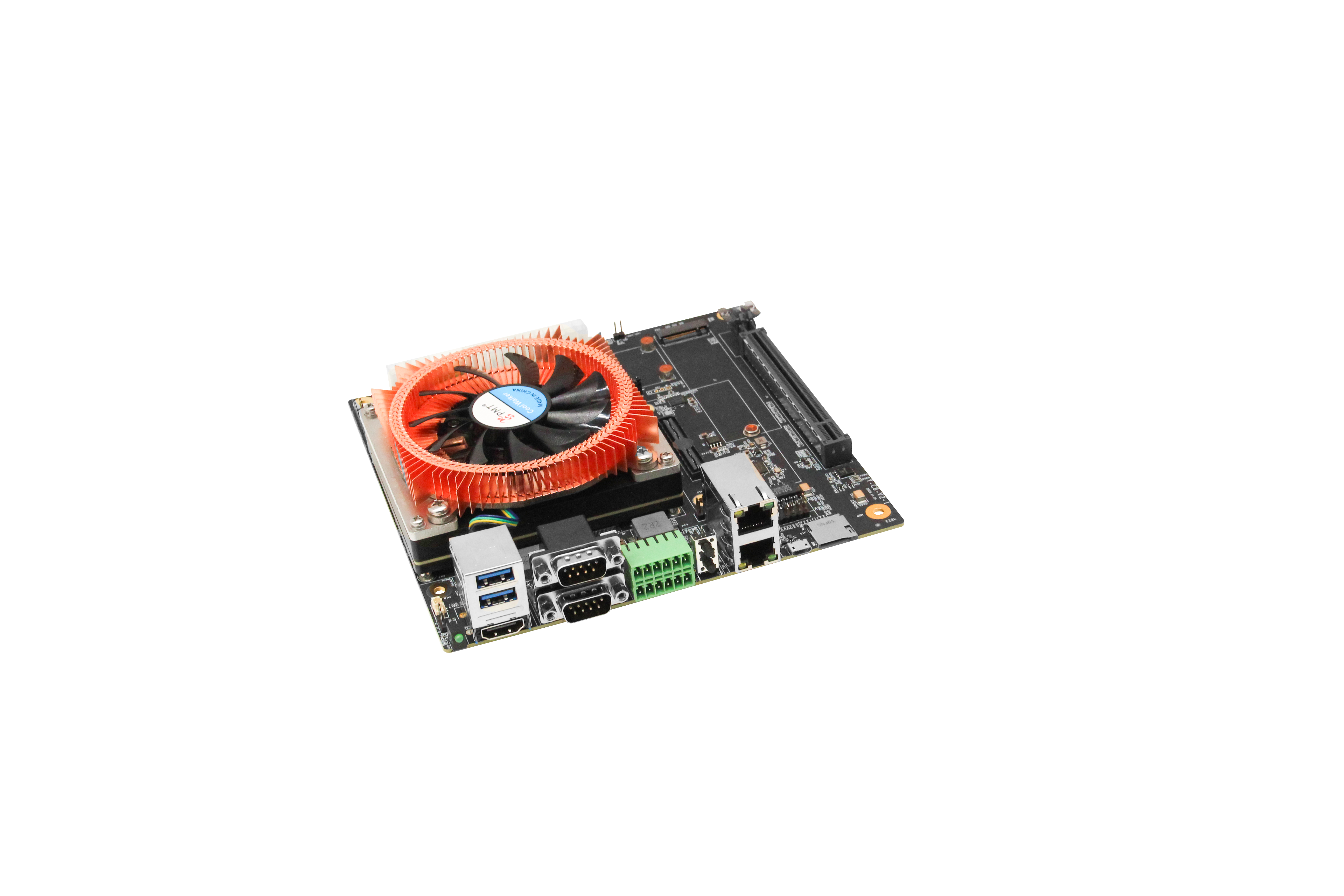

Y-C8-DEV is an edge AI computing development kit powered by NVIDIA® Jetson™ AGX Orin/AGX Xavier system-on-modules, providing scalable AI performance from 32 TOPS to 275 TOPS for industrial automation, intelligent transportation, smart healthcare and autonomous driving. It supports rapid iteration, deployment and mass production of AI products.With industrial-grade high-reliability design and triple protection, the kit uses a single-side concentrated interface layout to simplify mechanical design. It is equipped with PCIe x16, dual miniPCIe and dual M.2 M-Key slots for flexible expansion of multi-channel Gigabit Ethernet, USB 3.0, high-capacity storage, video capture and multi-serial modules.
Y-C8-DEV

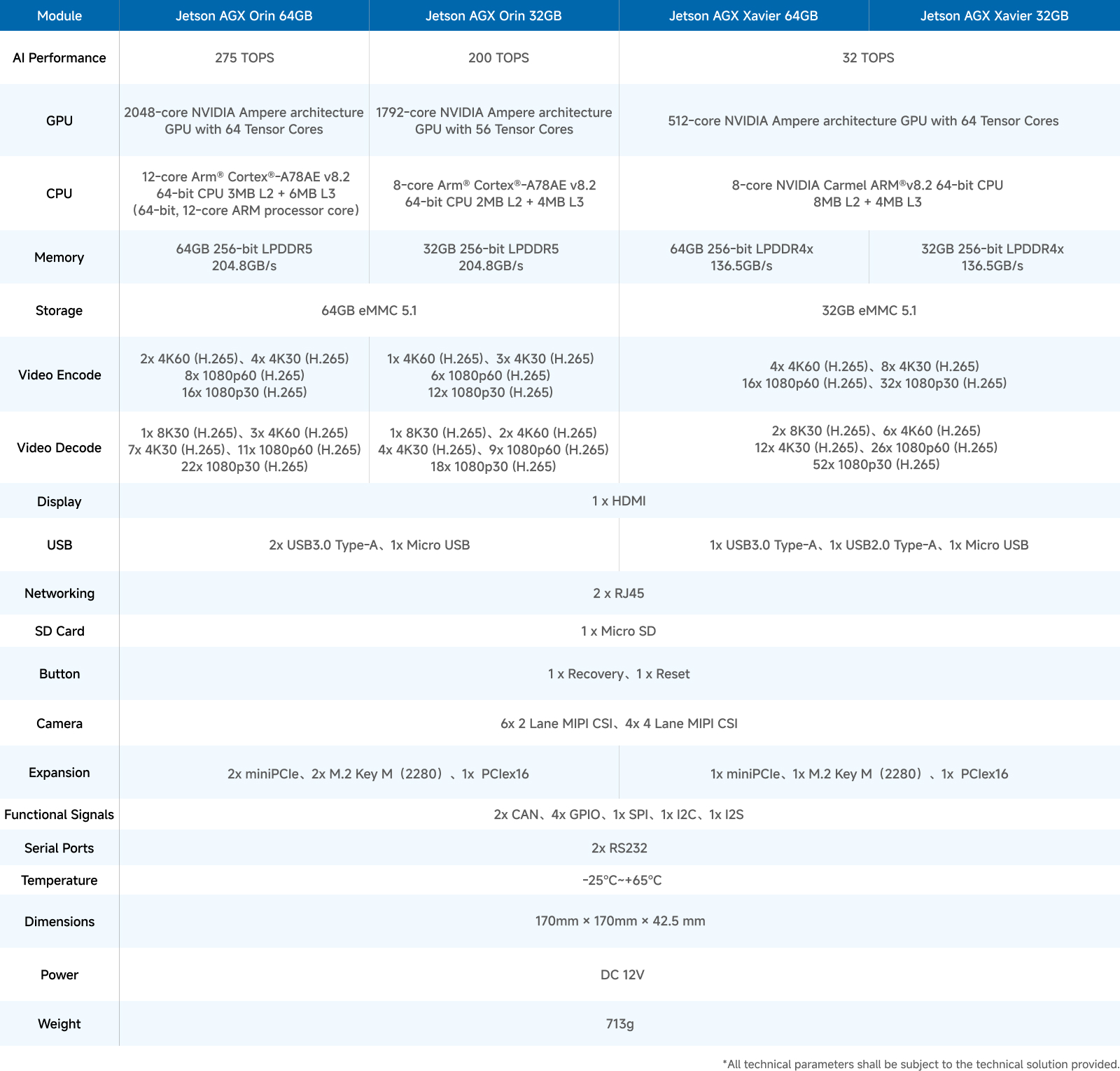

Jetson™ AGX Orin: 275/200 TOPS, 64/32GB LPDDR5, 64GB eMMC
Jetson™ AGX Xavier: 32 TOPS, 64/32GB LPDDR4x, 32GB eMMC
Display: HDMI

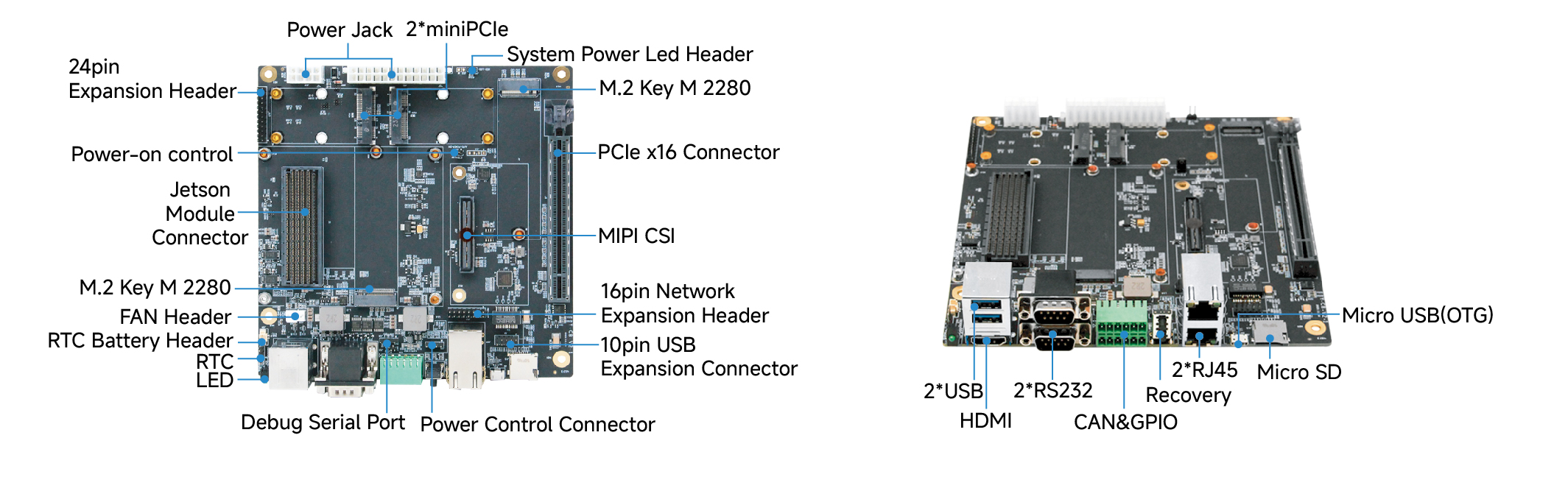

Rich I/O: RJ45, USB3.0 Type-A, Micro USB, Micro SD, RTC, CAN, GPIO, RS232
Expansion Slots: miniPCIe (USB2.0 & PCIe x1), M.2 M 2280, PCIe x16
Camera: 6× 2 Lane MIPI CSI, 4 × 4-Lane MIPI CSI
Operating Temperature: -25℃ ~ +65℃
Input Voltage: DC 12V
Pre-installed Ubuntu
