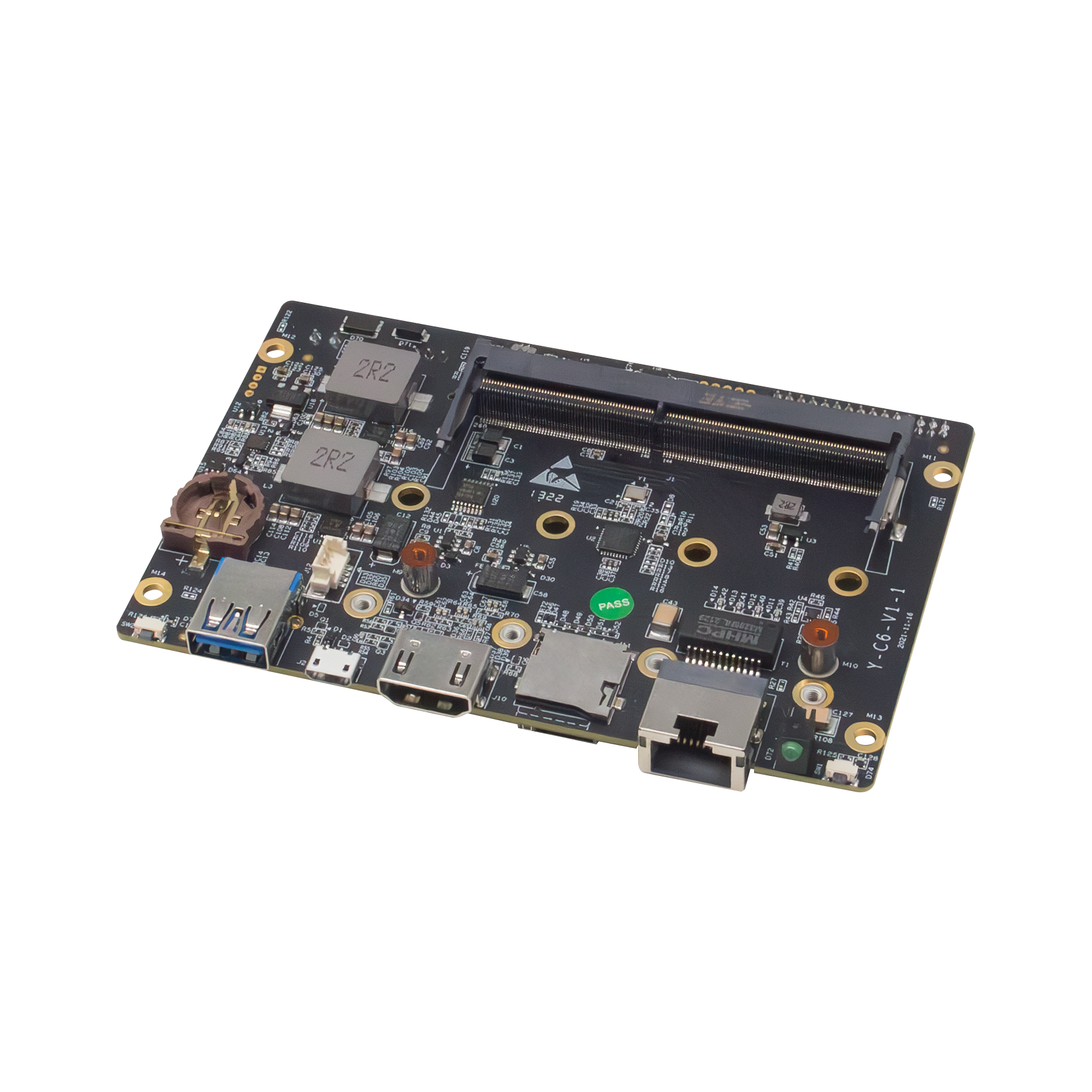

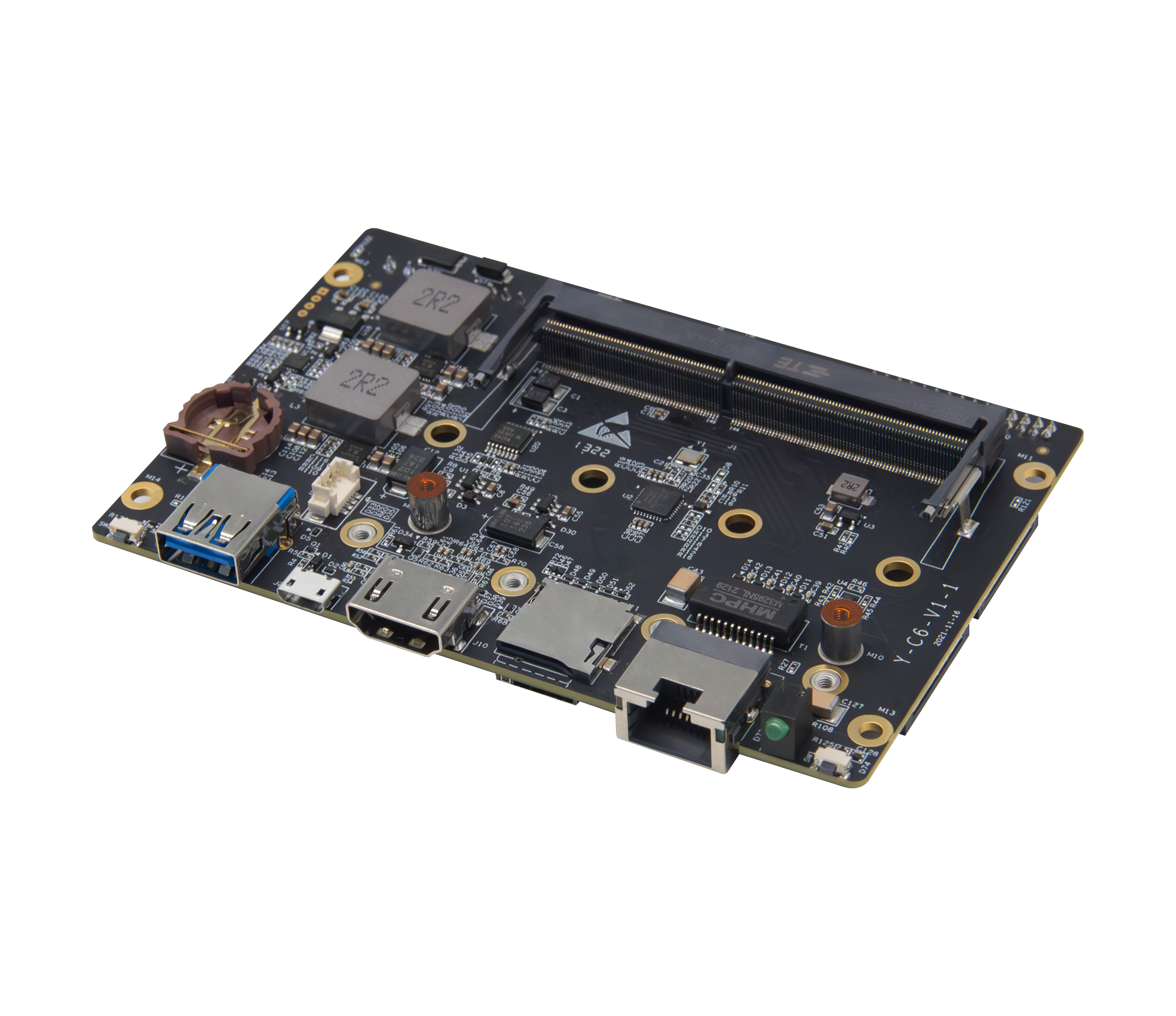

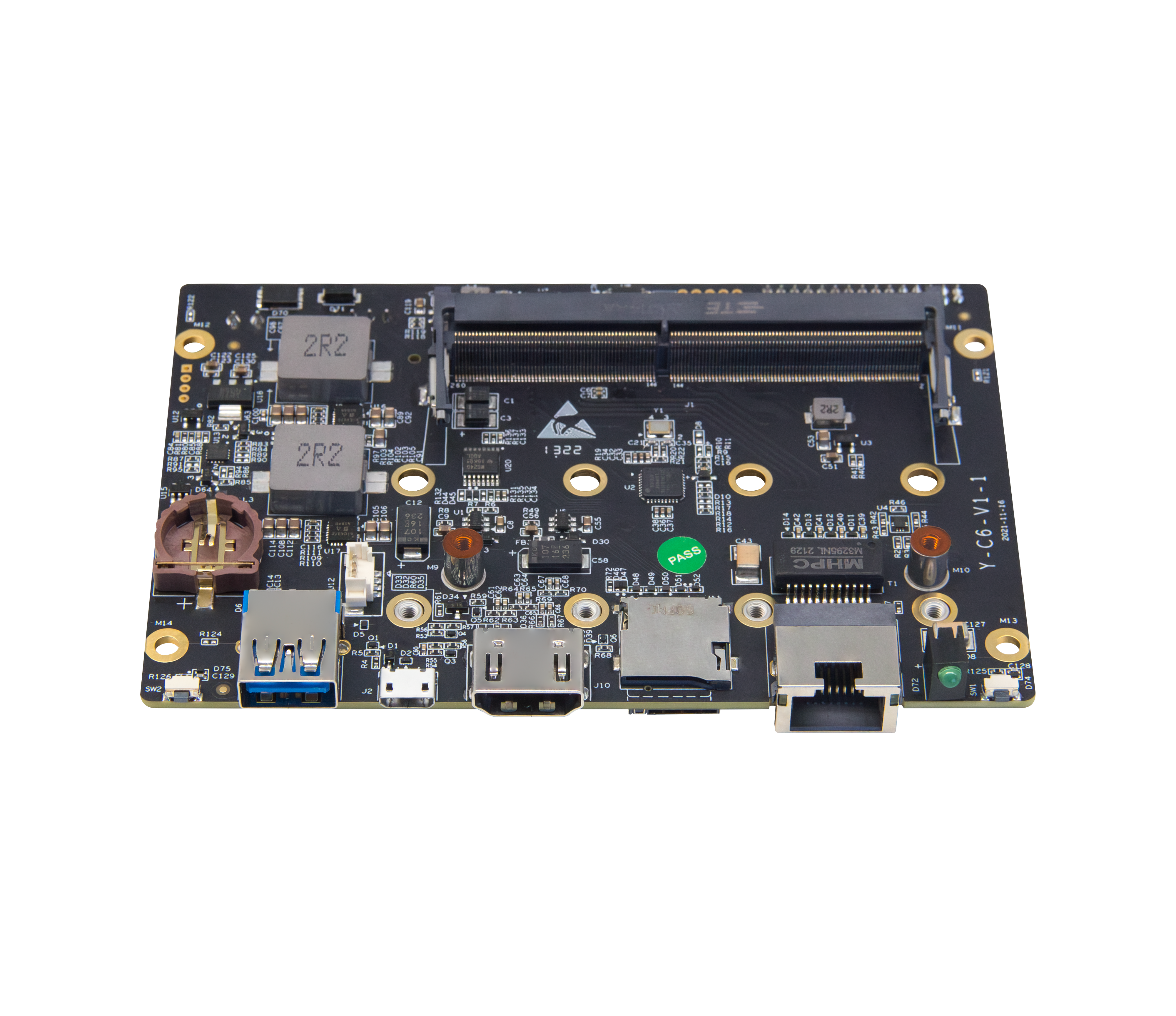

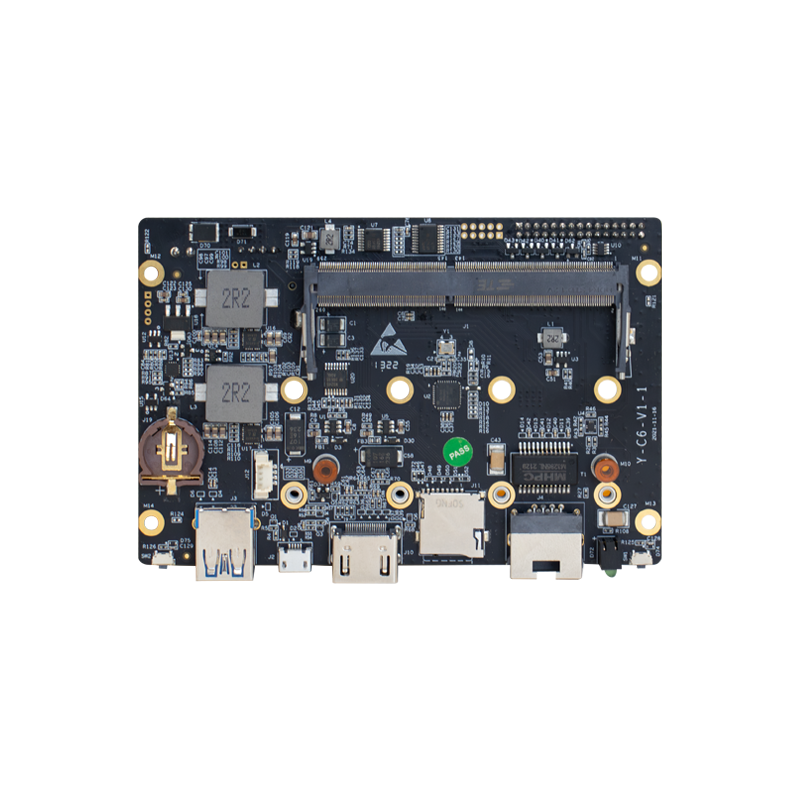

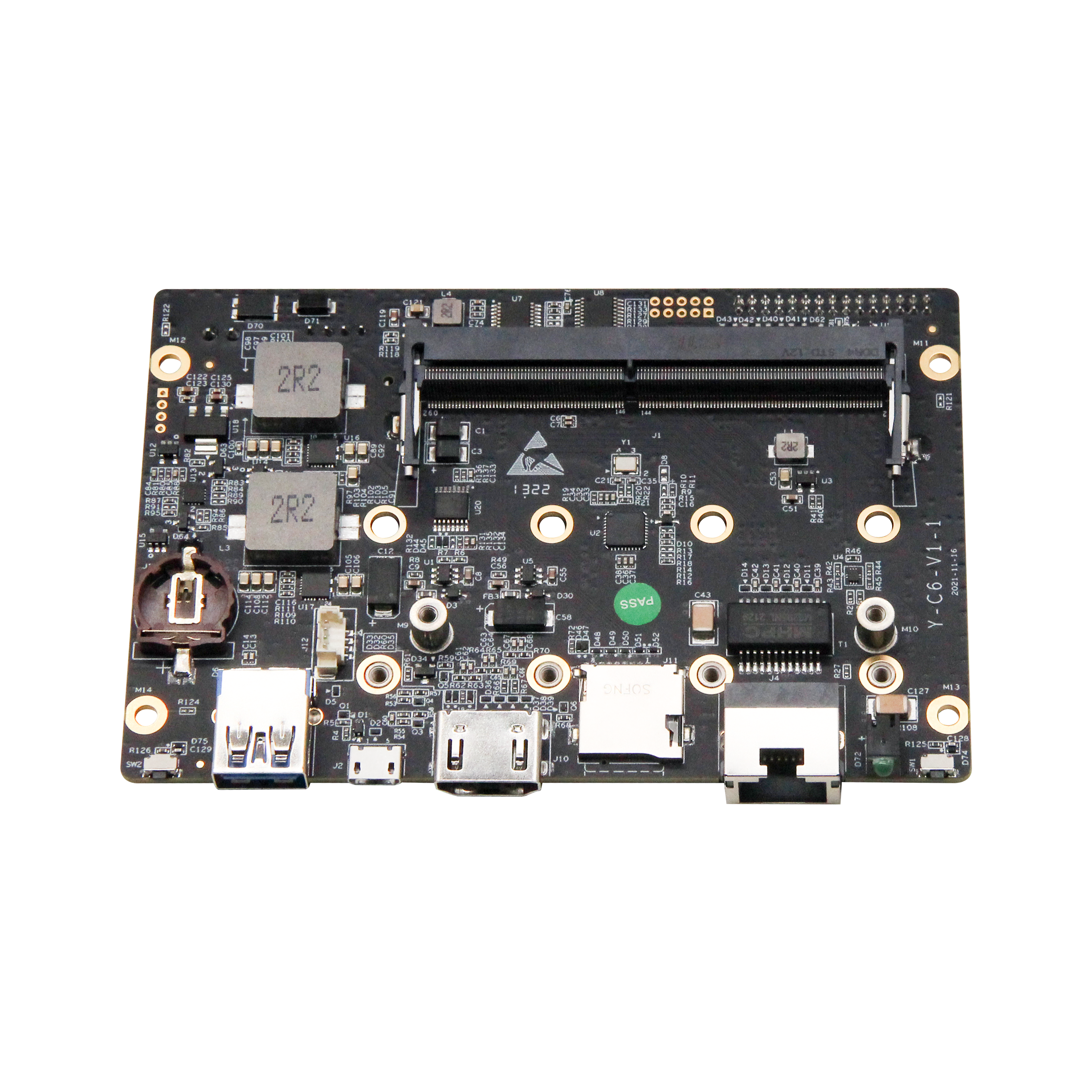

Y-C6

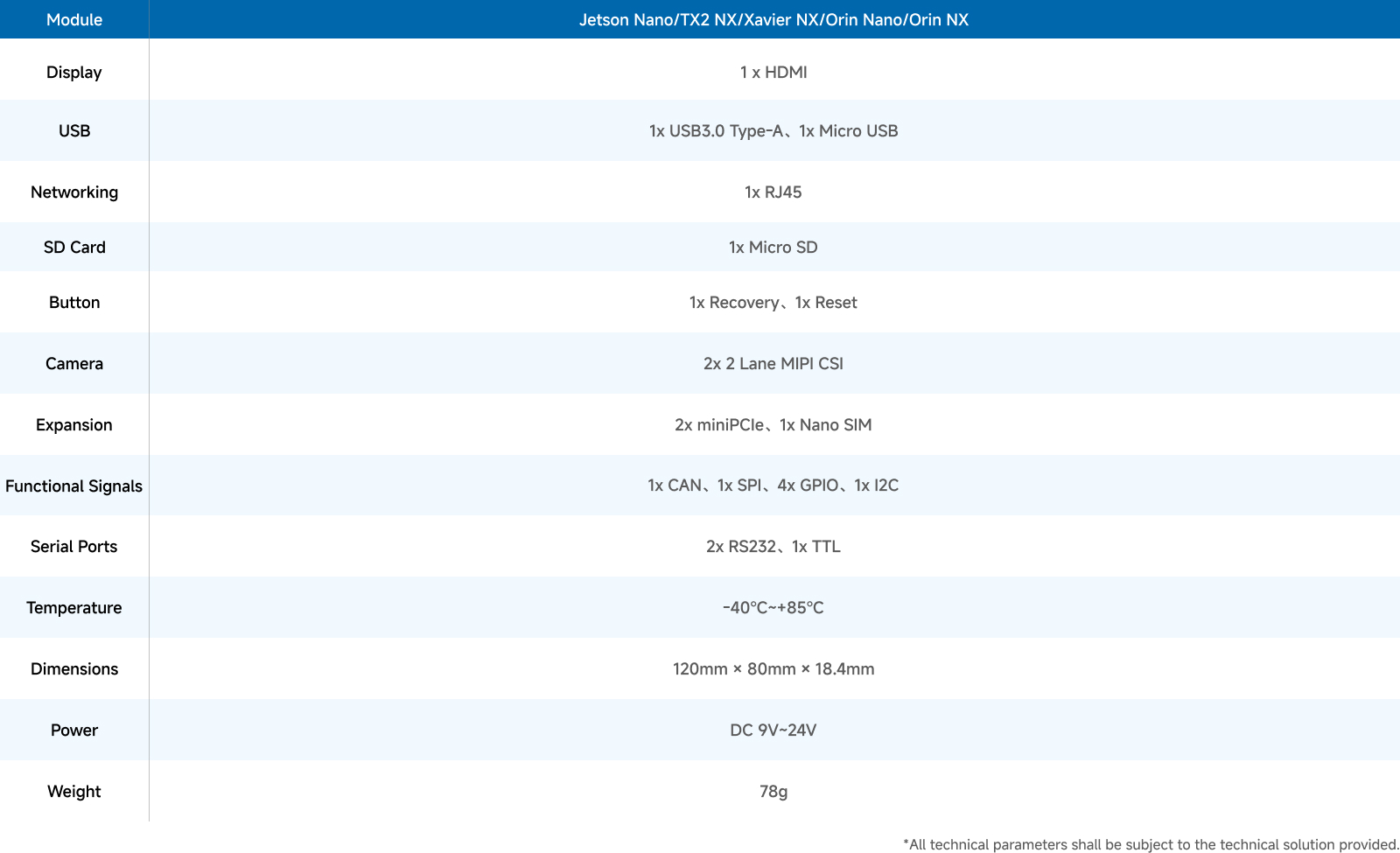

Compatible with Jetson™ Nano / TX2 NX / Xavier NX / Orin Nano / Orin NX

Display: 1×HDMI

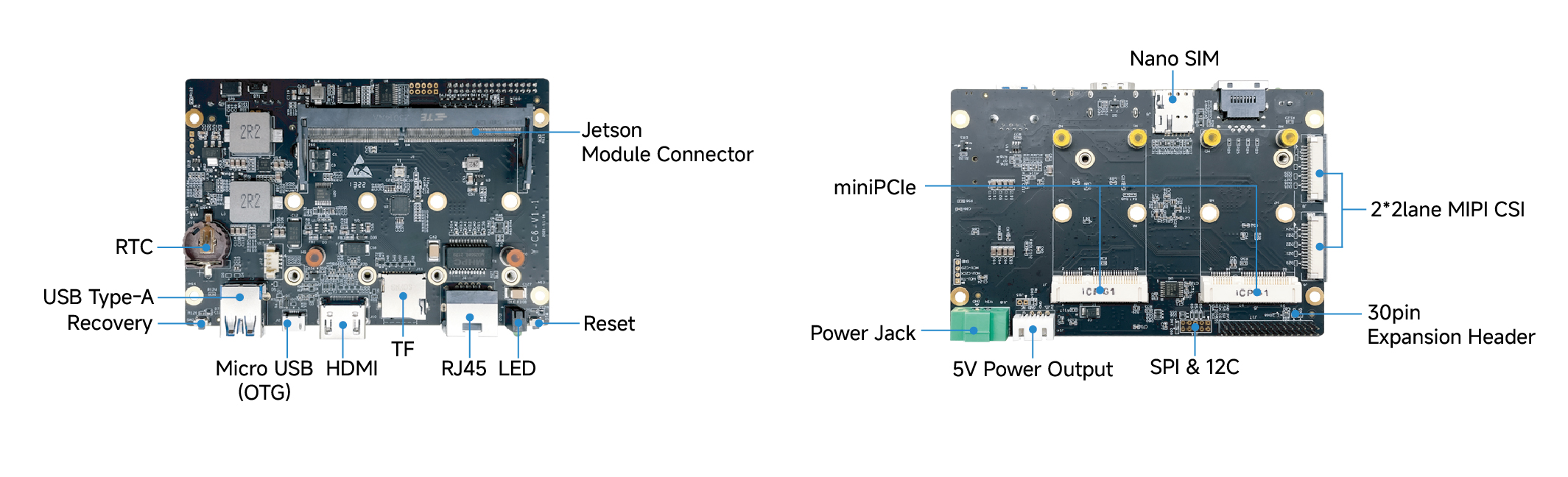

Rich I/O: 1×RJ45, 1×USB3.0 Type-A, 1×Micro USB, 1×Micro SD, 1×CAN, 4×GPIO, 1×SPI, 1×I2C, 1×TTL, 2×RS232

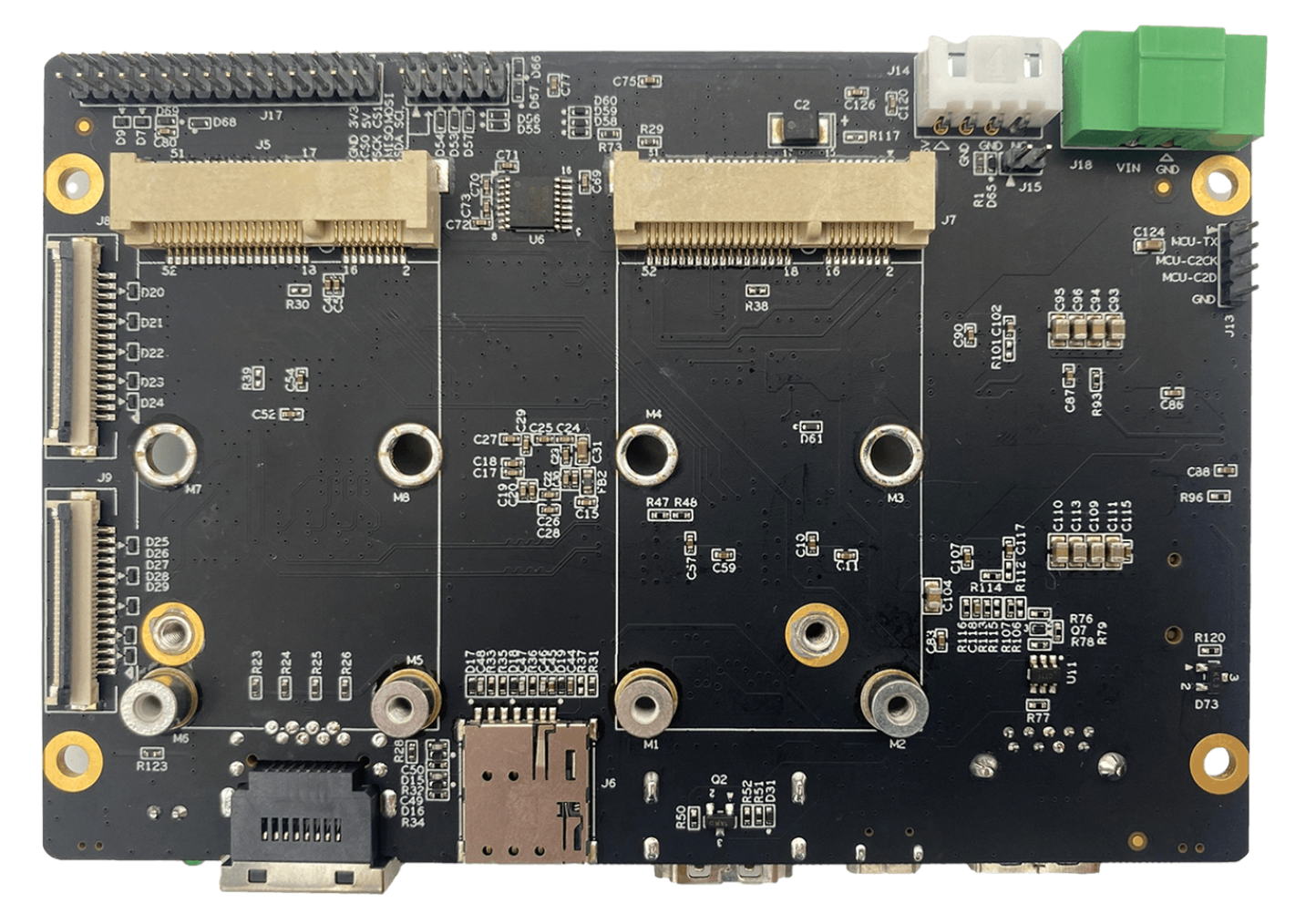

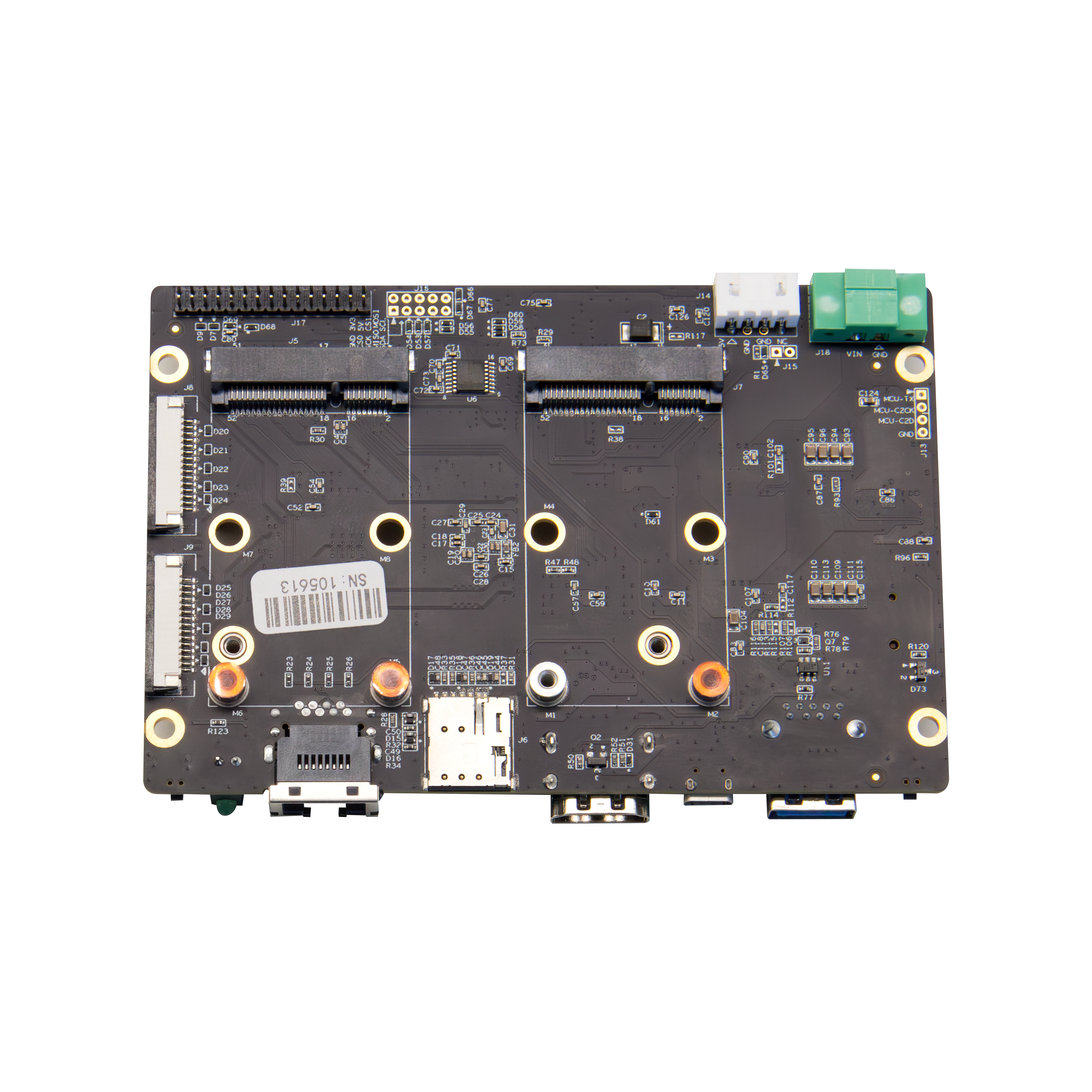

Expansion Slots: 2×miniPCIe (USB2.0 & PCIe x1)

Camera: 2×MIPI CSI

Operating Temperature: -40℃ ~ +85℃

Input Voltage: DC 9V ~ 24V

Alibaba

Overview

Y-C6 is a high-compatibility edge AI carrier board built for NVIDIA® Jetson™ Nano / TX2 NX / Xavier NX / Orin Nano / Orin NX. With low cost, small size and high integration, it provides reliable hardware support for industrial edge AI deployments in logistics, smart retail, industrial inspection and smart agriculture.It features industrial-grade high-reliability design with ESD, over-voltage and reverse polarity protection, and wide-temperature components for stable operation. Dual high-performance miniPCIe slots enable flexible expansion of multi-channel Gigabit Ethernet, 4G, USB3.0, SATA, high-capacity storage, video capture and multi-serial modules.

Applications
