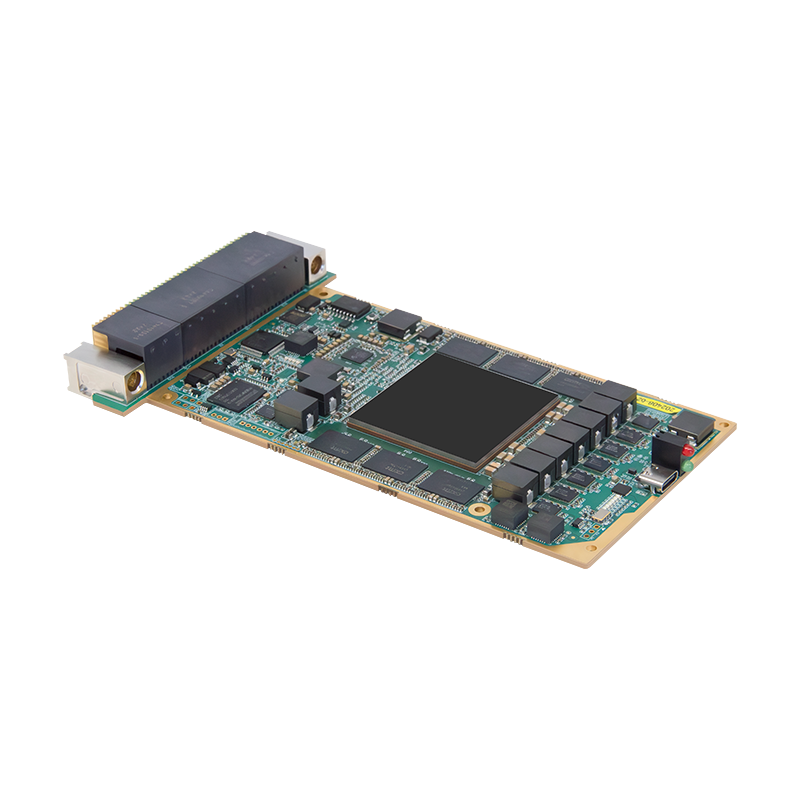

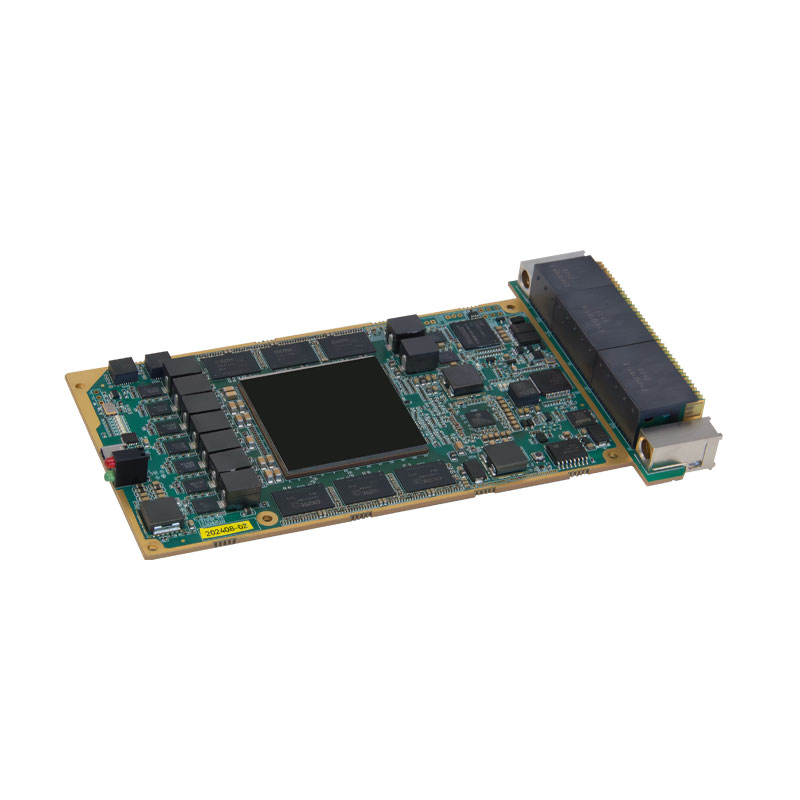

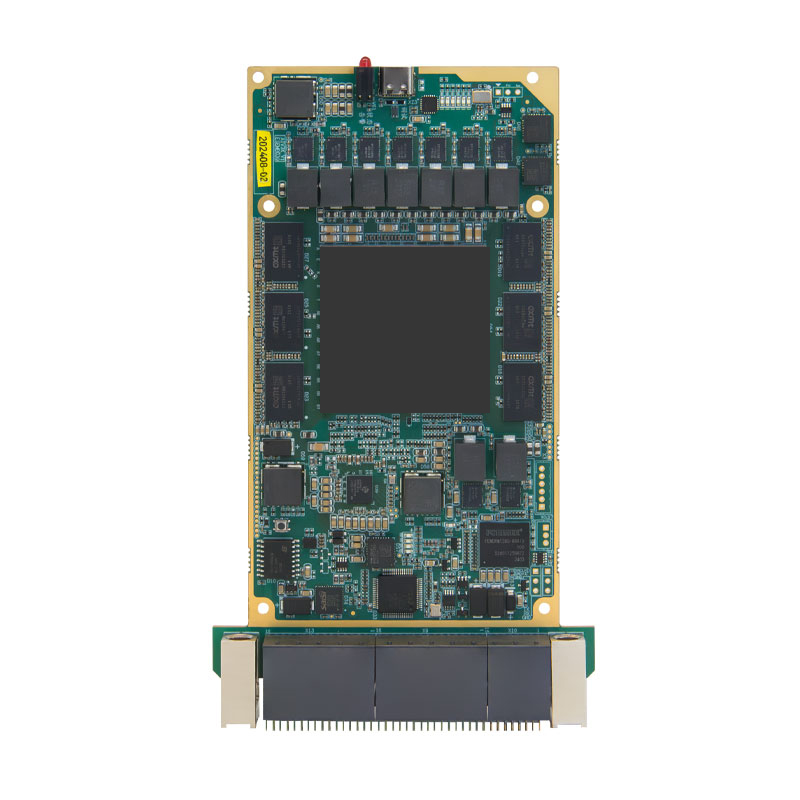

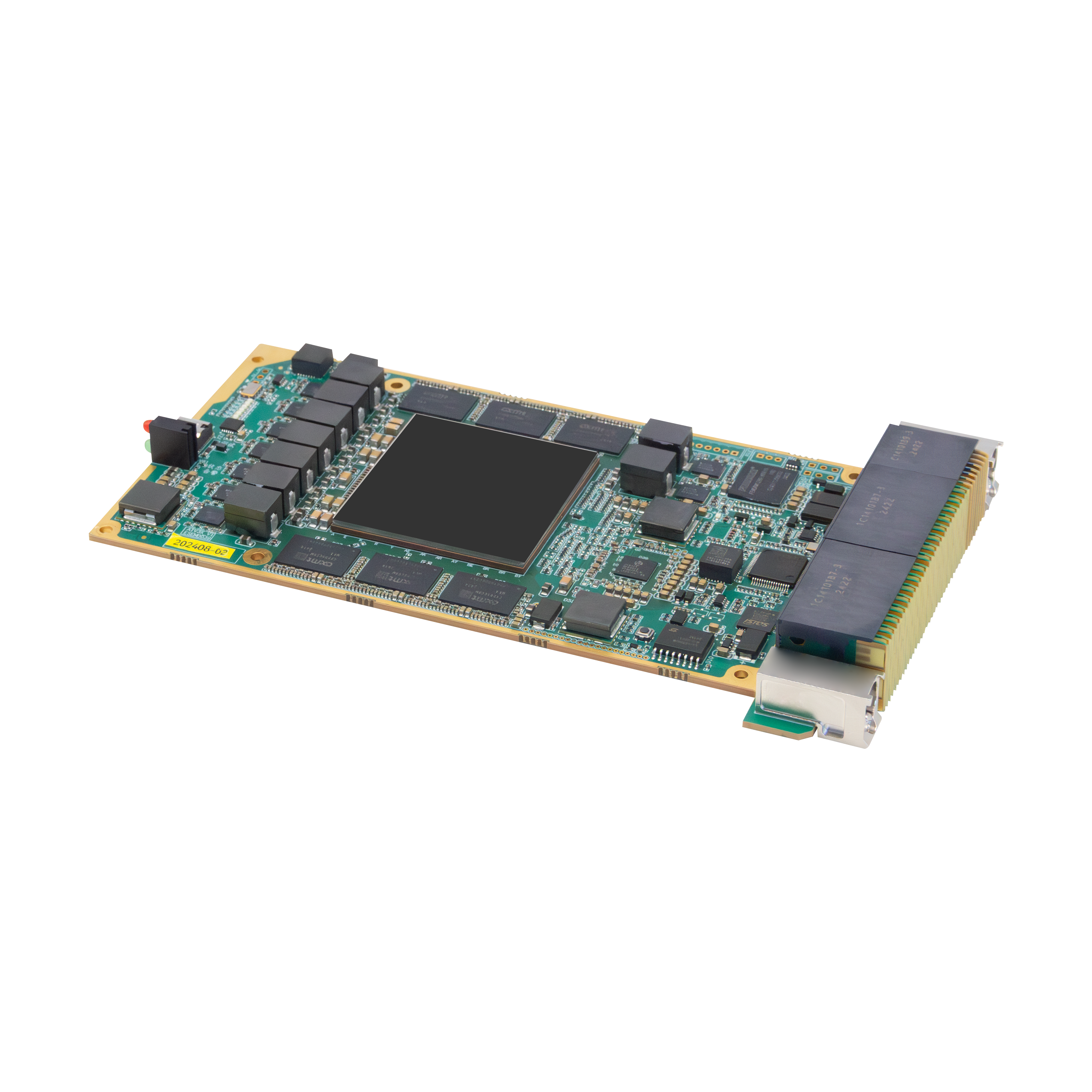

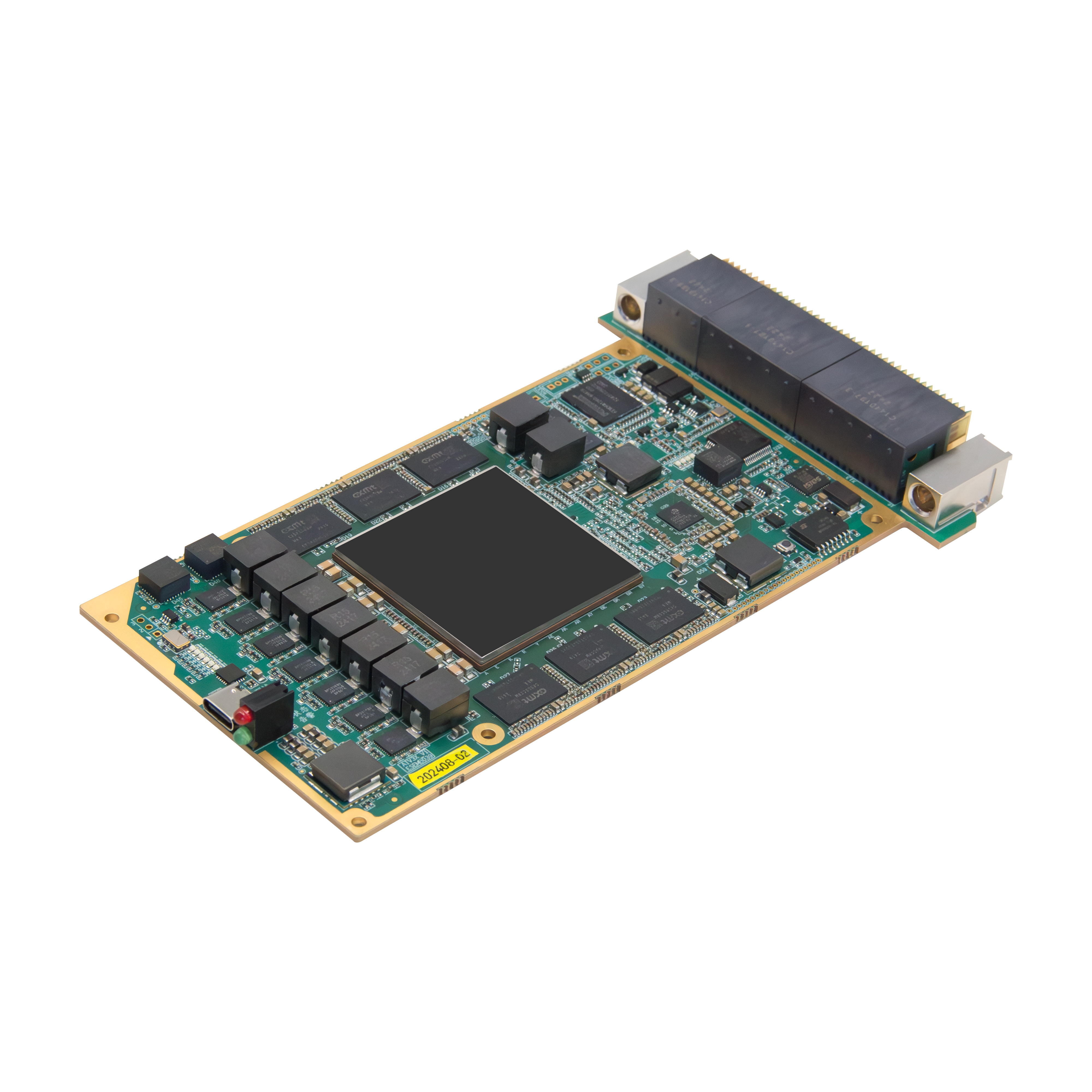

AIV3X is a high-performance industrial-grade edge AI intelligent computing card based on the Ascend 310P processor, capable of delivering up to 176 TOPS INT8 computing performance, meeting the requirements of edge AI inference application scenarios. It adopts a 3U structural design, complies with the VPX board card requirements, and supports both conduction cooling and air cooling for heat dissipation.
AIV3X
AI Performance: 176 TOPS INT8
Memory & Storage: 48GB LPDDR4X, 128GB eMMC
Video Decode:Supports 96x 1080P@30fps/12x4K@60fps H.264/H.265
JPEG Decode: 4K@384fps (FHD@2048fps)

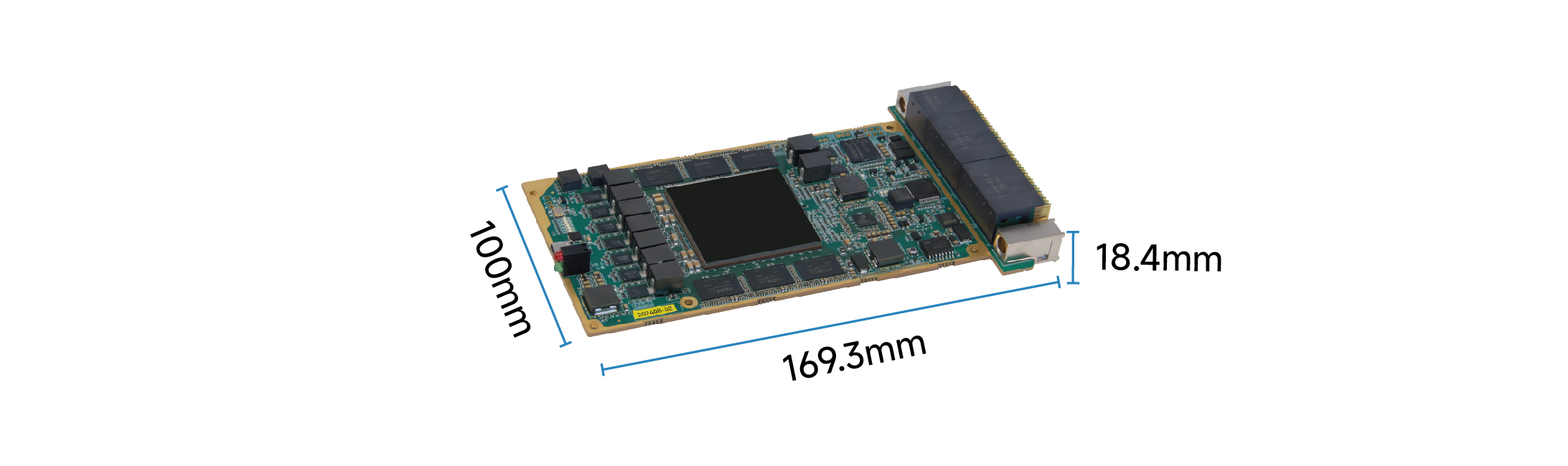

Mechanical Specification:3U VPX
Supports conduction cooling and air cooling
Power: ≤ 120W
Operating Temperature: -40℃ ~ +65℃
Input Voltage: DC 12V
Overview
Applications

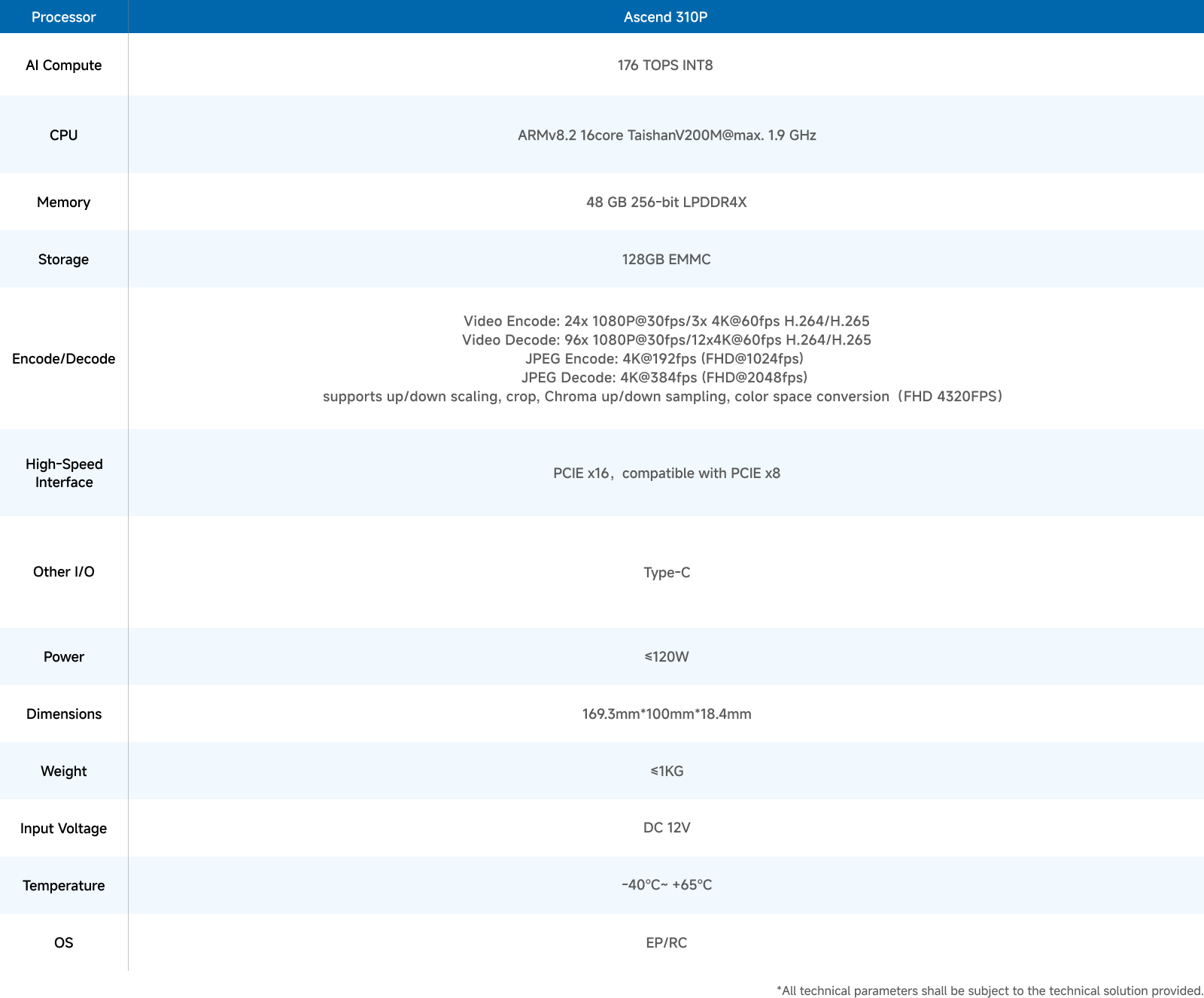

Specifications
