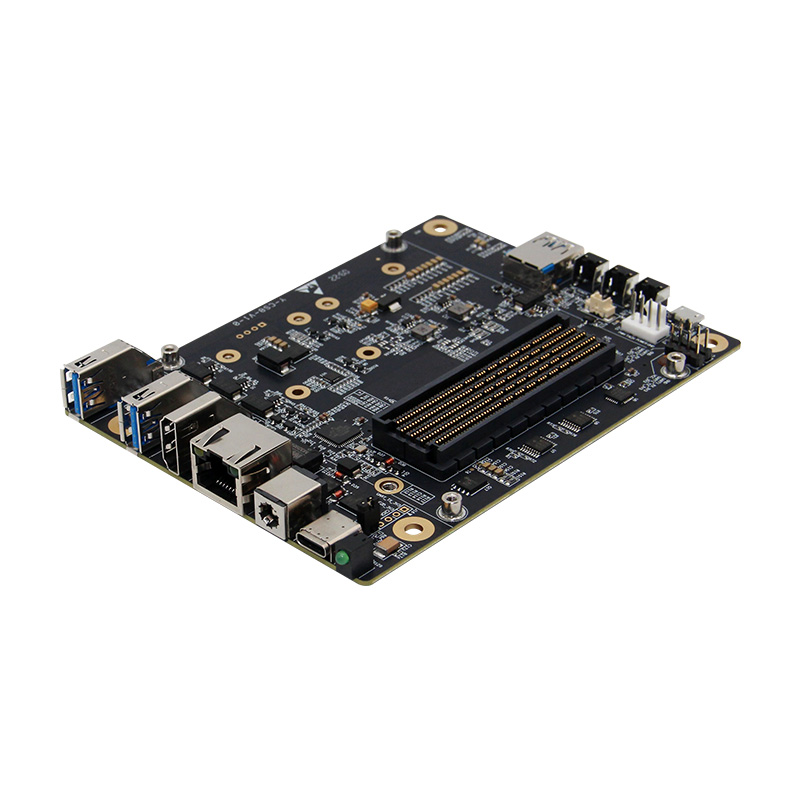

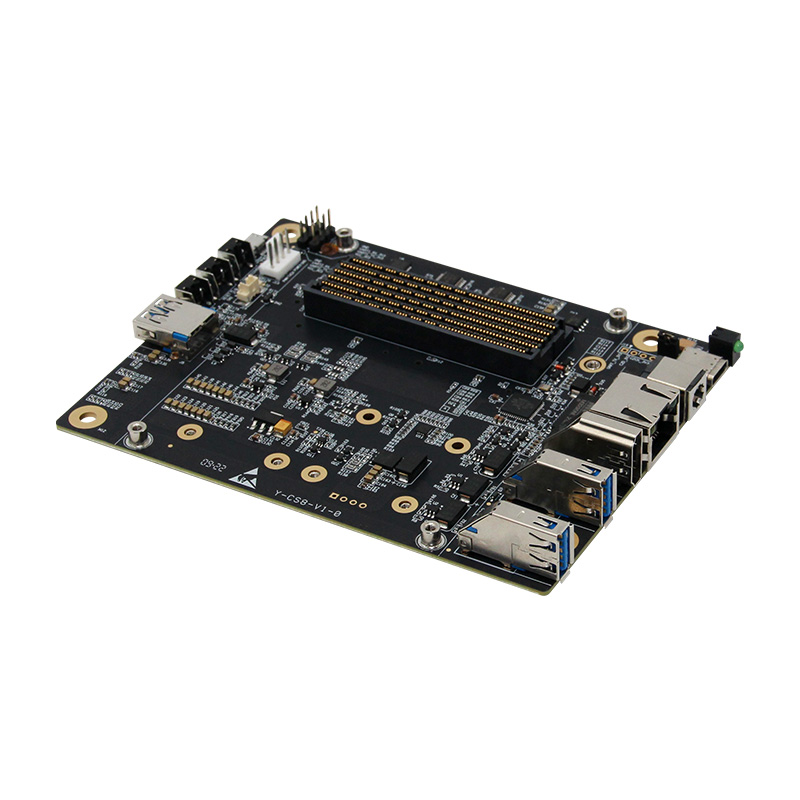

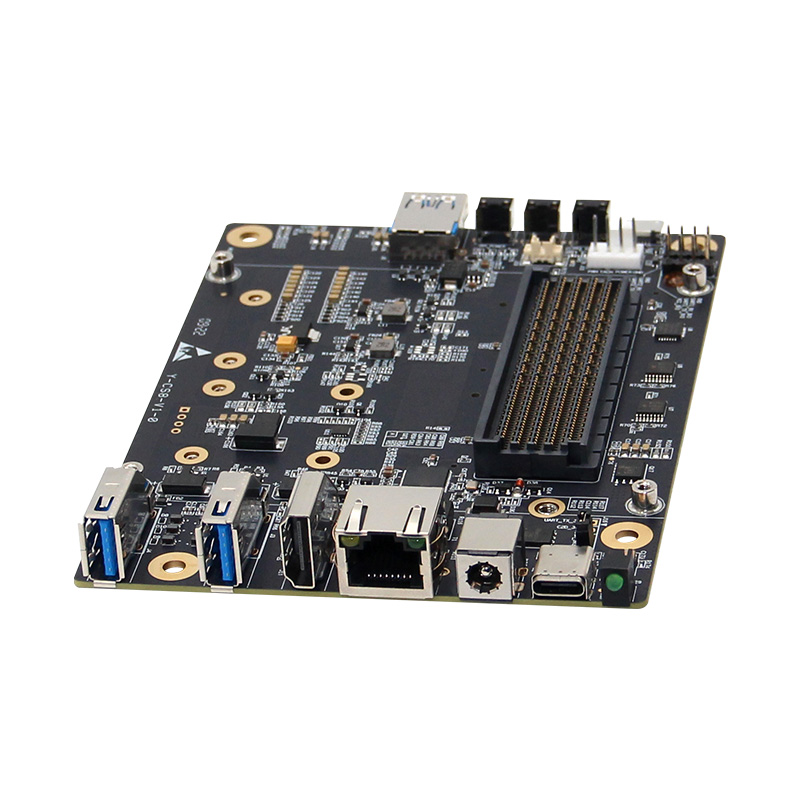

Jetson AGX Xavier Carrier Board Y-C9

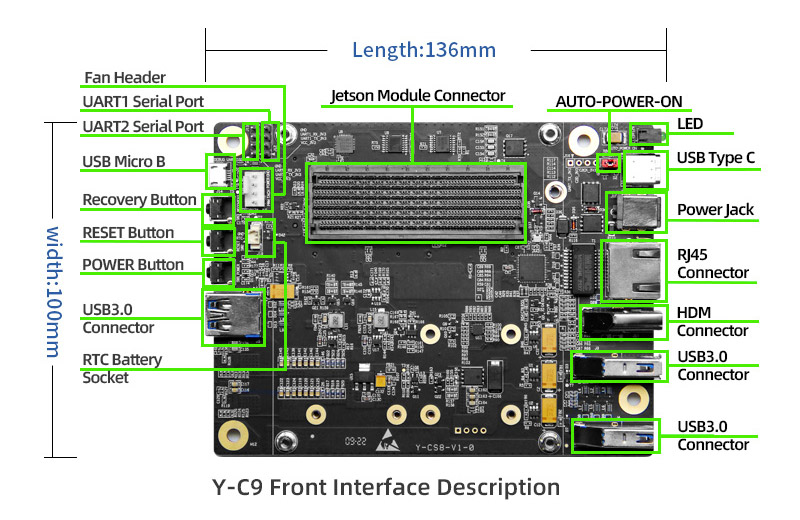

Three full speed USB3.0 Type A connectors
1 USB Type-C connector

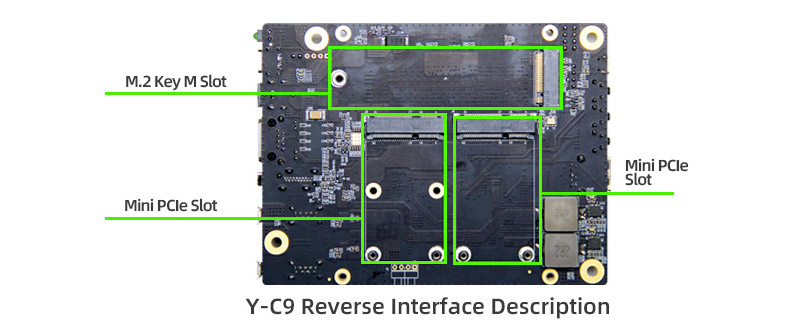

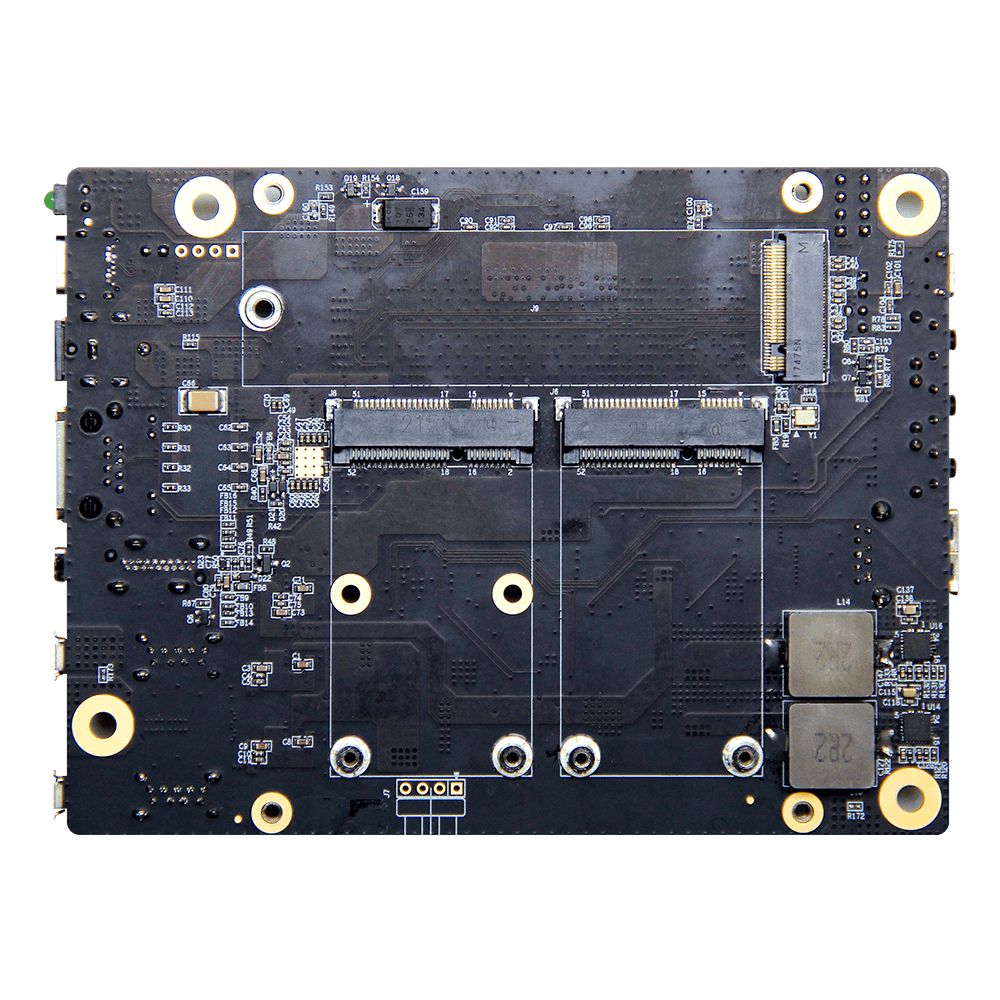

One standard M.2 Key M connector, supporting NVME
2 full-length miniPCIe connectors with PCIe x1 signal
Two 3.3V TTL serial ports
Support automatic power-on or button start
NVIDIA Jetson AGX Xavier/AGX Xavier Industrial

Carrier Board Y-C9

* NVIDIA Jetson Carrier Board:

Support NVIDIA Jetson AGX Xavier/AGX Xavier Industrial Module

* Versatile Connectivity:
Offer 1x RJ45, 3x USB Type-A, 1x Micro B, 1x HDMI and 1x USB Type-C

* Advanced Peripherals Supported:

Assemble 1x RTC, 1x M.2 Key M connector, 2x UART Serial port, 1x FAN Connector, 2x MiniPCIE connector


* Input Power: DC +12V

* Compact and Durable during Operation:
Design in small size of 136mm*100mm*45mm to save operation space, and maintain function in the temperature range from -20°C to 65℃
Product Name
Y-C9
Jetson Module Supported
NVIDIA Jetson AGX Xavier/AGX Xavier Industrial
Networking
1x Gigabit Ethernet (10/100/1000 BAST-T) RJ45
USB
3x USB
1x Micro-B
Display
1x HDMI
FAN
1x FAN connector（12V PWM）
M.2 KEY M
1x M.2 KEY M connector
Mechanical
136mm x 100mm x 20mm
Weight
118g
Operating Temperature
-20℃~+65℃
Jetson AGX Xavier Industrial
Jetson AGX Xavier 32GB
AI Performance
30 TOPS
32 TOPS
GPU
512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
CPU
8-core NVIDIA Carmel Arm®v8.2 64-bit CPU
8MB L2 + 4MB L3
Memory
32GB 256-bit LPDDR4x (ECC support)
136.5GB/s
32GB 256-bit LPDDR4x
136.5GB/s
Storage
64GB eMMC 5.1
32GB eMMC 5.1
Video Encode
2x 4K60 (H.265)
6x 4K30 (H.265)
12x 1080p60 (H.265)
24x 1080p30 (H.265)
4x 4K60 (H.265)
8x 4K30 (H.265)
16x 1080p60 (H.265)
32x 1080p30 (H.265)
Video Decode
2x 8K30 (H.265)
4x 4K60 (H.265)
8x 4K30 (H.265)
18x 1080p60 (H.265)
36x 1080p30 (H.265)
2x 8K30 (H.265)
6x 4K60 (H.265)
12x 4K30 (H.265)
26x 1080p60 (H.265)
52x 1080p30 (H.265)
CSI Camera
Up to 6 cameras
(36 via virtual channels)
16 lanes MIPI CSI-2
D-PHY 1.2 (up to 40 Gbps)
C-PHY 1.1 (up to 62 Gbps)
Up to 6 cameras
(36 via virtual channels)
16 lanes MIPI CSI-2 | 8 lanes SLVS-EC
D-PHY 1.2 (up to 40 Gbps)
C-PHY 1.1 (up to 62 Gbps)
PCIe*
1 x8 + 1 x4 + 1 x2 + 2 x1
(PCIe Gen4, Root Port & Endpoint)
USB*
3x USB 3.2 Gen2 (10 Gbps)
4x USB 2.0
Display
3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Other I/O
5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC, GPIOs
Power
20W - 40W
10W - 30W
Y-C8
Y-C9
AGX Orin Developer Kit
USB Type-A
2x USB 3.0
3x USB 3.0
2x USB 3.2 2.0 2x USB 3.2 1.0
USB Type-C
1x USB Type-C
2X USB 3.2 2.0
supporting USB-PD
USB Micro-B
1x USB 2.0
USB 2.0（DEBUG）
PCIe
x16 PCIe slot supporting PCIe x8
x16 PCIe slot supporting x8 PCIe Gen4
MiniPCIe
2x MPCIe
2x MPCIe
RJ45
2x RJ45
one of the RJ45 connector needs
1x RJ45
1x RJ45 connector with up to 10 GbE
DisplayPort
HDMI
HDMI
1x DisplayPort 1.4a (+MST) connector
M.2 Key M
2x
1x
x4 PCIe Gen4
M.2 Key E
x1 PCIe Gen4
microSD slot
1x
UHS-1 card supporting SDR104
Other I/O
2x CAN
4xGPIO
1x SPI
1x I2C
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC batter backup connector
microSD slot
DC power jack
Power, Force Recovery, and Reset buttons
