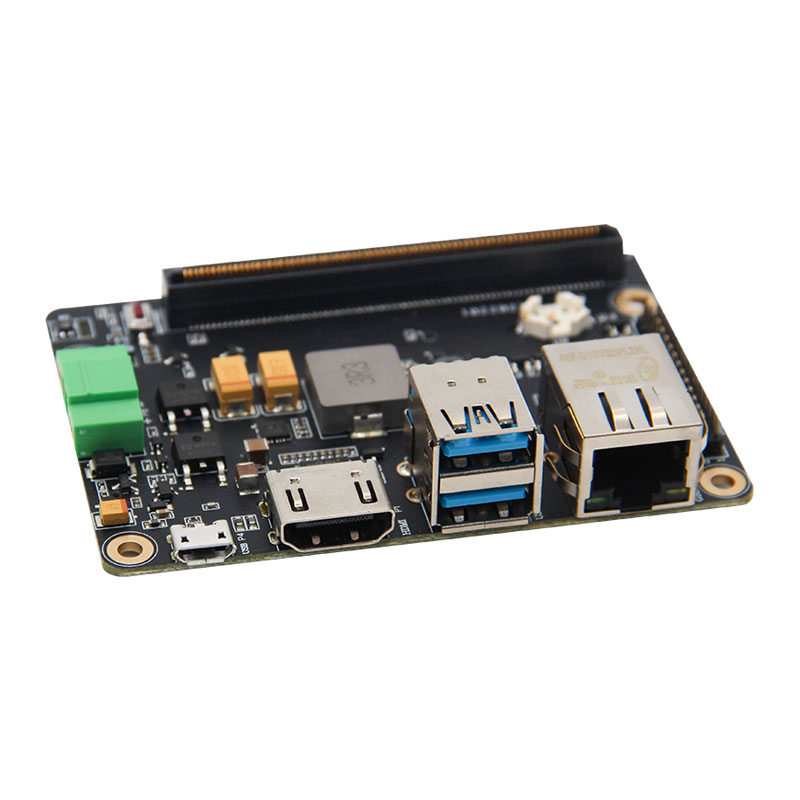

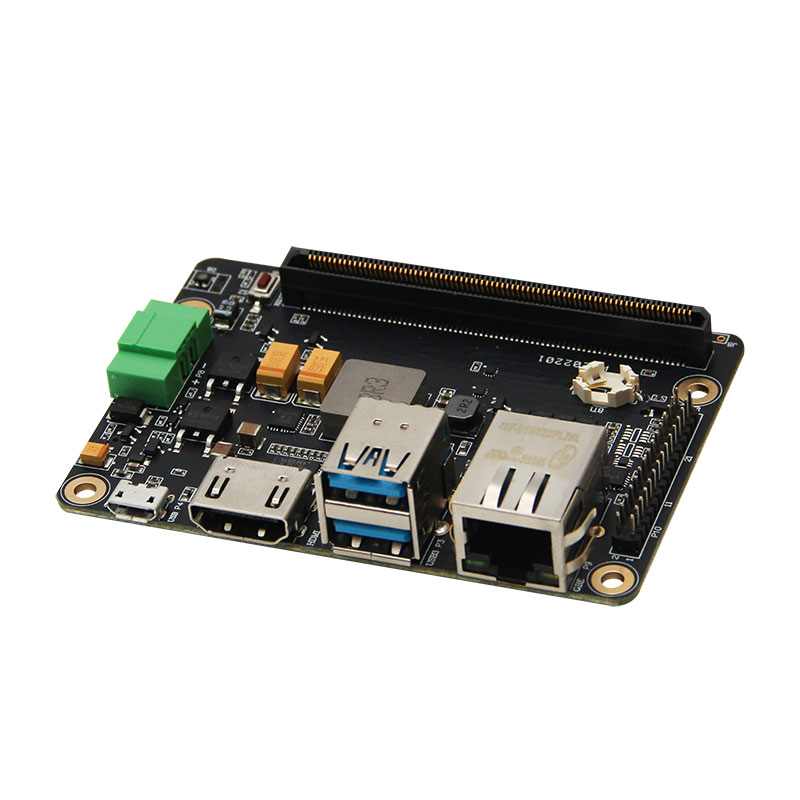

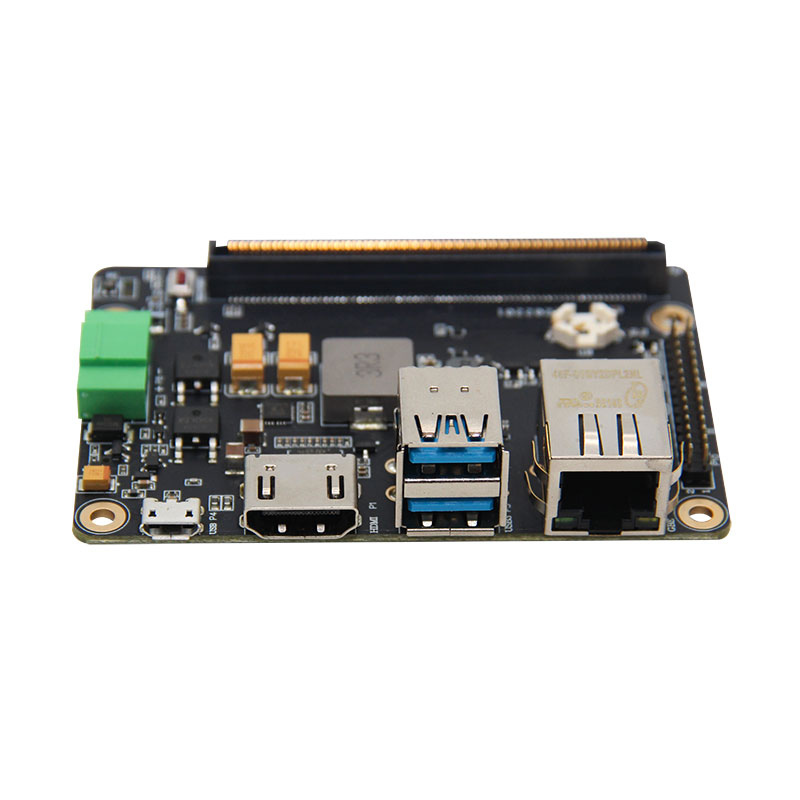

Jetson TX1/2/2i Carrier Board Y-C1

2 USB3.0 ports, 1 HDMI 2.0 interface
2 CAN (onboard CAN transceiver), 1 3.3V I2C interface
3 3.3V level common serial ports (UART)
1 3.3V level Debug serial port (UART)
1 x Gigabit Ethernet (10/100/1000 BASE-T)
4 3.3V bit programmable GPIO, 1 SD card interface
1 RTC bat

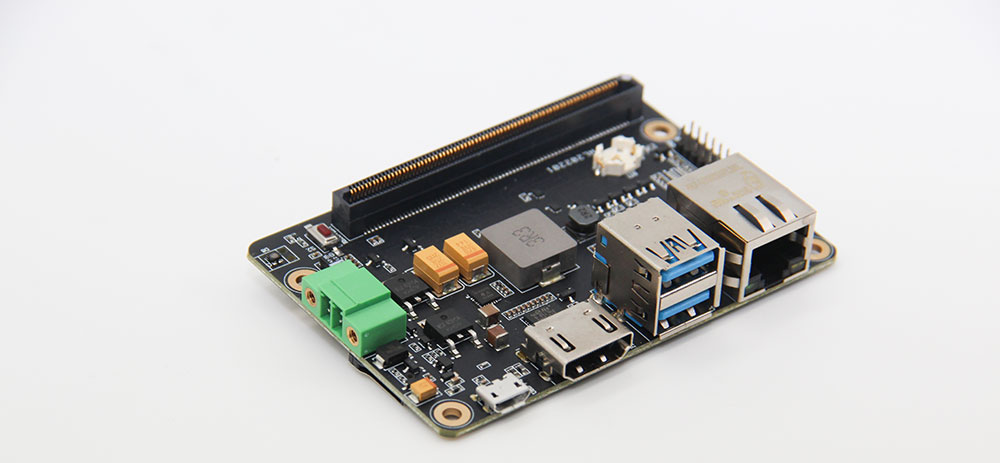

The Y-C1 is a low-cost, small form factor carrier board for NVIDIA Jetson TX1/TX2/TX2-4GB/TX2i series core modules, suitable for compact deployment needs. For industrial deployment applications, the main interface is designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has over voltage and reverse polarity protection functions, and has a wealth of external interfaces. All board devices use wide temperature models.

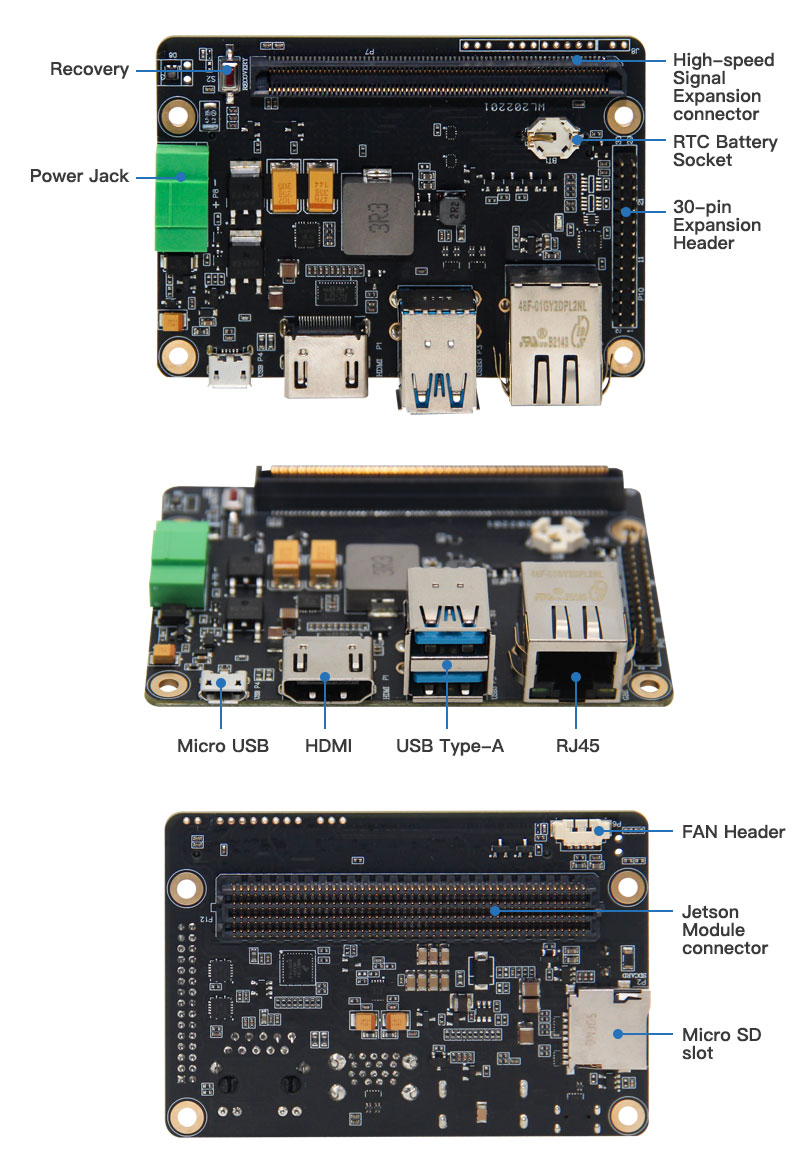

Product Specifications

➢ 2 USB3.0 ports (5Gbps bandwidth per port, 1A output current)
➢ 2 CAN (onboard CAN transceiver)
➢ 3 3.3V level common serial ports (UART), 1 3.3V level Debug serial port (UART)

➢ 1 Gigabit Ethernet (10/100/1000 BASE-T)
➢ Four 3.3V bit programmable GPIOs
➢ 1 RTC battery pin header
➢ 1 Type 621 RTC battery holder
➢ 1 HDMI 2.0 port (Max 6Gbps, 24bpp, 4096x2160@60Hz)
➢ 1 SD card interface
➢ 1 x 3.3V I2C interface
➢ 1 fan control interface
➢ Configurable power-on mode (default is power-on self-start)
➢ Onboard encryptor for encryption protection of applications
➢ User-accessible on-board tri-color LED indicators within the operating system

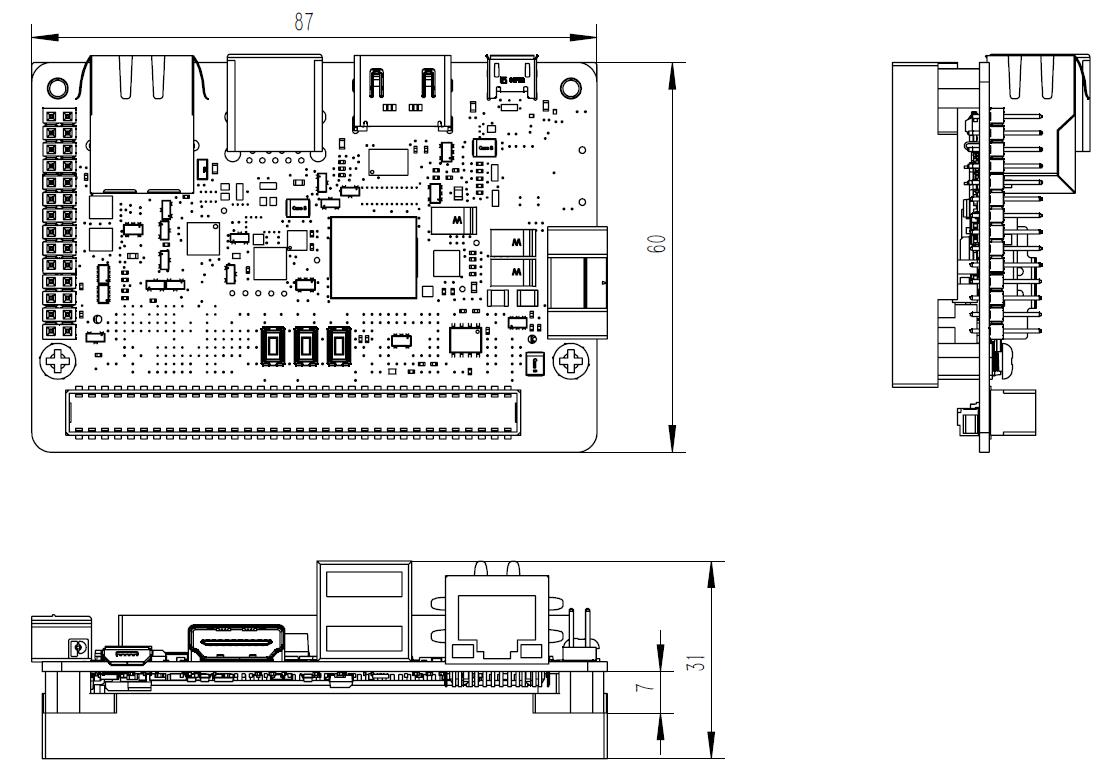

➢ Board size: 87mm×60mm×16mm
➢ Power requirements: +7V~+19V
➢ Working temperature: -40~+85°C
➢ Weight: 51g
*CAN bus interface function is not available when used with Jetson TX1 module


Jetson TX2 Series Technical Specification


TX2 NX

TX2 4G

TX2

TX2i

AI Performance

1.33 TFLOPS
1.26 TFLOPS

GPU

256-core NVIDIA Pascal GPU

CPU

Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor

Memory

4 GB 128-bit LPDDR4
51.2GB/s
8 GB 128-bit LPDDR4
59.7GB/s
8 GB 128-bit LPDDR4
(ECC Support)
51.2GB/s

Storage

16 GB eMMC 5.1
32 GB eMMC 5.1
32 GB eMMC 5.1

CSI Camera

Up to 5 cameras
(12 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
Up to 6 cameras
(12 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)

PCIe

1 x1 + 1 x2
(PCIe Gen2)
1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2
(PCIe Gen2)

Display

2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
1x 2 DSI (1.5Gbps/lane)
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
2 x4 DSI (1.5Gbps/lane)

Power

7.5W | 15W
10W | 20W

Video Encode

1x 4K60 (H.265)
3x 4K30 (H.265)
4x 1080p60 (H.265)

Video Decode

2x 4K60 (H.265)
7x 1080p60 (H.265)
14x 1080p30 (H.265)
Networking 10/100/1000 BASE-T Ethernet
10/100/1000 BASE-T Ethernet, WLAN
10/100/1000 BASE-T Ethernet
Mechanical 69.6 mm x 45 mm
260-pin SO-DIMM connector
87 mm x 50 mm
400-pin connector




Order Information

Model

Function

Y-C1

NVIDIA JetsonTM TX1/TX2/TX2-4GB/TX2i Core modules with compact mounts

Y-C1-L

Non-soldering multifunctional high speed signal expansion connector

version Y-C1 carrier board
