Jetson Xavier NX/Orin NX/Orin Nano IPC 17F1

Designed for DJI M300, M30 and M350 series UAVs
Equipped with an automatic dialing 5G module
Size:100mm*74mm*47mm
Weight:235g

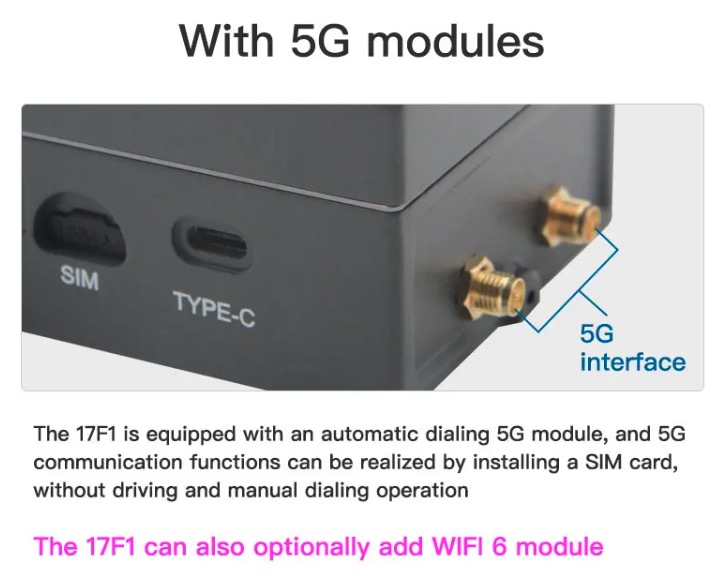

The 17F1 is an AI computer designed for DJI M300, M30 and M350 series UAVs based on NVIDIA Jetson Xavier NX/Orin NX/Orin Nano series core modules.equipped with an automatic dialing 5G module, and 5G communication functions can be realized by installing a SIM card, no need to driving and manual dialing operation. The 5G antenna is designed with 2 built-in and 2 external antennas, and the antenna allocation can be adjusted according to the 5G frequency band. At the same time, the machine can also optionally add WIFI 6 module.
All external interfaces of the 17F1 areweatherproof, and the protection level of the 17F1 can up to IP66.


Technical Specification


ONX8-17F1
ONANO8-17F1
NX16-17F1

Module

Jetson Orin NX

Hetson Orin Nano

Jetson Xavier NX

AI Perf

70 TOPS

40 TOPS

21 TOPS

GPU

1024-core NVIDIA Ampere GPU

with 32 Tensor Cores

384-core NVIDIA Volta GPU

with 48 Tensor Cores
CPU

6-core Arm® Cortex®-A78AE v8.2

64-bit CPU  1.5MB L2 + 4MB L3

6-core NVIDIA Carmel Arm® Cortex®-A78AE v8.2

64-bit CPU 6MB L2 + 4MB L3
DL Accelerator
1x NVDLA v2
- 2x NVDLA v1

Memory

8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
68 GB/s

16GB 128-bit LPDDR4x

51.2 GB/s
Storage 128GB NVMe
16GB eMMC + 128GB NVMe
Video Encode

1x 4K60 (H.265)
12x 1080p30 (H.265)

1x 4K60 (H.264)
11x 1080p30 (H.264)
1080p30 supported by 1-2 CPU cores

2x 4K60(H.265)

22x 1080p30 (H.265)
2x 4K60(H.264)

20x 1080p30 (H.264)

Video Decode

1x 8K30 (H.265)
18x 1080p30 (H.265)

1x 4K60 (H.264)
11x 1080p30 (H.264)
1x 4K60 (H.265)
11x 1080p30 (H.265)

2x 8K30(H.265)

44x 1080p30 (H.265)
2x 4K60(H.265)

22x 1080p30 (H.264)
USB Type-C
USB 2.0(480Mbps) , USB 3.2(10Gbps), Displayport(2 Lane)

Networking

5G Sub-6 GHz(5G,LTE,UMTS,GNSS), WiFi 6(Optional)
OSDK USB 2.0,UART,PPS,PWM

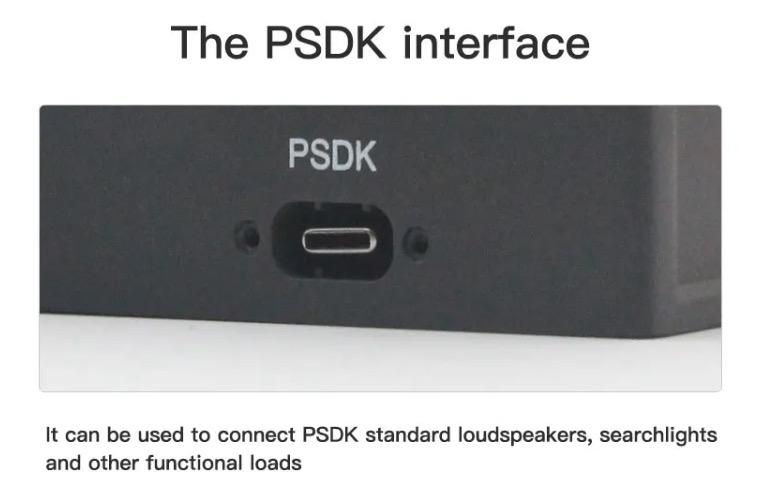

PSDK USB 2.0,UART
Power 20W(12-24V)
25W(12-24V)
25W(12-24V)

Manchanical

100mm*74mm*47mm    235g


About the Part

Order Type

Function

Manufacturer

Standard/Optional

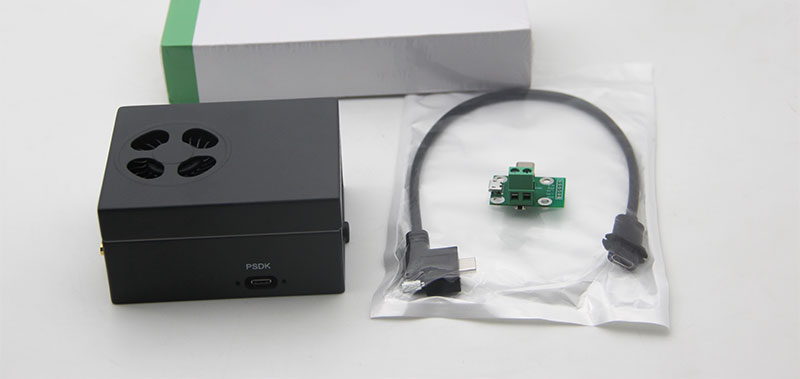

17F1-DJ-Cable

OSDK cable for connecting 17F1 to DJI UAV

PLink-AI
Standard
OSDK-Helper-V1-1
OSDK signal separation board
PLink-AI
Standard
100044187529
5-in-1 Type-C docking station

Biaze

Standard
SDK

coaxial cable

17F1 connects OSDK cables to DJI UAV DJI Optional
M300- Bracket


17F1 and DJI M300 UAV mounting rack

(Including 2 M2.5*6 combination screws, 4 M2.5*8 combination screws)



PLink-AI

Optional

M30
Quick-release  rack

17F1 and DJI M30 drone mounting rack DJI Optional
