AGX Orin / Xavier IPC 8F1E1

AGX Orin / Xavier IPC 8F1E1

With NVIDIA Jetson Rack AI industrial computer of AGX Xavier / AGX Orin series core module


8F1E1 is a product with NVIDIA Jetson AGX Xavier / AGX Orin core module is a vertical industrial computer. The main interfaces are designed for electrostatic safety protection, with rich external interfaces, and the internal interface devices adopt wide temperature models.


Module AGX Xavier 32G AGX ORIN 32G AGX ORIN 64G

CPU

8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

CPU Memory

32GB 256-bit LPDDR4 x 136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
GPU 512-core NVIDIA Volta GPU with 64 Tensor Cores
1792-core NVIDIA Ampere GPU with 56 Tensor Cores 2048-core NVIDIA Ampere GPU with 64 Tensor Cores
USB Micro-B
1 x Type B (OTG)
USB Type-A
1 x USB 3.1
2 x USB 3.1 2 x USB 3.1

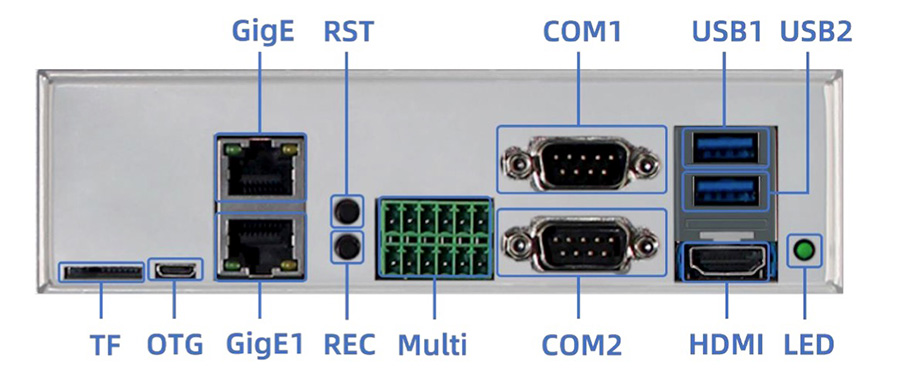

Other I/O

4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)

2 x CAN (with on-board transceiver)

Networking 2 x 10/100/1000 Ethernet/RJ45
Power Supply AC 220V
Temperature
-20~+65°C
Dimensions
391mm×303mm×185 mm
Weight 7700g
