TX2 NX IPC SYS-2006

NVIDIA® Jetson TX2 NX, which can provide 1.33 TFLOPS of computing power in 15W power mode, which is 2.5 times the computing power of Jetson Nano
with 256 CUDA Cores
6 ARM CPU cores
4 GB 128-bit DDR4 memory, it can run multiple network models simultaneously

TX2NX-SYS-2006 is a compact AI industrial computer with NVIDIA® Jetson™ TX2 NX series core modules. For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. warm model.

TX2NX-SYS-2006 standard type can support 1/3/5 full-speed Gigabit Ethernet, if you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial port card, sound acquisition/output card, multi-function IO card, etc., please contact our sales staff.

NVIDIA® Jetson TX2 NX, which can provide 1.33 TFLOPS of computing power in 15W power mode, 2.5 times the computing power of Jetson Nano, with 256 CUDA Cores, 6 ARM CPU cores, 4 GB 128-bit DDR4 memory, it Multiple network models can be run simultaneously

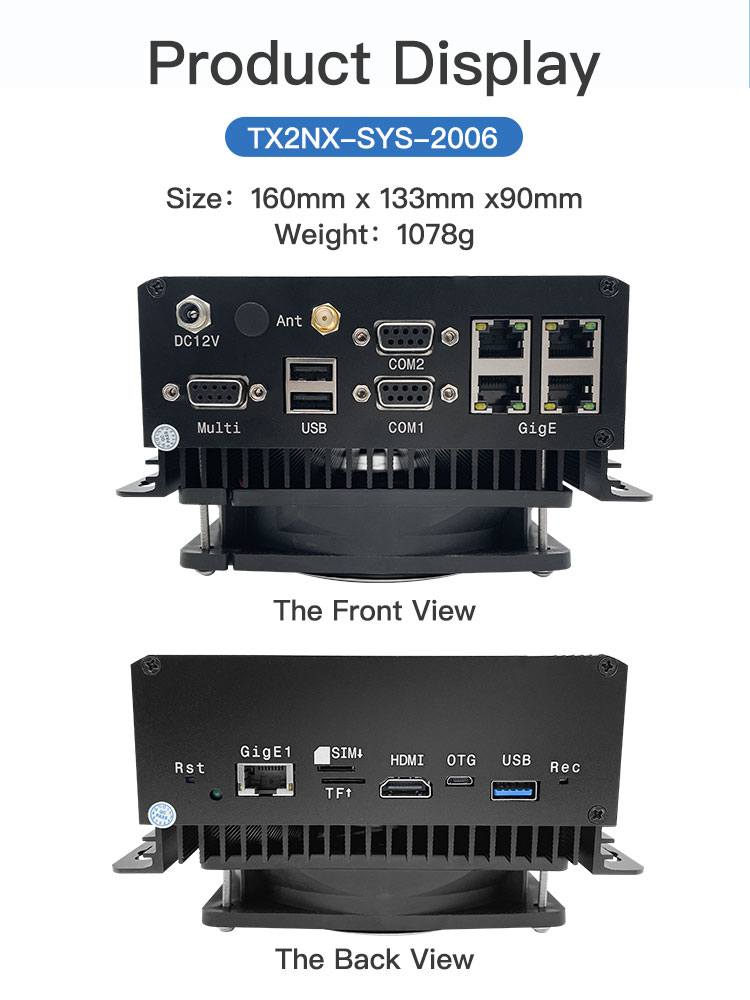

Product Features

Ø Factory pre-installed Jetson TX2 NX core module

Ø 1 USB3.1 TypeA connector

Ø 2 USB2.0 TypeA connectors

Ø 1 Micro USB connector

Ø Optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors

Ø 1 HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz)

Ø Optional 32GB ~ 1TB SSD expansion storage

Ø 1 working indicator light

Ø 1 micro TF card connector

Ø 1 Nano SIM card connector

Ø Automatically start when power on

Ø Onboard Reset and Recovery buttons

Ø 1 CAN bus interface with onboard transceiver

Ø 2 RS-232 level serial ports

Ø 3 3.3V bit programmable GPIO, 1 bit programmable GPO with 3.3V strong drive capability

Ø Product size: 160mm×130mm×65mm

Ø Power requirements: DC +9V~+24V

Ø Working temperature: -25~+65℃


Jetson TX2 NX Module Technical Specifications


AI Performance
1.33 TFLOPS

GPU

NVIDIA Pascal architecture with 256 NVIDIA® CUDA® cores

CPU

Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex

Memory

4 GB 128-bit LPDDR4
51.2 GB/s

Storage

16 GB eMMC 5.1

Power

7.5W | 15W

PCIe

1 x1 + 1 x2
PCIe Gen2, total 30 GT/s
CSI Camera Up to 5 cameras (12 via virtual channels)
12 lanes MIPI CSI-2 (3x4 or 5x2)
D-PHY 1.2 (up to 30 Gbps)
Video Encode
1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265)
1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264)

Video Decode

2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264)
Display 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
1x 2 DSI (1.5Gbps/lane)

Networking

10/100/1000 BASE-T Ethernet

Mechanical

69.6 mm x 45 mm
260-pin SO-DIMM edge connector



Order Information

Model

Function

TX2NX-SYS-2006


NVIDIA® JetsonTM TX2 NX series module
Compact AI embedded Industrial computer.
