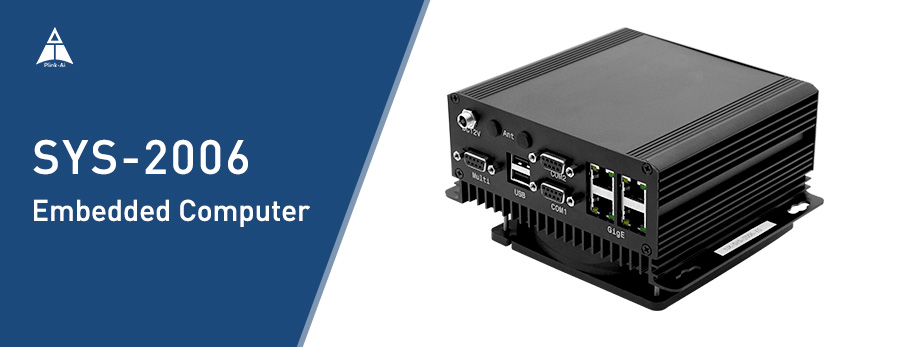

SYS-2006 is a compact AI industrial computer with NVIDIA® Jetson™ series core modules. For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. warm model.
Product Feature
Ø Factory pre-installed Jetson NANO core module
Ø 1 USB3.1 TypeA connector
Ø 2 USB2.0 TypeA connectors
Ø 1 Micro USB connector
Ø Optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors
Ø 1 HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz)
Ø Optional 32GB ~ 1TB SSD expansion storage
Ø 1 working indicator light
Ø 1 micro TF card connector
Ø 1 Nano SIM card connector
Ø Automatically start when power on
Ø Onboard Reset and Recovery buttons
Ø 2 RS-232 level serial ports
Ø 3 3.3V bit programmable GPIO, 1 bit programmable GPO with 3.3V strong drive capability
Ø Product size: 160mm×130mm×65mm
Ø Power requirements: DC +9V~+24V
Ø Working temperature: -25~+65℃
Jetson Nano Module Technical Specifications
GPU
|
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores
0.5 TFLOPs (FP16)
|
CPU
|
Quad-core ARM® Cortex®-A57 MPCore processor
|
Memory
|
4 GB 64-bit LPDDR4
1600MHz - 25.6 GB/s
|
Storage
|
16 GB eMMC 5.1 Flash
|
Video Encoder
|
4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265)
|
Video Decoder
|
4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265)
|
Camera
|
12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)
|
Connectivity
|
Wi-Fi requires external chip
|
10/100/1000 BASE-T Ethernet
|
|
Display
|
HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous
|
UPYH
|
1 x1/2/4 PCIe, 1x USB 3.0, 3x USB 2.0 |
I/O
|
3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs
|
Size
|
69.6 mm x 45 mm
|
Mechanical
|
260-pin edge connector
|
Order Information
Model |
Function |
Nano-SYS-2006 |
NVIDIA® JetsonTM Nano module compact AI embedded industrial computer.
|
