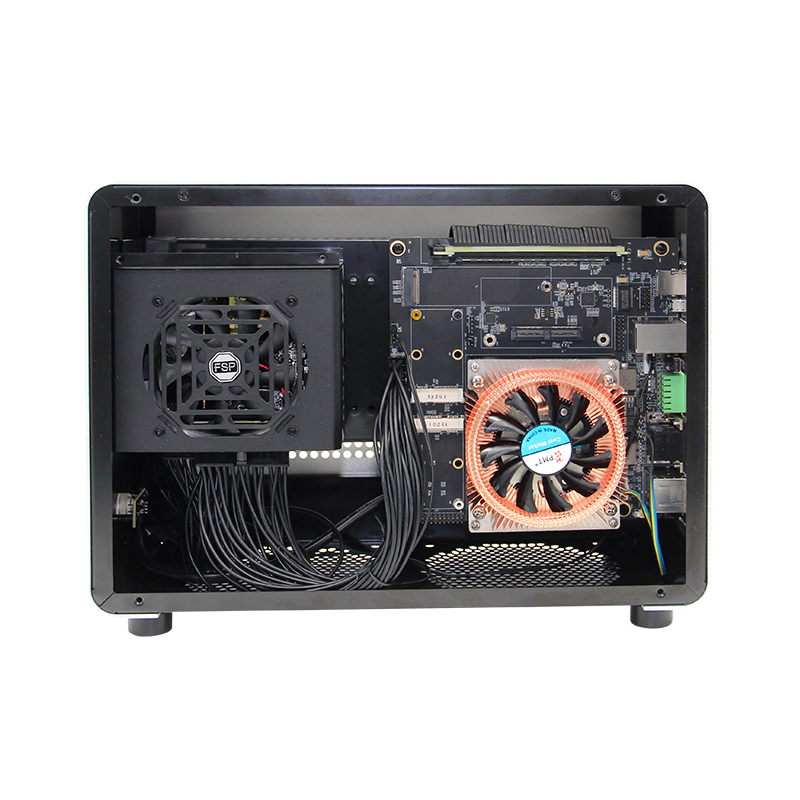

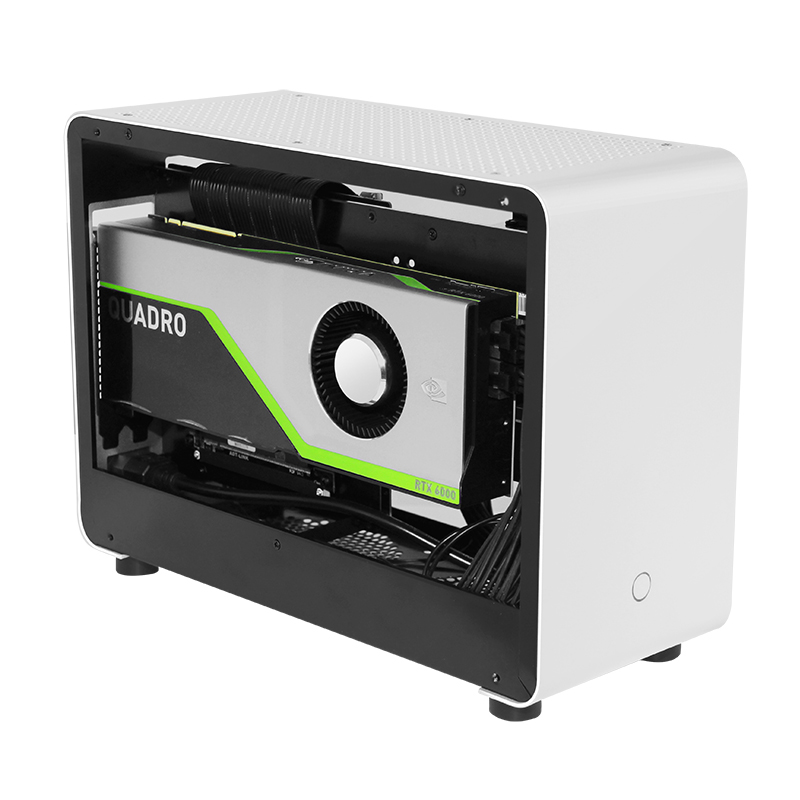

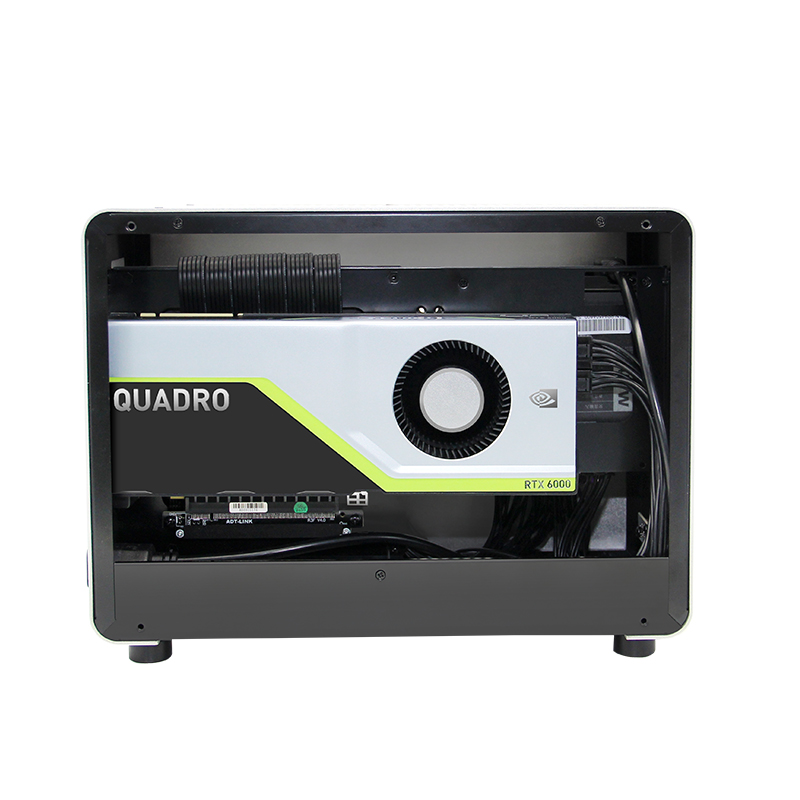

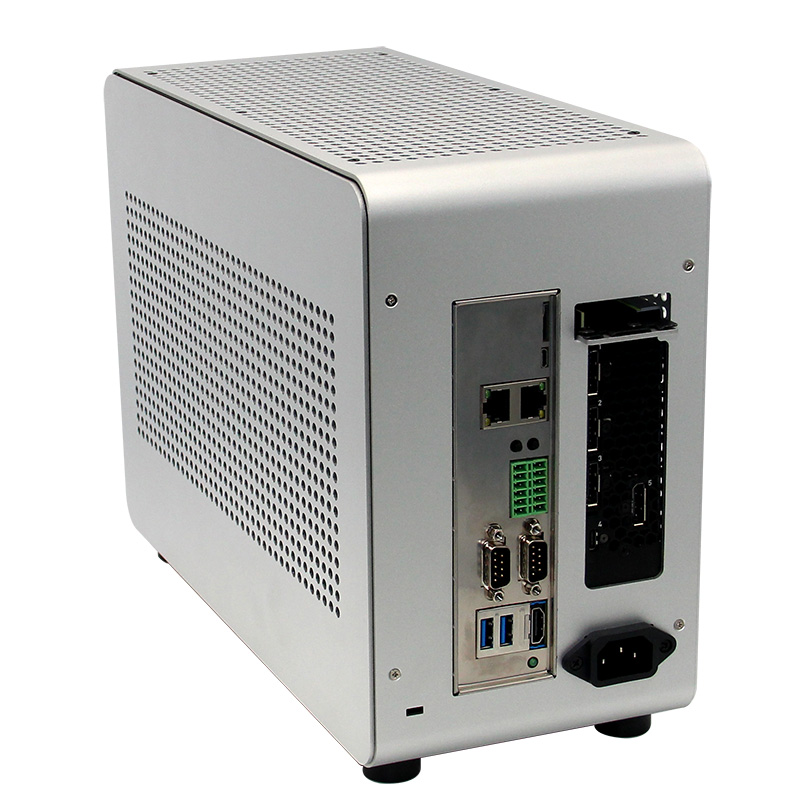

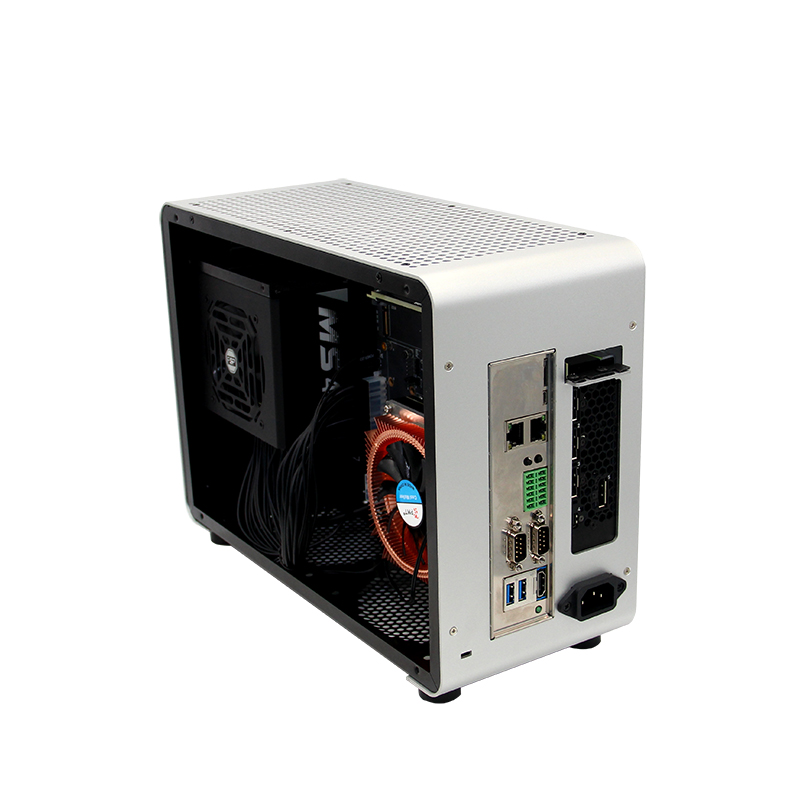

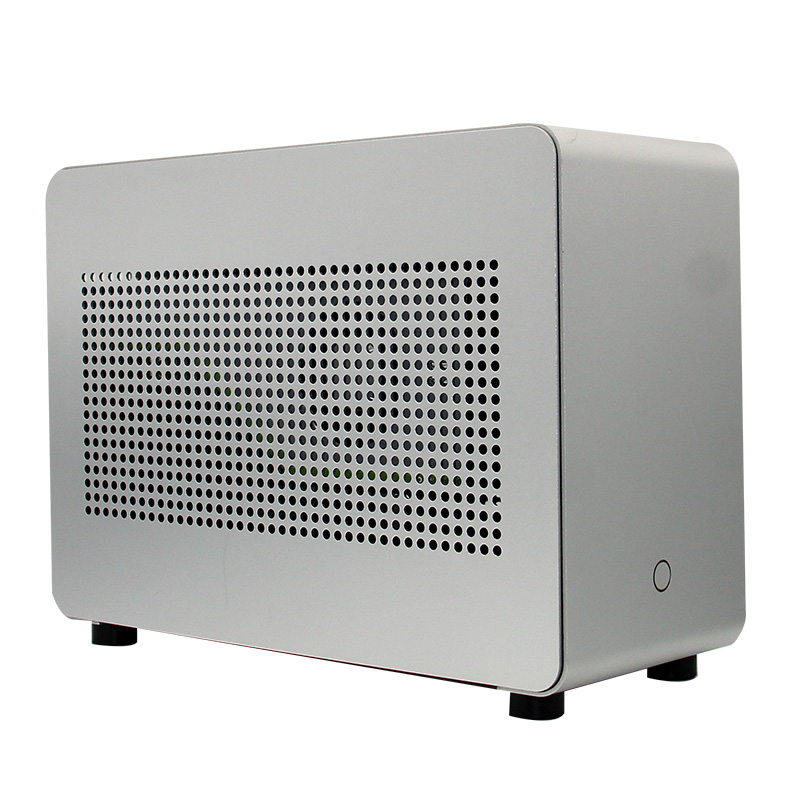

Jetson AGX Orin / Xavier IPC 8F4E1

Processor: Jetson AGX XAVIER / Jetson AGX Orin module
GPU: Nvidia RTX 6000/A6000
Memory: 32G
Size: 335mm*257mm*146mm
Weight: 5500g

The 8F4E1 IPC delivers AI inference for medical devices. Combining the flexibility of the NVIDIA Jetson AGX Xavier / NVIDIA Jetson AGX Orin embedded Arm® system on a chip (SoC), the performance of the NVIDIA RTX™ 6000/A6000 GPU, the 8F4E1 IPC provides an easy-to-use platform for developing software-defined, AI-enabled, real-time, point-of-care medical devices.

NVIDIA Clara AGX development kit comes with end-to-end reference application for sensor processing management, image reconstruction, AI, and visualization, which can help developers get started quickly and reduce overall development time between. All necessary libraries and components are pre-selected to enable an out-of-the-box software development environment. Every AI reference application utilizes the necessary IO components and drivers to move data and feed it to RTX In the processing pipeline on the 6000/A6000 GPU, a functional test data path setup is provided.


Product Composition


COMPONENTS
FUNCTION

NVIDIA RTX 6000/A6000

Discrete GPU CPU

NVIDIA Jetson AGX Xavier/Jetson AGX Orin

GPU and IO processing
512 NVME SSD
Removable storage

Y-C8

Develop system board


Display NVIDIA Jetson Module Discrete GPU
Module Jetson AGX Xavier 32G Jetson AGX ORIN 32G Jetson AGX ORIN 64G RTX 6000
AI Performance

32 TOPS

200 TOPS

275 TOPS


CPU 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3

8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

CPU Memory 32GB 256-bit LPDDR4 x 136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s

GPU 512-core NVIDIA Volta GPU with 64 Tensor Cores
NVIDIA Ampere architecture with 1792 NVIDIA CUDA® cores and 56 tensor cores
NVIDIA Ampere architecture with 2048 NVIDIA CUDA® cores and 64 tensor cores

4608-core NVIDIA Turing GPU with 576 Tensor Cores

USB Type-A

1 x USB 3.1

1 x USB 2.0

2 x USB 3.1
-
Micro USB 1 x Type B (OTG)
Other I/O

4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS-232

1 x Debug(UART)

2 x CAN (with on-board transceiver)

Networking 2 x 10/100/1000 Ethernet/RJ45
1x GbE
1x 10GbE

Power Supply AC 220 V
15W - 40W
15W - 60W

Temperature -20~+65°C
Size 335 mm × 257 mm × 146 mm
Weight 5500 g
