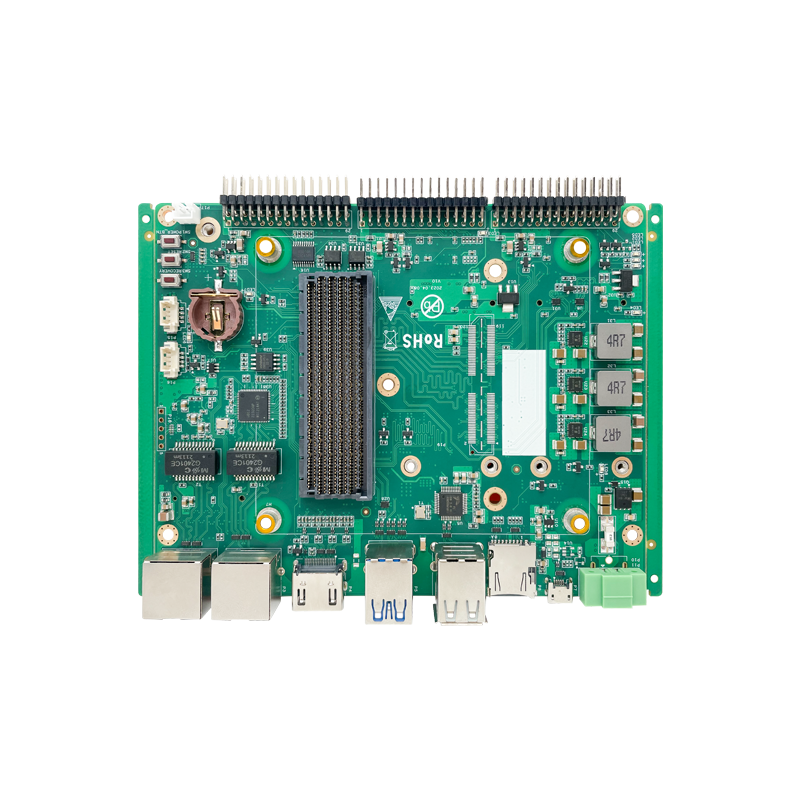

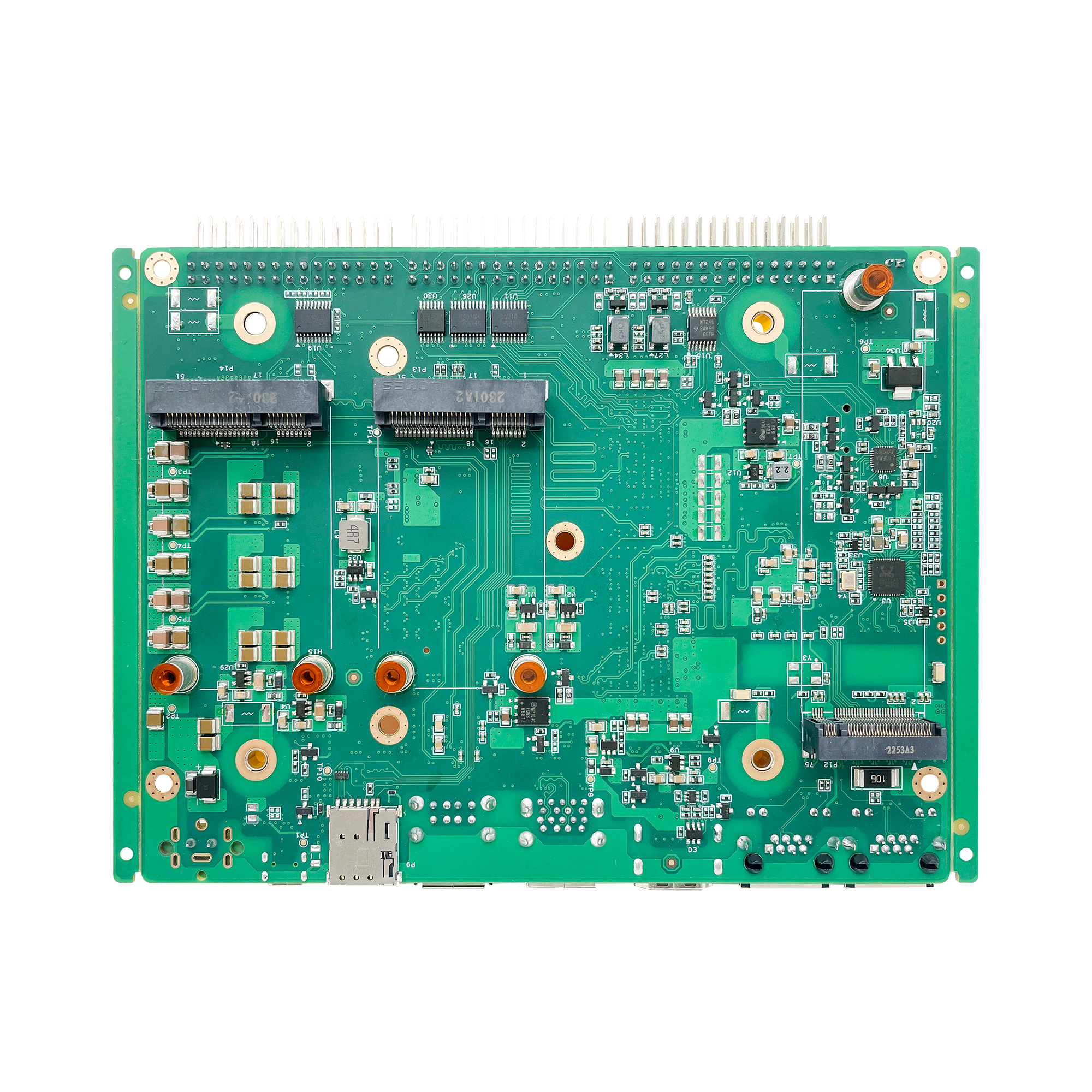

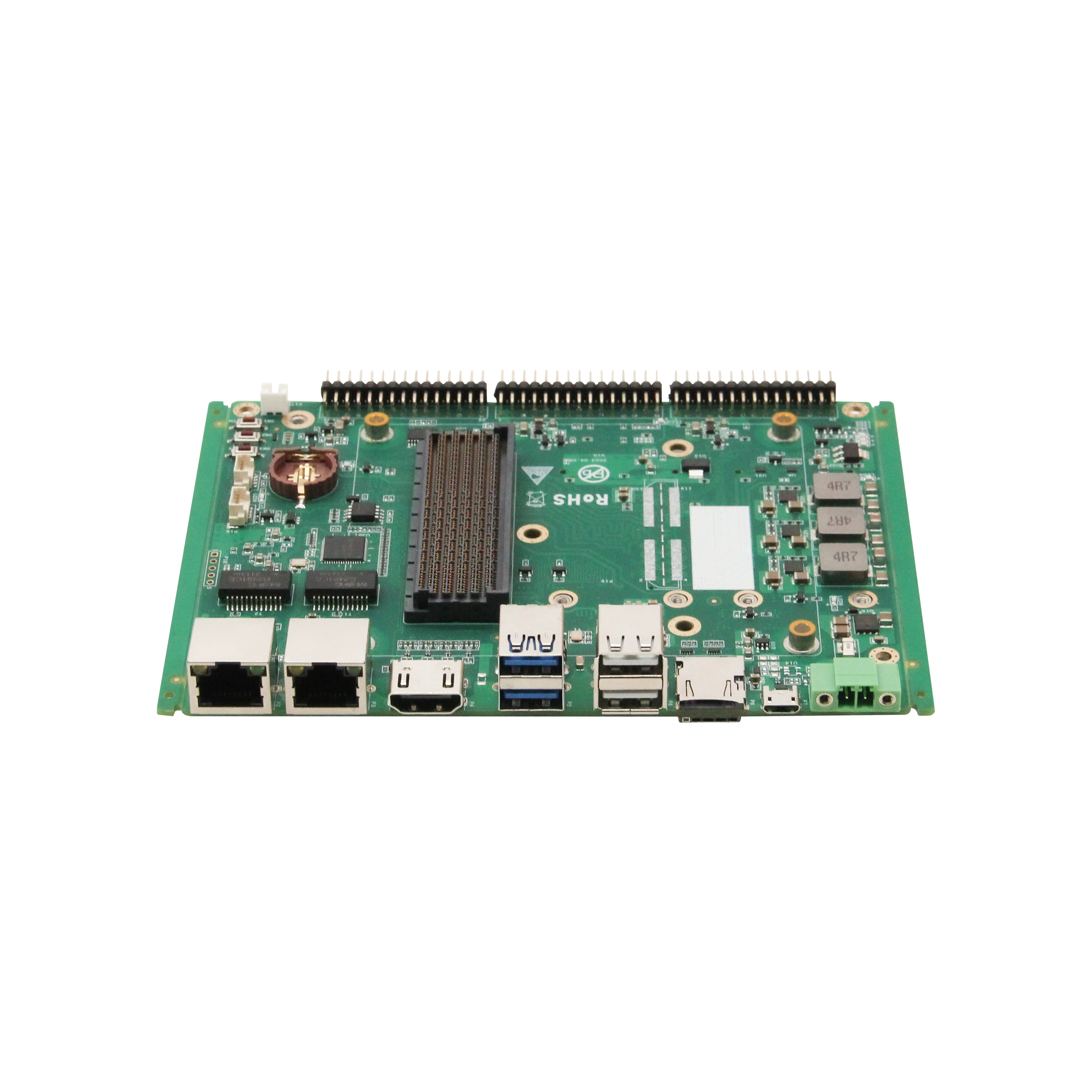

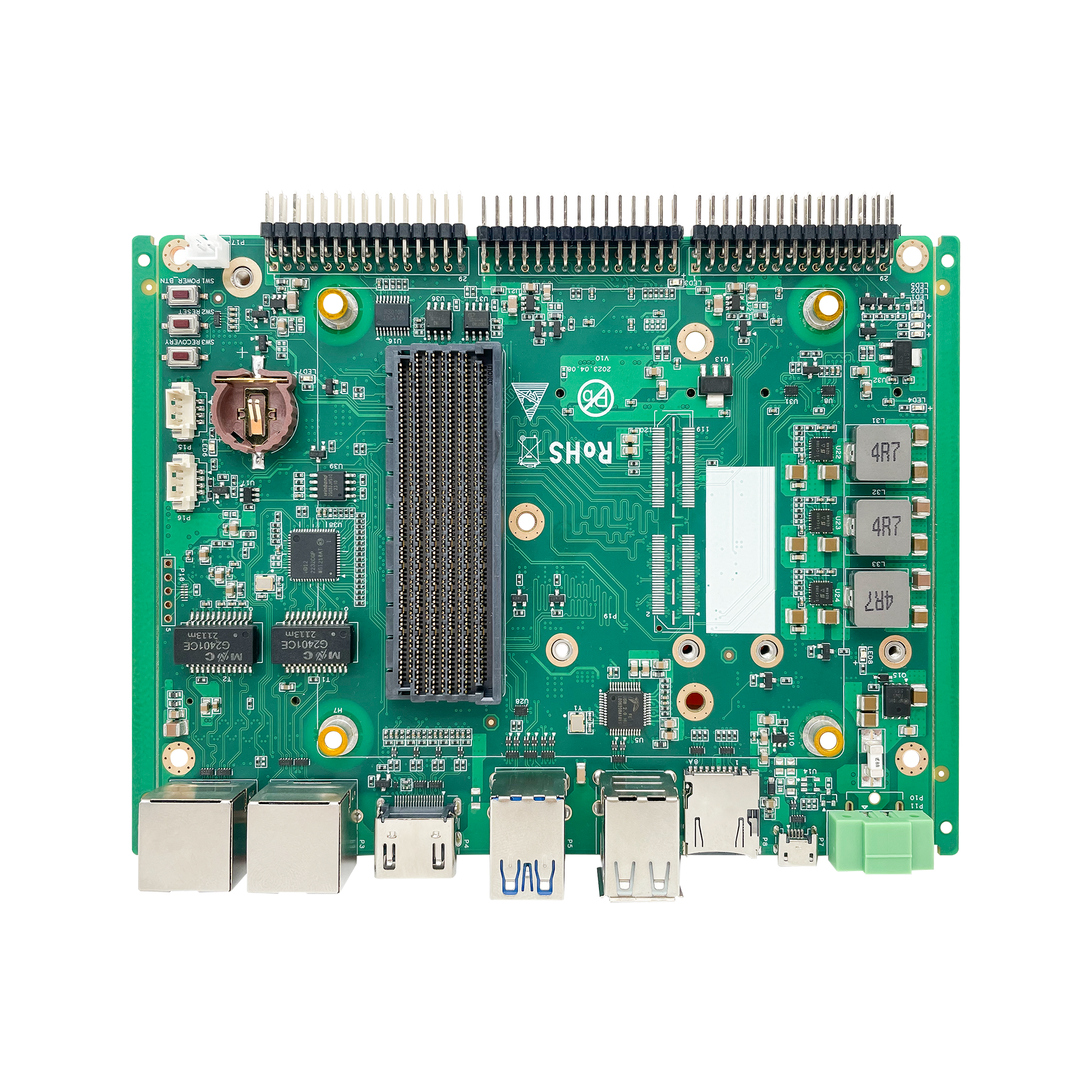

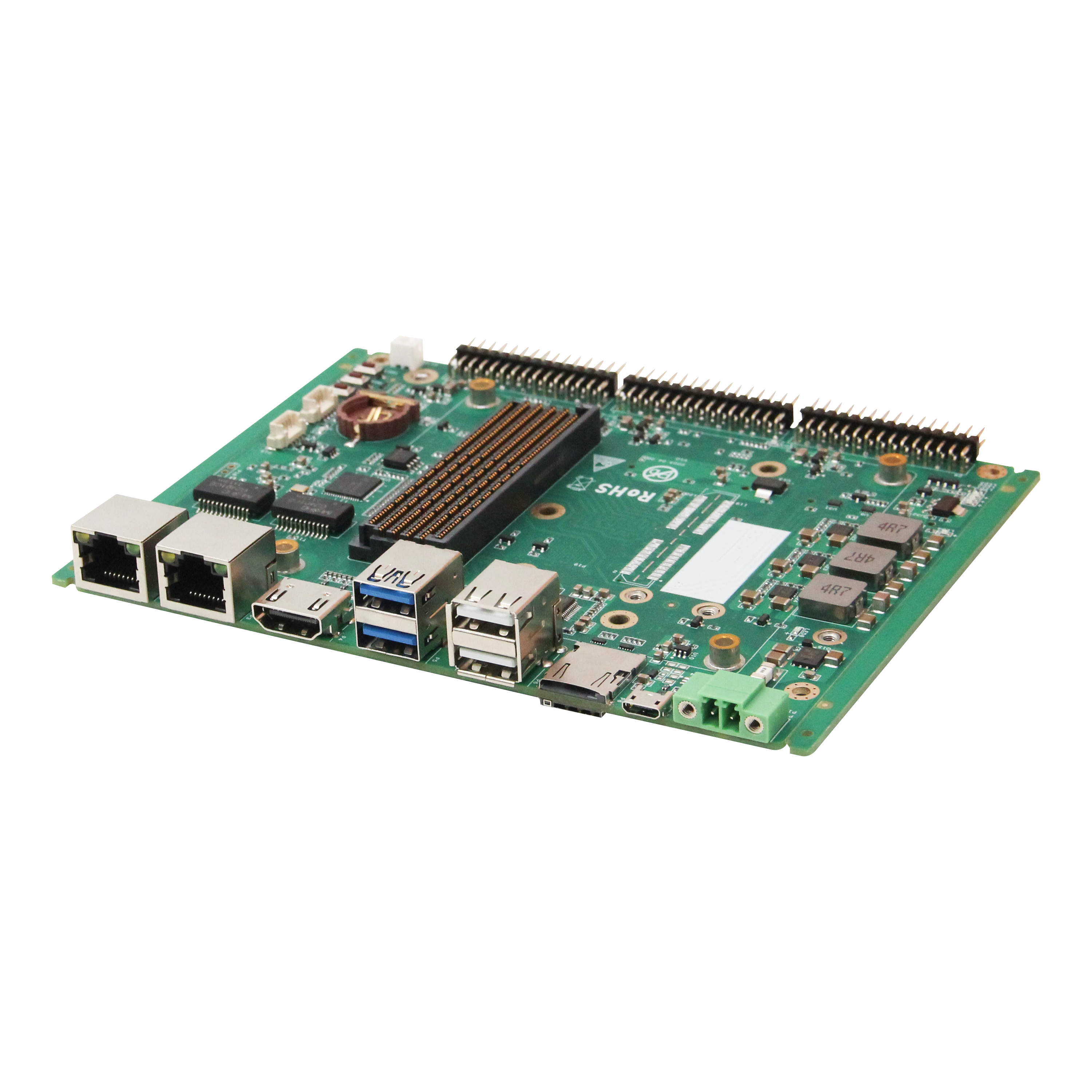

Y-C13 is a high-compatibility edge AI carrier board designed for NVIDIA® Jetson™ AGX Orin / AGX Xavier, with rich I/O and strong expansion capabilities for medical imaging, industrial inspection, smart surveillance and intelligent in-vehicle systems.It features industrial-grade high-reliability design with ESD, over-voltage and reverse polarity protection, and wide-temperature components for stable operation in harsh environments. A Nano SIM slot enables 4G communication. Dual miniPCIe and M.2 M slots support flexible expansion of multi-channel Gigabit Ethernet, high-capacity storage, audio/video capture, multi-serial and AD acquisition modules.

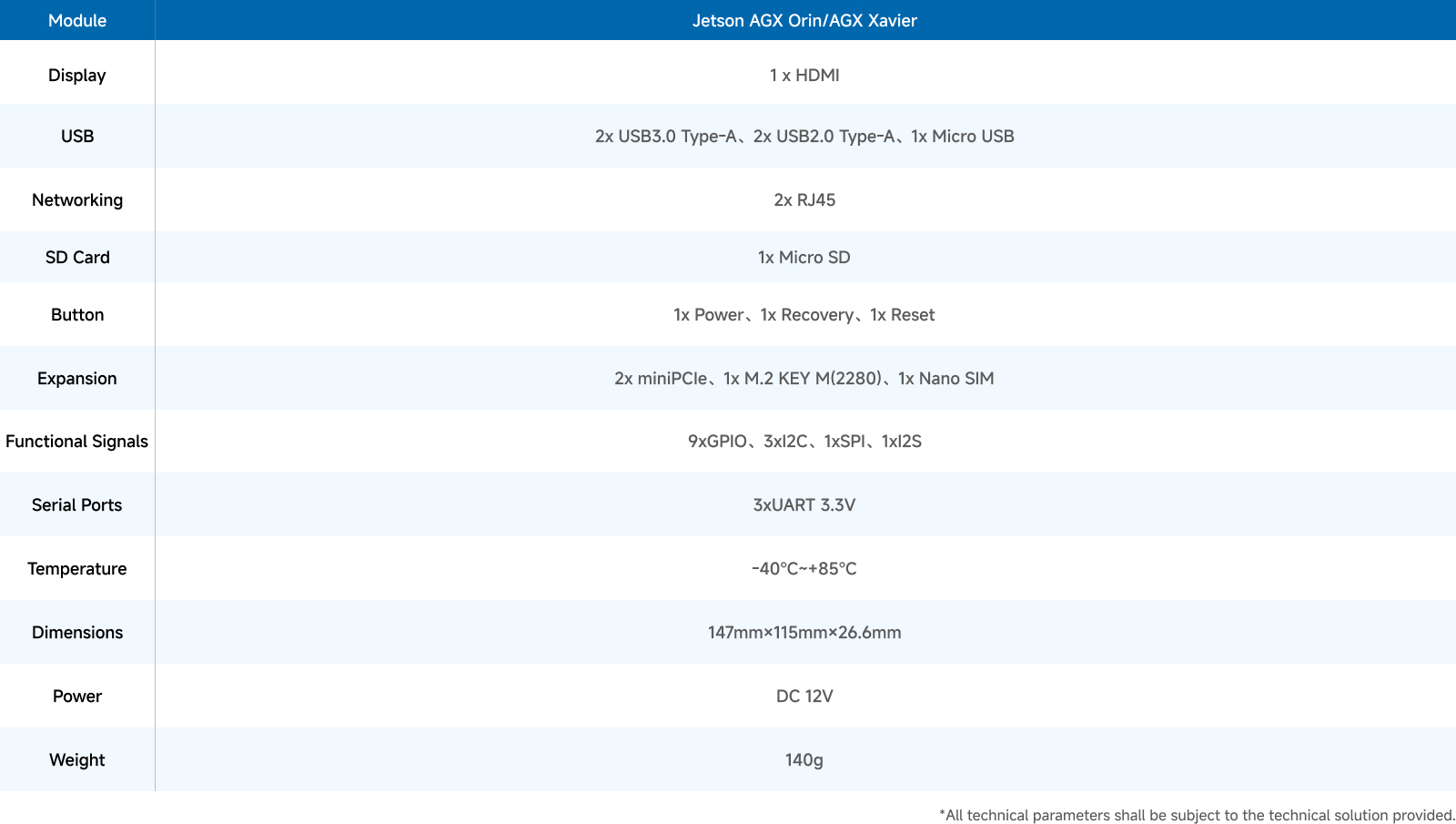

Y-C13
Compatible with Jetson™ AGX Orin / AGX Xavier
Display: 1×HDMI
Rich I/O: 2×RJ45, 2×USB3.0 Type-A, 2×USB2.0 Type-A, 1×Micro USB, 1×Micro SD, 9×GPIO, 3×I2C, 1×SPI, 1×I2S, 3×UART
Expansion Slots: 2×miniPCIe, 1×M.2 M 2280
Operating Temperature: -40℃ ~ +85℃
Input Voltage: DC 12V
