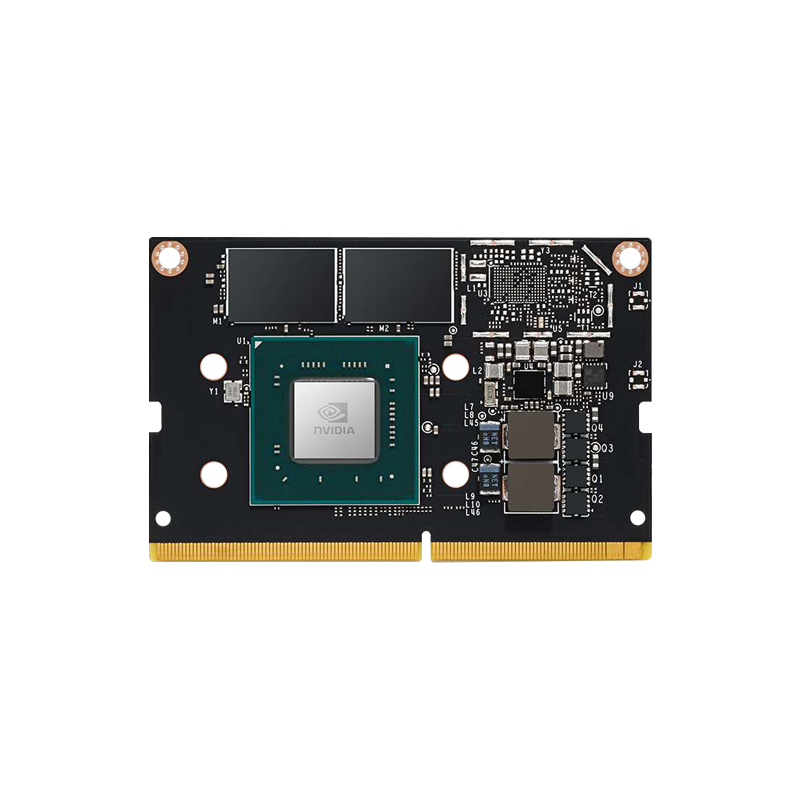

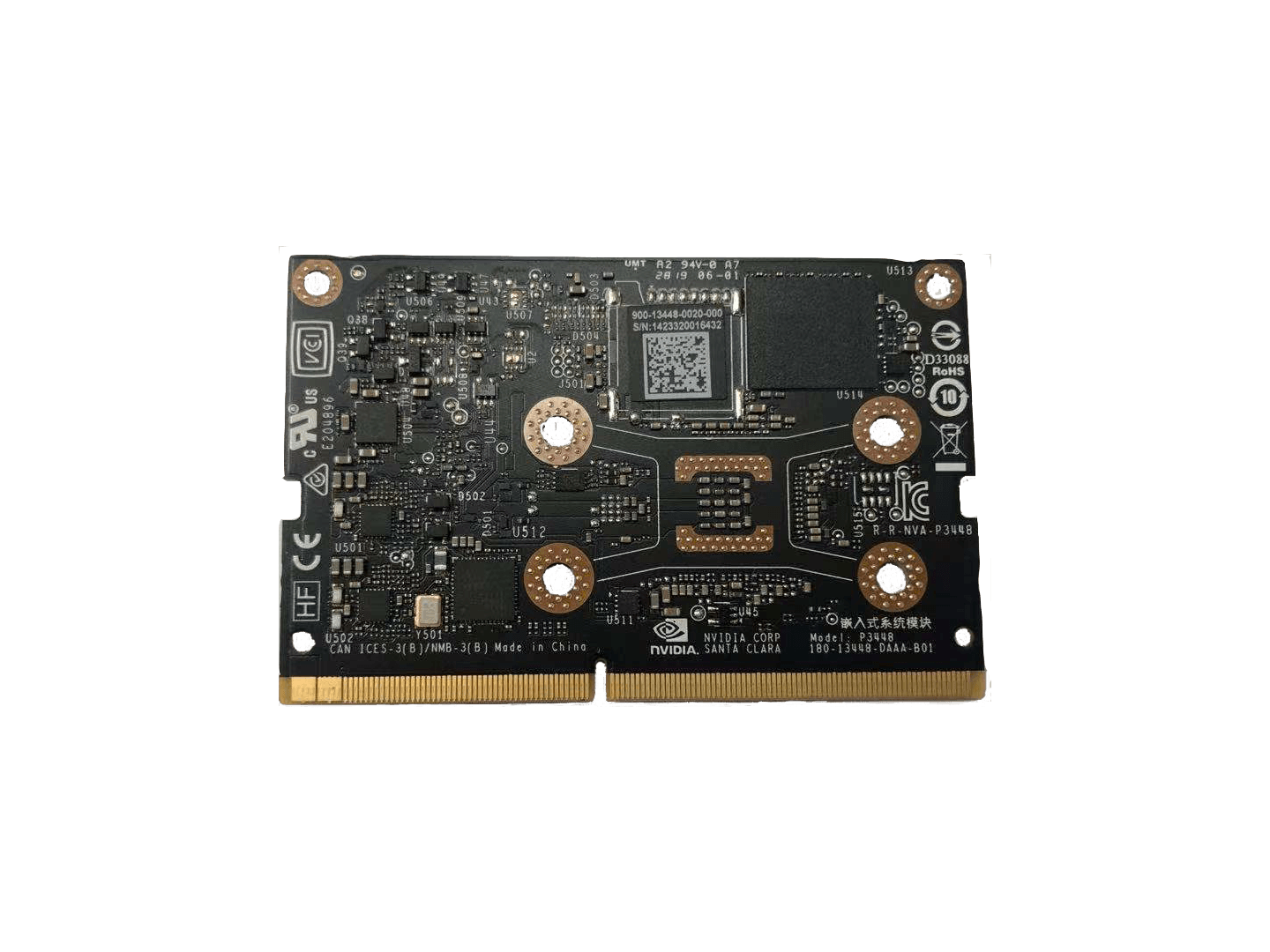

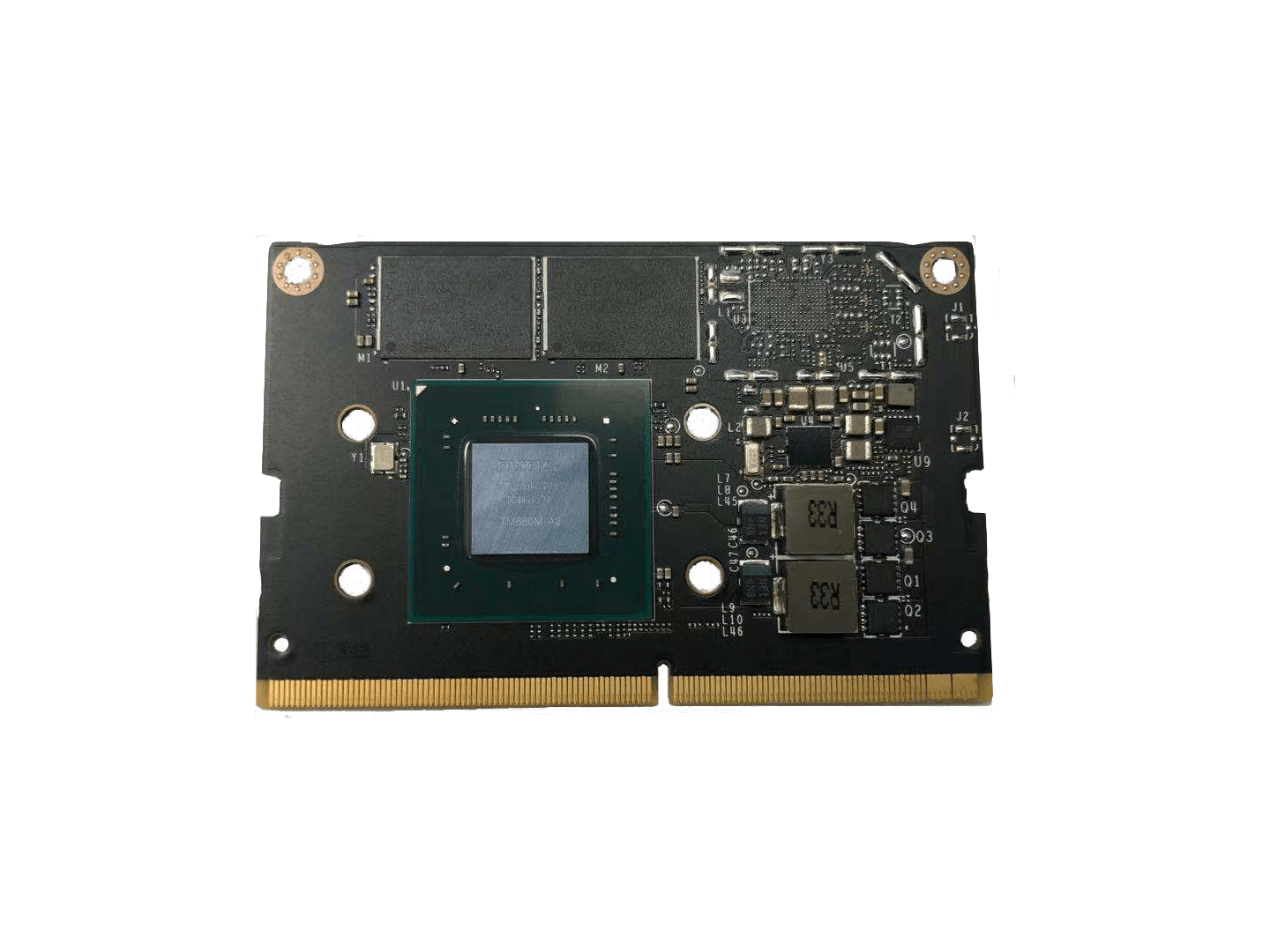

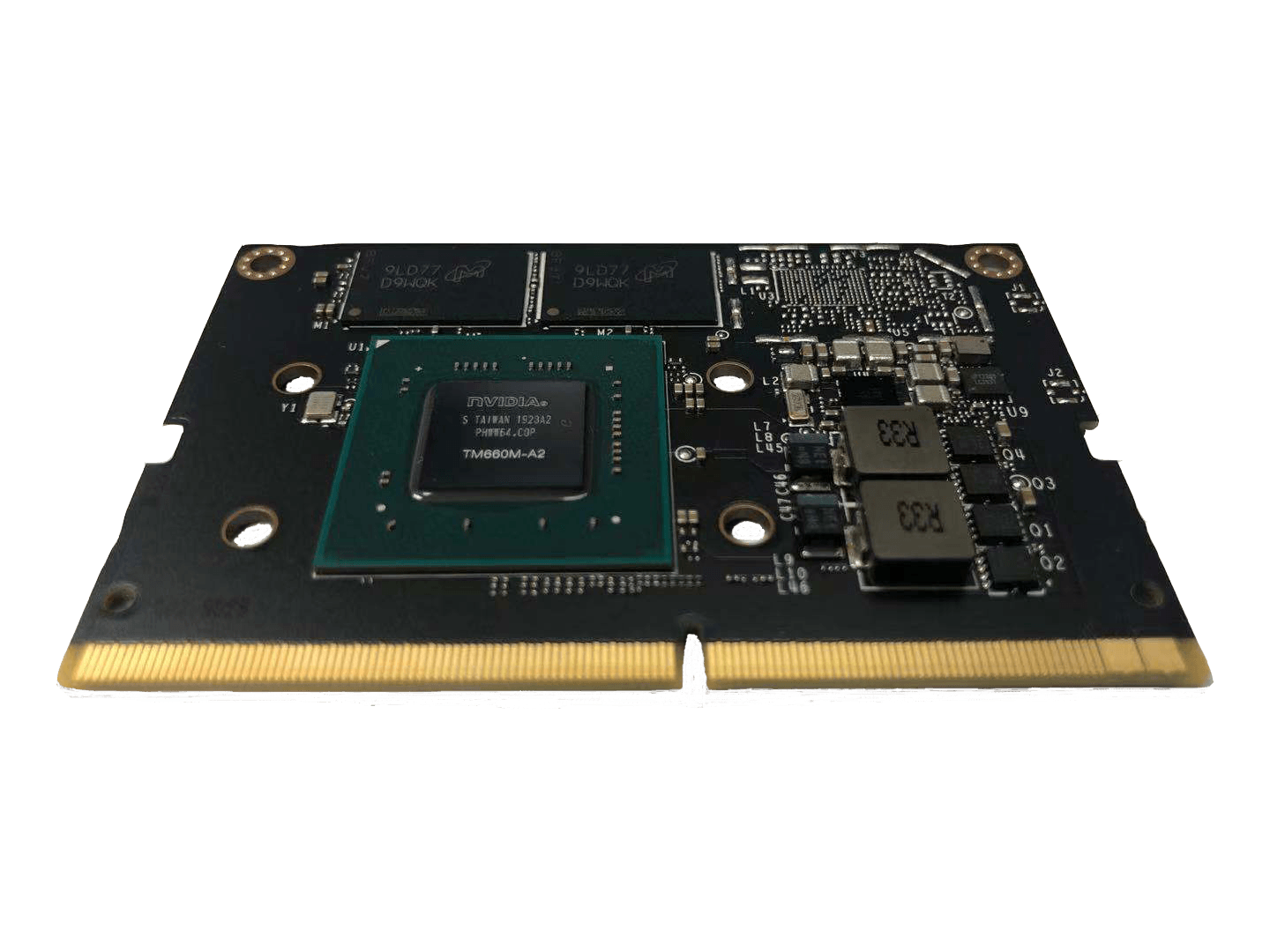

Jetson Nano

NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores

Quad-core ARM Cortex-A57 MPCore processor

4 GB 64-bit LPDDR4, 1600MHz 25.6 GB/s

16 GB eMMC 5.1

69.6 mm x 45 mm

Overview

The Jetson Nano module is a small AI computer that gives you the performance and power efficiency to take on modern AI workloads, run multiple neural networks in parallel, and process data from several high-resolution sensors simultaneously.

Jetson Nano delivers 472 GFLOPs for modern AI algorithms. It runs multiple neural networks in parallel and processes high-resolution sensors concurrently, making it ideal for applications from NVRs to intelligent gateways.

At just 70 x 45mm, the Jetson Nano module is smaller than a credit card. But this production-ready System on Module (SOM) delivers big when it comes to deploying AI at the edge.

Applications
Jetson Nano Jetson Nano

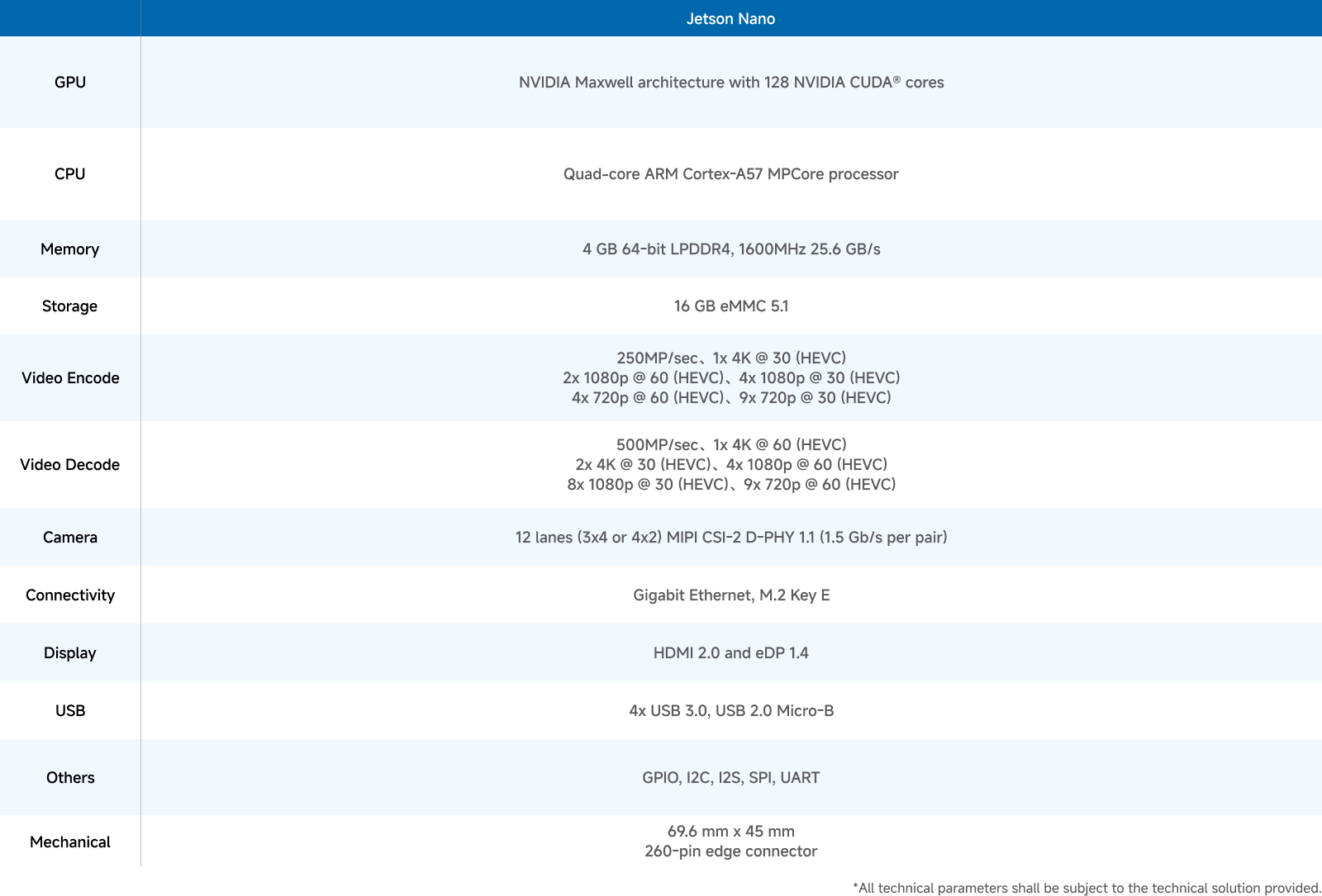

Specifications
Jetson Nano
Downloads
pdf
Jetson Nano Datasheet
Size:890.89 KB 2026-05-29
stp
Jetson_Nano_Module_3D_CAD_STEP_Model
Size:184.27 KB 2026-05-29
