AI310SM

AI Performance: 176 TOPS INT8

Memory & Storage: 48GB LPDDR4X, 128GB eMMC

Video Decode:Supports 96x 1080P@30fps/12x4K@60fps H.264/H.265

JPEG Decode: 4K@384fps (FHD@2048fps)

Interconnection: Supports high-speed chip-level interconnection for dual modules via HCCS bus

Rich I/O Interfaces: 4 × SATA3.0, 4 × CAN-FD, 4 × UART, 4 × I2C, 4 × SPI, 2 × MDIO, 4 × PWM, 8 × GPIO

Power Consumption: ≤ 120W

Operating Temperature:Standard: 0℃ ~ +65℃; Industrial Grade: -40℃ ~ +85℃

Input Voltage: DC 12V

Overview

The AI310SM is a high-performance industrial-grade edge AI inference module based on the Ascend 310P processor, capable of providing up to 176 TOPS INT8 computing performance.

It not only uses high-reliability industrial-grade materials and strictly follows the JESD-046 standard, but also ensures long-term stable supply through the PCN notification mechanism, providing reliable protection for demanding industrial environments. At the same time, it supports HCCS dual-module high-speed interconnection technology with a total bandwidth of 192 Gbps, laying a solid foundation for building high-performance edge computing clusters.

Applications
AI310SM AI310SM

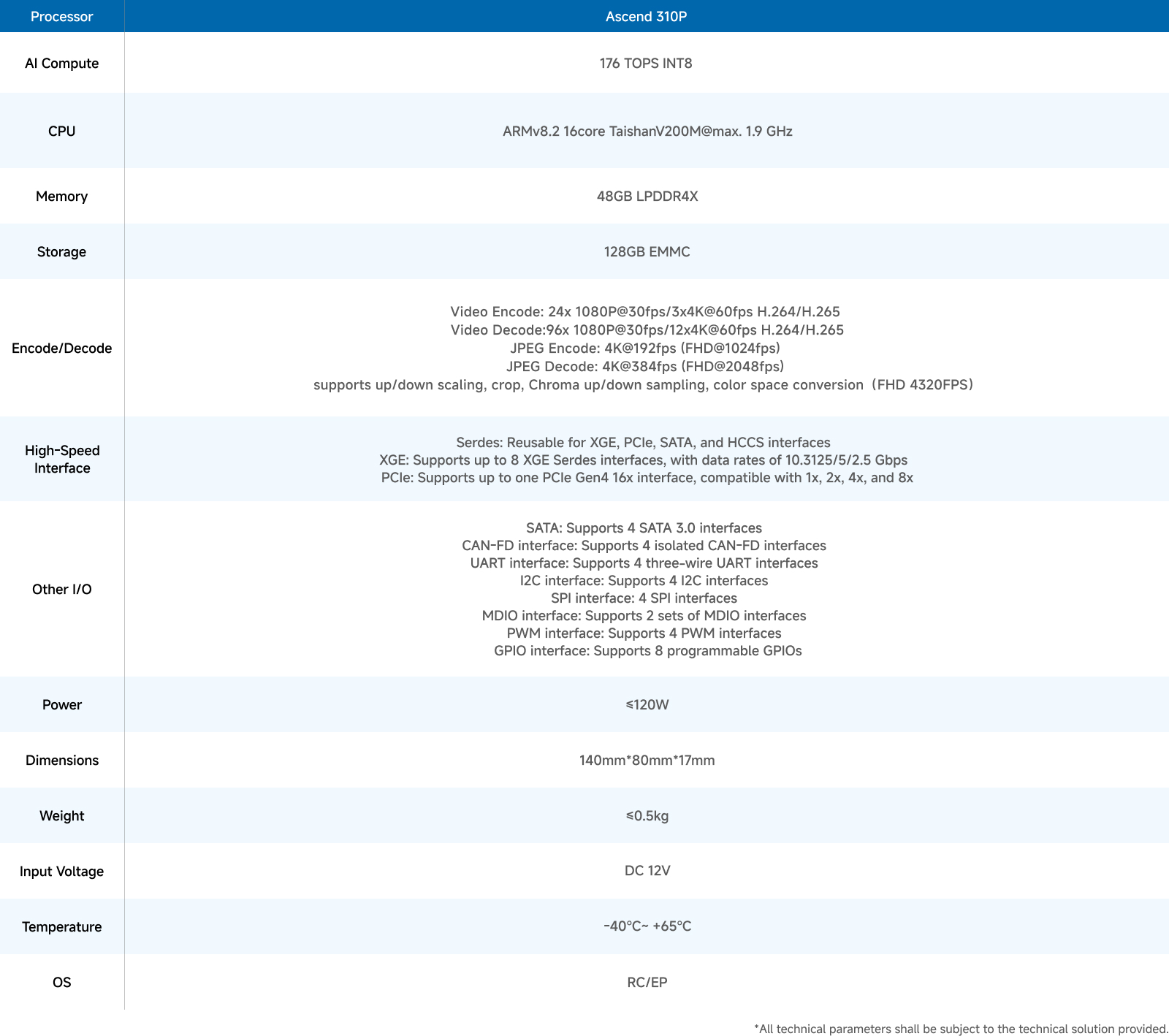

Specifications
AI310SM
Interfaces
AI310SM

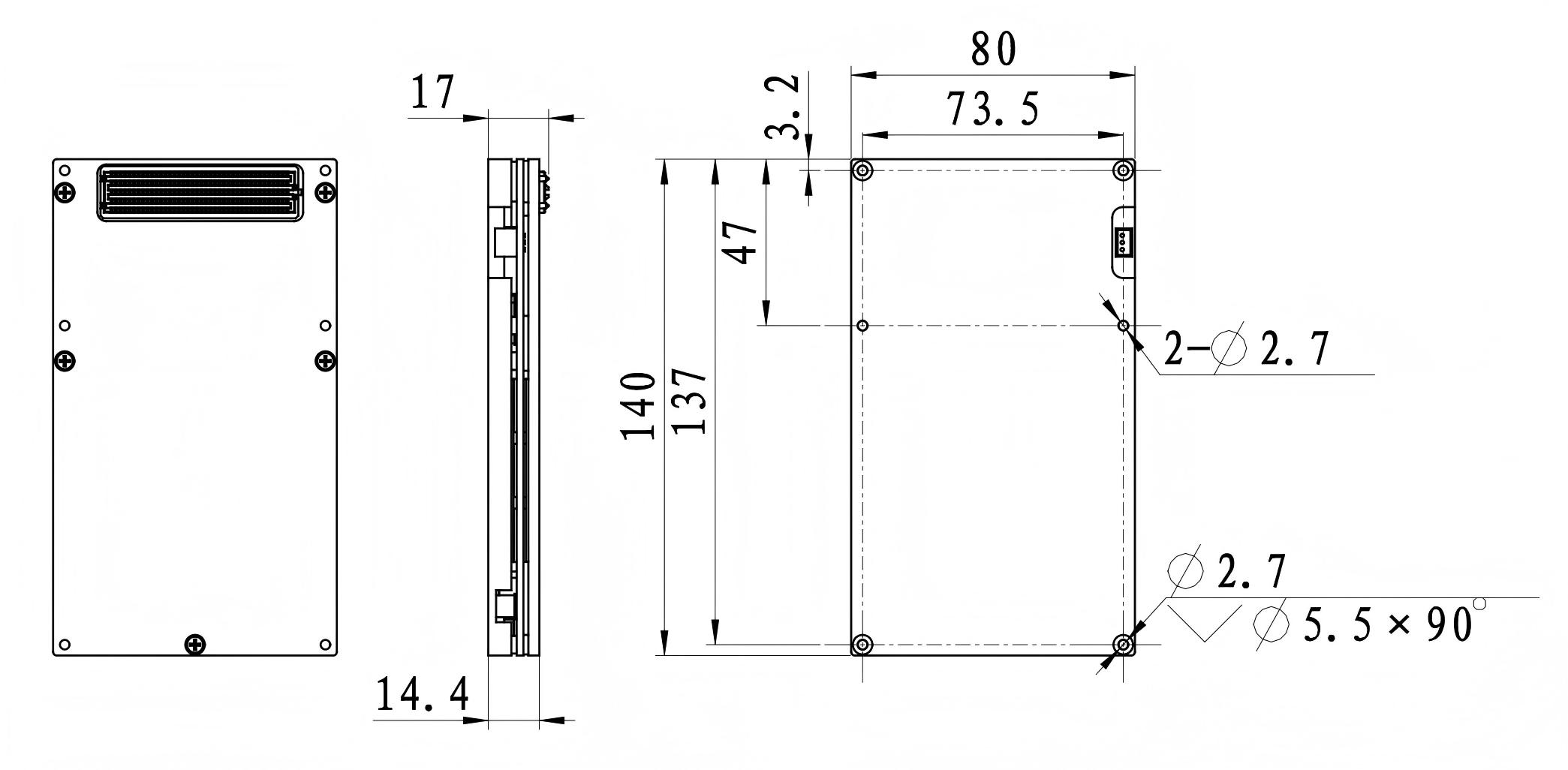

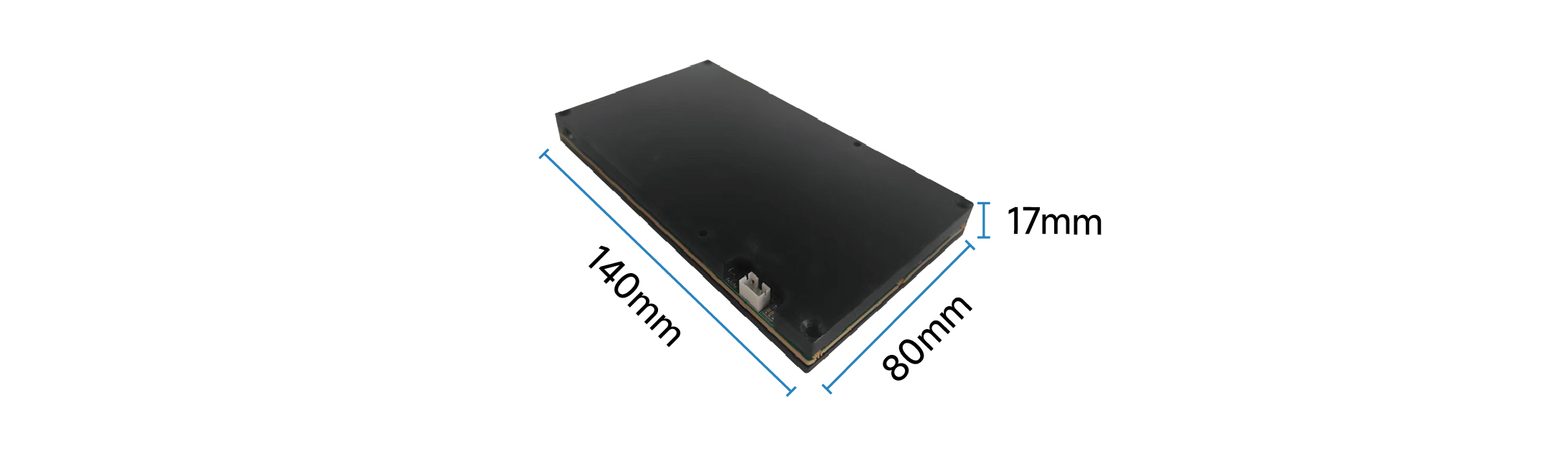

Dimensions
AI310SM
