Y-C28

Compatible with NVIDIA® Jetson™ Thor / AGX Orin

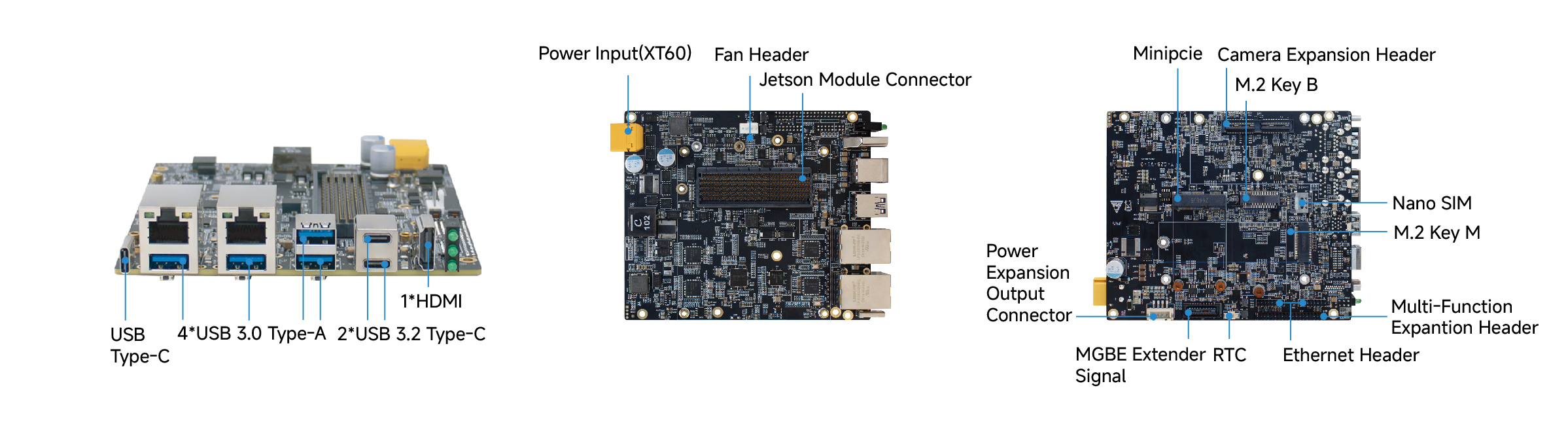

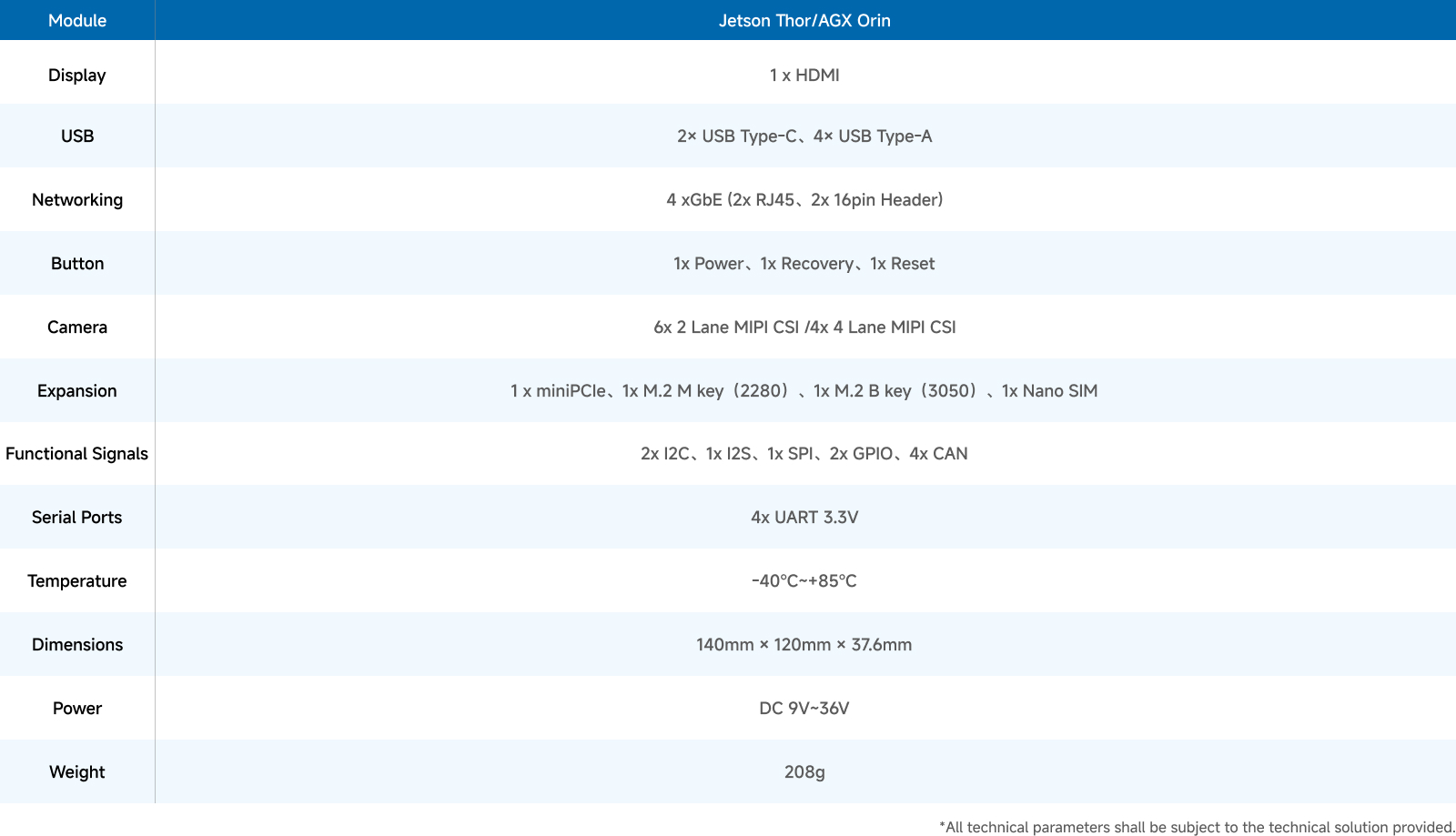

Rich I/Os: 1×HDMI, 4×Gigabit Ethernet, 2×USB Type-C, 4×USB Type-A, 2×GPIO, 4×CAN, 4×UART

Expansion Slots: 1×miniPCIe, 1×M.2 M 2280, 1×M.2 B 3050

Operating Temperature: -40℃ ~ +85℃

Input Voltage: DC 9V ~ 36V Wide Range

Alibaba

Overview

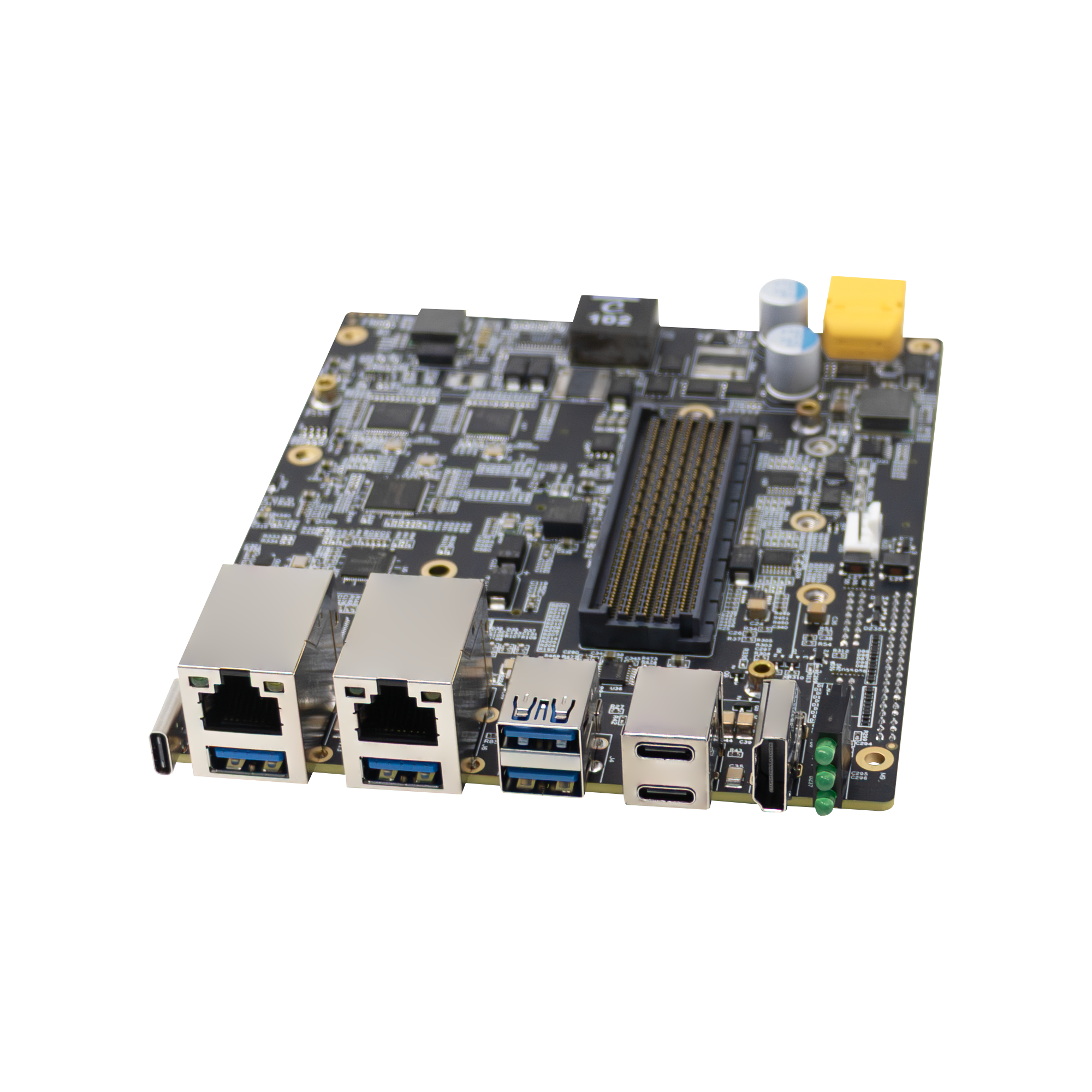

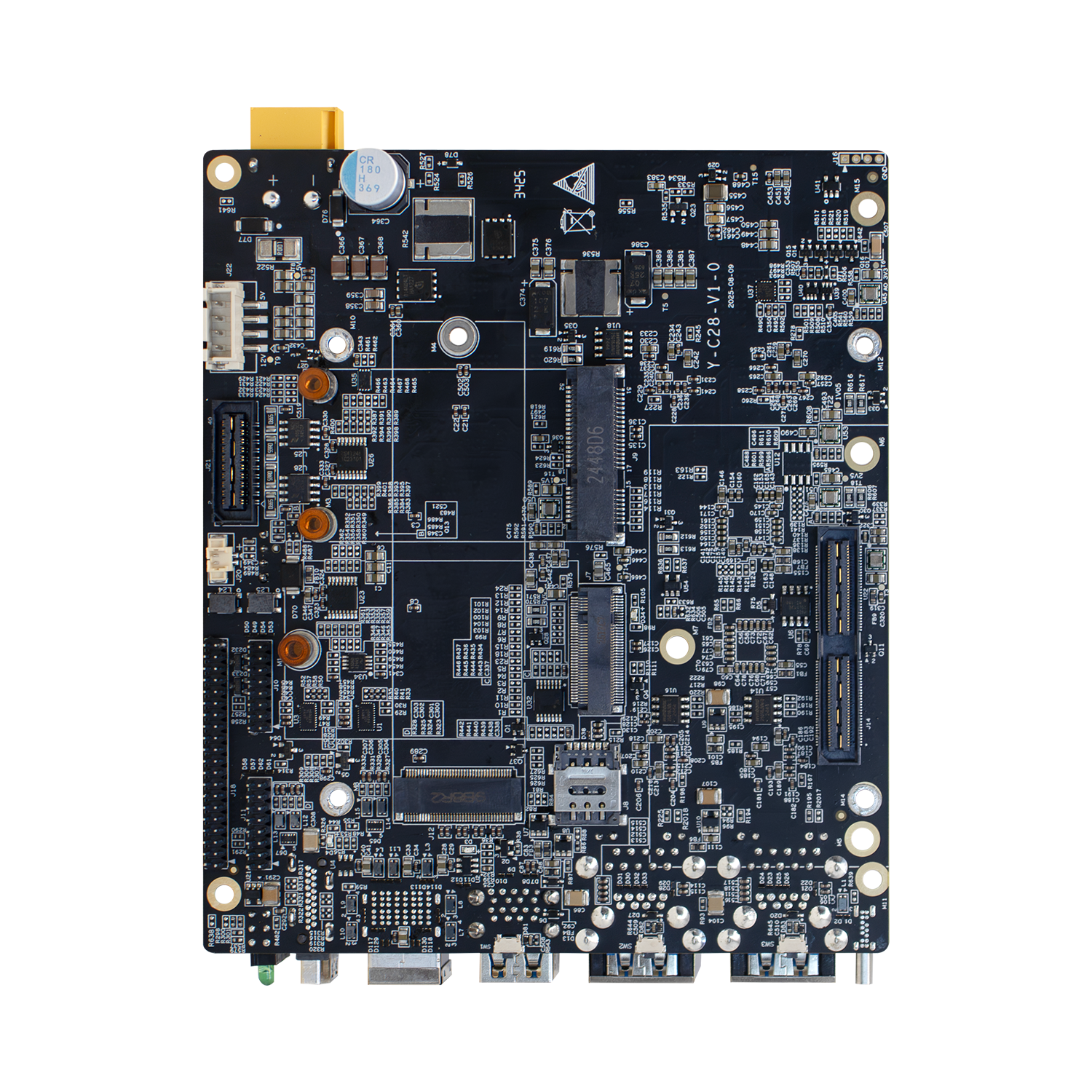

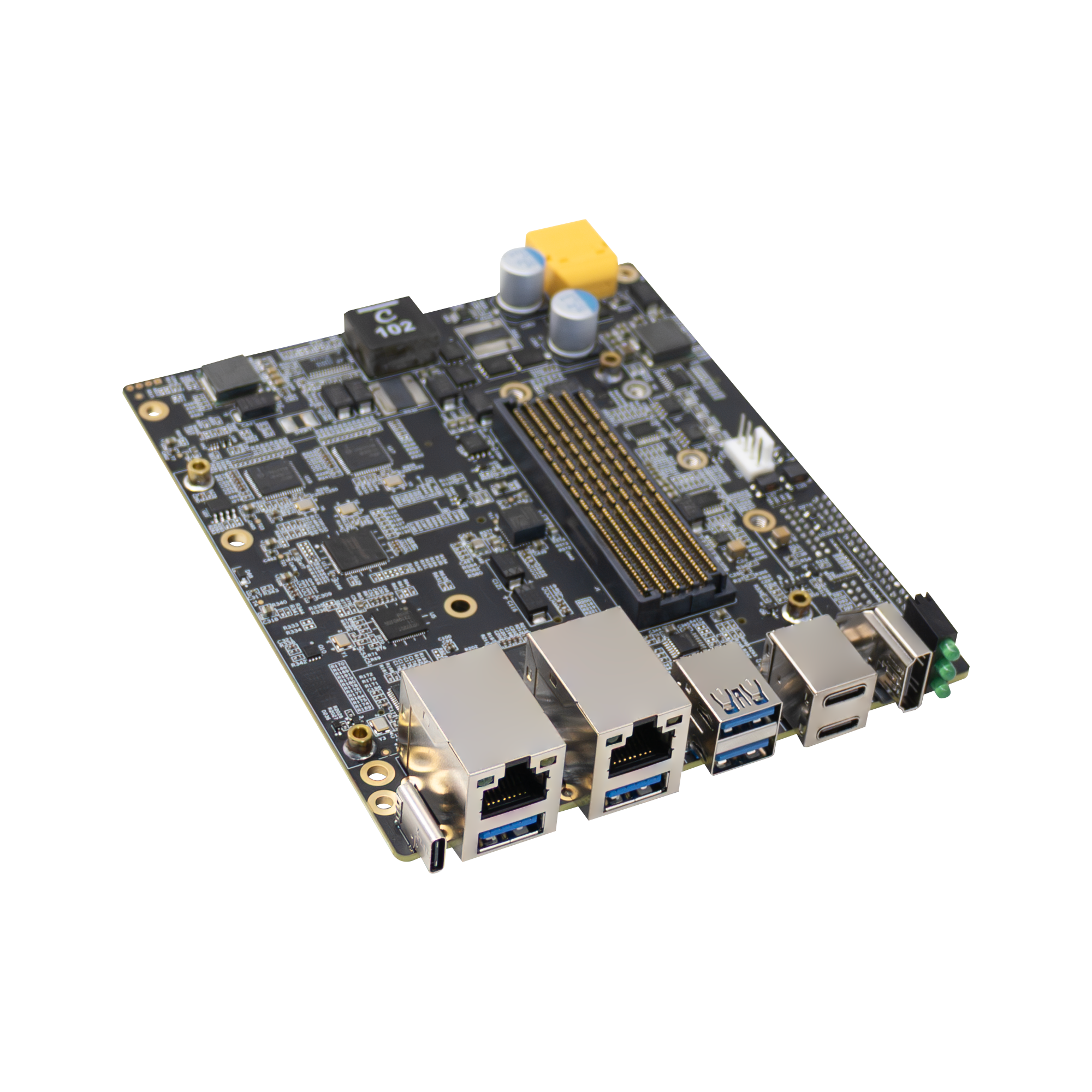

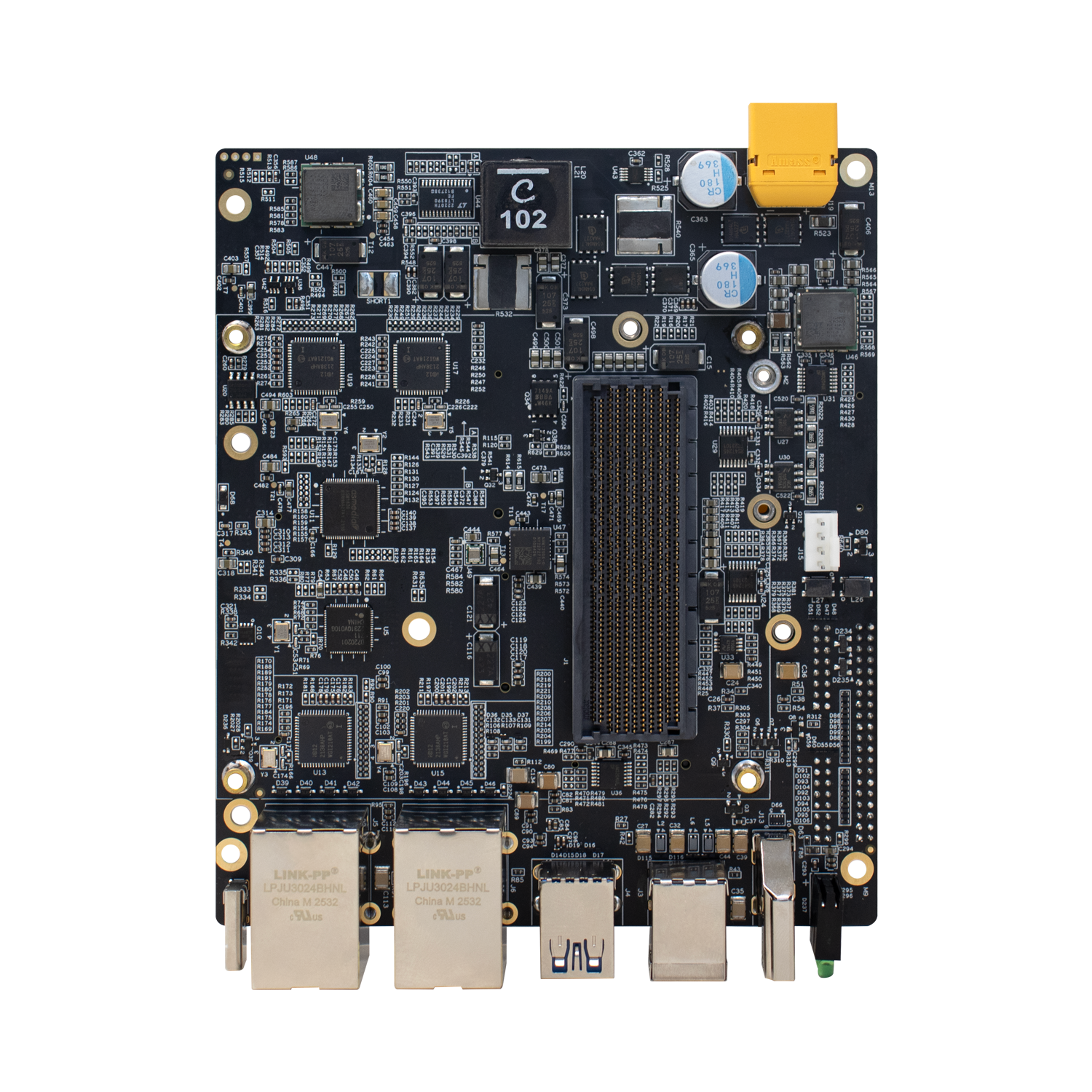

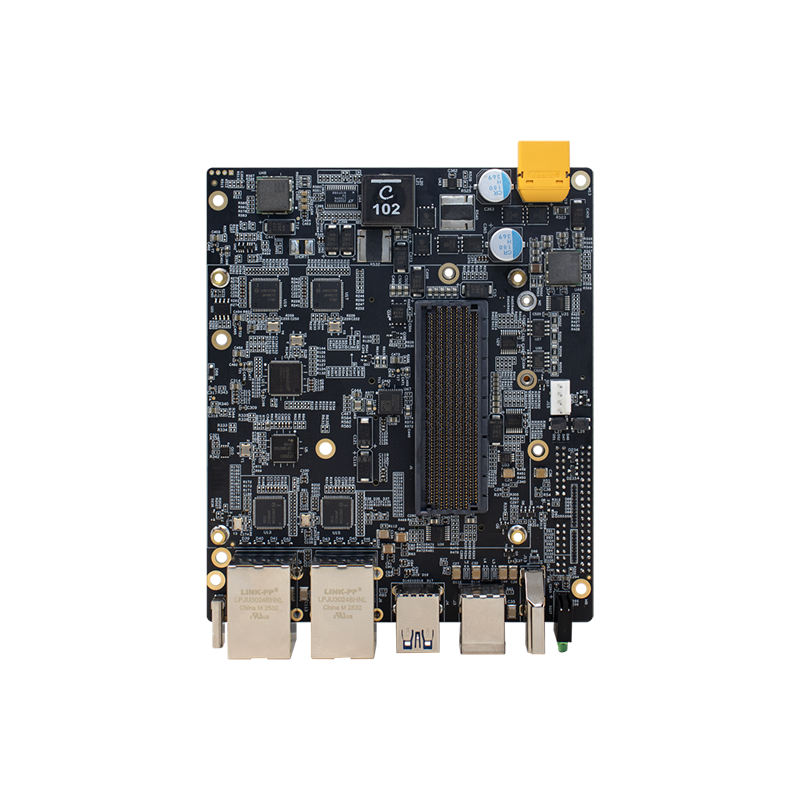

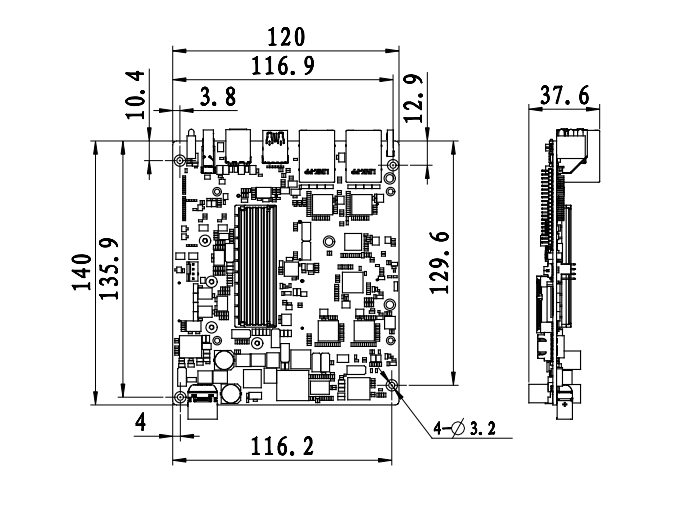

Y-C28 is an edge AI computing carrier board designed for NVIDIA® Jetson™ Thor / AGX Orin, ideal for robotics, industrial automation, autonomous driving and other demanding edge deployments. It features industrial-grade high-reliability design with ESD, over-voltage and reverse polarity protection. All components are wide-temperature rated for stable operation in harsh environments. An RTC power connector is integrated to maintain clock synchronization when main power is off.With a compact layout of 140mm×120mm×37.6mm, Y-C28 routes key interfaces to one side for easy integration. It supports 4×4/6×2 Lane MIPI CSI cameras and offers flexible expansion for multi-channel HD cameras, Gigabit Ethernet, high-capacity storage, Wi-Fi and 5G modules. Integrated SPI/GPIO/CAN/UART interfaces support secondary development and customization. A power output connector is also provided to directly supply external peripherals.

Applications
