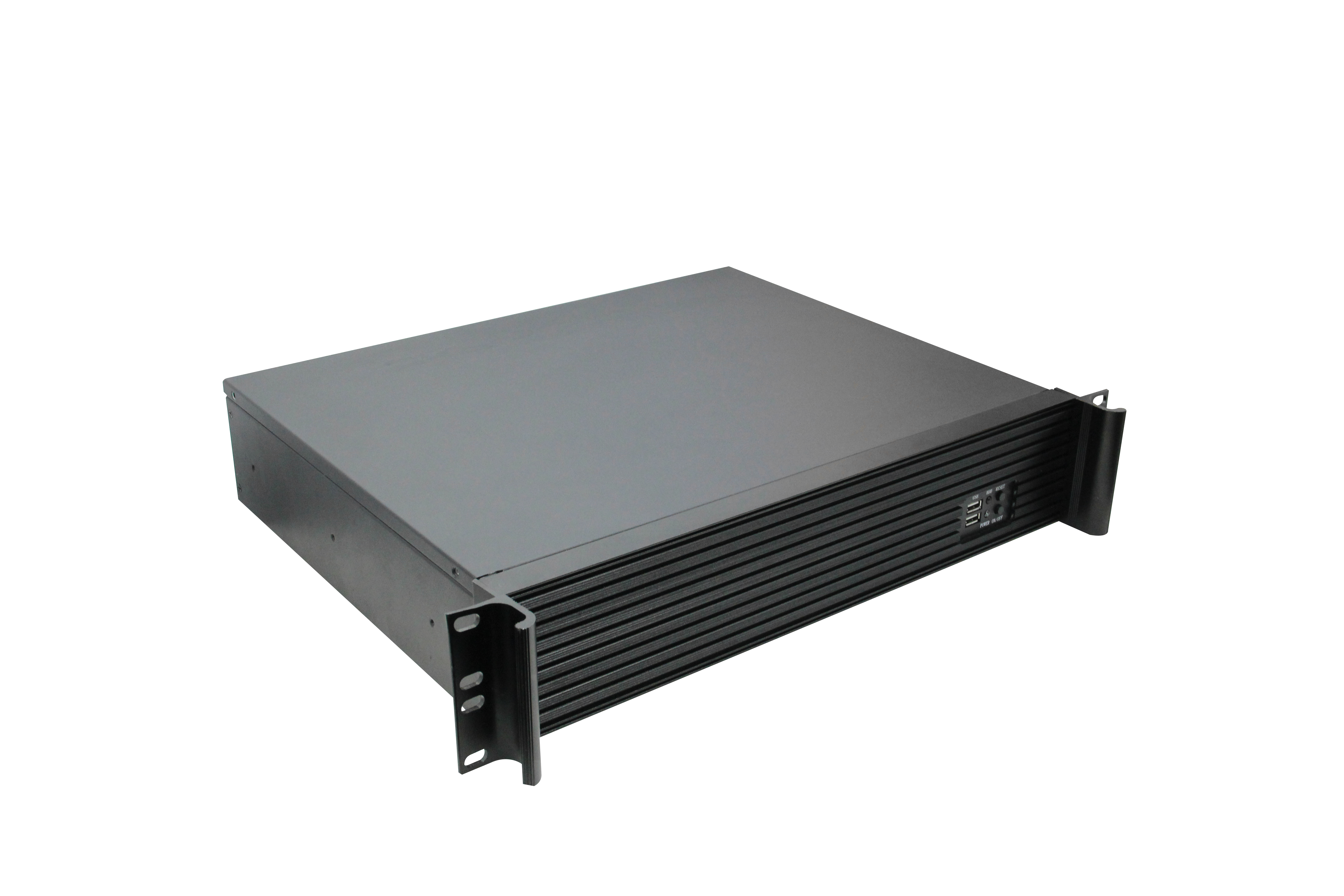

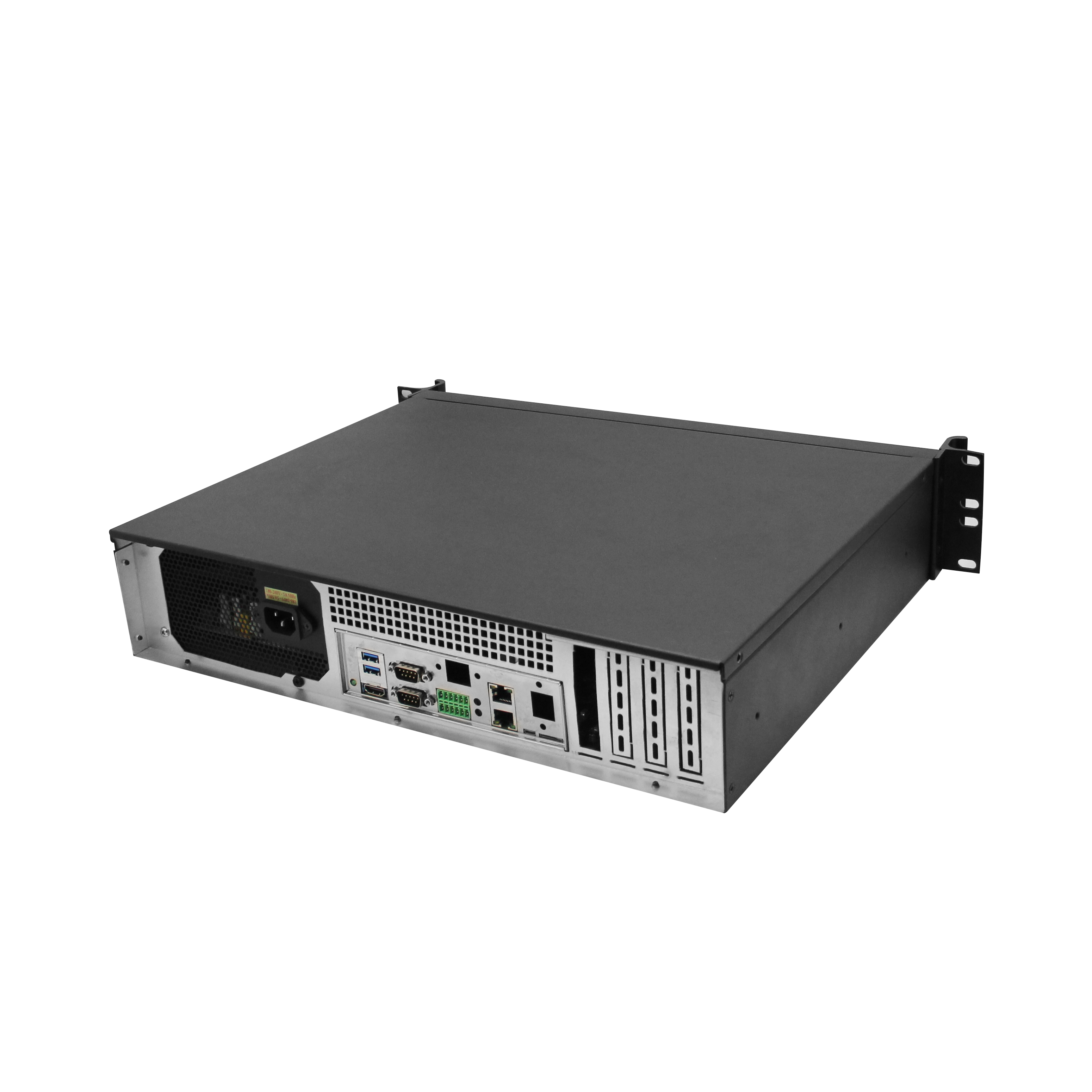

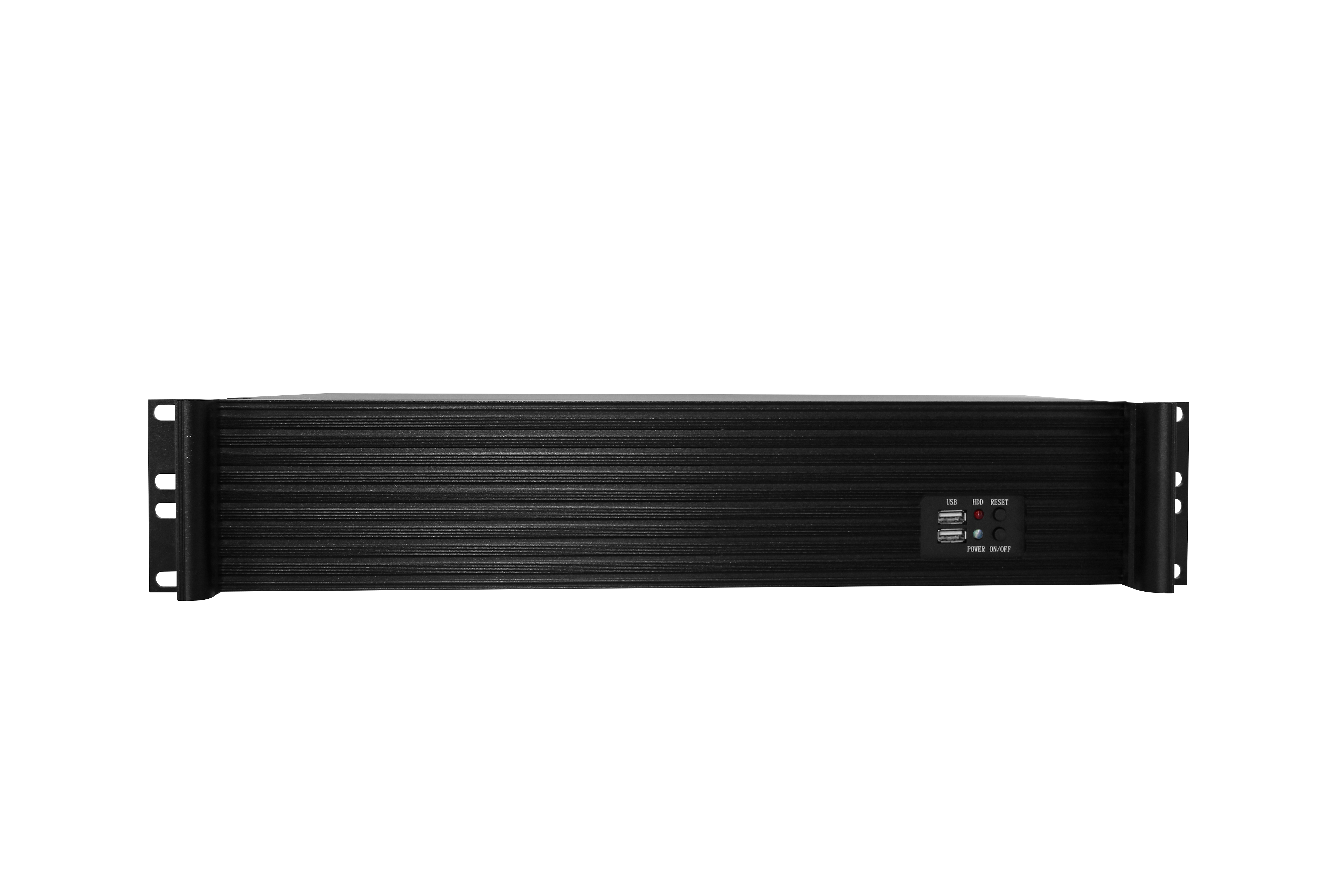

The 8F2E1 is a high-performance edge AI computing device powered by NVIDIA® Jetson™ AGX Orin/AGX Xavier, offering 32~275 TOPS AI performance for education, research, industrial automation, smart city and energy scenarios.Housed in a standard 2U rackmount chassis with a 300W power supply and multi-protection, it provides rich I/O and flexible expansion. With AGX Orin, it supports up to 8× Gigabit ports or 4× Gigabit + 1× 10G combo configuration.
8F2E1

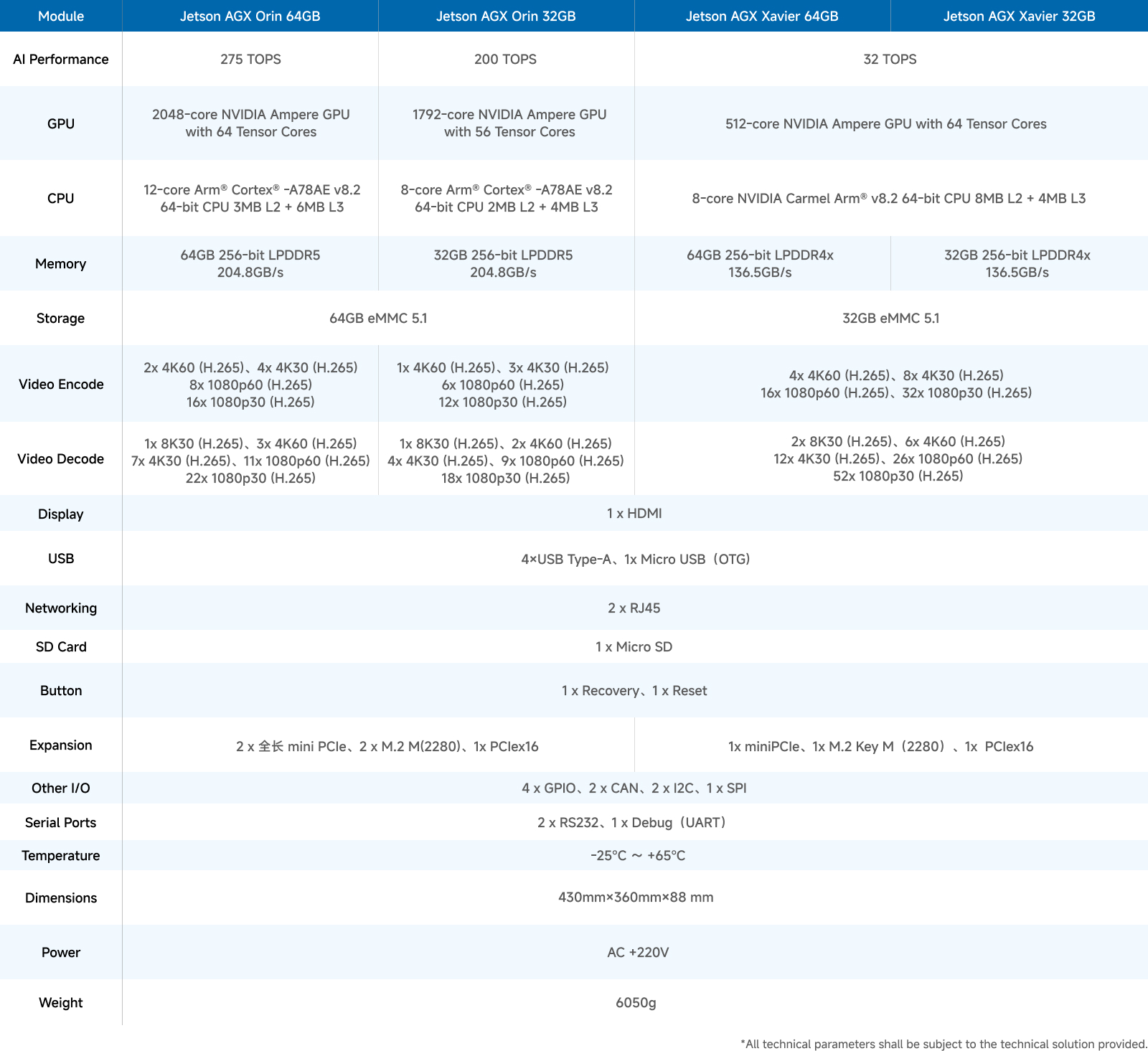

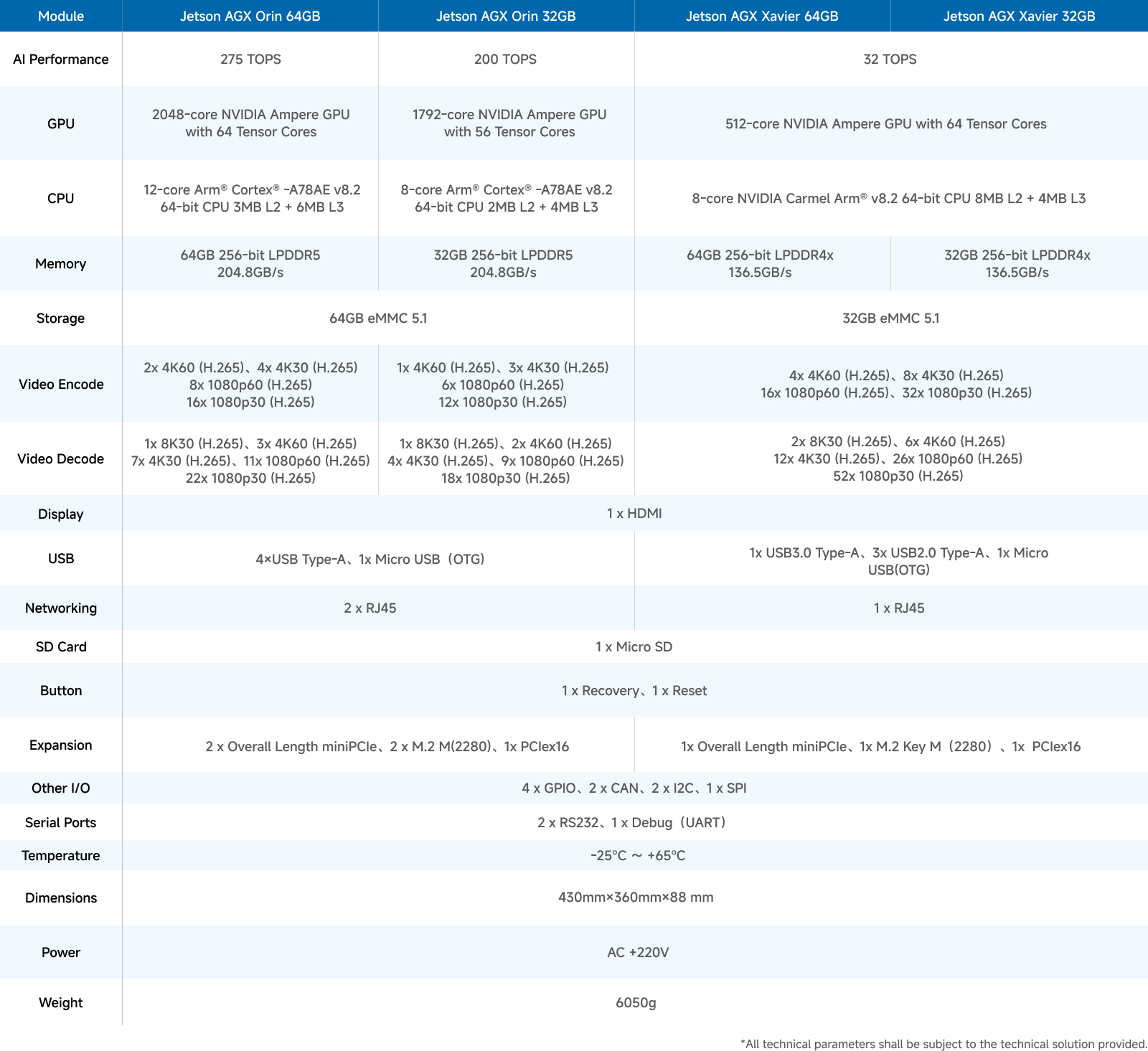

Jetson™ AGX Orin: 275/200 TOPS, 64/32GB LPDDR5, 64GB eMMC;
Jetson™ AGX Xavier: 32 TOPS, 64/32GB LPDDR4X, 32GB eMMC
Display: 1 × HDMI

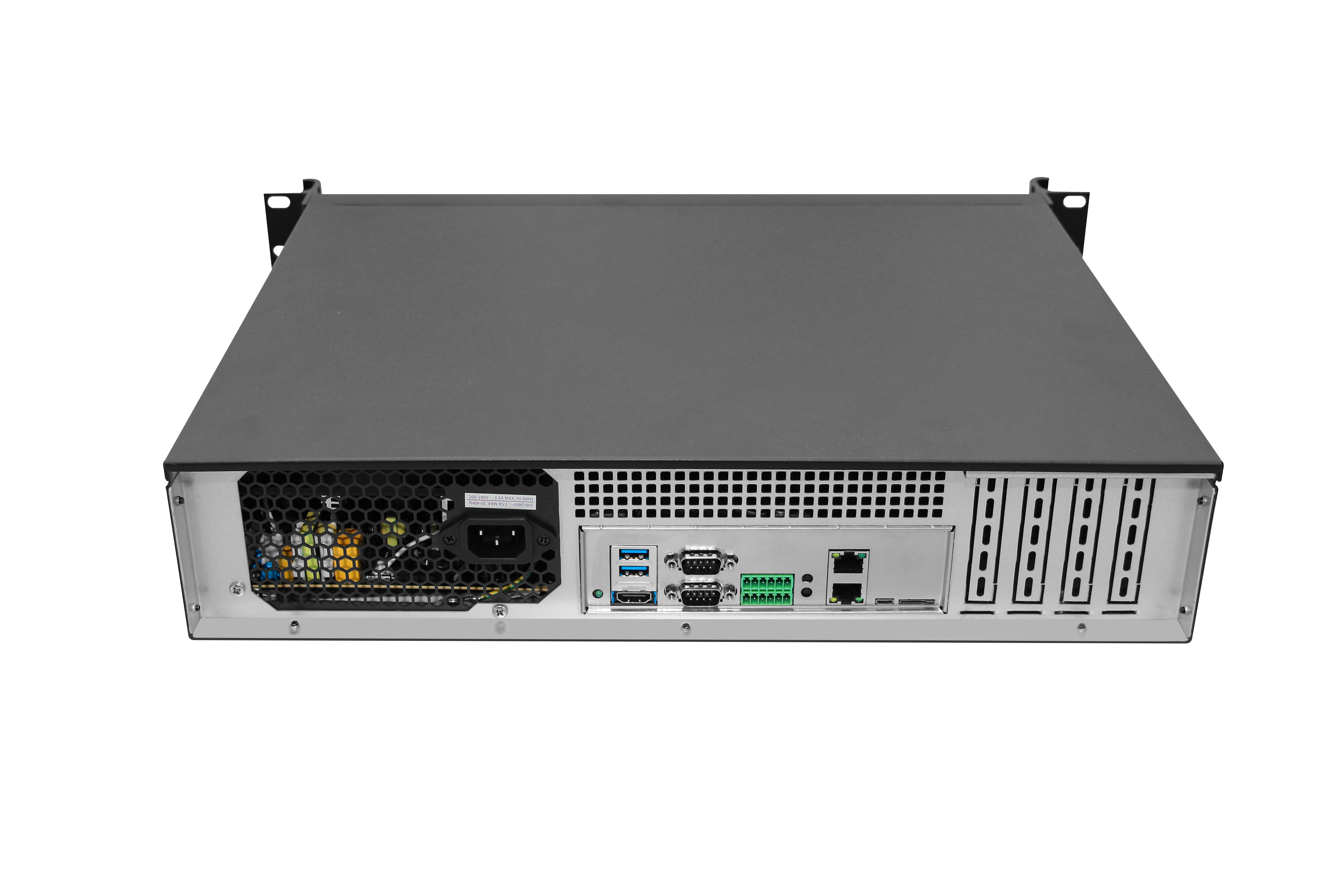

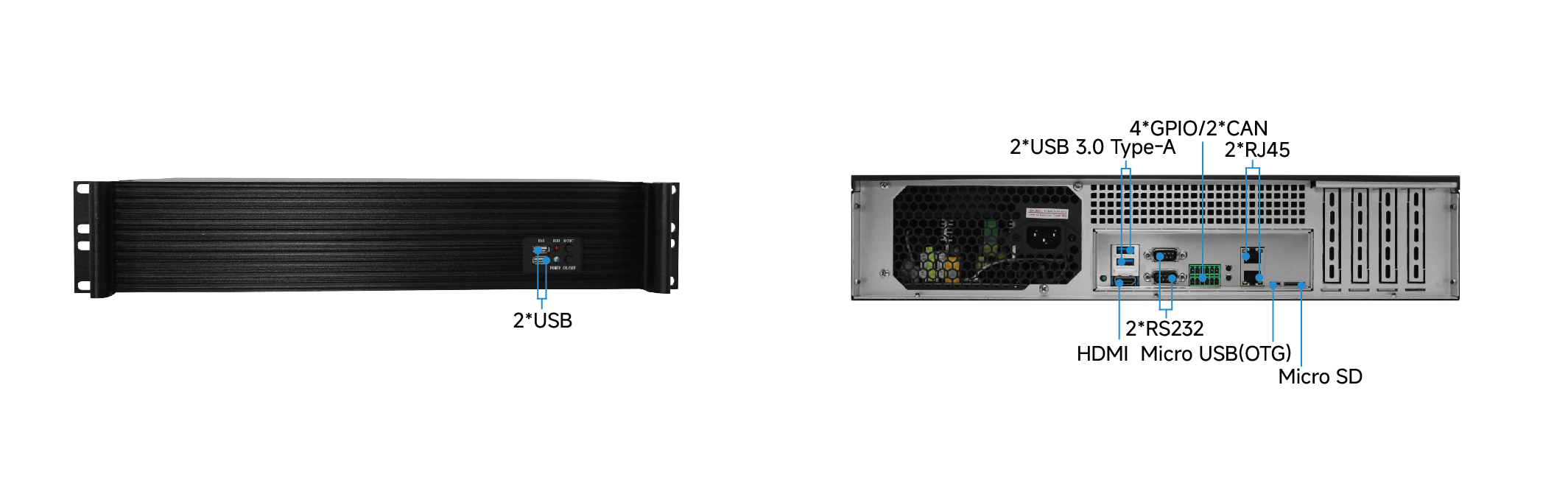

Rich I/O: 2 × RJ45, 4 × USB Type-A, 1 × Micro SD, 4 × GPIO, 2 × CAN, 2 × RS232

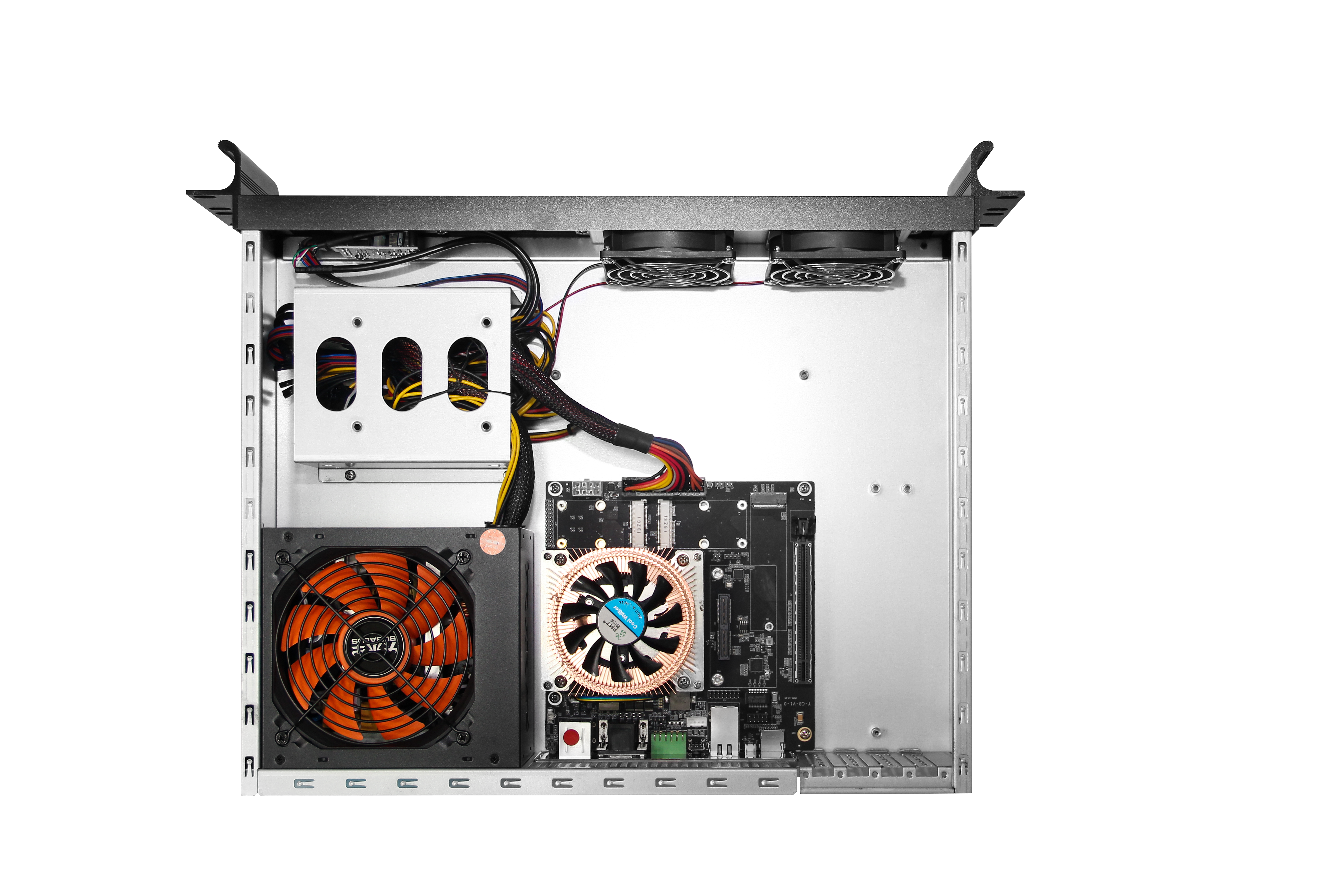

Expansion: Built-in 2 × full-size miniPCIe, 2 × M.2 M 2280, 1 × PCIe x16
Operating Temperature: -25℃ ~ +65℃
Input Voltage: AC 220V
Pre-installed Ubuntu
