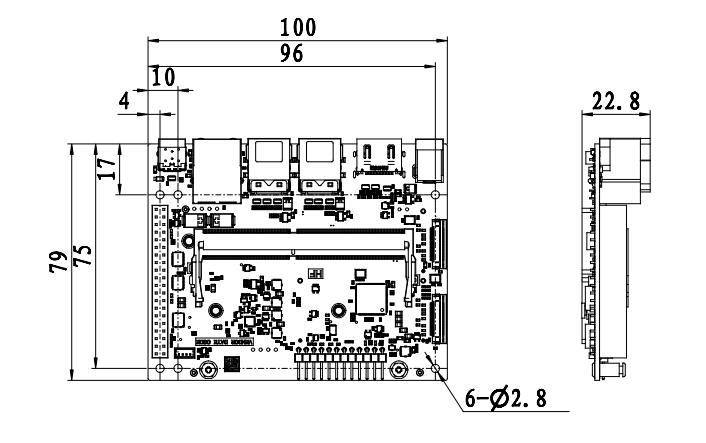

The Y-C18 is an industrial-grade carrier board purpose-built for the NVIDIA® Jetson™ Orin NX and Orin Nano Modules. With a compact form factor of 100 mm × 79 mm × 22.8 mm, it delivers robust I/O capability, deterministic connectivity, and scalable expansion—optimized for mission-critical edge AI deployments in industrial, medical, and autonomous systems.
Engineered for reliability in demanding environments, the Y-C18 features comprehensive circuit protection, including ESD safeguarding on all external interfaces, input overvoltage protection, and reverse-polarity prevention. All onboard components are rated for extended temperature operation, ensuring stable performance across a wide ambient temperature range of –25°C to +60°C.

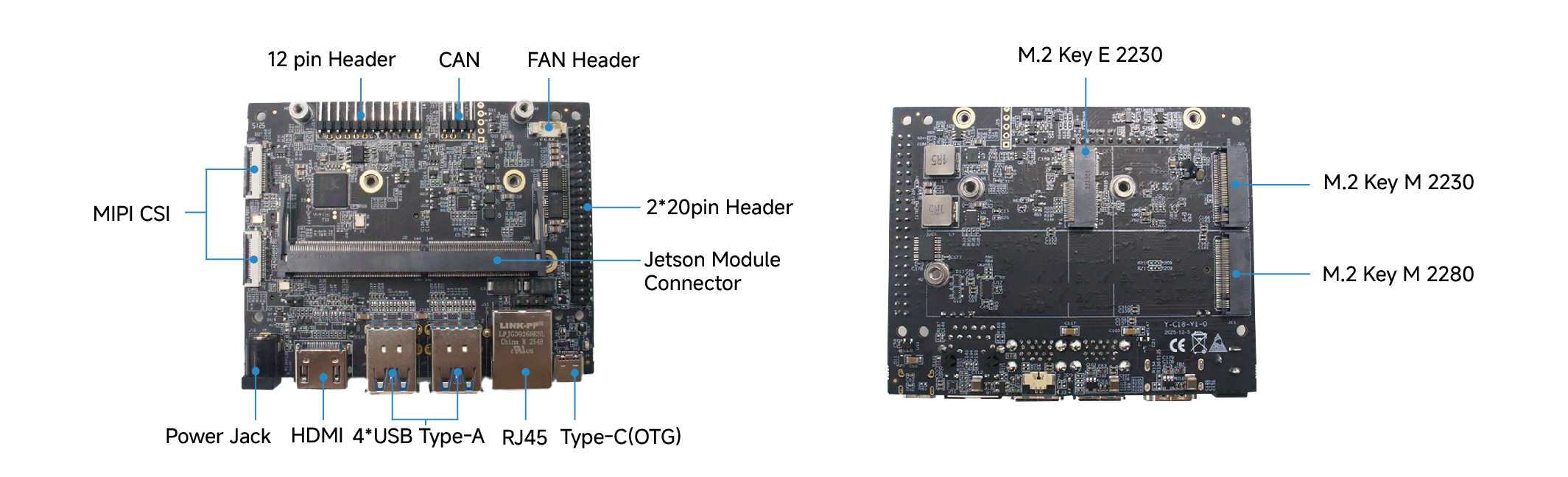

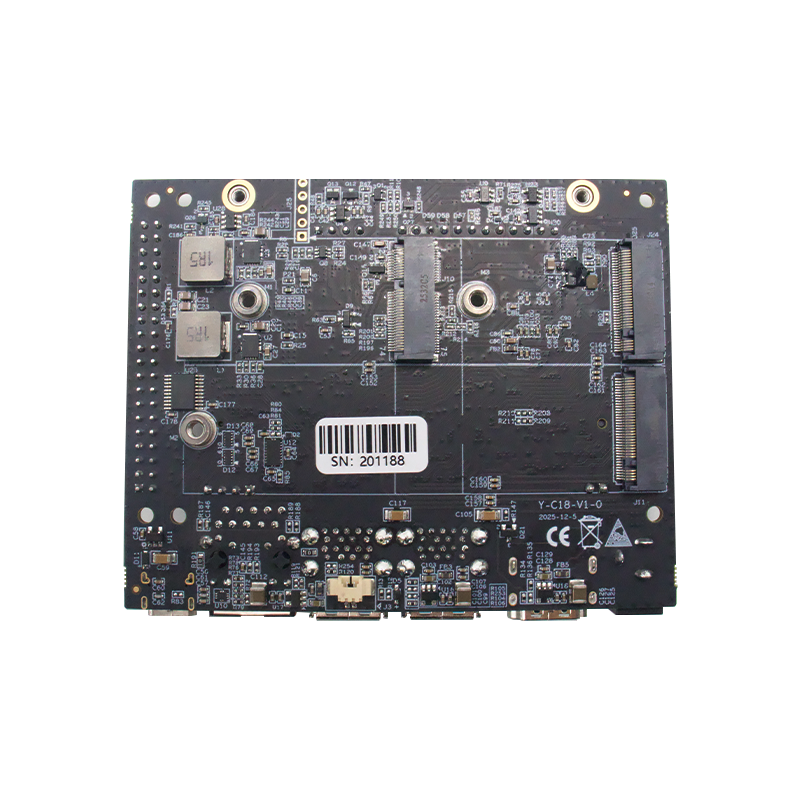

The board supports high-bandwidth vision acquisition through dual 4-lane MIPI CSI interfaces, enabling simultaneous connection of industrial-grade cameras. For storage and wireless expansion, it integrates two M.2 Key M slots (supporting 2230 and 2280 SSD) and one M.2 Key E slot (2230) for Wi-Fi module.
