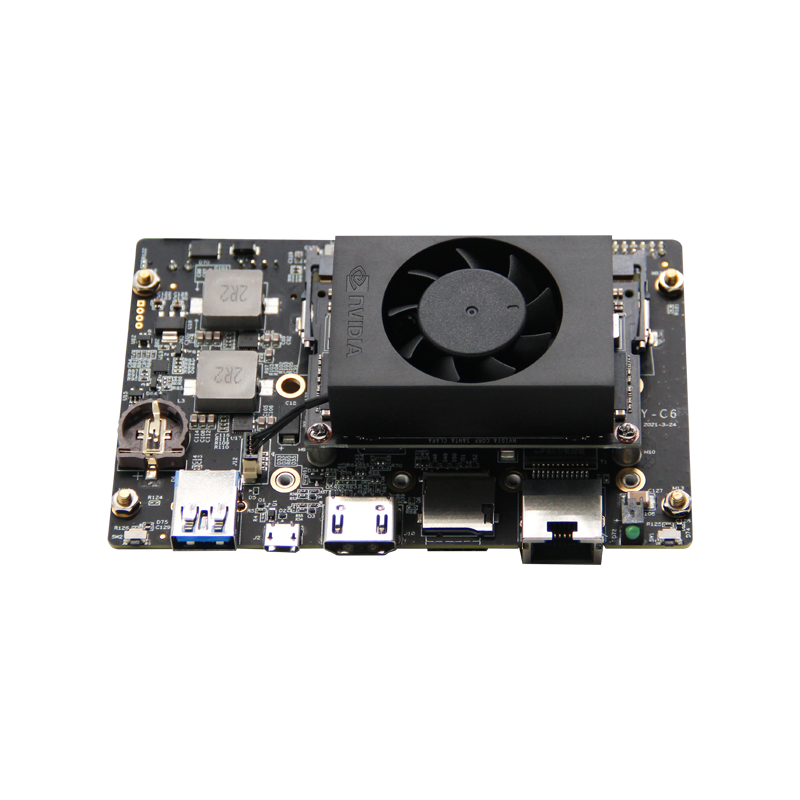

Y-C6-DEV is an edge AI computing development kit supporting NVIDIA® Jetson™ Nano/TX2 NX/Xavier NX/Orin Nano/Orin NX system-on-modules, providing graded AI performance from 0.5 TFLOPS to 117 TOPS to match diverse edge computing requirements. Its compact and highly integrated design meets industrial-grade demands for high performance, low power consumption and harsh environment adaptability.The kit integrates dual high-performance miniPCIe slots supporting standard function modules for flexible upgrade and customization. It is widely used in smart logistics, retail, industrial inspection and smart agriculture to accelerate AI deployment.

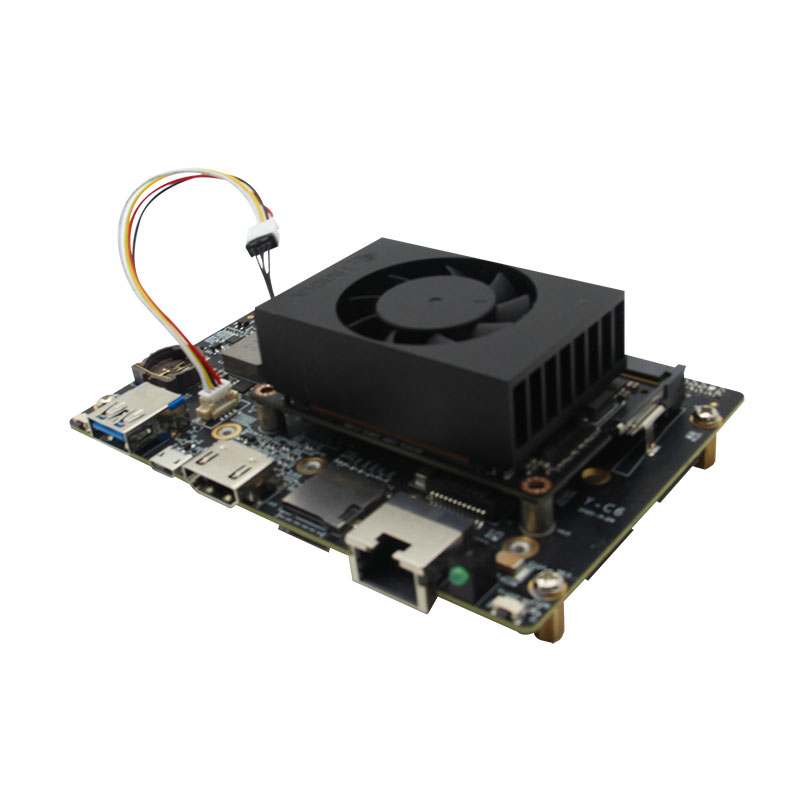

Y-C6-DEV

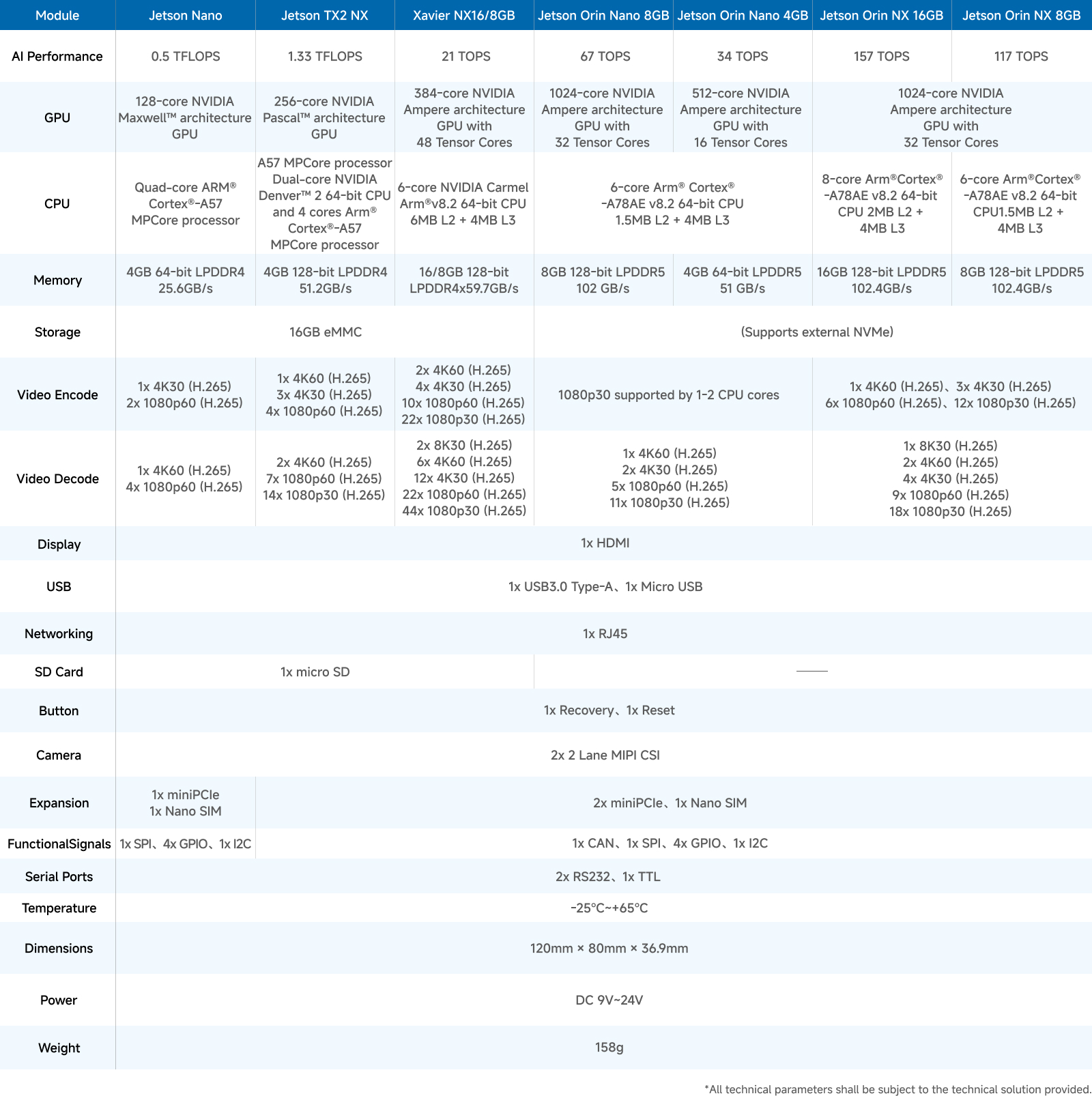

Jetson™ Orin NX: 157/117 TOPS, 16/8GB LPDDR5
Jetson™ Orin Nano: 67/34 TOPS, 8/4GB LPDDR5
Jetson™ Xavier NX: 21 TOPS, 16/8GB LPDDR4x, 16GB eMMC
Jetson™ TX2 NX: 1.33 TFLOPS, 4GB LPDDR4, 16GB eMMC
Jetson™ Nano: 0.5 TFLOPS, 4GB LPDDR4, 16GB eMMC
Display: HDMI
Rich I/O: RJ45, USB3.0 Type-A, Micro USB, RTC, GPIO

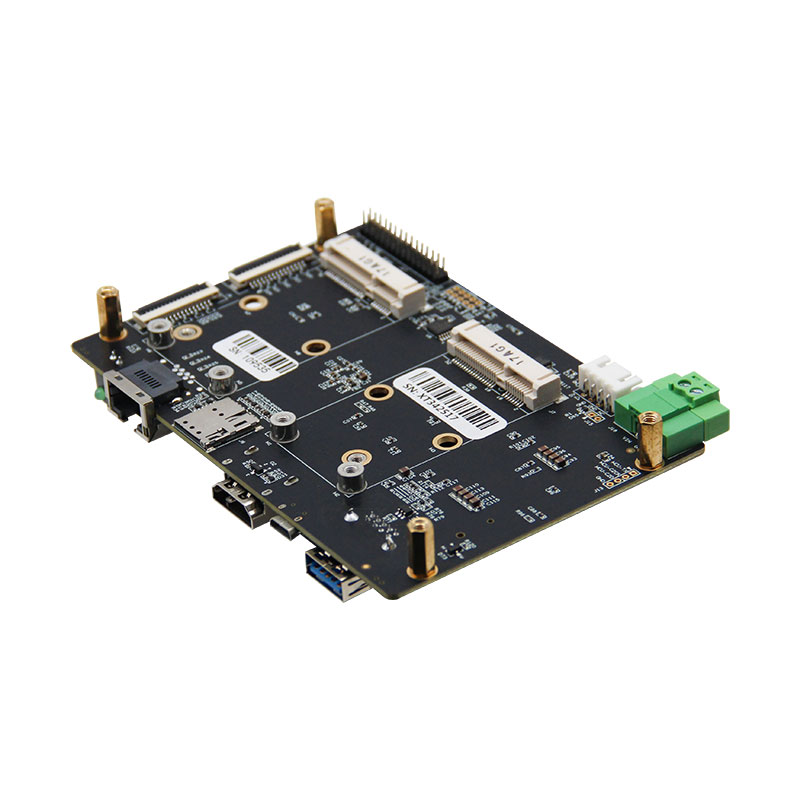

Expansion Slots: miniPCIe (USB2.0 & PCIe x1)
Camera: 2× 2 Lane MIPI CSI
Operating Temperature: -25℃ ~ +65℃
Input Voltage: DC 9V ~ 24V
Pre-installed Ubuntu
