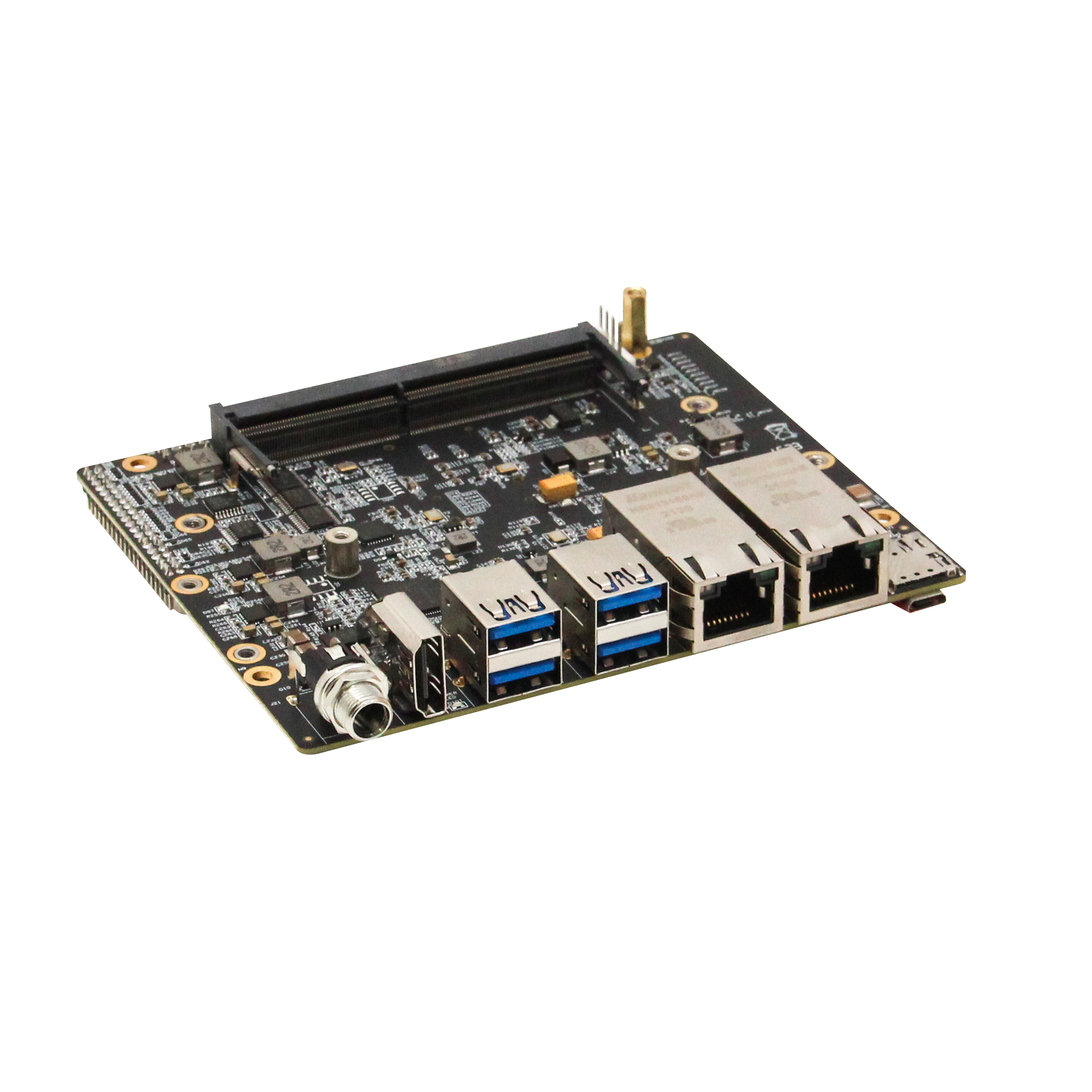

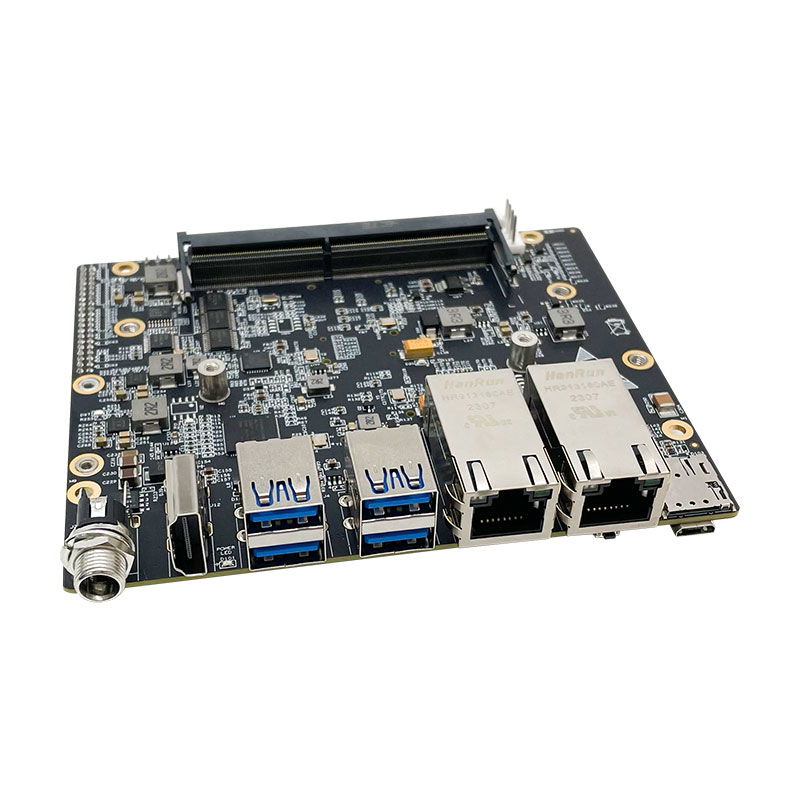

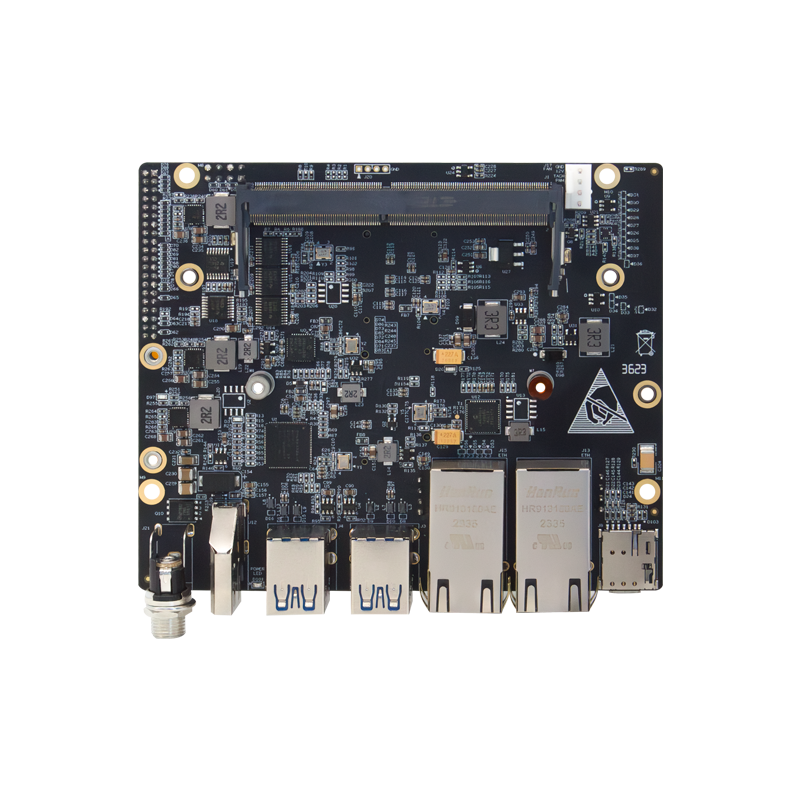

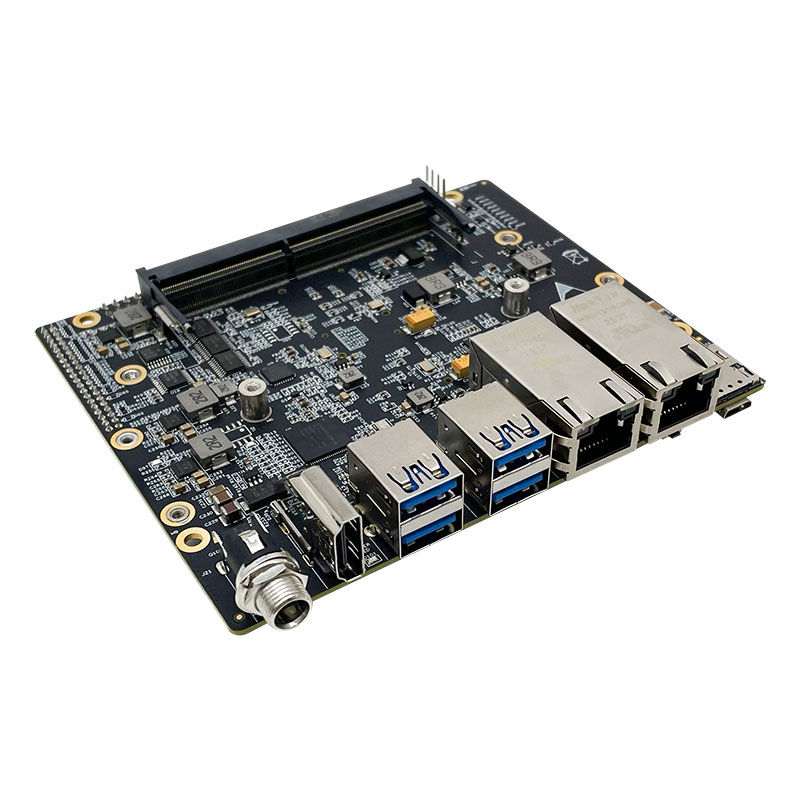

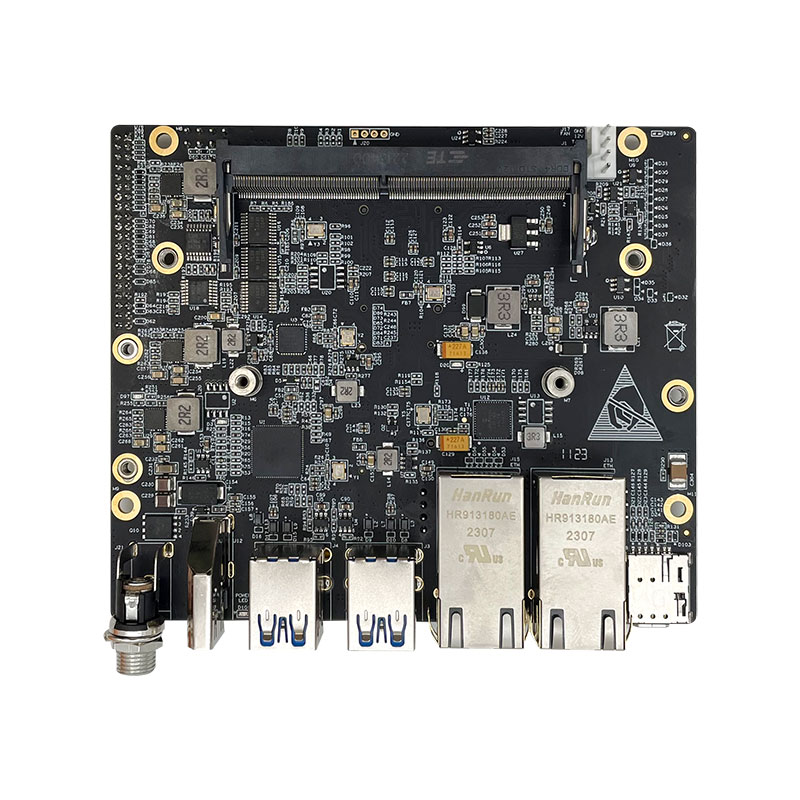

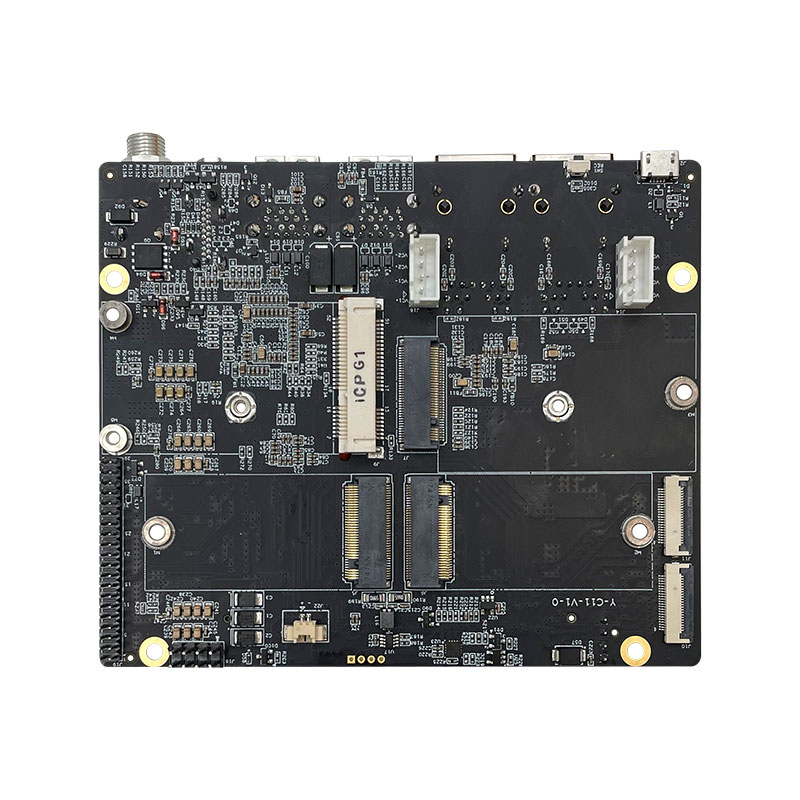

Y-C11 is a high-compatibility edge AI carrier board built for NVIDIA® Jetson™ Orin NX / Orin Nano, offering rich I/O and flexible expansion for industrial automation, machine vision, logistics, intelligent transportation and smart cities.It adopts industrial-grade high-reliability design with ESD, over-voltage and reverse polarity protection, using wide-temperature components to ensure stable performance. The board provides dual independent Gigabit ports with optional PoE support and MIPI CSI for industrial cameras. It supports 4G/5G via M.2 B and offers miniPCIe and dual M.2 M slots for expanding networking, storage, audio/video capture and multi-serial modules.
Y-C11

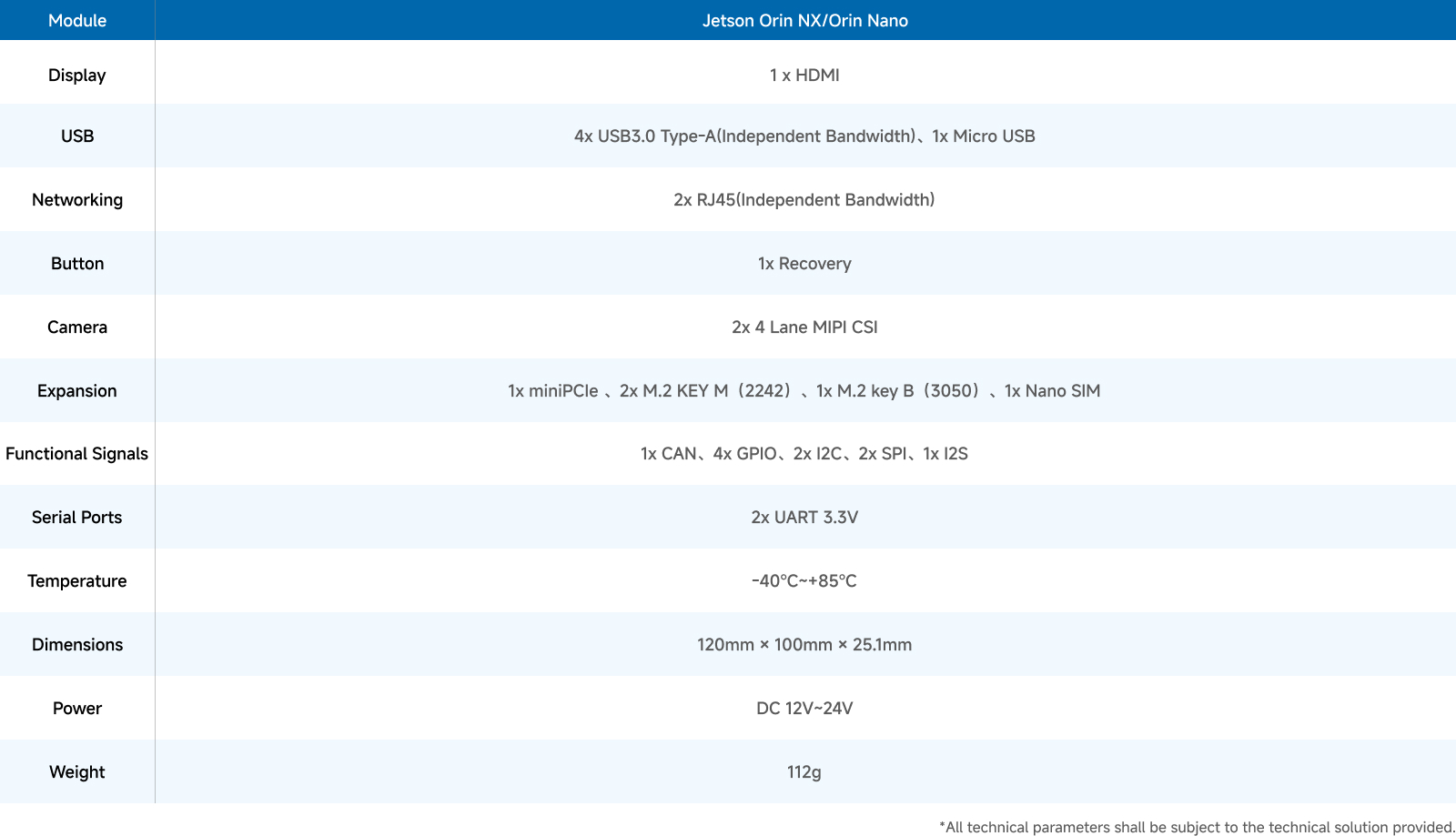

Compatible with Jetson™ Orin NX / Orin Nano

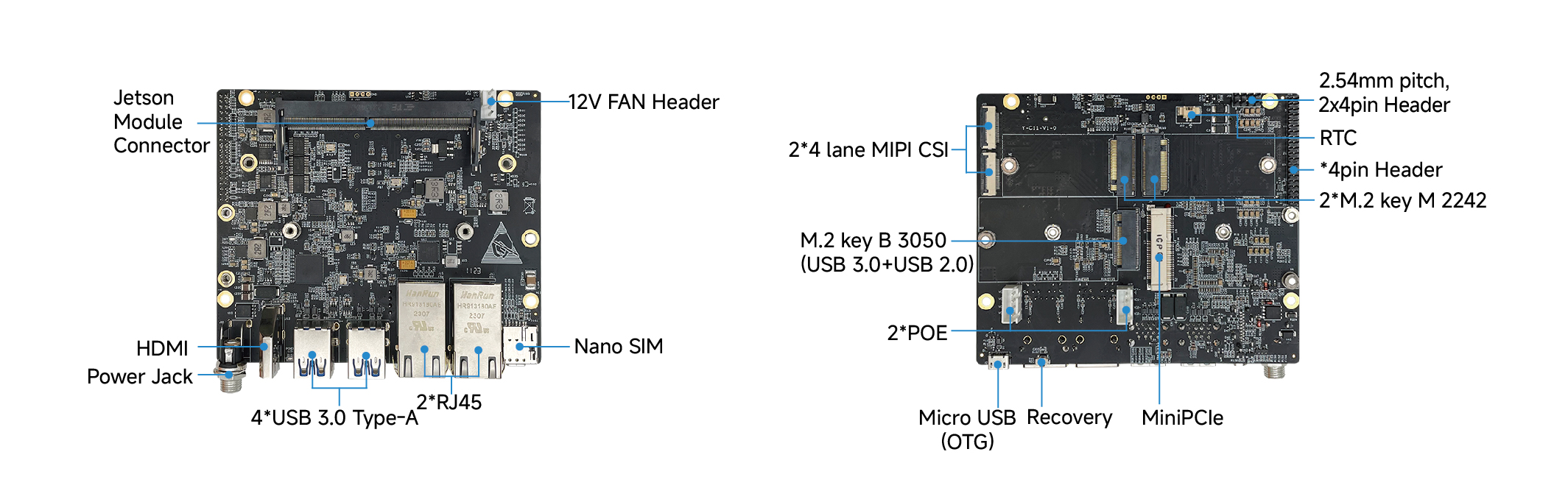

Display: 1×HDMI
Rich I/O: 2×RJ45 (Independent Bandwidth), 4×USB3.0 Type-A (Independent Bandwidth), 1×Micro USB, 1×CAN, 4×GPIO, 2×I2C, 2×SPI, 1×I2S, 2×UART
Expansion Slots: 1×miniPCIe, 2×M.2 M 2242, 1×M.2 B 3050
Camera: 2×4 Lane MIPI CSI
Operating Temperature: -40℃ ~ +85℃
Input Voltage: DC 12V ~ 24V
