NVIDIA Jetson 开发系统

  • Y-C11-DEV 开发系统
  • Y-C11-DEV 开发系统
  • Y-C11-DEV 开发系统
Y-C11-DEV 开发系统Y-C11-DEV 开发系统Y-C11-DEV 开发系统

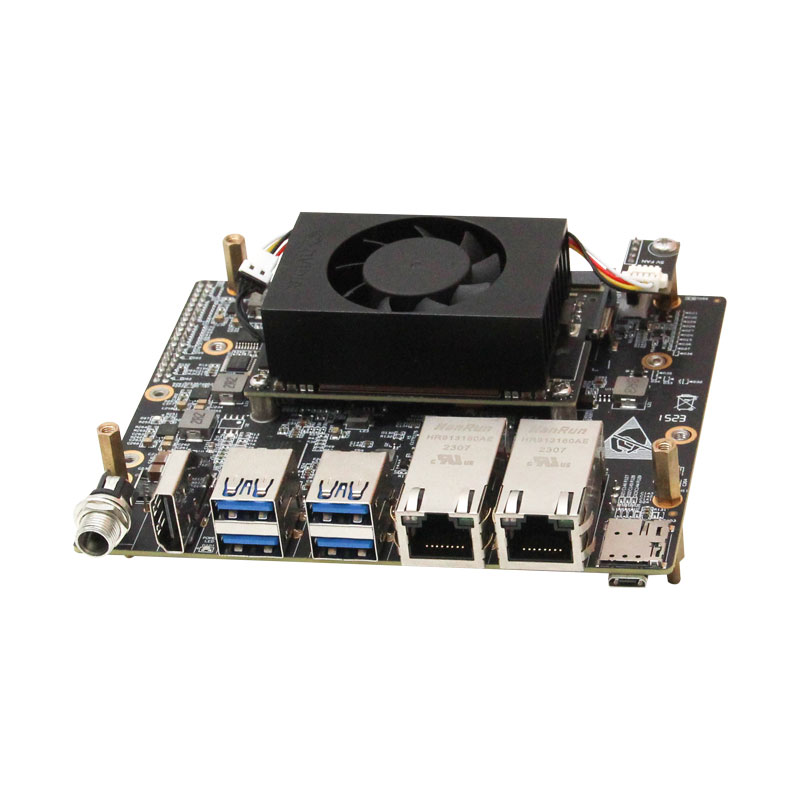

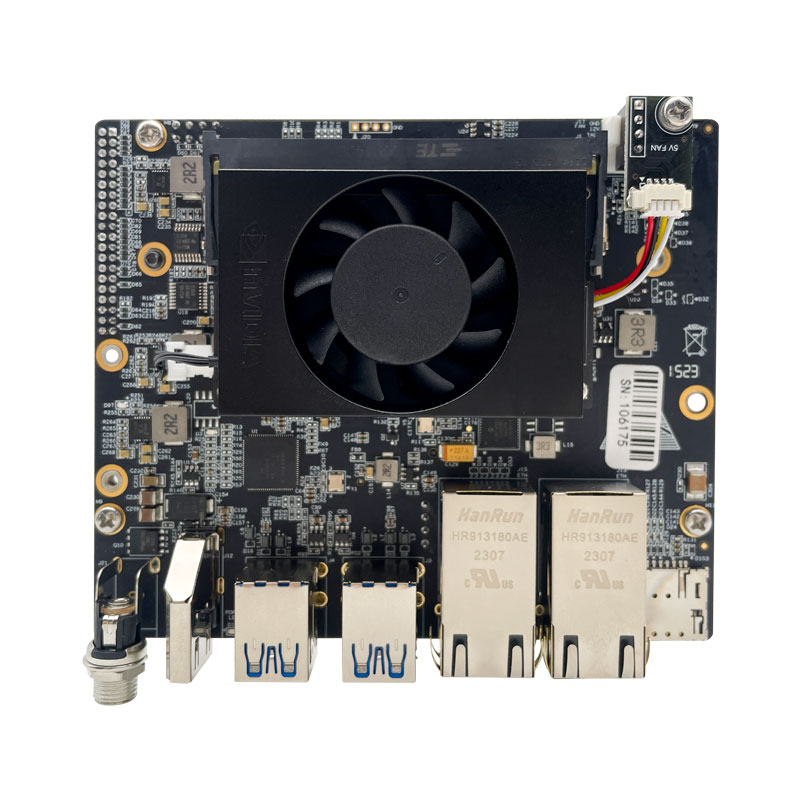

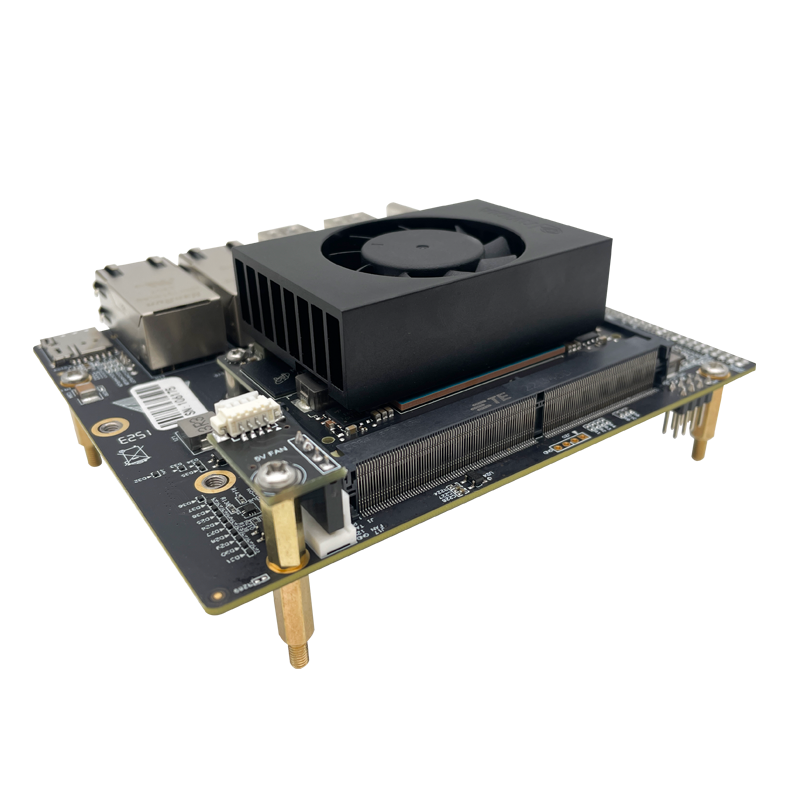

Y-C11-DEV 开发系统

适配NVIDIA Jetson Orin NX/Orin Nano 模组
尺寸:120mm*108mm*36mm
重量:188g
温度:-25~+70°C
电源要求:DC +12V~+24V


NVIDIA Jetson Orin Nano/Orin NX
Y-C11开发套件


产品特性

* 适配模组: NVIDIA Jetson Orin NX/Orin Nano Module

* 通用接口: 2x Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connector (extensible support POE power supply), 4x USB 3.0, 1x Micro USB, 1x HDMI Type-A and 1x Nano SIM

* Other I/O: 1x fan, 2x M.2 2242 M key, 1x M. 2 3050 B key slot (for 4G/5G module), 2x 4 Lane MIPI camera interface FPC connector, 2x 20 pin 2.0mm spacing multi-function extension pin connector (including 4x GPIO, 2x I2C, 2x SPI, 1x I2S, 2x UART)


* 输入功率: DC + 12V ~ + 24V

* 工作温度: -20°C~ 65℃



* 尺寸: 120mm*102mm*36mm

* 重量:1500g



应用场景
* 工业自动化
* 无人机/无人船
* 智慧医疗
* V2X
* IoT
* 智慧教育
Product Name
Y-C11-DEV
Jetson Module Supported
NVIDIA Jetson Orin Nano/Orin NX
Networking
2x Gigabit Ethernet (10/100/1000)
USB
4x USB 3.0
1x Micro USB
Camera
2x 4 Lane MIPI camera interface FPC connector
Display
1x HDMI
FAN
1x FAN connector
M.2 KEY M
2x M.2 KEY M interface
Other I/O
1x CAN, 4x GPIO, 2x I2C, 2x SPI, 1x I2S, 1x UART
Mechanical
120mm x 102mm x 36mm
Weight
188g
Operating Temperature
-20℃~65℃


NVIDIA Jetson Orin NX/Orin Nano 模组参数


Jetson Orin NX 16GB
Jetson Orin NX 8GB
Jetson Orin Nano 8GB
Jetson Orin Nano 4GB
AI Performance
100 TOPS
70 TOPS
40 TOPS
20 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory 16GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
68 GB/s
4GB 64-bit LPDDR5
34 GB/s

Storage

-
(Supports external NVMe)
Video Encode
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30 supported by 1-2 CPU cores

Video Decode

1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)

CSI Camera

Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)

PCIe

1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)
1 x4 + 3 x1
(PCIe Gen3, Root Port, & Endpoint)
USB 3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0

Networking

1x GbE
Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
PowerPower 10W - 25W
10W - 20W
7W - 15W
7W - 10W
Mechanical
69.6mm x 45mm
260-pin SO-DIMM connector

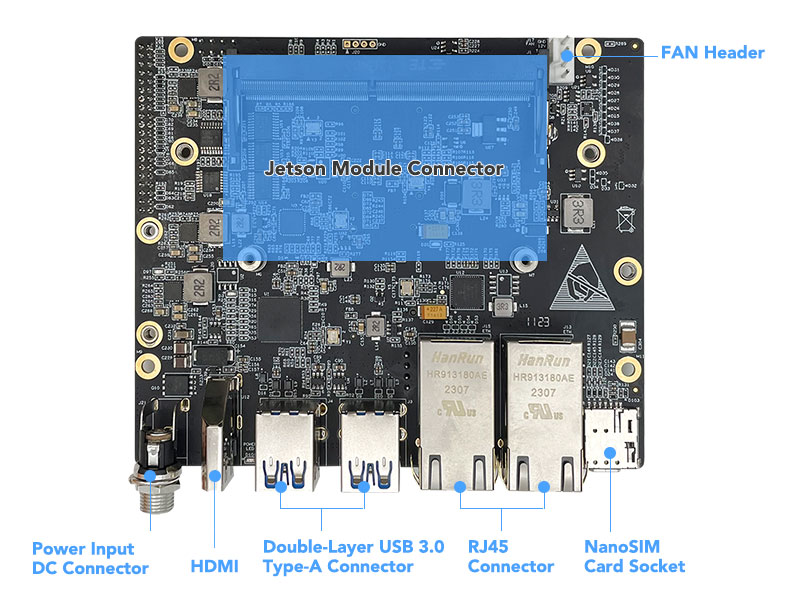

The top view of Y-C11 carrier board

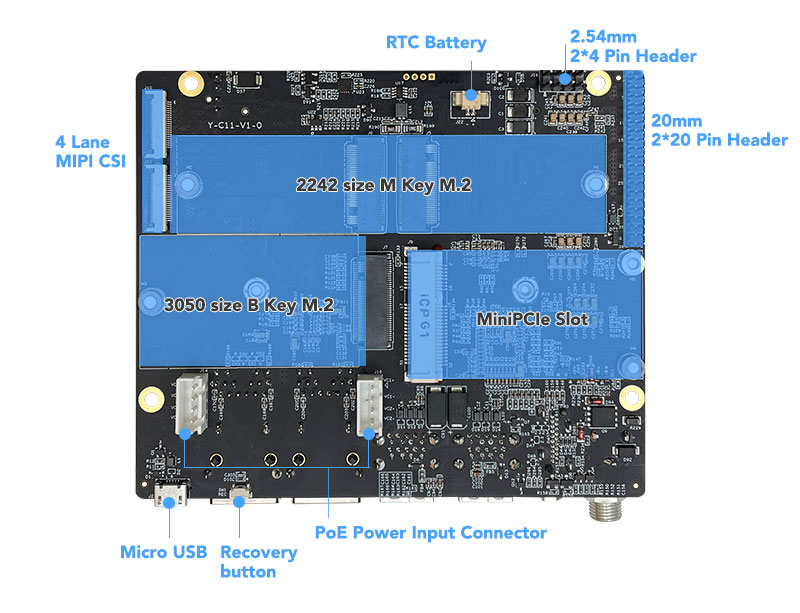

The bottom view of Y-C11 carrier board
