NVIDIA Jetson 开发套件

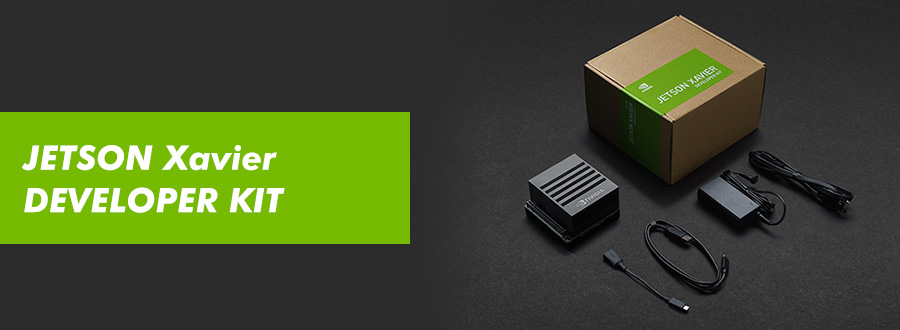

Jetson AGX Xavier 开发套件

32GB eMMC 5.1
32GB 256-bit LPDDR4x | 137GB/s
105mm x 105mm x 65mm

GPU	512-Core Volta GPU with Tensor Cores
CPU	8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3
Memory	16 GB 256-Bit LPDDR4x \| 137 GB/s
Storage	32 GB eMMC 5.1
DL Accelerator	(2x) NVDLA Engines*
Vision Accelerator	7-Way VLIW Vision Processor*
Encoder/Decoder	(2x) 4Kp60 \| HEVC/(2x) 4Kp60 \| 12-Bit Support
Size	105mm x 105mm
Deployment	Module (Jetson Xavier)
Product Weight w/ Packaging	1548g
Package Dimension	223(L) x 209(W) x 134(H)mm
DEVELOPER KIT I/Os	JETSON XAVIER MODULE INTERFACE
PCIe x16	x8 PCIe Gen4/x8 SLVS-EC
RJ45	Gigabit Ethernet
USB-C	2x USB 3.1, DP (Optional), PD (Optional)
USB-C	Close-System Debug and Flashing Support on 1 Port
Camera Connector	(16x) CSI-2 Lanes
M.2 Key M	NVMe
M.2 Key E	PCIe x1 + USB 2.0 + UART (for WiFi/LTE)/I2S/PCM
40-Pin Header	UART + SPI + CAN + I2C + I2S + DMIC + GPIOs
HD Audio Header	High-Definition Audio
eSATAp + USB3.0 Type A	SATA Through PCIe x1 Bridge (PD + Data for 2.5 inch SATA) + USB 3.0
HDMI Type A/eDP/DP	HDMI 2.0, eDP 1.2a, DP 1.4
uSD/UFS Card Socket	SD/UFS

*Please refer to NVIDIA documentation for what is currently supported.
