NVIDIA Jetson 整机

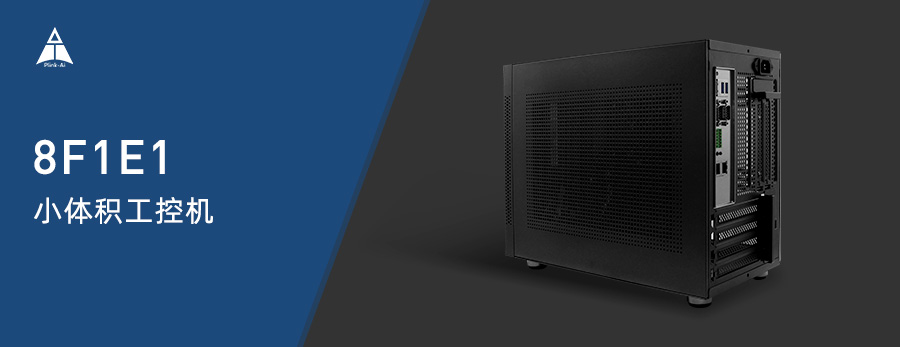

Jetson AGX Orin / Xavier 工控机 8F1E1

搭配 NVIDIA Jetson AGX Xavier / AGX Orin系列核心模块的机架式 AI 工控机

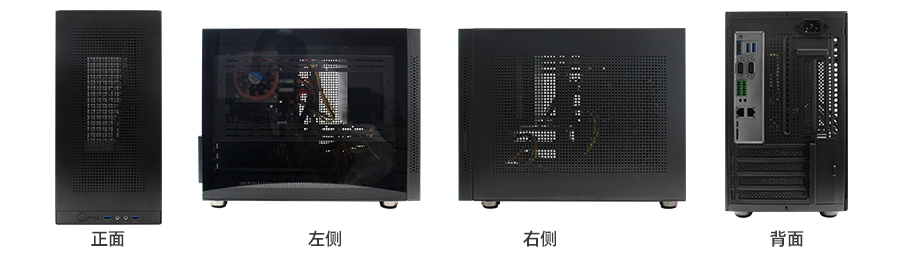

8F1E1是一款搭配NVIDIA Jetson AGX Xavier/AGX Orin核心模块的立式工控机，具有丰富的对外接口，内部接口器件均采用宽温型号

Module	AGX Xavier 32G	AGX ORIN 32G	AGX ORIN 64G
AI Performance	32 TOPS	200 TOPS	275 TOPS
CPU	8-core NVIDIA Carmel Arm^® v8.2 64-bit CPU 8MB L2 + 4MB L3	8-core Arm^® Cortex^®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3	12-core Arm^® Cortex^®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory	32GB 256-bit LPDDR4 x 136.5GB/s	32GB 256-bit LPDDR5 204.8 GB/s	64GB 256-bit LPDDR5 204.8 GB/s
GPU	512-core NVIDIA Volta GPU with 64 Tensor Cores	1792-core NVIDIA Ampere GPU with 56 Tensor Cores	2048-core NVIDIA Ampere GPU with 64 Tensor Cores
USB Micro-B	1 x Type B (OTG)
USB Type-A	1 x USB 3.1	2 x USB 3.1	2 x USB 3.1
Other I/O	4 x GPIO(3.3V) \| 1 x SPI(3.3V) \| 2 x I2C(3.3V) \| 2 x RS 232 \| 1 x Debug(UART) 2 x CAN (with on-board transceiver)
Networking	2 x 10/100/1000 Ethernet/RJ45
Power Supply	AC 220V
Temperature	-20~+65°C
Dimensions	391mm×303mm×185 mm
Weight	7700g
