NVIDIA Jetson 整机

  • Jetson AGX Orin / Xavier 工控机 8F2E1
  • Jetson AGX Orin / Xavier 工控机 8F2E1
  • Jetson AGX Orin / Xavier 工控机 8F2E1
Jetson AGX Orin / Xavier 工控机 8F2E1Jetson AGX Orin / Xavier 工控机 8F2E1Jetson AGX Orin / Xavier 工控机 8F2E1

Jetson AGX Orin / Xavier 工控机 8F2E1

出厂预装 AGX ORIN / AGX Xavier 核心模组
1 个 micro SD 卡卡槽
可支持上电自动开机或按键启动
板载 Reset、Recovery 按键
产品尺寸：430mm×360mm×88mm
电源要求：220V
工作温度： -20~+65℃
重量：3340g

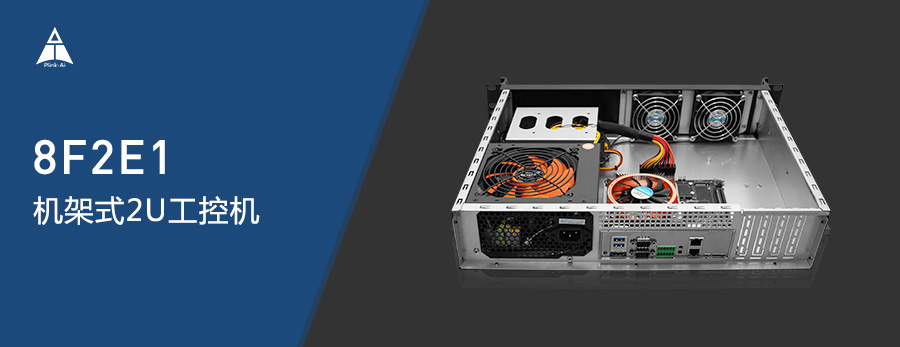

NVIDIA Jetson AGX Xavier/AGX Orin
2U工控机 8F2E1

* 适配模组:

NVIDIA Jetson AGX Orin/AGX Xavier Module

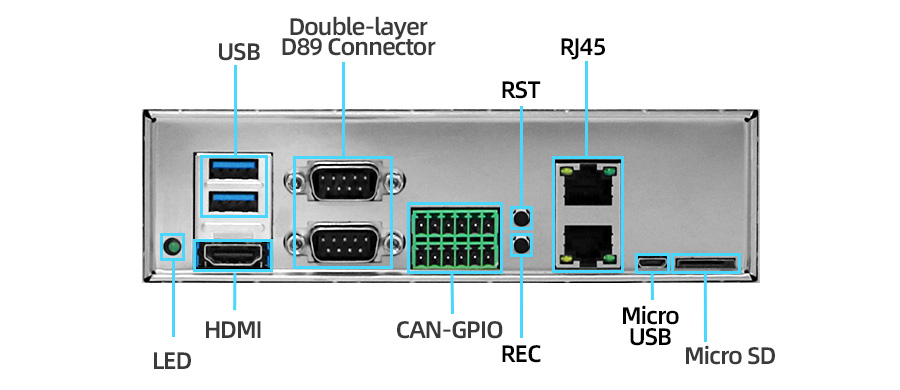

* 通用接口:
Offer 2x RJ45, 2x USB, 1x HDMI and 1x USB Micro B

* 外设接口:

1x FAN, 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x TF slot, 2x DB9 connector and 1x24 pin expansion header


* Input Power:220V


Product Name 8F2E1
Jetson Module Supported

NVIDIA Jetson AGX Orin/AGX Xavier

Networking 2x Gigabit Ethernet (10/100/1000 BASE-T) RJ45
USB 2x USB 3.0 Type-A
1x Micro USB
Camera 1x 120 pins CSI Camera expansion header
Display 1x HDMI
FAN 1x FAN connector
M.2 KEY M 2x M.2 KEY M interface
Other I/O 2x CAN，2x RS232，1x Debug，4x GPIO，1x SPI，2x I2C
Mechanical 430mm x 360mm x 88mm
Weight 6050g
Operating Temperature -20℃~65℃


Y-C8 Jetson Carrier Board features networking capability that is equipped with two Gigabit Ethernet (10/100/1000) port for fast data transfer speed. It also comes with two USB 3.0 Type-A ports, two USB 2.0 and one Micro-B for versatile connectivity options.

Note

When used with the Jetson AGX Xavier module, only one USB 3.1 is available, the rest is USB 2.0, and one RJ45 network port is optional

AGX Xavier 32G AGX Xavier Industrial AGX Orin 32G AGX Orin 64G
AI Performance 32 TOPS 30 TOPS 200 TOPS 275 TOPS
GPU 512-core NVIDIA Volta GPU with 64 Tensor Cores 1792-core NVIDIA Ampere GPU with 56 Tensor Cores 2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory 32GB 256-bit LPDDR4x 136.5GB/s 32GB 256-bit LPDDR4x (ECC support)
136.5GB/s 		32GB 256-bit LPDDR5 204.8 GB/s 64GB 256-bit LPDDR5 204.8 GB/s
Storage 32GB eMMC 5.1 64GB eMMC 5.1
Video Encode 4x4K60 (H.265) 16x1080p60 (H.265) 32x1080p30 (H.265) 2x 4K60 (H.265)
6x 4K30 (H.265)
12x 1080p60 (H.265)
24x 1080p30 (H.265) 		1x4K60 (H.265) 3x4K30 (H.265) 6x1080p 60 (H.265) 12x1080p 30 (H.265) 2x4K60 (H.265) 4x4K30 (H.265) 8x1080p 60 (H.265) 16x1080p 30 (H.265)
Video Decode 2x8K30 (H.265) 6x4K60 (H.265) 26x1080p60 (H.265) 52x 1080p30 (H.265) 2x 8K30 (H.265)
4x 4K60 (H.265)
8x 4K30 (H.265)
18x 1080p60 (H.265)
36x 1080p30 (H.265) 		1x8K30 (H.265) 2 x4K60 (H.265) 4x4K30 (H.265) 9x1080p60 (H.265) 18x1080p30 (H.265) 1x8K30 (H.265) 3x4K60 (H.265) 7x4K30 (H.265) 11x1080p60 (H.265) 22x 1080p30 (H.265)
PCIe 1x8 + 1x4 + 1x2 + 2x1 (PCIe Gen4, Root Port & Endpoint) Up to 2x8 + 2x4 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Networking 10/100/1000 BASE-T Ethernet 1x GbE 4x 10GbE
Display 3 multi-mode DP 1.4 /eDP 1.4/HDMI 2.0 No DSI support 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power 10W - 30W 20W - 40W 15W - 40W 15W - 60W
*出厂预安装NVIDIA Jetpack, Jetpack SDK包括板支持包(BSP)， Linux操作系统，NVIDIA CUDA, cuDNN和TensorRT软件库，用于深度学习，计算机视觉，GPU计算，多媒体处理等。
*支持整个Jetson软件堆栈和各种开发人员工具，用于构建PLink-AI提供的快速和强大的AI应用程序
